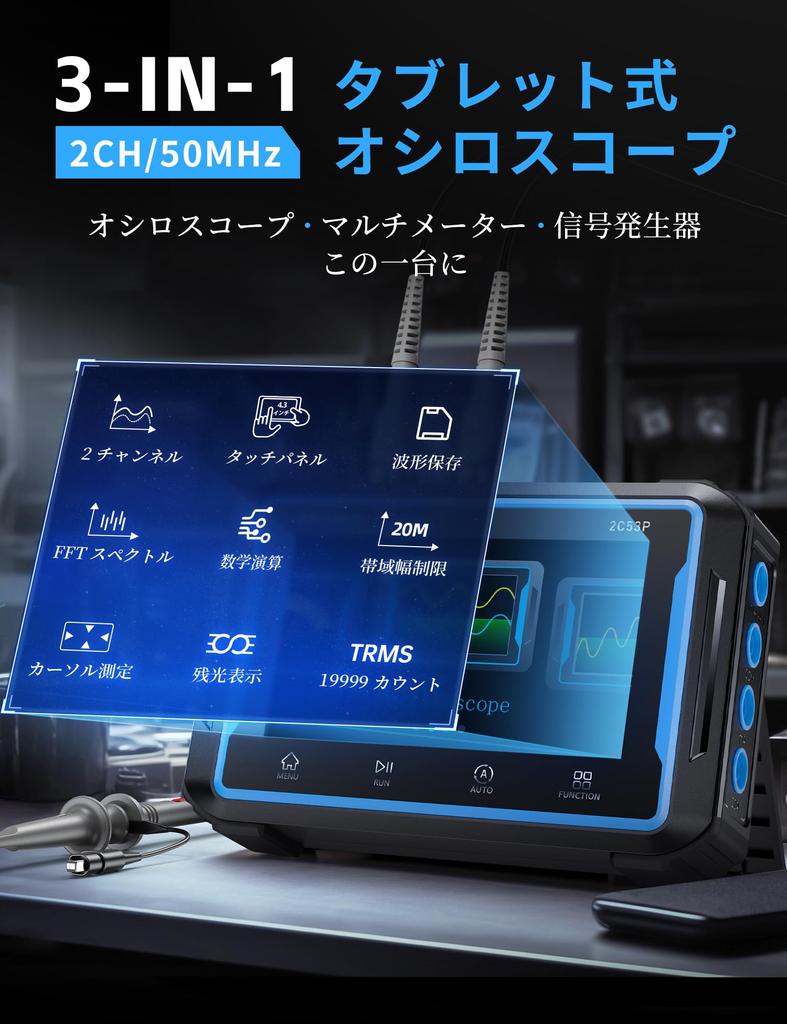

[Multifunctional and High-Performance] This multi-functional instrument combines an oscilloscope, multimeter, and signal generator in one. It features a 4.3-inch, 480*272 resolution IPS display, making it easy to read even in complex environments. It also features a built-in hardware ADC+MCU+FPGA for improved performance, and a touchscreen for easy and convenient measurement operation.
This is a 2-channel handheld oscilloscope with 50MHz bandwidth (20M bandwidth limit supported), 250MSa/s real-time sample rate, 64kb memory depth, automatic measurement function, trigger function (auto, normal, single), mathematical calculation, FFT, Lissajous figure, persistence display, and waveform photo saving and export functions.

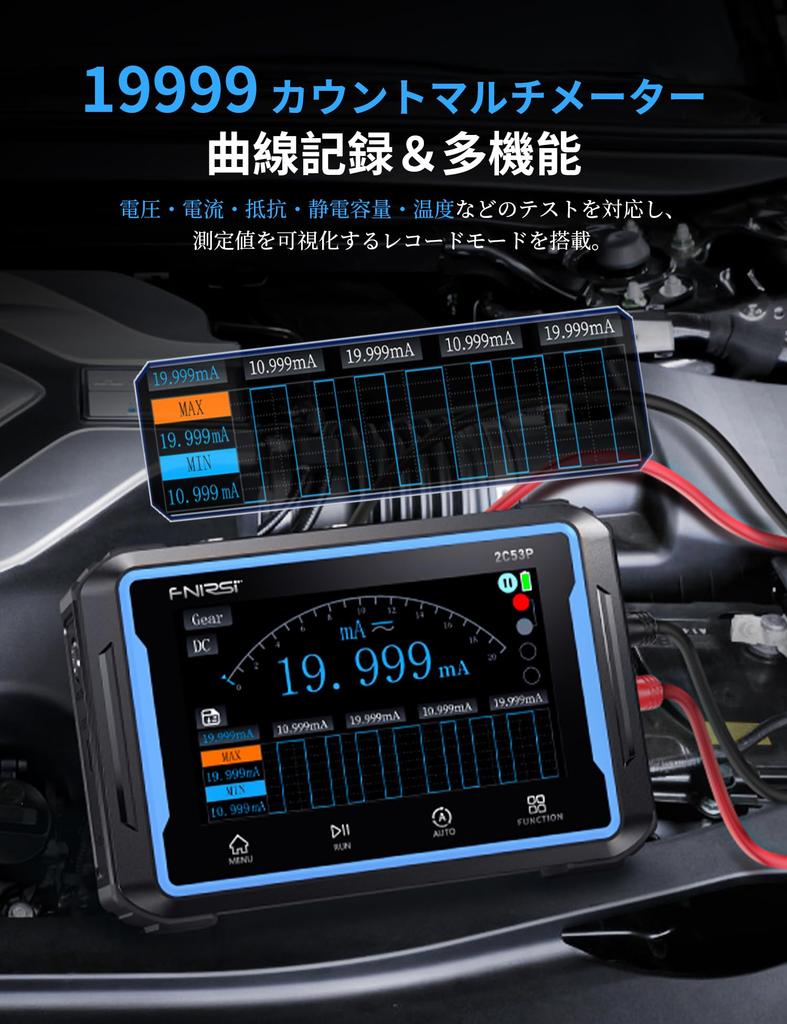

Multimeter: Equipped with 4.5-digit true RMS and 19,999 count multimeter functions. Supports a variety of tests, including voltage, current, resistance, capacitance, diode, continuity, and temperature. Supports maximum measurement voltages of 760V AC and 1000V DC. Also features a real-time curve display mode for visual confirmation of measurement values.
[Signal Generator] Outputs 12 types of waveforms, including sine wave, square wave, sawtooth wave, half-wave rectification, full-wave rectification, staircase wave, inverse staircase wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse. The sine wave frequency is up to 10MHz, and other waveforms up to 5MHz. The amplitude is 0.1V-3V, and the duty cycle is 0-100%. Output signal parameters are adjustable.
[Convenient Design] The 2C53P boasts excellent impact resistance and durability, with silicone rubber corners for anti-collision protection. It also features a built-in 4000mAh lithium battery and an integrated stand for easy portability. It can meet the needs of various working conditions, including daily maintenance. The touchscreen display makes operation and setup easy.
Product Description Parameters
Display: Tempered glass surface + 4.3-inch touchscreen + IPS color LCD
Backlight adjustable
Power supply specifications: TYPE-C (5V/1A)
4000mAh lithium battery
Language support: Chinese, English, Japanese, Pyccкий, Español,
Português, Deutsch, France
Size: ≈145×98×35mm
Weight ≈360g
oscilloscope
Number of channels: 2
Anachronous bandwidth: 50MHz
Sample rate: 250 MS/s
Memory length: Maximum 64kByte
Vertical sensitivity: 10mV/div to 10V/div
Display Mode: Y-T/Roll/X-Y
Resolution: 8 bits
Input resistance: 1MΩ

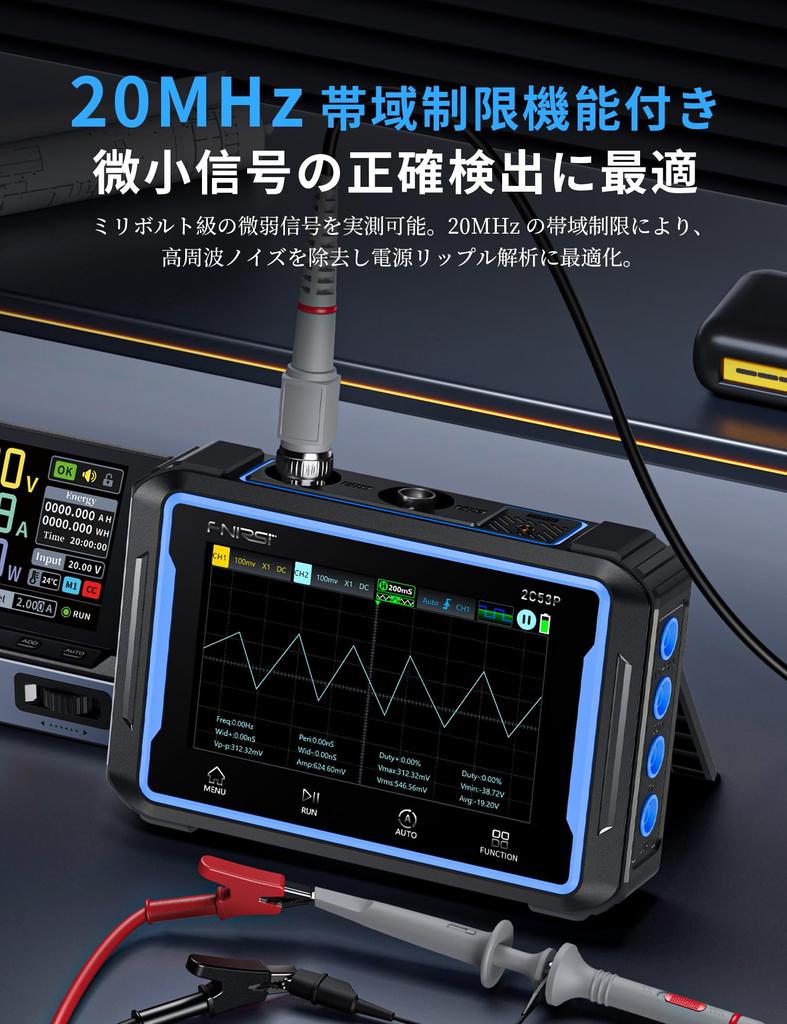

Bandwidth limit: Supports 20MHz bandwidth limit
Coupling AC/DC
Edge trigger: rising edge, falling edge
Maximum measurement voltage ±400V
Trigger level range: 8 cells (positive/negative)
Trigger mode: Auto, normal, single
Measurement data: Period, frequency, peak-peak value, maximum value, minimum value,
Average value, effective value, amplitude, duty ratio, pulse width
Multimeter
True RMS value: 4.5 digits 19999V
Measurement range: AC max. 750V, DC max. 1000V
Measurement items: DC/AC voltage, DC/AC current, resistance, capacitance, temperature, diode, continuity measurement
Automatic measurement: Auto function
Transistor Tester Parameters
12 types of signal output: sine wave, square wave, sawtooth wave, half-wave rectification, full-wave rectification, staircase wave, inverse staircase wave,
DC signal, exponential rise, exponential fall, multi-audio, sync pulse
Output frequency: 0 to 10KHz adjustable
Output amplitude: adjustable from 0.1 to 3V
Duty ratio: 0~100% adjustable
