Xr2206 High Resolution Function Signal Generator Sine/Triangle/Square Wave Forms Coarse Tuning Fine Tuning Function

Ok

Ok

Since I now wanted to build this generator, I noticed that the printout is very indistinct and the writing is blurry. Of course, that takes a lot of effort to find out. The best thing would be an online archive where I can download the necessary documents.

Signal generator only produces square wave voltage!

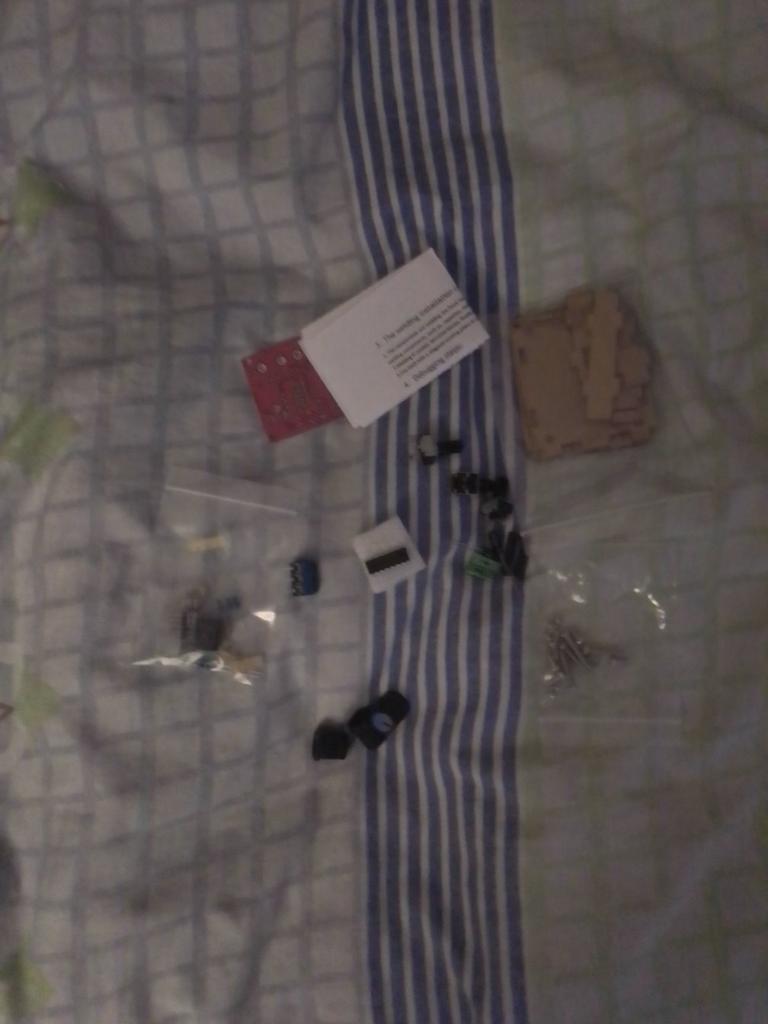

I have not assembled the kit yet, I hope everything is fine

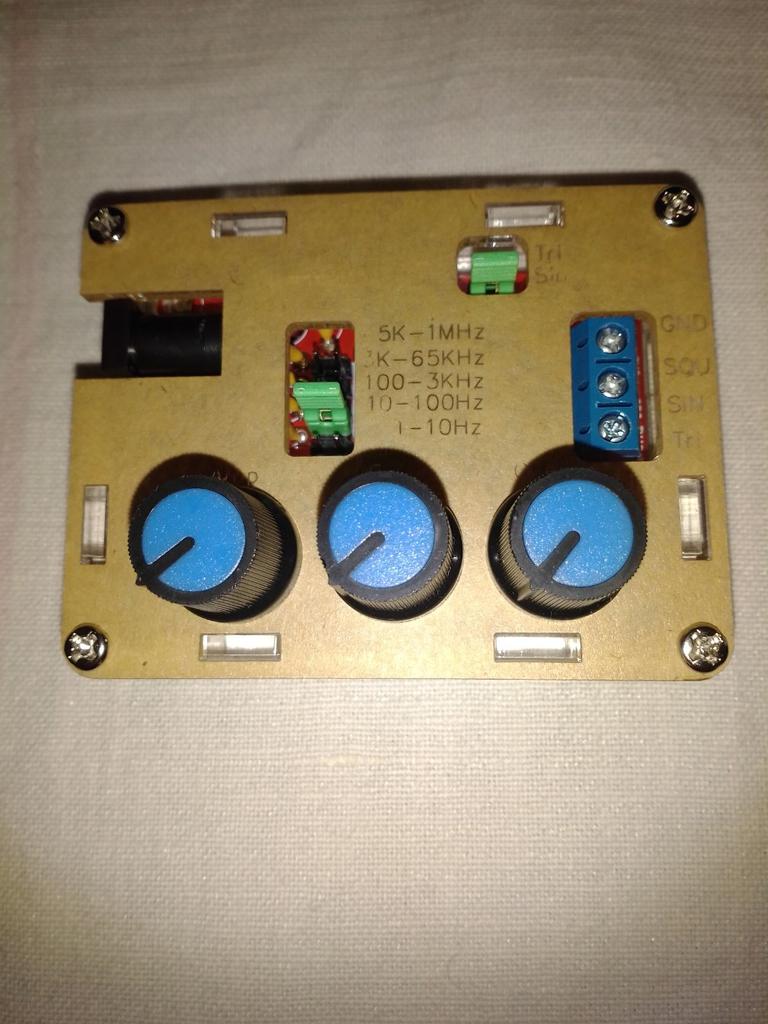

I received the generator, soldered it, and checked it. Works fine. When the signal level is high, it cuts off at the top. Powered by 9 volts. Maybe at 12V the picture will improve. The screws for securing the board are a bit short, so I had to trim the ends of the radio elements on the solder side. It is quite suitable for beginners, because... the frequency is not very stable.

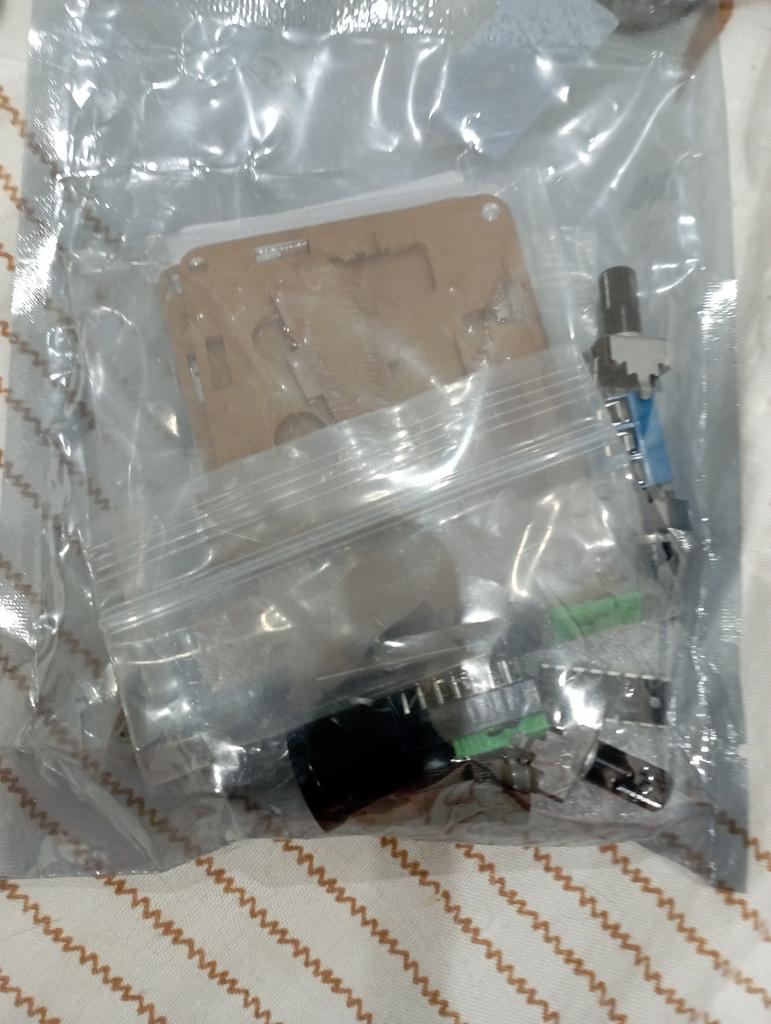

All delivered and very well packed!! Satisfaction !!

sinusoid is clipped

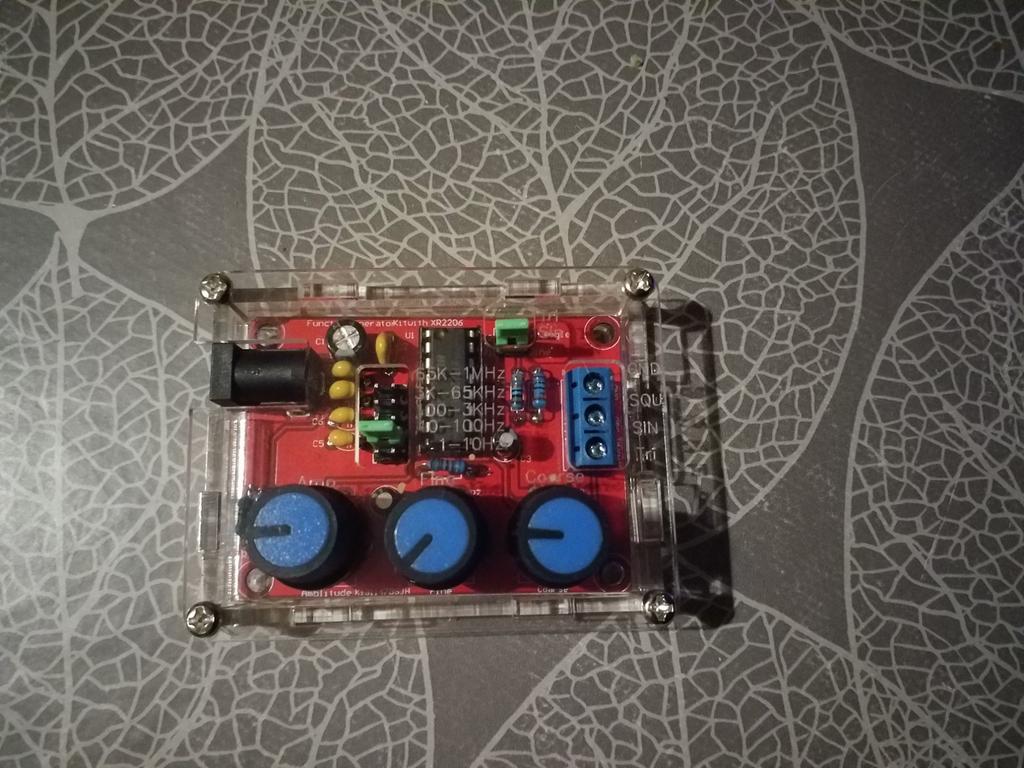

Soldered everything works

corresponds to the description.

no bolts

All OK!
