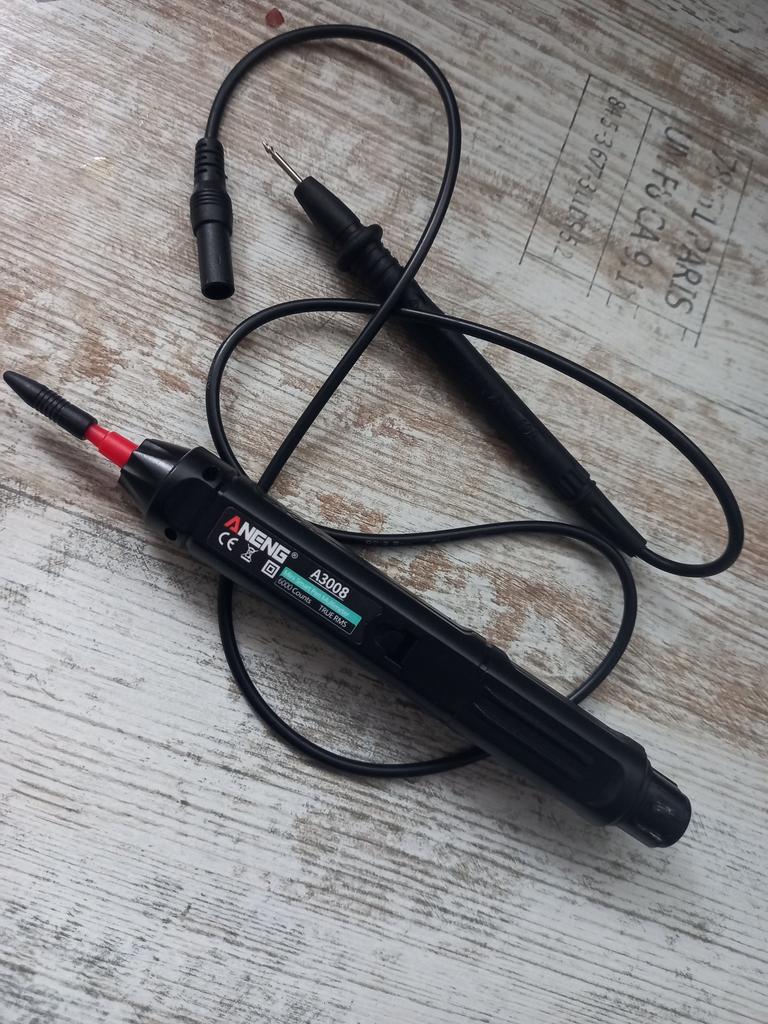

ANENG Pen Multimeter 6000 Counts Digital Multimeter Meter Tester with LCD Display Backlight

A3008 is a pocket type 3 5/6 digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch, easy to operate. Also, it Features with stable performance, high precision, auto-off after 5min non-operation for energy saving, capacitance/diode/more test, overload protection, continuity test, non-contact voltage measurement(NCV), zero live line measurement, phase sequence measurement, etc. A perfect tool for professional, factory, school, enthusiast or family use.

Features: VERSATILE PEN MULTIMETER: This multimeter Features test of voltage/resistance/capacitance/diode/frequency/temperature, continuity, zero line & non-contact phase sequence detection, etc. FAST RESPONSE & HIGH ACCURACY: ANENG A3008, 6000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement. EASY OPERATION: It has LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function convenient to query data, alarm beep when in use. DURABLE MATERIAL & PORTABLE SIZE: The meter, made from selected electronic components and sturdy plastic housing, is designed with light weight and easy-to-carry pocket size, comfort to grip. WIDE APPLICATION: The digital multimeter--a handy instrument and assistant, for testing, diagnosing and solving a variety of automotive and daily household electrical problems safely and accurately.? MULTIPLE ACCESSORIES: 1 * U-shaped insert, 1 * alligator clip, 2 * gilded extra tip, 1 * nickel-plated copper needle, 1 * tapered needle, 1 * extended nickel-plated copper needle, 1 * banana tip are included. Measurement Range & Accuracy:? DC Voltage: DC6V/DC60V/DC600V +/-(0.5%+4); DC1000V +/-(0.8%+10) AC Voltage: AC6V/AC60V/AC600V +/-(0.5%+4); AC700V +/-(0.8%+10) Resistance: 600 Ohm +/-(0.8%+5); 6k Ohm /60k Ohm /600k Ohm /6M Ohm +/-(0.8%+3); 60M Ohm +/-(2.5%+3) Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF +/-(3.5%+20); 60mF +/-(5%+3) Temperature: -20~50 celsius ,+/-(1.0%+5) less than 50 celsius ; 0~122 Fahrenheit ,+/-(0.75%+5) less than 122 Fahrenheit

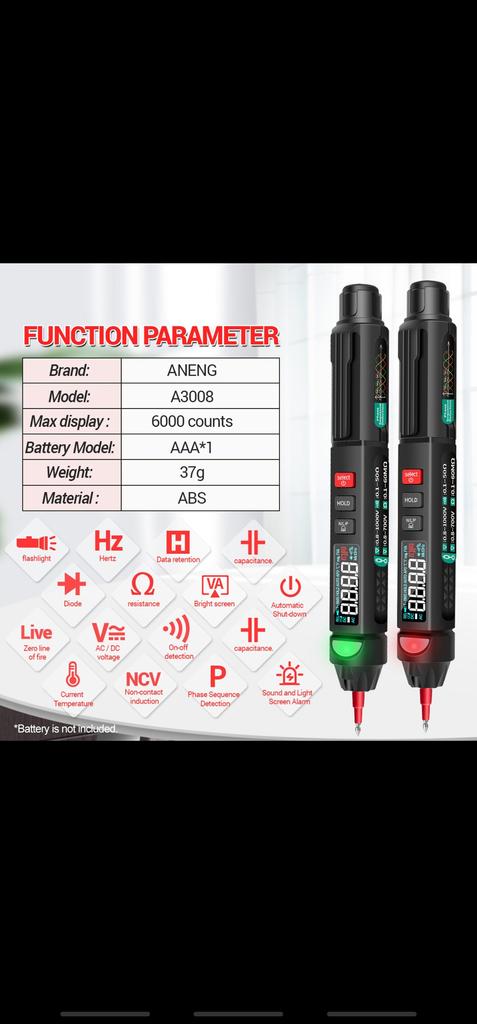

Specifications: Brand: ANENG? Model: A3008 Material: ABS Test Line Material: Brass / PVC Main Color: Black Screen: LCD display Maximum Display: 5999 (3 5/6) automatic polarity display Measurement Method: Double integral A/D conversion Sampling Time: About 3 times / second Over-range Indication: "OL" is displayed on the highest position DC Voltage Test: Yes AC Voltage Test: Yes Resistance Test: Yes Capacitance Test: Yes Diode Test: Yes Continuity Test: Yes Non-contact Phase Sequence Test: Yes Color Screen: Yes NCV: Yes Neutral / Fire Test: Yes Full Unit Symbol: Yes Backlight: Yes Auto Power Off: Yes True RMS: Yes Data Hold: Yes Temperature ( celsius / Fahrenheit ): Yes Hz: Yes Flashlight: Yes Working Condition: 0~40 celsius temperature, less than 80% relative humidity Power Supply: 1* 1.5V AAA battery (NOT included) Test Lead Length: 117.4mm / 4.62in Product Size: 170*24*21mm / 6.69*0.94*0.82in Product Weight: About 50g / 1.76oz Package Size: 190*80*35mm / 7.48*3.14*1.37in Package Weight: 192g / 6.77oz

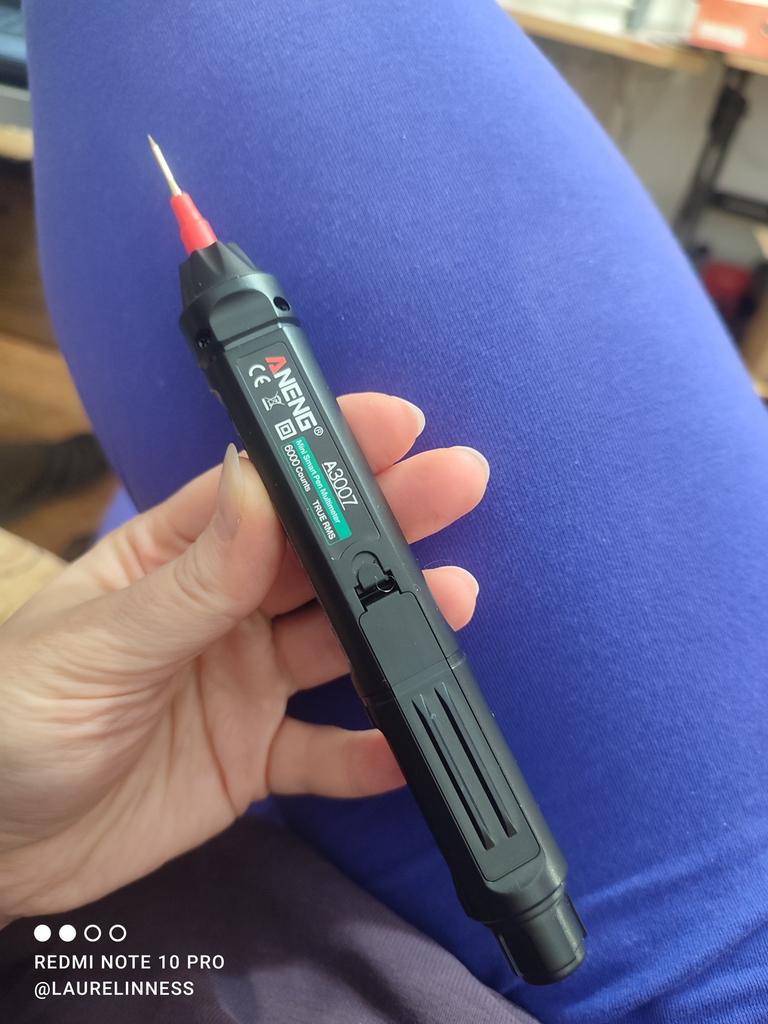

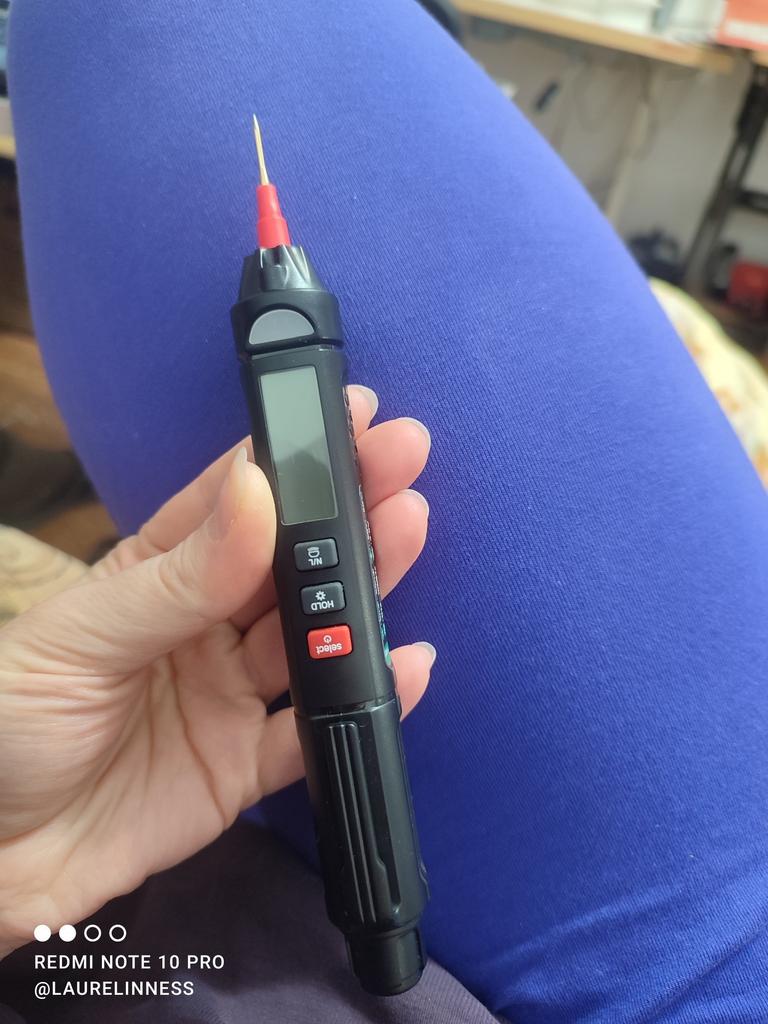

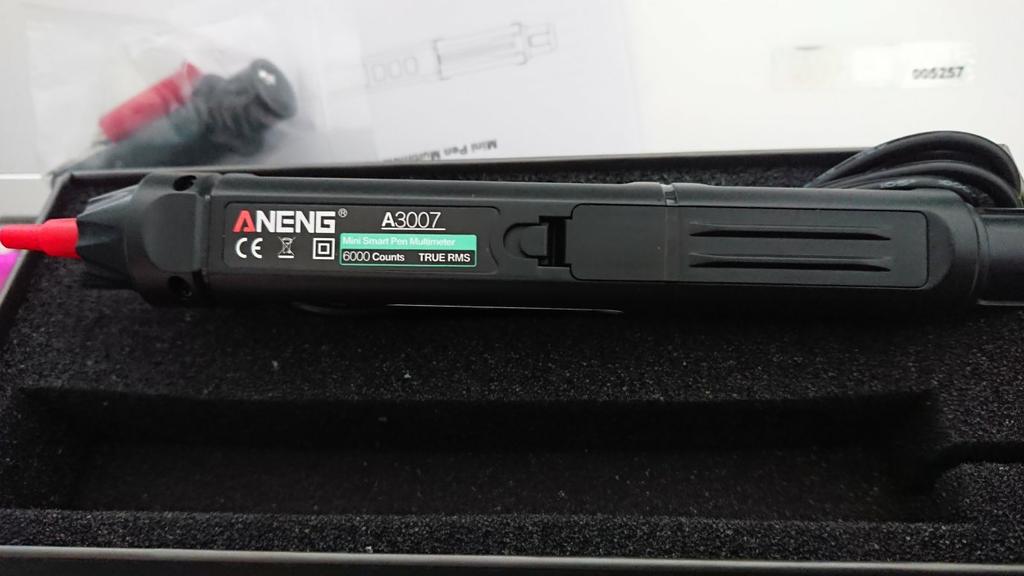

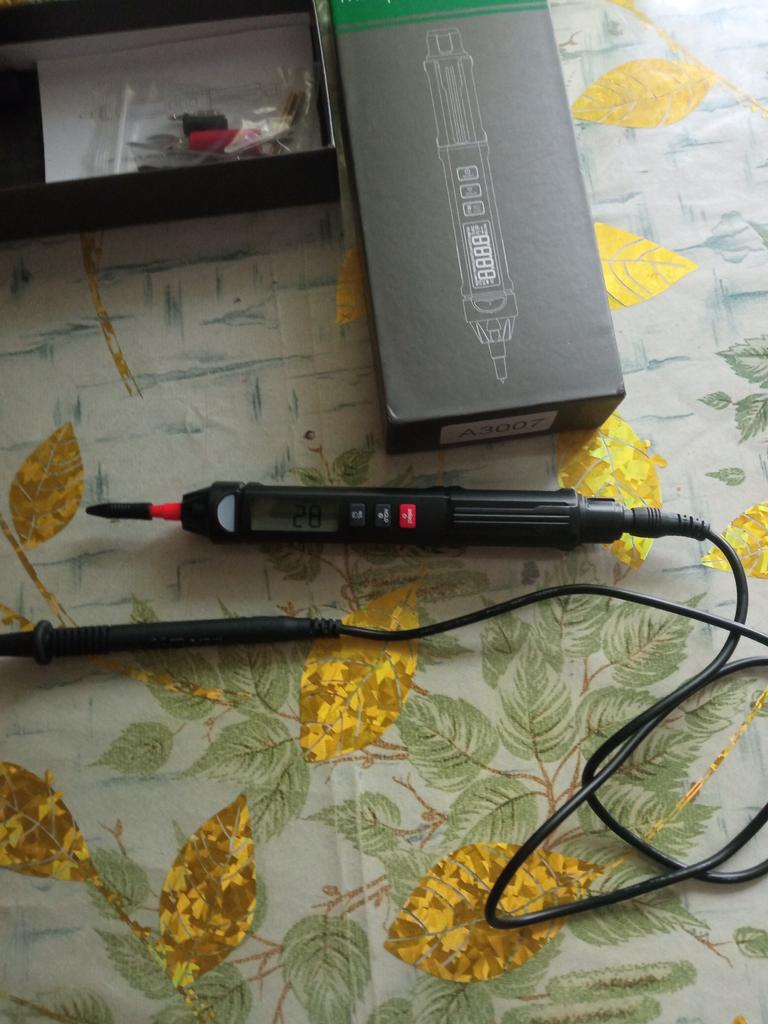

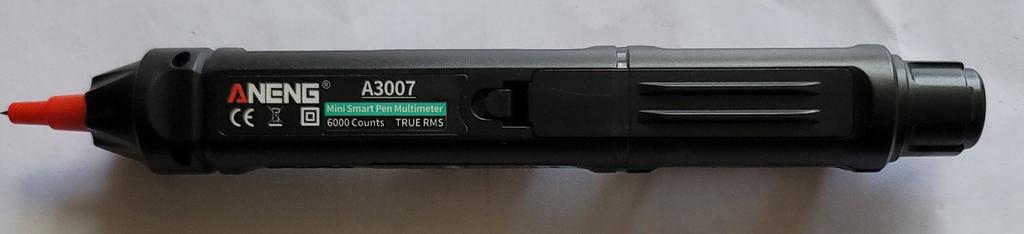

Model: A3007 Material: ABS Test Line Material: Brass / PVC Main Color: Black Screen: LCD display Maximum Display: 5999 (3 5/6) automatic polarity display Measurement Method: Double integral A/D conversion Sampling Time: About 3 times / second Over-range Indication: "OL" is displayed on the highest position DC Voltage Test: Yes AC Voltage Test: Yes Resistance Test: Yes Capacitance Test: Yes Diode Test: Yes Continuity Test: Yes NCV: Yes Neutral / Fire Test: Yes Full Unit Symbol: Yes Backlight: Yes Auto Power Off: Yes True RMS: Yes Data Hold: Yes Temperature (℃/℉): Yes Hz: Yes Flashlight: Yes Working Condition: 0～40℃ temperature, <80% relative humidity Power Supply: 1* 1.5V AAA battery (NOT included) Test Lead Length: 117.4mm / 4.62in Product Size: 170.5*25.4*22mm / 6.71*1.0*0.86in Product Weight: About 50g / 1.76oz Package Size: 190*80*35mm / 7.48*3.14*1.37in Package Weight: 192g / 6.77oz

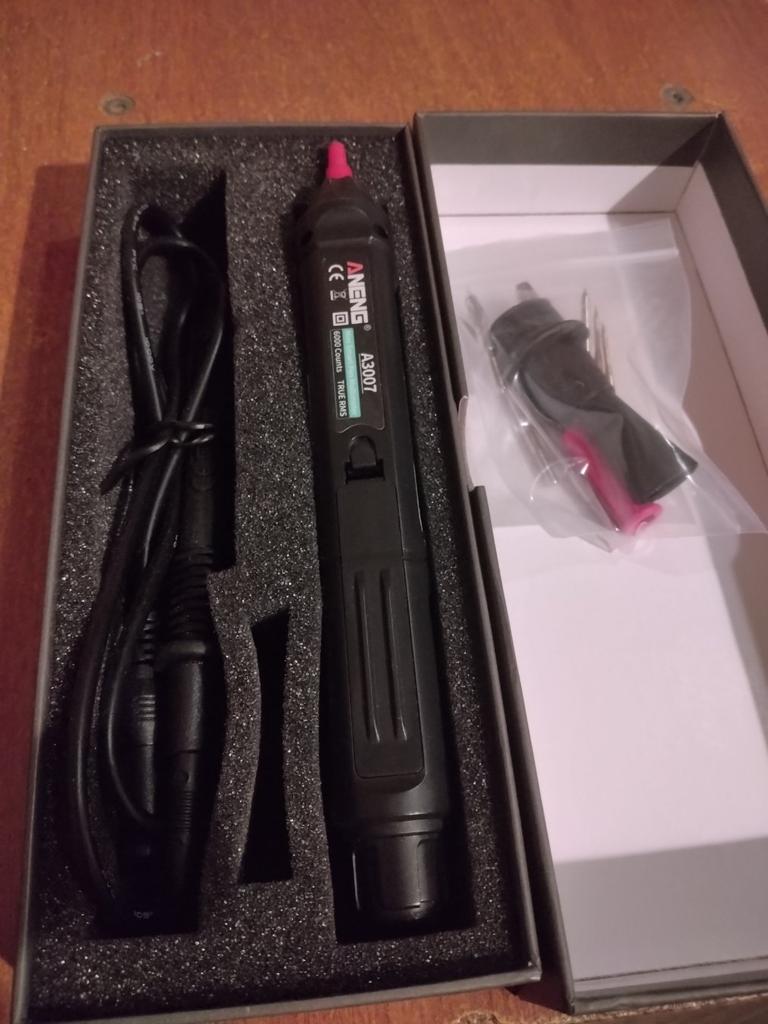

Note: Multimeter kit only, other accessories in the pictures are not included. Please read the user manual carefully for more information before use. Due to manual measurement, there may be deviation, please in kind prevail. Due to lighting or other reasons, the picture and material object may slightly differ. Packing List: 1 * Multimeter 1 * Test Lead 1 * User Manual 1 * U-shaped Insert 1 * Alligator Clip 2 * Gilded Extra Tip 1 * Nickel-plated Copper Needle 1 * Tapered Needle 1 * Extended Nickel-plated Copper Needle 1 * Banana Tip
