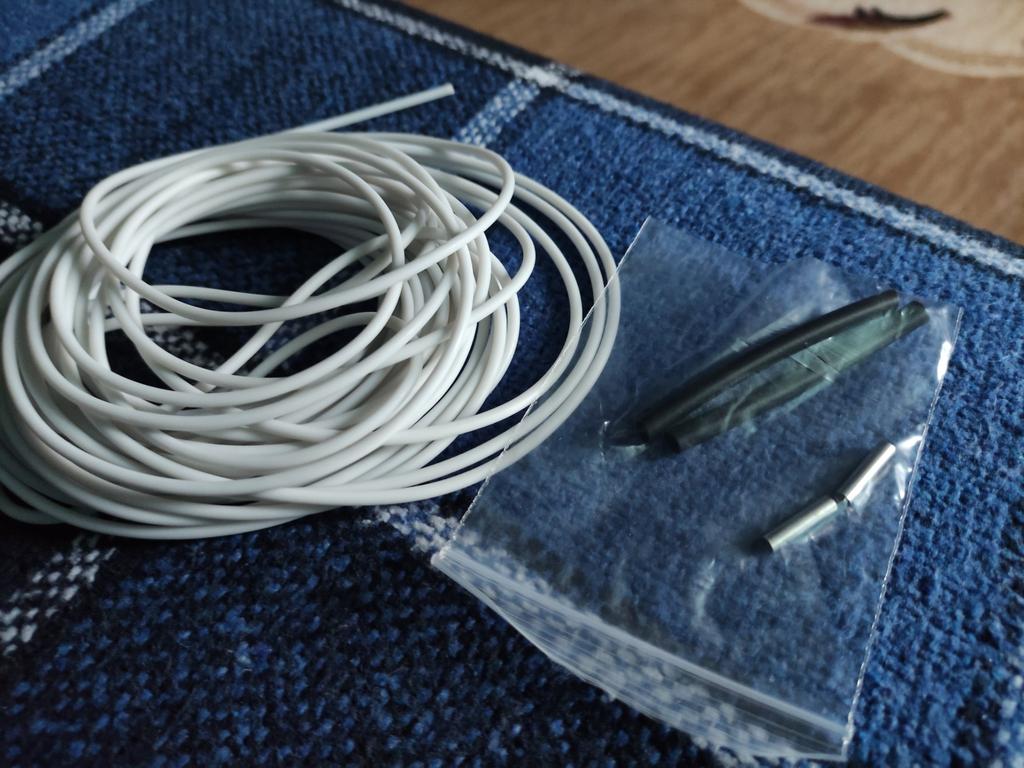

Heating Cable Floor 3K Carbon Fiber Heating Cable Infared Silicone Rubber Underfloor Heating Wires Floor Warming

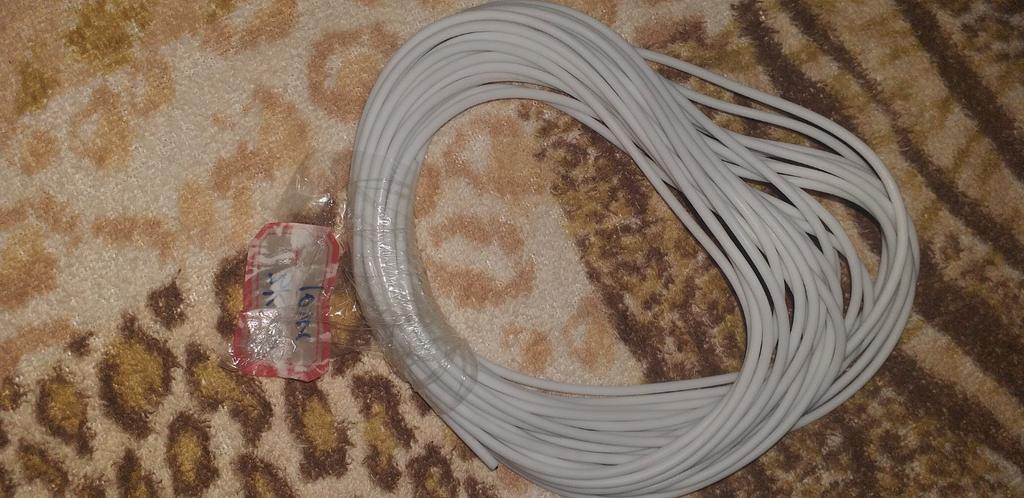

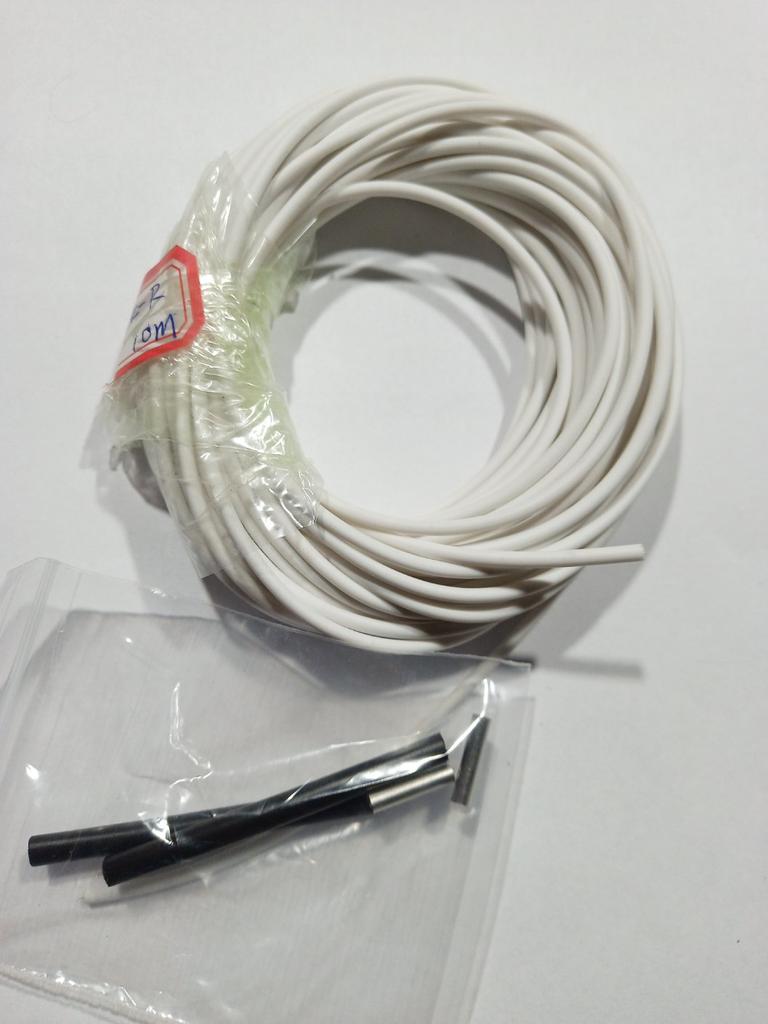

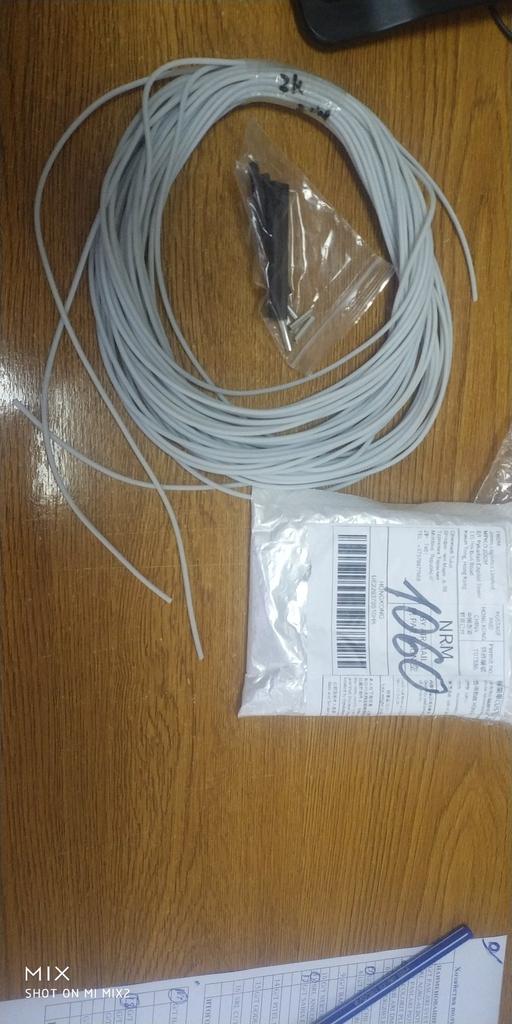

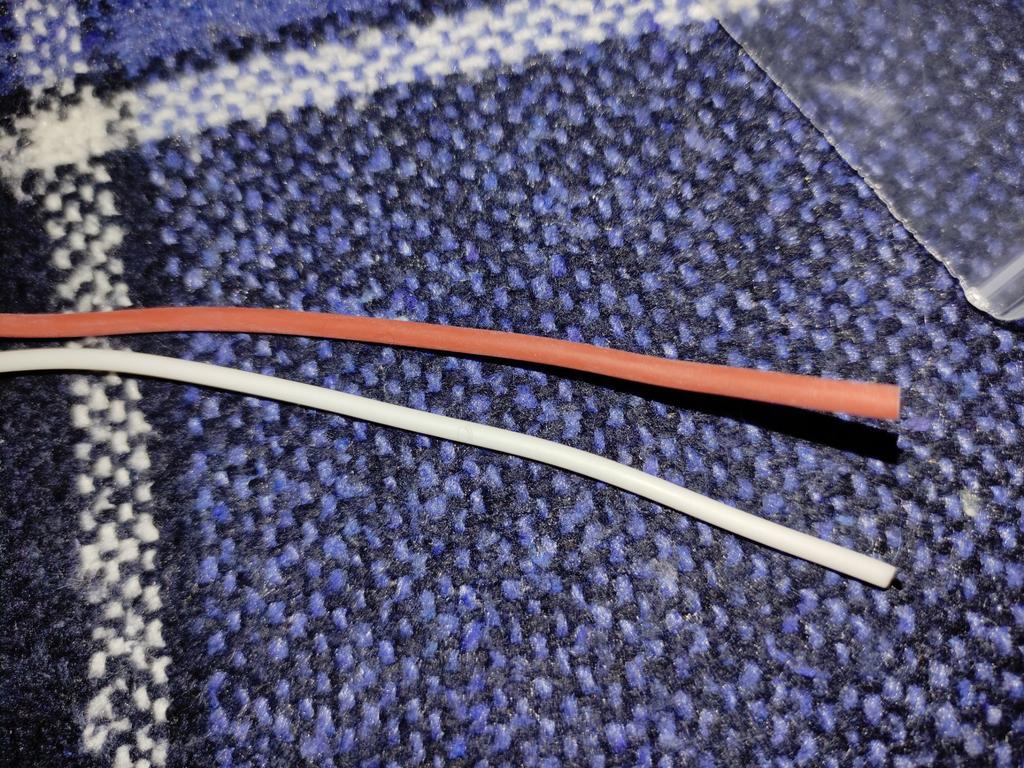

Product Details: Product Name: Carbon fiber heating wire Insulating materials: Silicone rubber Temperature: 200 degrees celsius limit Heating conductor:3K High voltage test: 3000V Leakage current: 0.05mA/m The product can withstand the power: 15W/M Diameter: 3K is about 2.5±0.2 MM Colors: White Infrared wavelength: 8UM-18UM Conductor resistance: 3K = 130±10% Ω/m Power calculation:P=(U*U)/(L*R)

Voltage*Voltage÷resistance=electric power For example, using 5m 1K carbon fiber cable on 220V, the power is: 220V*220V÷（5meters*400Ω）=24.2W using 3m 3K carbon fiber cable on 220V, the power is: 220V*220V÷（3meters*130Ω）=124W The longer length, the smaller power, and lower heating temperature.

Temperature: 1. The power of the cable is based on the length that you use, you can calculate the power according to above examples. Power = 5W/m, the temperature is about 30~40C degrees; Power = 10W/m, the temperature is about 40~50C degrees; Power = 15W/m, the temperature is about 50~60C degrees; Power = 20W/m, the temperature is about 60~70C degrees; Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions.
