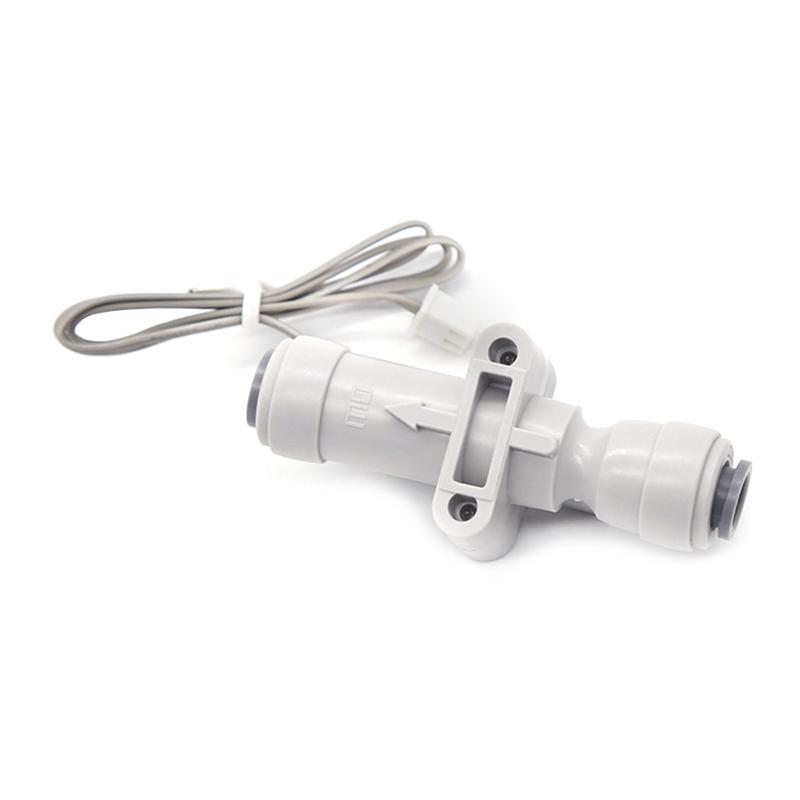

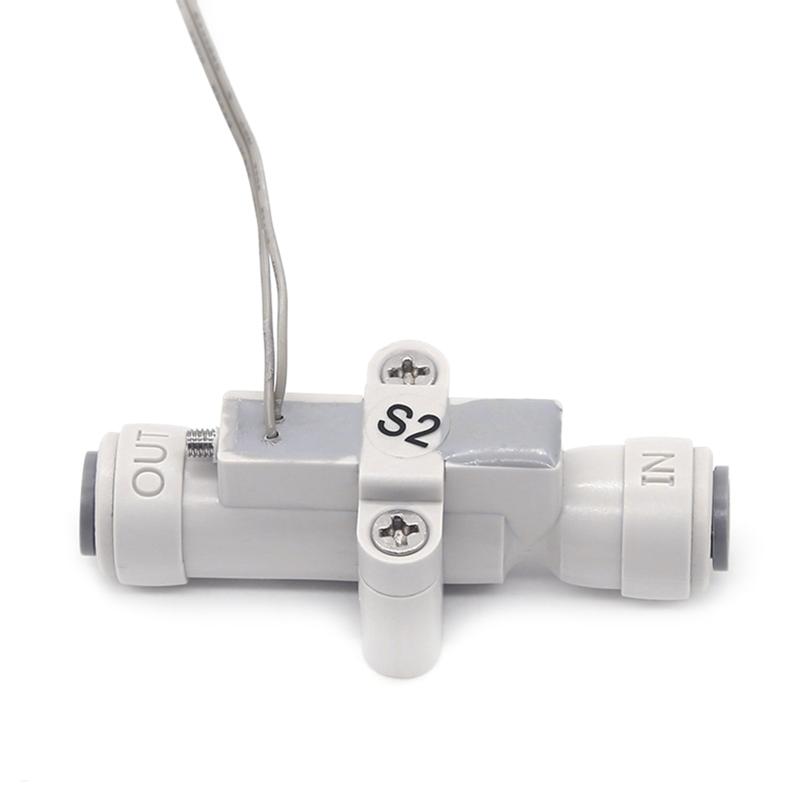

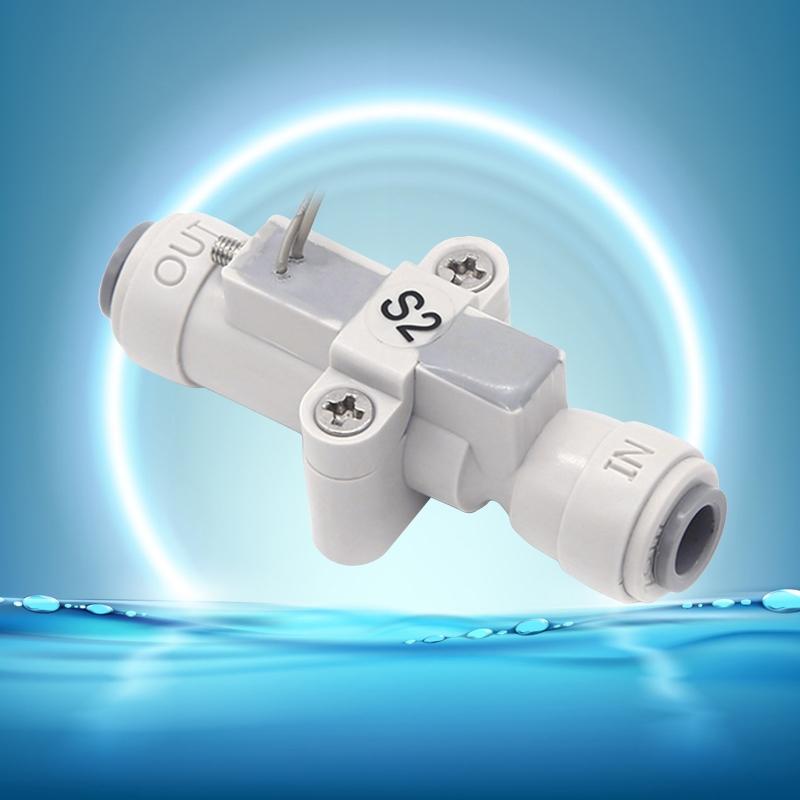

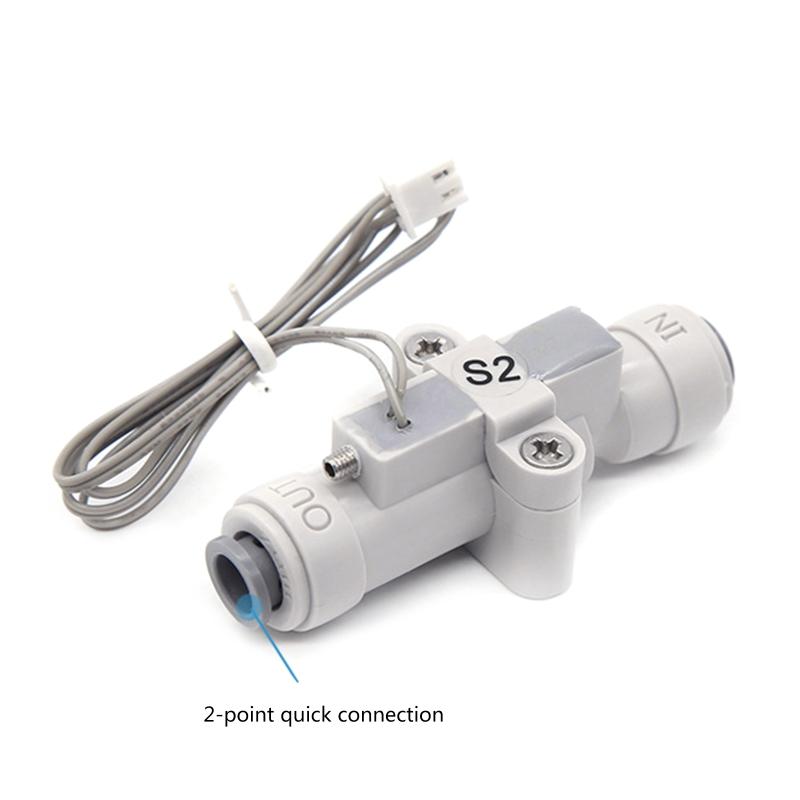

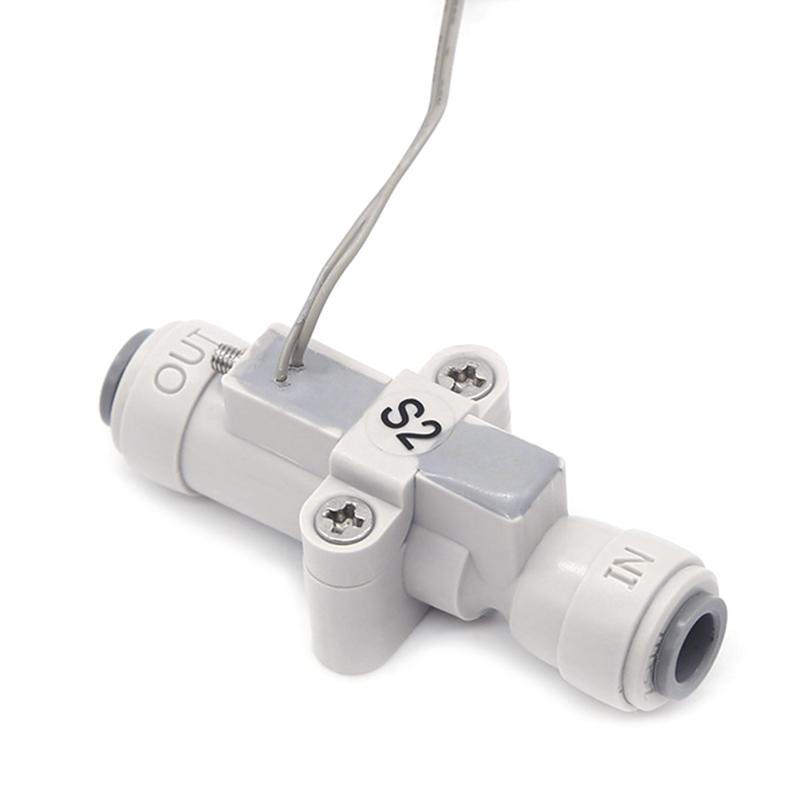

Compact Flow Sensor G1/4" Liquid Water Flow Sensor Flowmeter Water Flow Switch Suitable for Water Dispenser Purifier

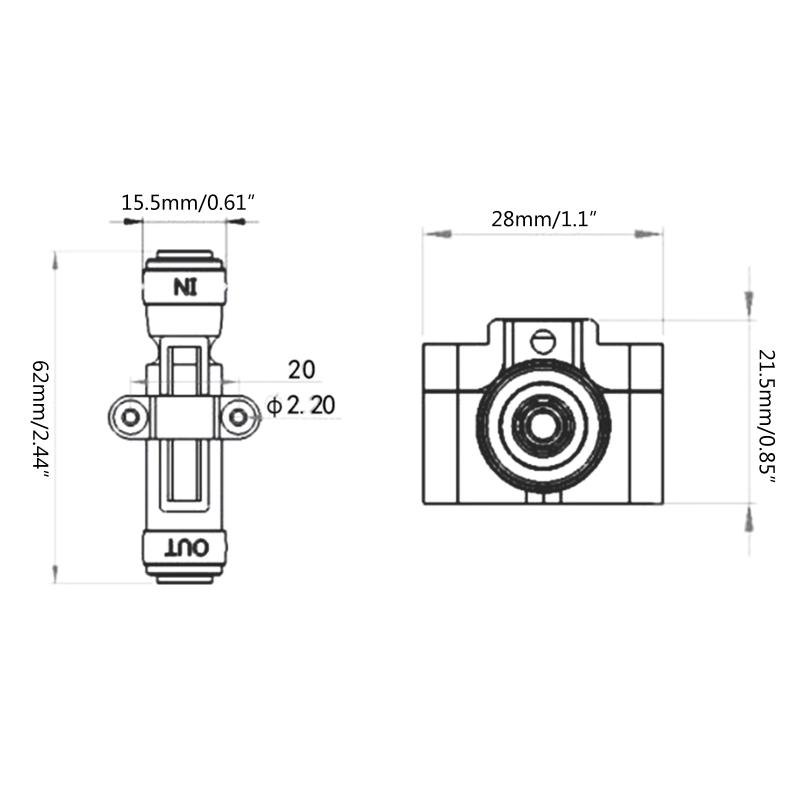

Features:When the water flows in the preset flow channel, it pushes the magnet to displace. When it moves to the corresponding reed- tube, the reed- tube conducts after sensing the magnetic field. When there is no water flow, the magnet returns to its position under the thrust of the spring, and the reed- tube is disconnected after the corresponding reed- tube cannot sense the magnetic field. Thread: G1/4-inch, startup- flow: 300ml/min, response time: less than 1s. Lightweight, reasonable size, stable performance, low water pressure start-, easy to install, safe to use. Can be perfectly used for water dispenser, water purifier, water vending machine, etc. Made of high quality material, which is sturdy and durable in use. Specifications:Material: plastic Body size: approx 6.2x2.8x1.6cm/2.4x1x0.63in Applicable water quality: turbidity less than 1; Fe-, C-o & Ni- less than 0.3 Mg-/L Applicable water pressure: equal or less than 0.8mpa Applicable water temperature: 5~50 C Ambient humidity: less than 85% Storage temperature: -20~50 Thread: G1/4 Startup- flow: 300ml/min Response time: less than 1s Switch type: Normally open Length of wire: 50cm Cable- connection strength (outlet end of the body) : Exert 20N-10s tensile force along the axis of the terminal Apply 20N-10s pulling force along the vertical direction of the terminal (no damage at the connection) Hydrostatic pressure: O pen at 1.05MPa for 5 minutes (no leakage or damage Voltage resistance: applied between live- parts and non-live- parts DC160V, 1 min or DC200V, 1 s (No flicker or breakdown) Maximum closing current: 0.5A Maximum load current :1A On resistance :0.12Q- Disconnect resistance :10120 Power connection capacity :0.2PF Note:Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item.Package includes:1x Water Flow Switch
