85×46.7×61mm Cabinet Lock Anti-Pry Type IP65 Security

Features:

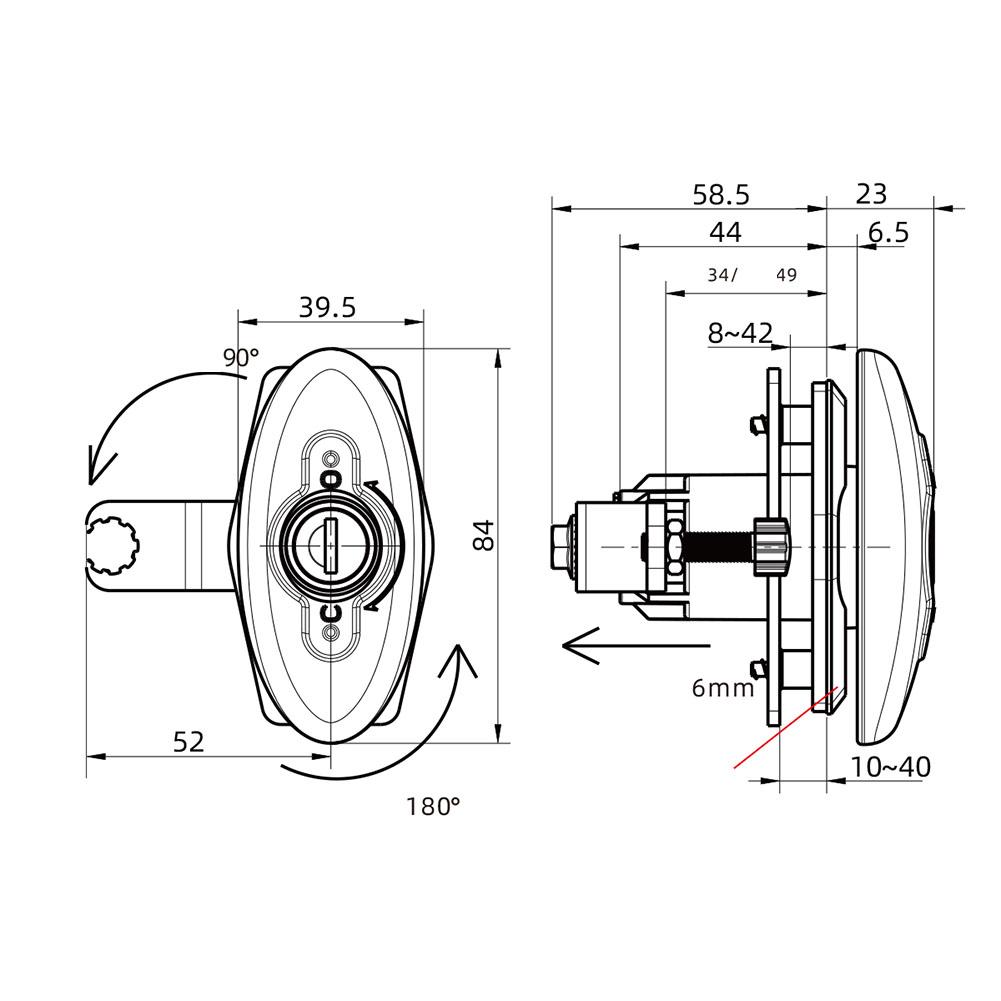

A: *The height of the stop is adjustable: it is suitable for different lock point heights, and the user can adjust it according to the actual situation. * lock head: easy installation and disassembly, safe and reliable performance, *Nylon shell material, zinc alloy lock body, strong and durable. *Integral tensioning mechanism: the handle is positioned precisely, and there is no possibility of skewing in the locked state. *Slope guide port design: twisting the handle will not rub your fingers; *Remarks: (The detachable lock head, the user can replace it with the lock head of the main door lock of the RV, so as to install the lock according to the requirement of the same RV key.) *Product Name: Swing and Open RV Cabin Door Lock (A) *Product material: nylon+zinc alloy *Product weight: 233g *Product size: about 84*69.5*81.5mm * Hole size: 32MM diameter round hole, spacing 52mm, two 4.5mm diameter holes; *Product application: cabin door locks for RVs, yachts, engineering vehicles, etc. *Suitable for door panel : 10-40mm *Protection class: IP65

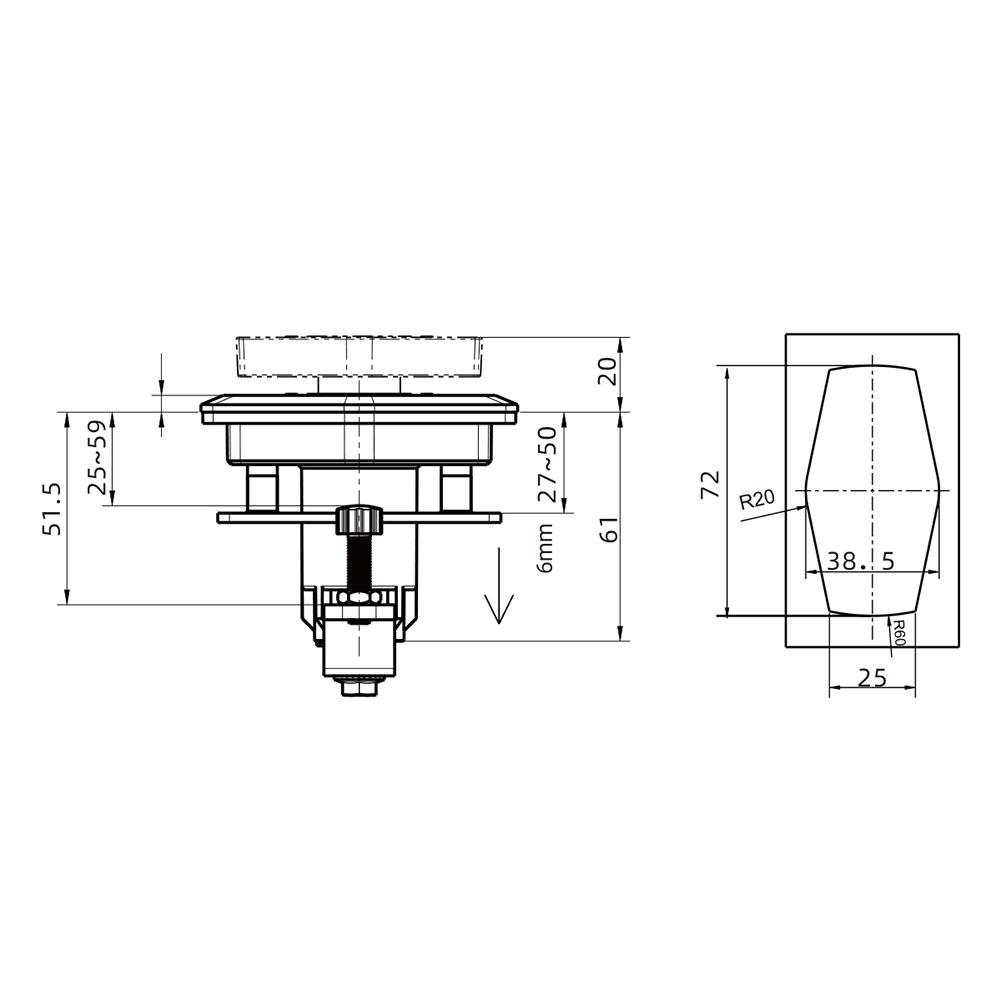

B: *Product Name: Pop-Up Slim RV Cabin Door Lock (B) *Product material: nylon+zinc alloy *Product weight: 233g *Product size: about 85*46.7*61mm *Hole size: as shown in the picture *Product application: cabin door locks for RVs, yachts, engineering vehicles, etc. *Door panel range; 27-50mm *Protection grade: IP65

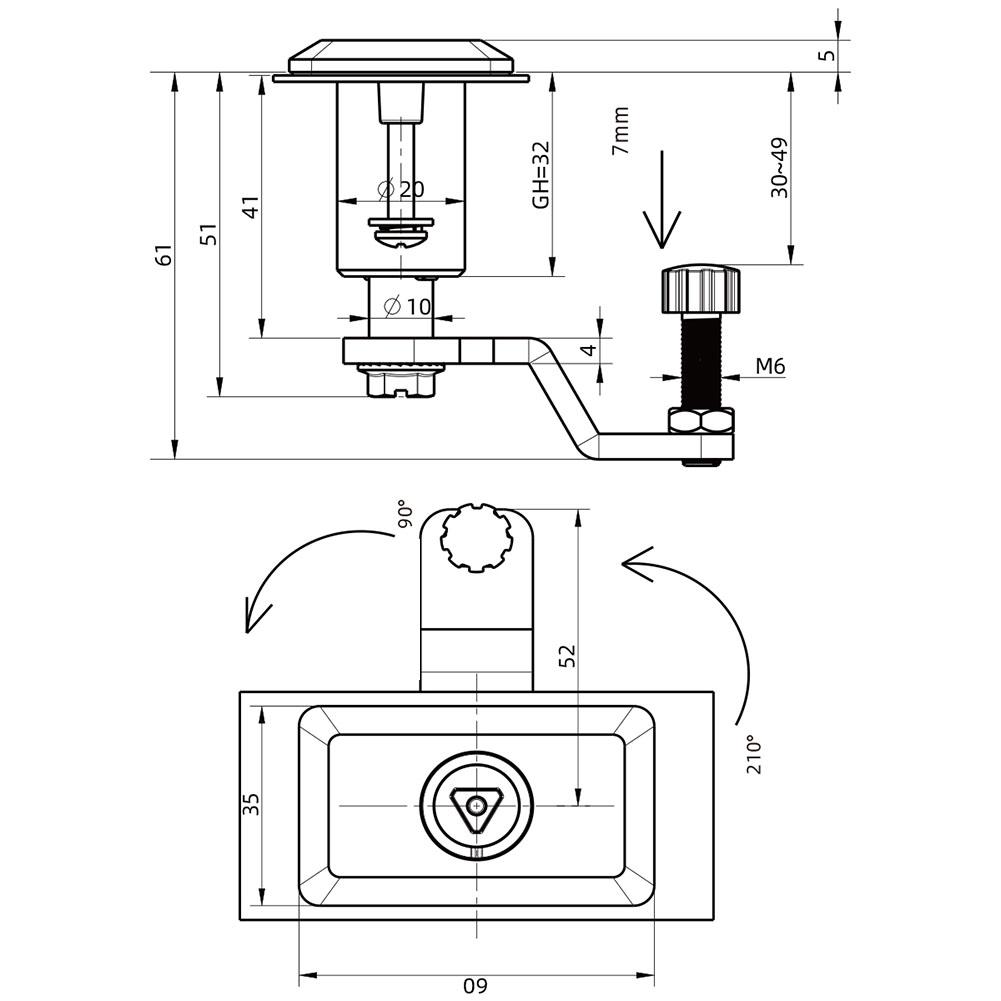

C: *Nylon shell material, zinc alloy lock body, strong and durable. *Anti-theft and tamper-proof design: Use ordinary tools such as needle-nose pliers, screwdrivers, ordinary tool keys and other common tools to rotate the lock cylinder, the lock cylinder can only rotate 360 degrees and cannot drive the lock bolt; you need to insert a special tool-type key, Press and rotate inside to drive the lock tongue *This type is a safety tool lock with high anti-theft performance, large rotating torque, durable, and can be opened with a key. *The height of the seam can be adjusted: the adjustable range is 30-49mm *Product name: Anti-pry type RV cabin door lock (C) *Product model: FC6336 *Product material: nylon+zinc alloy *Product weight: 157.5g *Product size: about 60*66.5*61mm *Hole size: 21MM diameter round hole, spacing 38mm, two 8mm diameter holes; details as shown *Product application: cabin door locks for RVs, yachts, engineering vehicles, etc. *Protection grade: IP65

Package Included:

1*RV cabinet door lock

Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement.
