Multifunctional Cutting Machine Base Plate 90 Degrees Flat Cutting 45 Degrees Diagonal Cutting Suitable for 4

This multifunctional cutting machine base plate reserves 8 holes on the plate, the motor base position is better fixed and more flexible to use. Suitable for 4inch marble machines, gong machines, and most trimming machines on the market. Multifunctional use supports 90 degrees flat cutting and 45 degrees diagonal cutting. Freely adjustable bracket, high toughness and pressure resistance, firmly fixed and antislip, not easy to deform, more accurate cutting, and more convenient to work.

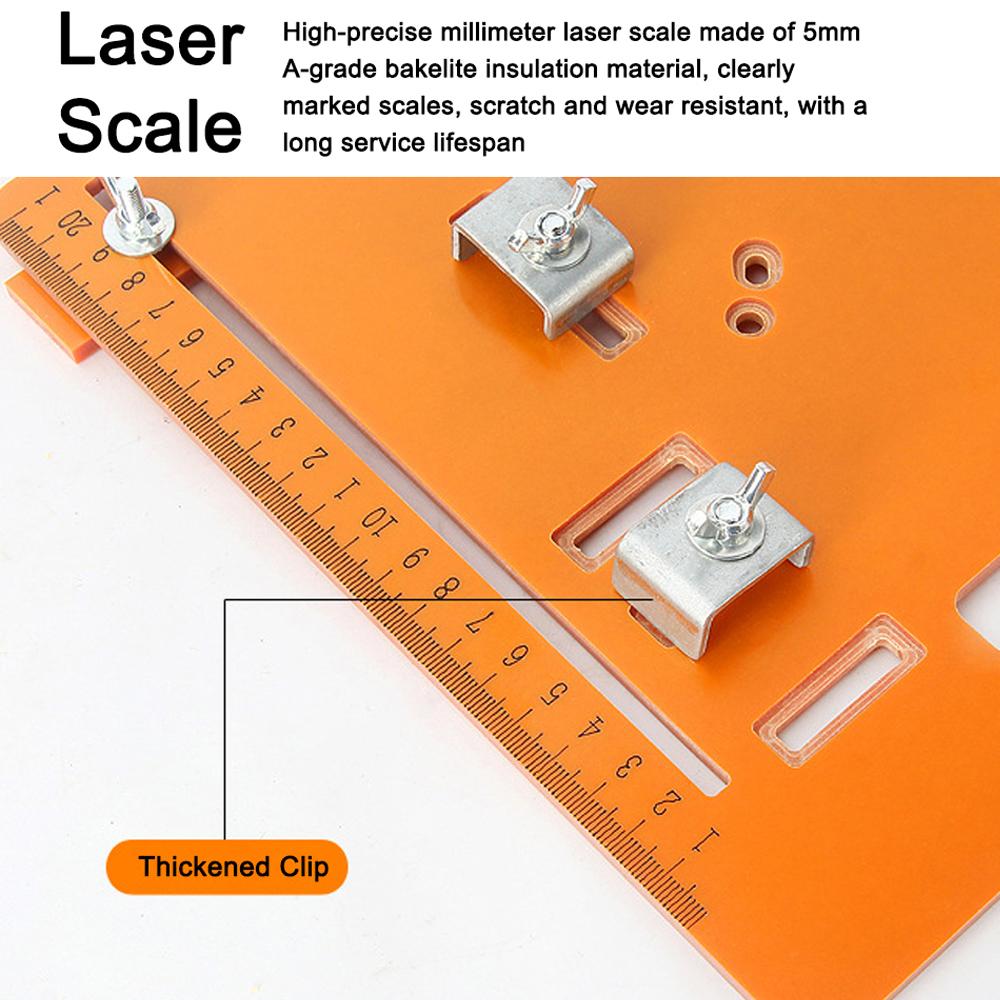

Features: Holefree Installation: Multifunctional cutting machine base plate, mounting without drilling holes, just lock the plate. Hole Upgrading: A total of eight holes are reserved on the plate, the motor base position is better fixed and more flexible to use. Multifunctional Base Plate: With universal holes, the machine is designed for wide ranges of applications, such as universal 4inch marble machines, gong machines, and most trimming machines on the market. Cutting Angle Adjustable: Multifunctional use supports 90 degrees flat cutting and 45 degrees diagonal cutting. The cutting machine needs to be equipped with the function of angle adjustment, and oblique cutting when adjusted to 45 degrees. Laser Scale: Highprecise millimeter laser scale made of 5mm Agrade bakelite insulation material, clearly marked scales, scratch and wear resistant, with a long service lifespan. Movable Bracket: Freely adjustable bracket, high toughness and pressure resistance, firmly fixed and antislip, not easy to deform, more accurate cutting, and more convenient to work. Easy to Assemble & Disassemble: Screws positioning design, the structure is compact and simple, fixed more stable, and can be assembled and disassembled at will, with larger cutting ranges.

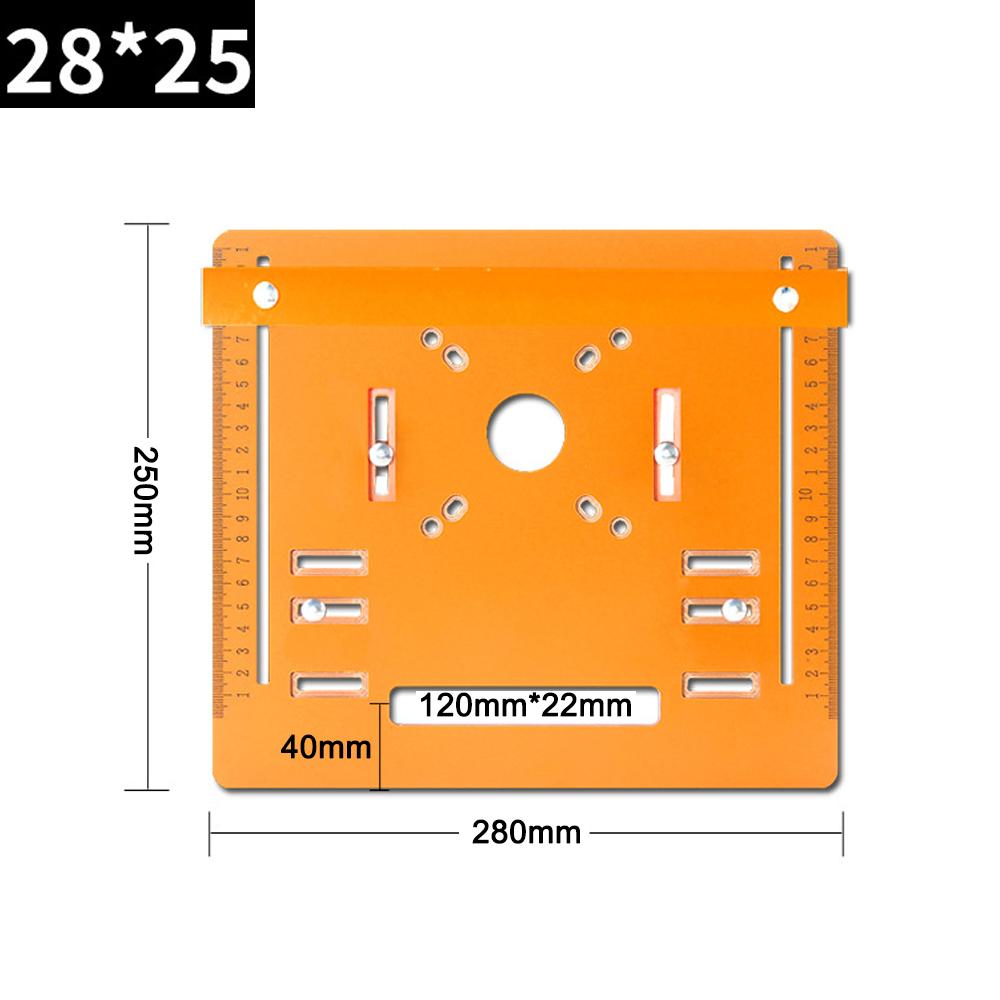

Specifications: Name: Cutting Machine Base Plate  Material: 5mm Agrade bakelite board Size: 280*250mm, 280*150mm (optional) Cutting ranges: 280*150mm: 0100mm 280*250mm: 50195mm Package size: 280*150mm: 280 * 150 * 30mm 11.02 * 5.91 * 1.18in 280*250mm: 250 * 280 * 30mm 9.84 * 11.002 * 1.18in Package weight: 775g 1.71lb 280*150mm: 550g 1.21lb 280*250mm: 775g 1.71lb Packing List: 1 * Cutting Machine Base Plate
