5PCS 20MM 6Pin Taper Rotary Potentiometer Carbon Film Resistors WH148 1K/2K/5K/10K/20K/50K/100K/250K/500K/1M Ohm Potentiometers

Product Feature:

100% high quality and brand new

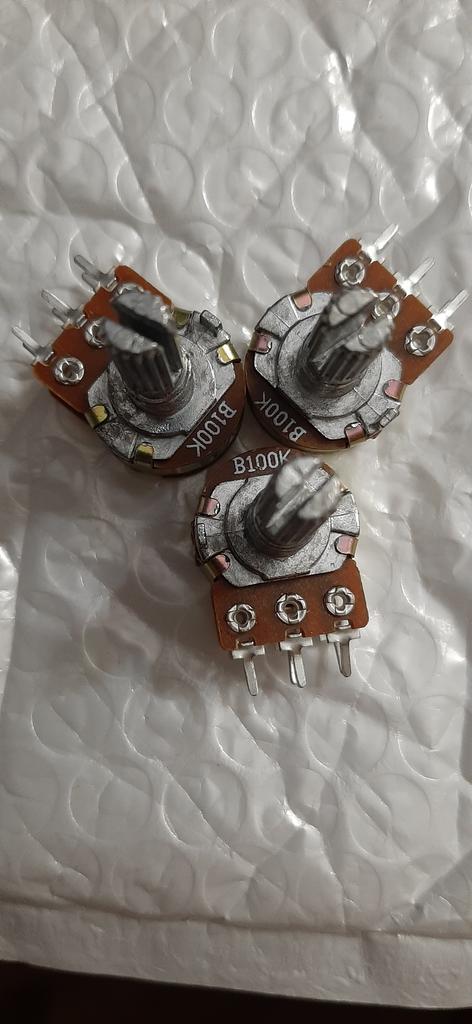

Name: WH148 Potentiometer

Product introduction:

1. Double potentiometer is a kind of two sets of resistance substrate made of synchronous adjustment potentiometer, such as double channel sound, if you use two ordinary potentiometer to adjust the volume that is a very troublesome thing, with double potentiometer adjustment usher is very convenient. Multi-link potentiometer is also a kind of synchronous adjustment potentiometer, can do adult circuit number potentiometer, in audio, electronic equipment has many applications, realize synchronous adjustment.

Parameters:

1. Rotation Angle: 300°± 10°

2. Rotating torque: 10~ 200gf.com

3. Stop strength: 6.0kgf.cn Min

4. Axial push-pull strength: 8.0kgf,cm

5. Registration points: Center, 7/11/21/41 Detent

6. Electrical torque of point position: 50~ 150gf.cm

7. Resistance range: 10kΩ~1MΩ

8. Resistance tolerance: ±20% (more than 1MΩ±30%)

9. Load power: Curve B: 0.05W, other yhan B: 0.025W

10. Use voltage: Curve B:50VDC other than B:25V AV

11. Residual short rent: R≥25KΩ 0.1%max, of total tesistance

12.250KΩ>R> 10KΩ 20Ωmax 20 Kω ≥R 10KΩ max

13. Insulation resistance: More than 100MΩ at DC 250V 1minute

14. Withstand voltage: 1 minute AC 250V

15. Synchronization error: -40~0dB <±3dB

16. Rotating noise: less than 100mV

17. Rotation life: 10,000 cycles

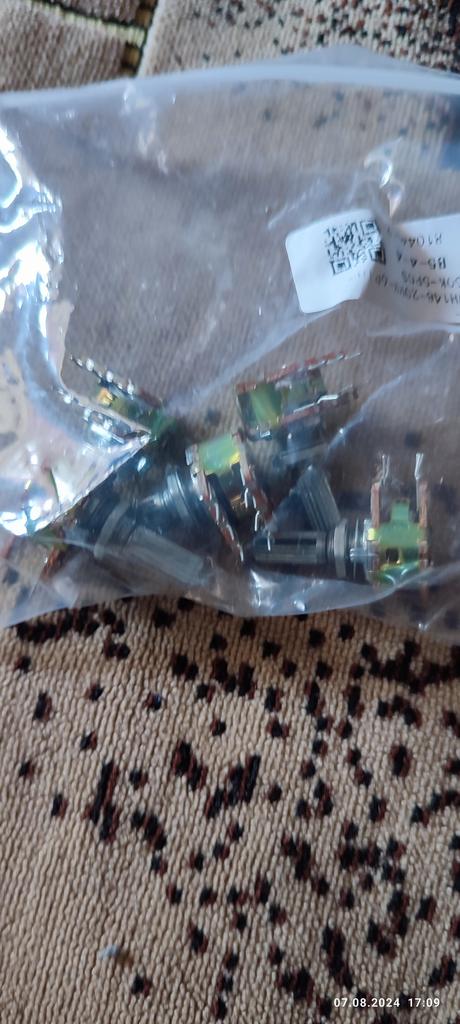

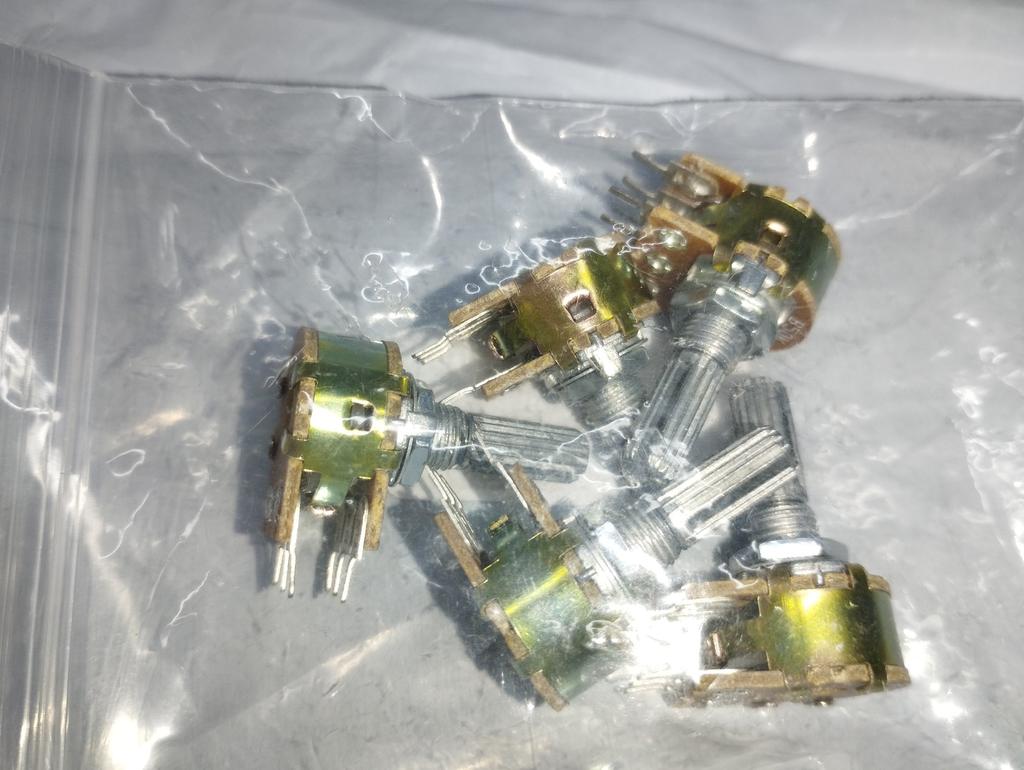

Package List: 5PCS WH148 Potentiometer
