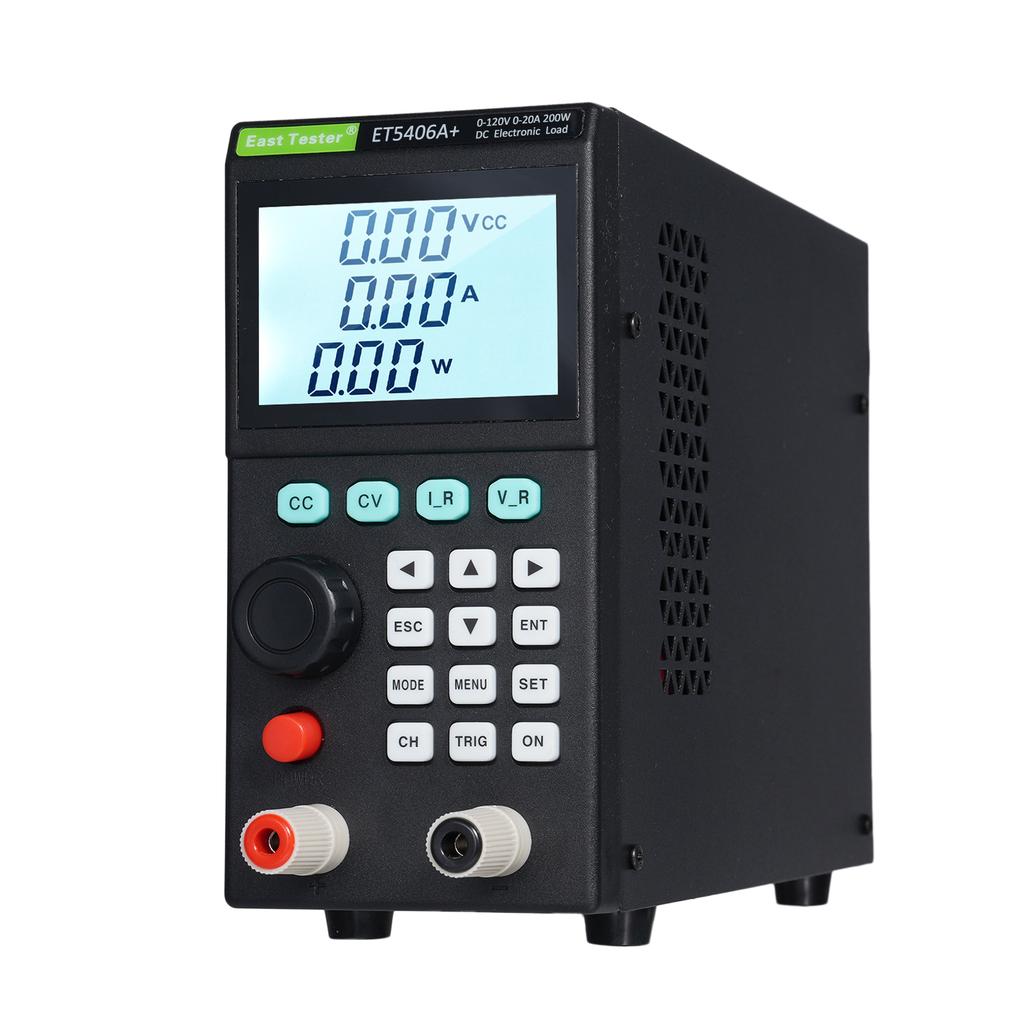

ET5406A+ programmable DC electronic load provides 1mV10mV, 1mA10mA high resolution and precision with superior performance. It is equipped with 9 common modes and complete test functions, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing.

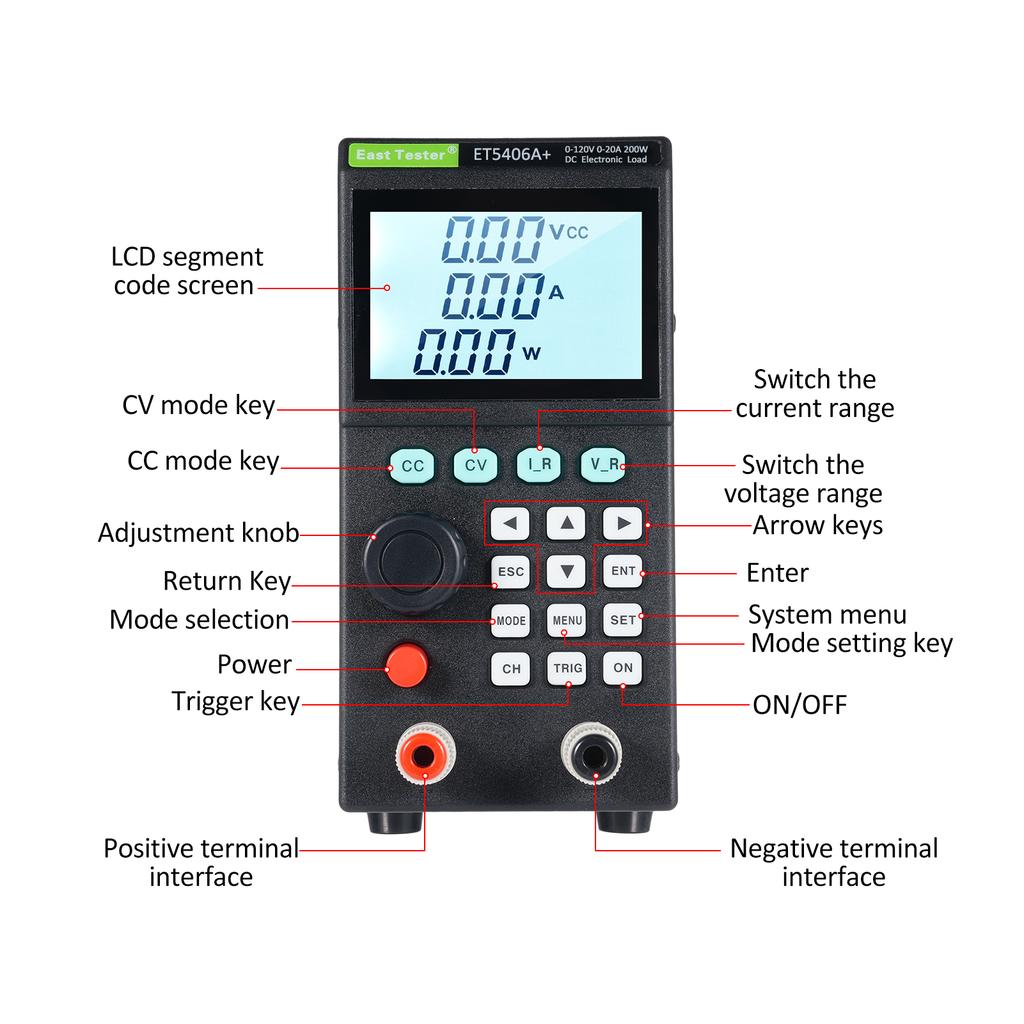

Features:
Adopting LCD segment code screen with adjustable backlight.
The operation process is simple and convenient, and with visual interface display system, it is easy to get started.
Key lock function to prevent misoperation.
It provides CC, CV, CR, CP basic measurement modes.
It provides professional battery test.
The Tran test mode can test the dynamic output performance of the power supply.
The list test mode can simulate a variety of loading status changes.
The short circuit test can be used to simulate load short circuit.
Support external trigger input.
Built-in buzzer alarm.
Maintain data storage in case of power failure.

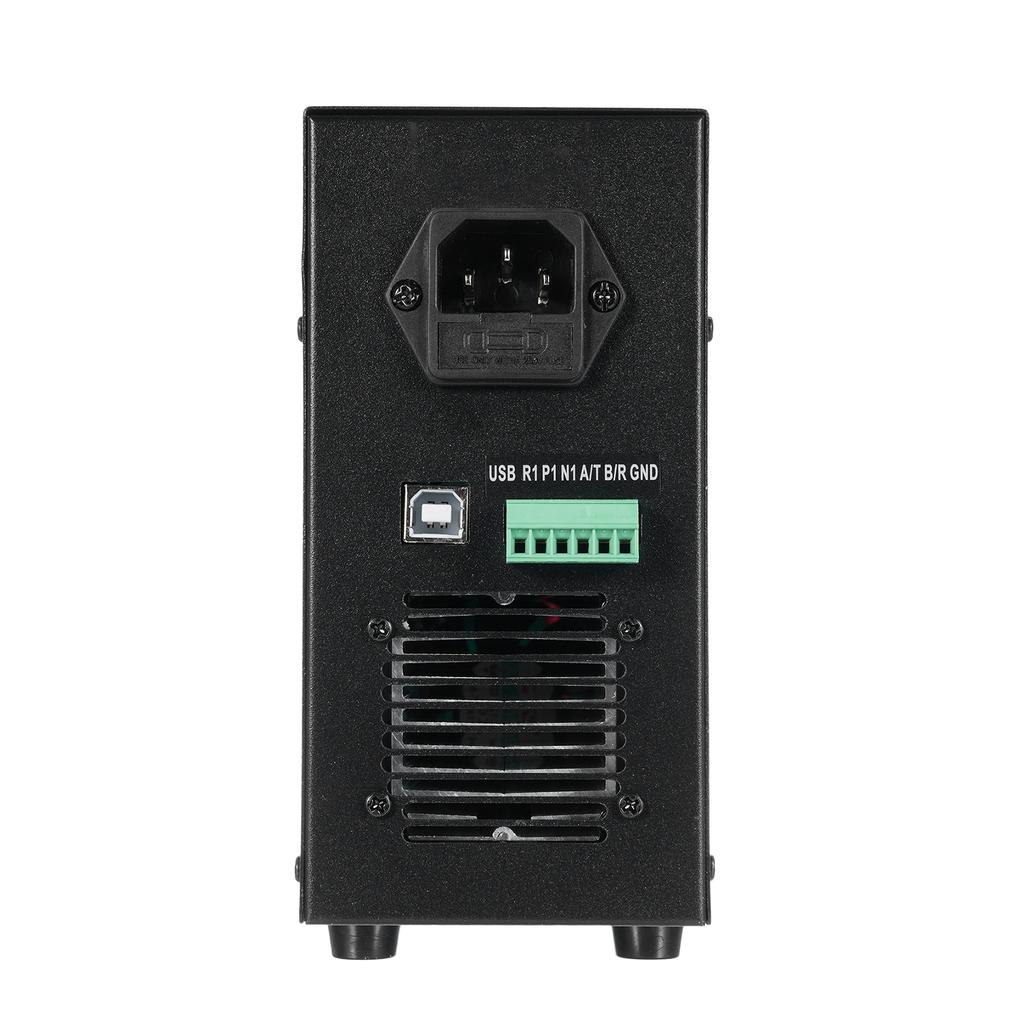

Remote operation via USB, RS-232 (optional) or 485 (optional) interfaces.
It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage and overcurrent parameters can be set flexibly, so as to effectively protect the load.
It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working.
With input polarity reverse prompt.
Specifications:
Plug: EU US UK (Optional)
Model: ET5406A+
Material: Plastic + galvanized sheet
Rated Input:
Power: 200W
Input Voltage: 0-120V
Input Current: 0-20A
CV Mode:
Range: 0.1~19.999V, 0.1~120.00V
Resolution: 1mV, 10mV
Accuracy: +-(0.05percent +0.02percent FS)
CC Mode:
Range: 0~3.000A, 0~20.00A
Resolution: 1mA, 10mA
Accuracy: +-(0.05percent +0.05percent FS)
CR Mode:
Range: 0.05 Ohm ~4.50k Ohm
Resolution: 10m Ohm , 1 Ohm
Accuracy: +-(0.1percent +0.5percent FS)
CP Mode:
Range: 0~200W
Resolution: 10mW
Accuracy: +-(0.1percent +0.5percent FS)
Tran Test:
Mode: CC, CV
T1 & T2: 0.05s~99.999s
Battery Test:
Discharge Mode: CC, CR
Maximum Discharge Capacity: 9999Ah
Resolution: 1mA, 10mA, 10m Ohm , 1 Ohm
Range of Measurement:
Voltage Read-Back Value:
Range: 0~19.999V, 0~120.00V
Resolution: 1mV, 10mV
Accuracy: +-(0.05percent +0.1percent FS)
Current Read-Back Value:
Range: 0~3.000A, 0~20.00A
Resolution: 1mA, 10mA
Accuracy: +-(0.05percent +0.1percent FS)
Power Read-Back Value:
Range: 200W
Resolution: 10mW
Accuracy: +-(0.1percent +0.5percent FS)
Scope of Protection:
Over Voltage Protection (OV): more than 21V or more than 125V over voltage protection
Over Current Protection (OC): more than 3.1A or more than 21A over current protection
Over Power Protection (OP): 210W
Over Temperature Protection: 85 celsius

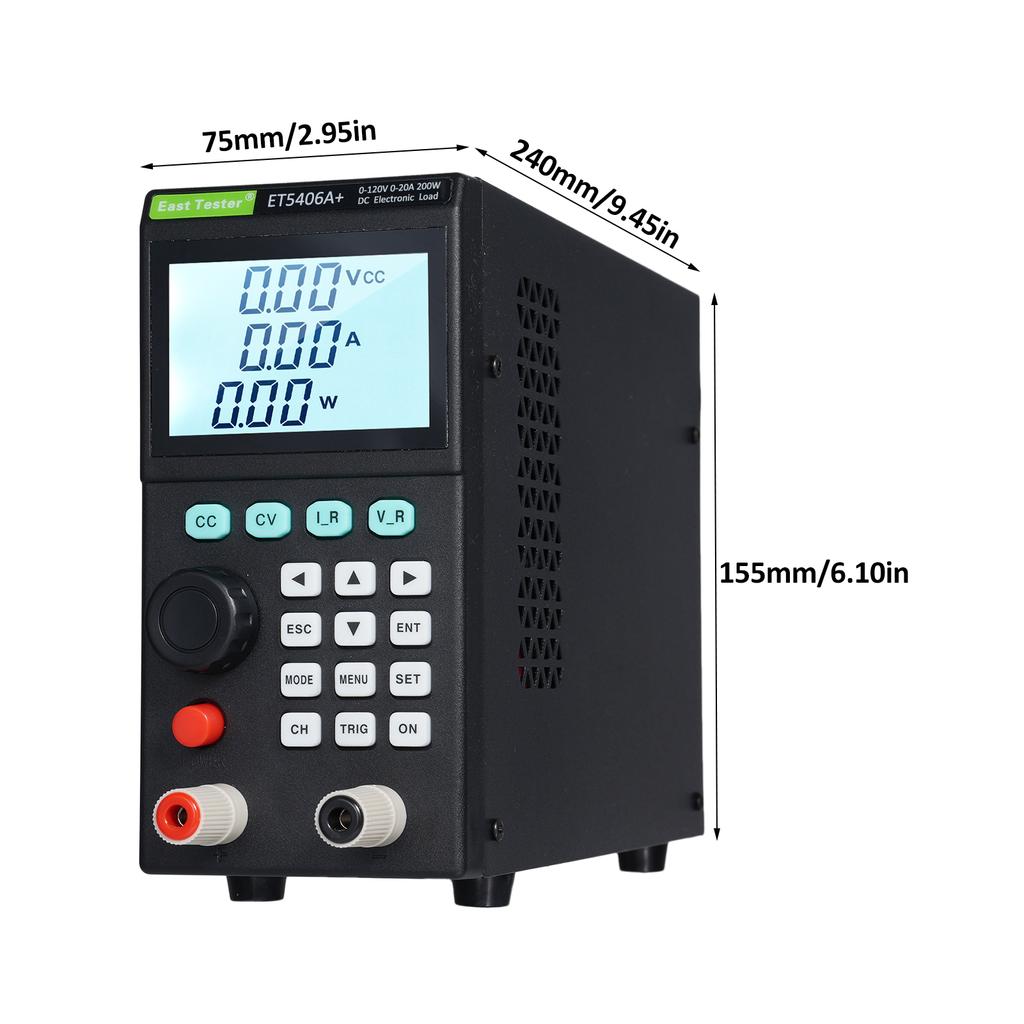

Item Size: 240 * 75 * 155mm 9.45 * 2.95 * 6.10in
Item Weight: 1234g 2.72lb
Package Weight: 1590g 3.51lb
Package Size: 30 * 14 * 20.5cm 11.81 * 5.51 * 8.07in
Package List:
1 * DC Electronic Load
1 * Power Cord
1 * User Manual (English)
