It
Features enhanced firmware, a new fitting algorithm, and a multipoint correction algorithm. The device offers two display modes: normal mode and PEP mode. The multiinterface display mode design with a dynamic analogue display bar makes the power status more intuitive under SSB. There are five interface display methods available. The device also has a highspeed average detection mode and realtime efficiency display. The fitting algorithm, tailored to the characteristics of the detection diode, combined with a multipoint correction algorithm and dual reference segment detection, ensures accuracy finer than 5% between the 0.5W to 200W power. Covering the 1.6MHz to 50MHz frequency band, it meets the needs of amateurs with its high accuracy and highstanding waves, guaranteeing reliable and precise measurements.
Features:

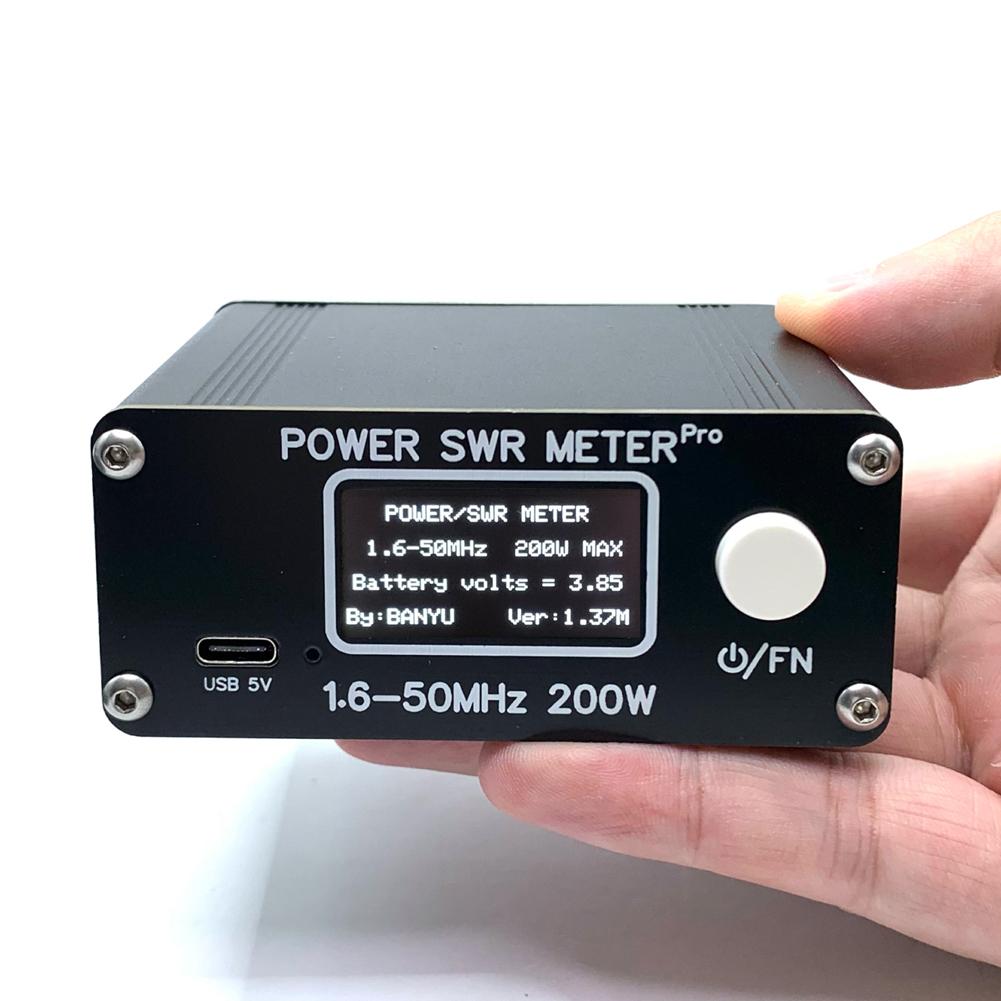

Digital OLED Display: This device offers a digital OLED display for easy data reading at a glance. It
Features enhanced firmware, a new fitting algorithm, and a multipoint correction algorithm. The device offers two display modes: normal mode and PEP mode. The multiinterface display mode design with a dynamic analogue display bar makes the power status more intuitive under SSB. There are five interface display methods available. The device also has a highspeed average detection mode and realtime efficiency display.
Accurate Measurement: The fitting algorithm, tailored to the characteristics of the detection diode, combined with a multipoint correction algorithm and dual reference segment detection, ensures accuracy finer than 5% between the 0.5W to 200W power. Covering the 1.6MHz to 50MHz frequency band, it meets the needs of amateurs with its high accuracy and highstanding waves, guaranteeing reliable and precise measurements.
PEP Mode Support: The standing waves meter supports PEP mode for measuring the instantaneous maximum power of signals, helping users to more accurately measure and adjust their radio equipment to achieve superior performance, providing additional functionality and versatility for users.
Standing Waves Alarm Function: When standing waves more than 2.0, it will activate an intermittent beep alarm. When standing waves more than 3.0, it will activate a continuous beep alarm. And the alarm can be turned off.
Portable Design with Builtin Rechargeable Battery: With its compact size and builtin rechargeable battery, this device is designed for portability and convenience and ensures extended operating time. It also supports convenient TypeC charging for quick, hasslefree recharging, and enhanced user experience.
Attention:
The device can be used for continuous detection at 200W for extended periods.
More than 500W power will damage the detection elements.
How to Use?
Long press its switch to turn it on and off. Short press the button to switch display interfaces. Double clicks to switch the standing waves alarm. Three clicks to switch between normal mode and PEP mode.
There are five display interfaces that can be automatically saved. They will be automatically recalled the nexttime the device is turned on.
The red light is on while the meter is charging and turns off when the meter is fully charged.
Specifications:

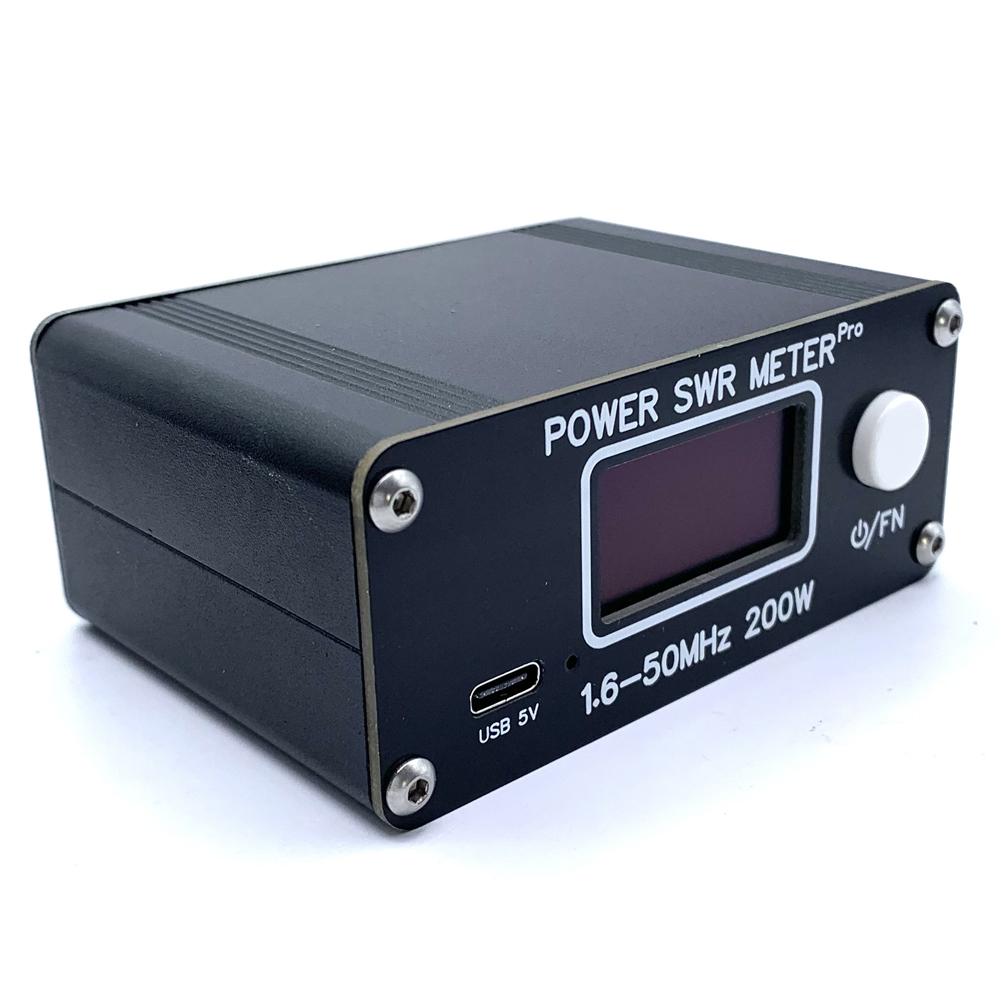

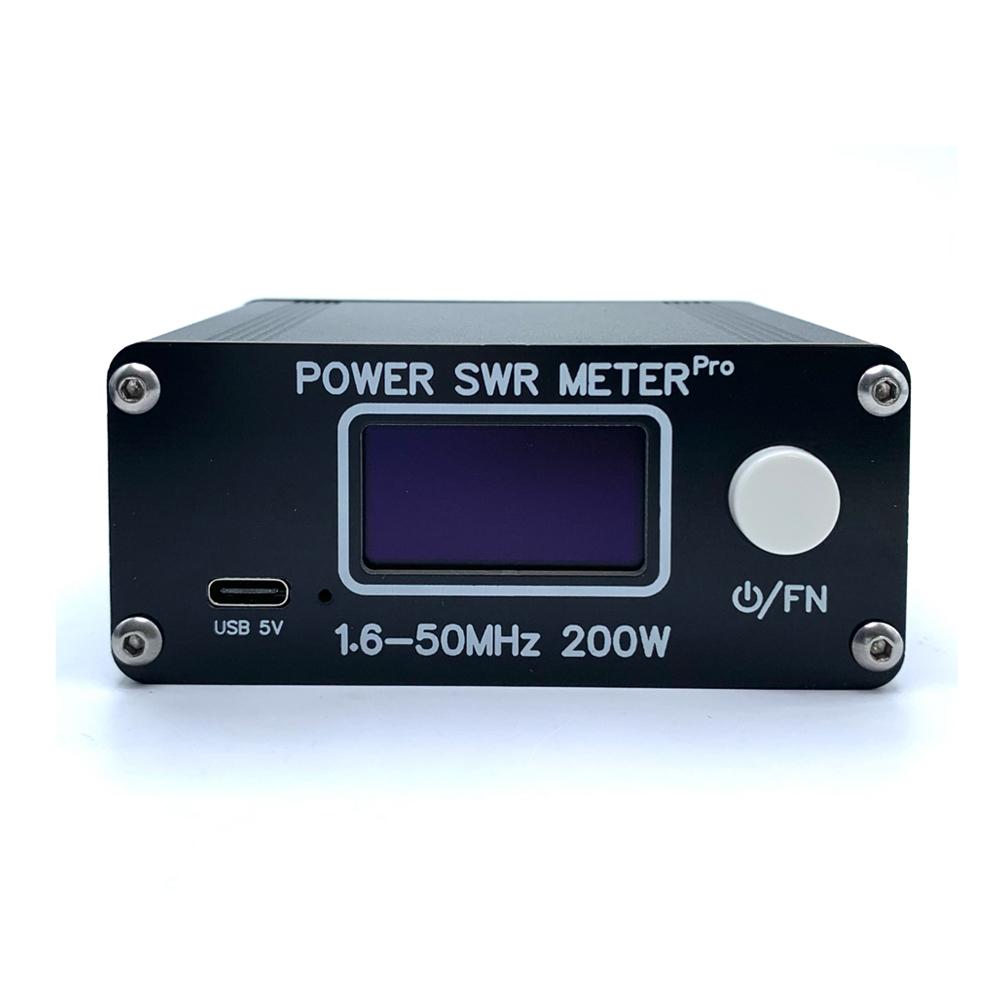

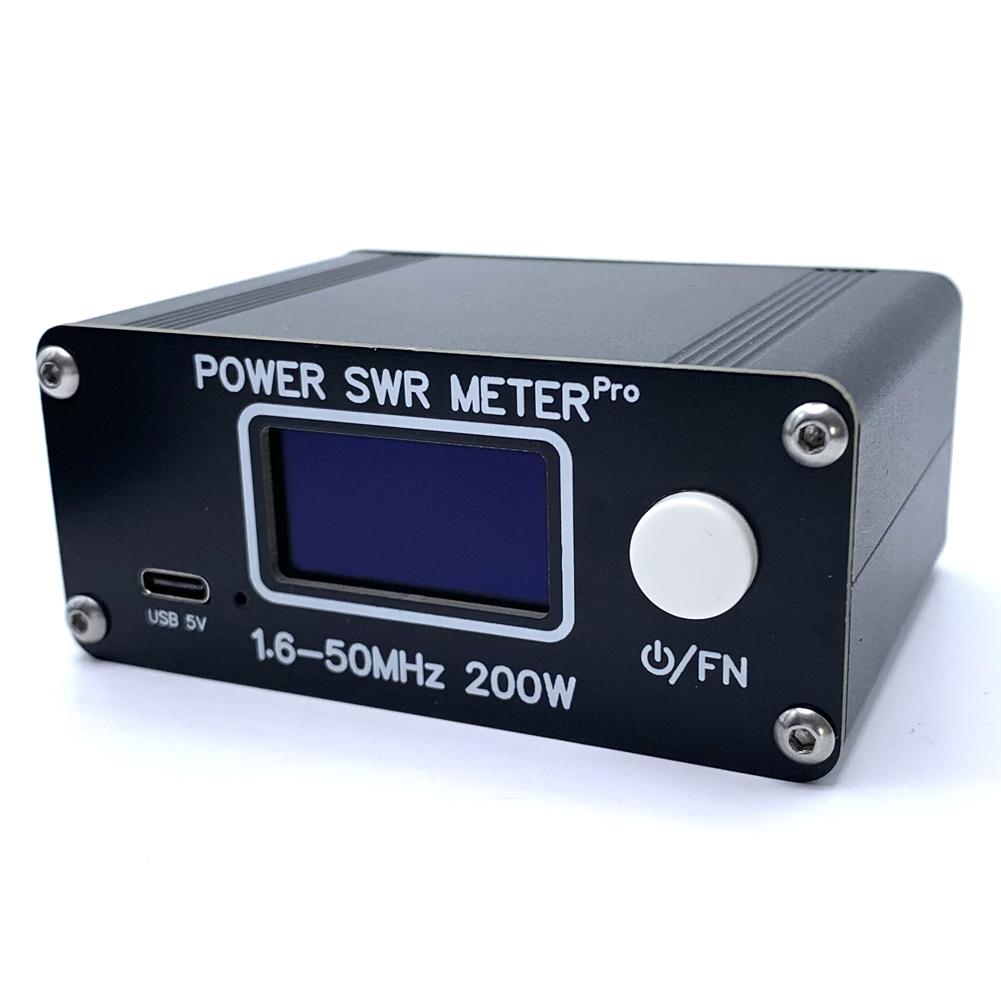

Name: SWR Meter
Material: aluminum alloy + printed circuit board
Battery: builtin rechargeable lithium battery (included)
Frequency ranges: 1.650MHz
Power measurement ranges: 0.5W200W
Standing waves measurement ranges: 1.099.9
Insertion loss: less than 0.12dB
Insertion of standing waves: less than 1.02 at 1.630MHz; less than 1.05 at 3050MHz
Measurement accuracy: higher than + 5%
Impedance: 50 Ohm

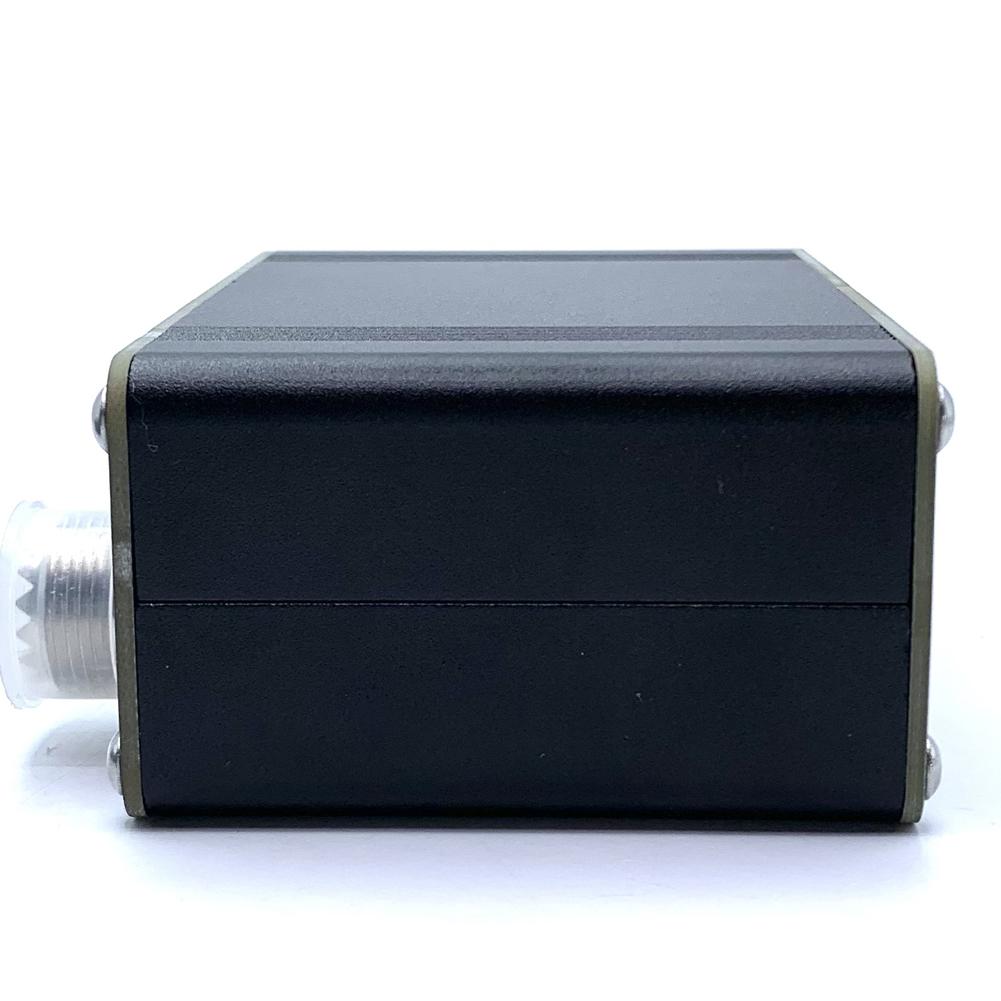

Radio frequency interface type: so239
Display content: forward power, standing waves, antennaend power and efficiency
Powersupply: builtin rechargeable lithium battery or USB typec
Power consumption: less than 0.1uA
Screen size: 1.29 inches
Screen type: OLED
Data communication: USB TypeC
Item size: 63 * 89 * 38mm 2.48 * 3.50 * 1.50in
Package size: 150 * 100 * 40mm 5.91 * 3.94 * 1.57in
Package weight: 200g 7.76ounce
Packing List:
1 * SWR Meter
