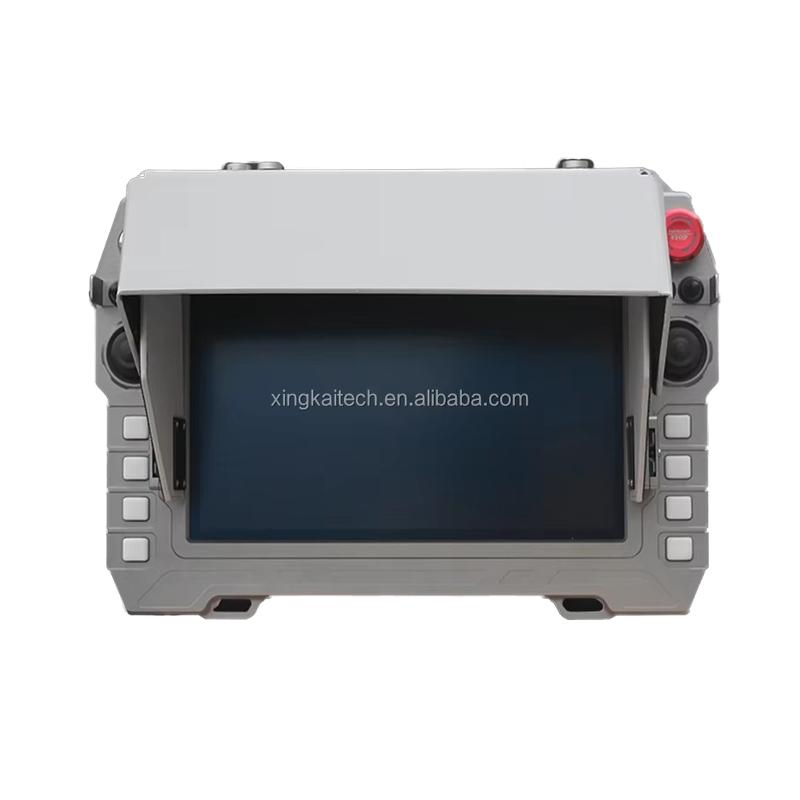

FPV Drone Handheld Video Controller Integrated Data Link Remote Control System Ground Station

XK-M08 is a handheld ground control station integrated industrial grade PC system and data link remote control system. XK-M08 handheld gcs provides the function such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc. The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads. Windows 10 pre-installed, Intel I7-7500U based processor, 10.1" LCD screen, 1920*1200 resolution, 8GB/DDR4 memory, 256G SSD, silver grey surface, aluminium alloy, -20~55ºC working temperature, meets vibration requirements and basic protection for road, rail and aircraft transport. Configuration parameters ● CPU I7-7500U Processor ● Memory 8GB/DDR4，Maximum support32G ● Hard Drives 256G SSD ● Screens

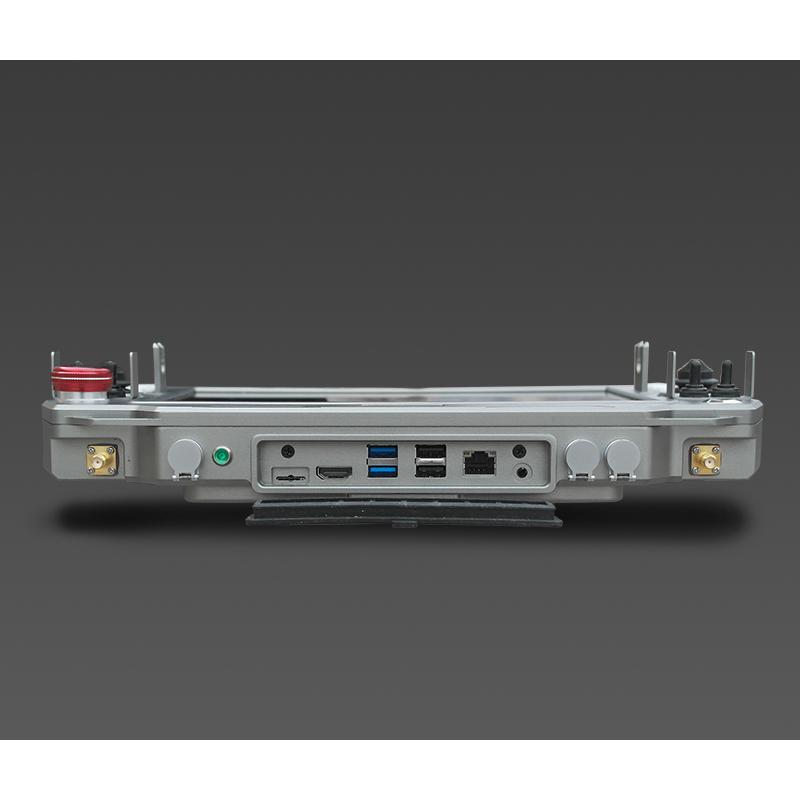

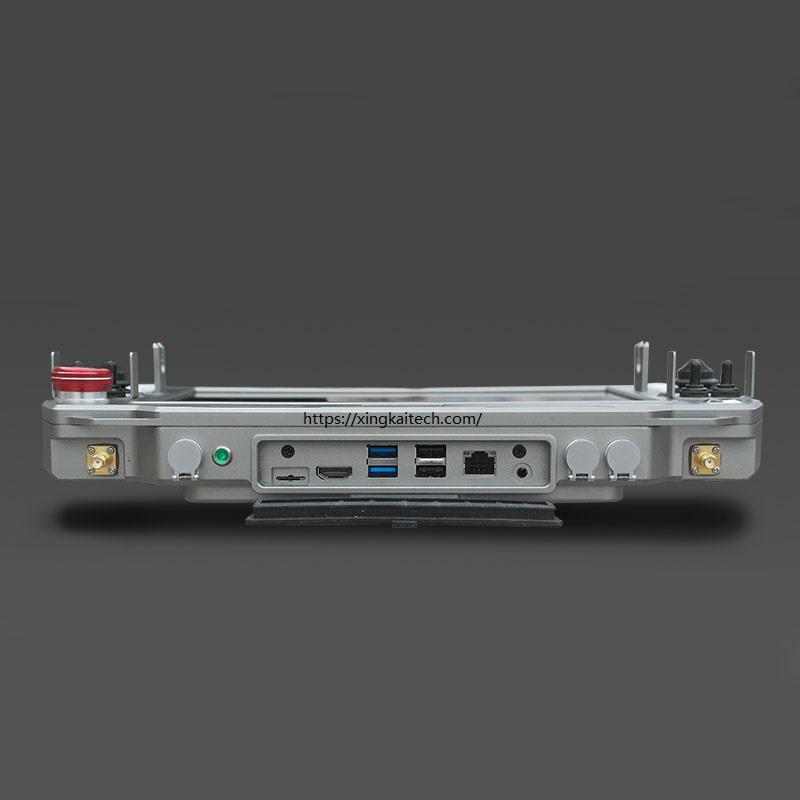

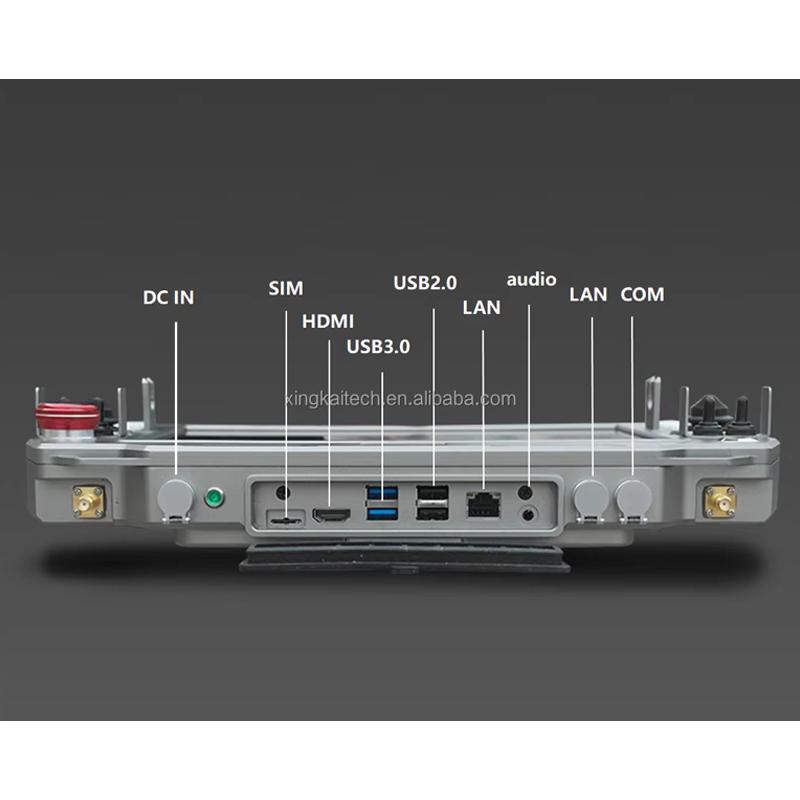

10.1＂ WXGA TFT LCD；Brightness 600cd/m2 ；Capacitive touch screen; anti-glare finish on screen ● Buttons and joysticks 1*Emergency stop；4*Button switch；8 Customised keys；2 Rocking Rod；1*Power on button； ● Interface 1*Network port；4*USB；1*HDMI；1*Audio Interface；1*SIM；1*com（Air plug）；1*LAN（Air plug） ● Physical parameters Pearl grey, aluminium；Weight：2.3 Kg； ● Dimension 330mm*227mm*71mm ● Environmental parameters Operating temperature：-20~55ºC，Storage temperature：-30~60ºC ● Protection Grade IP54 ●Operating systems Windows 10 64
