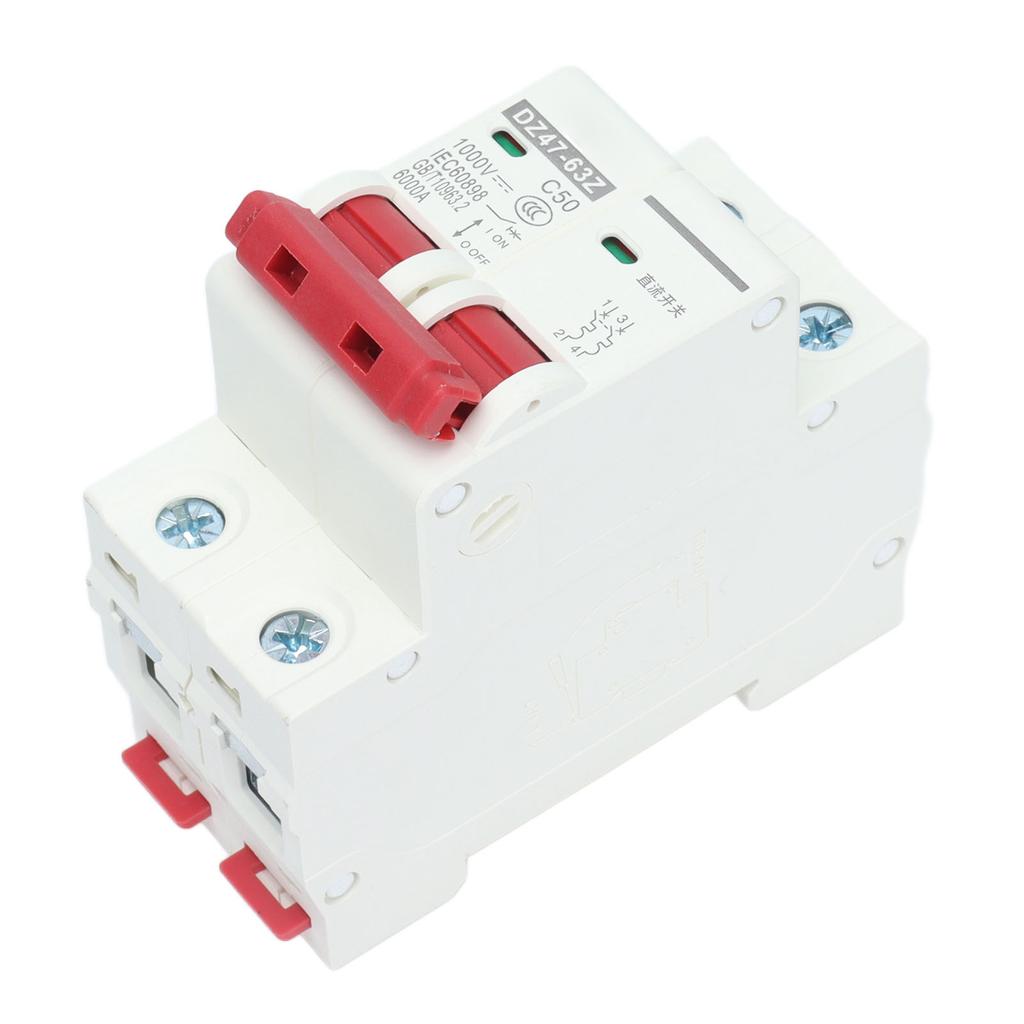

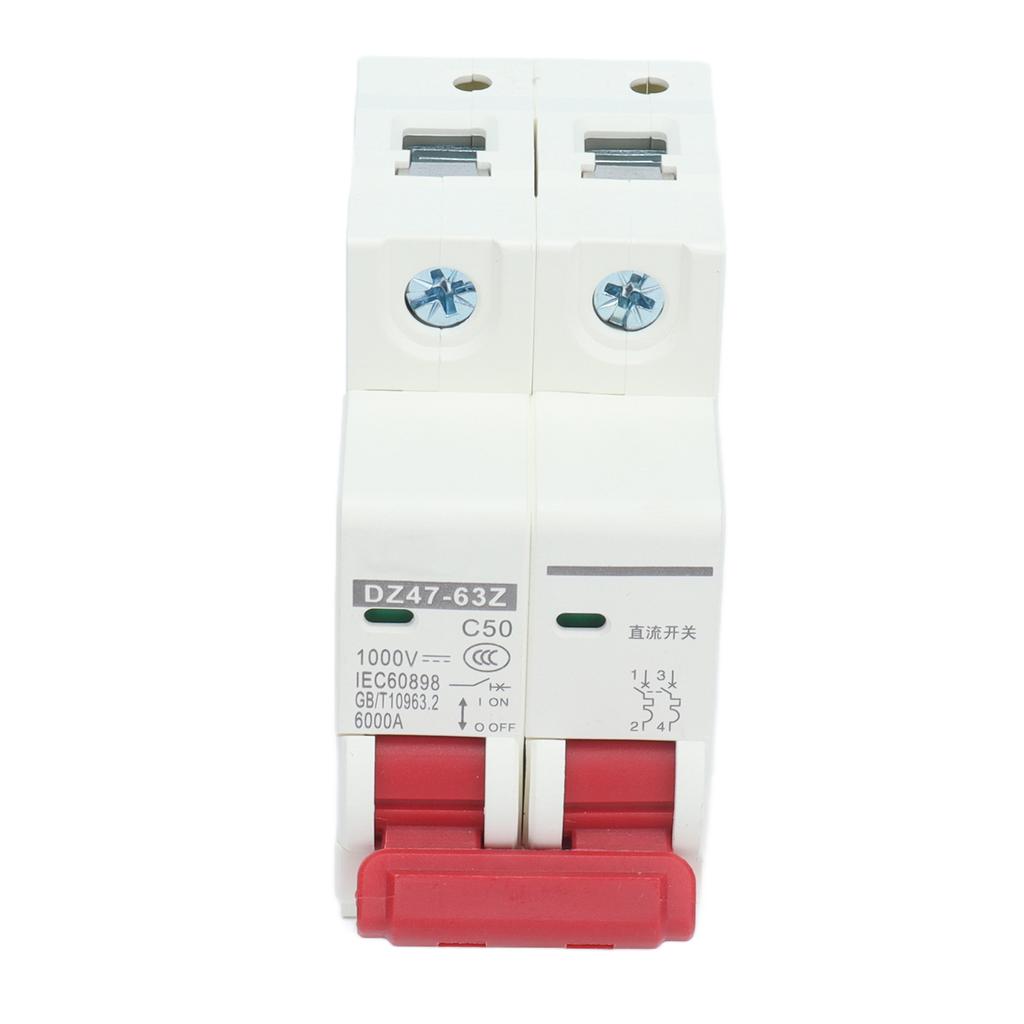

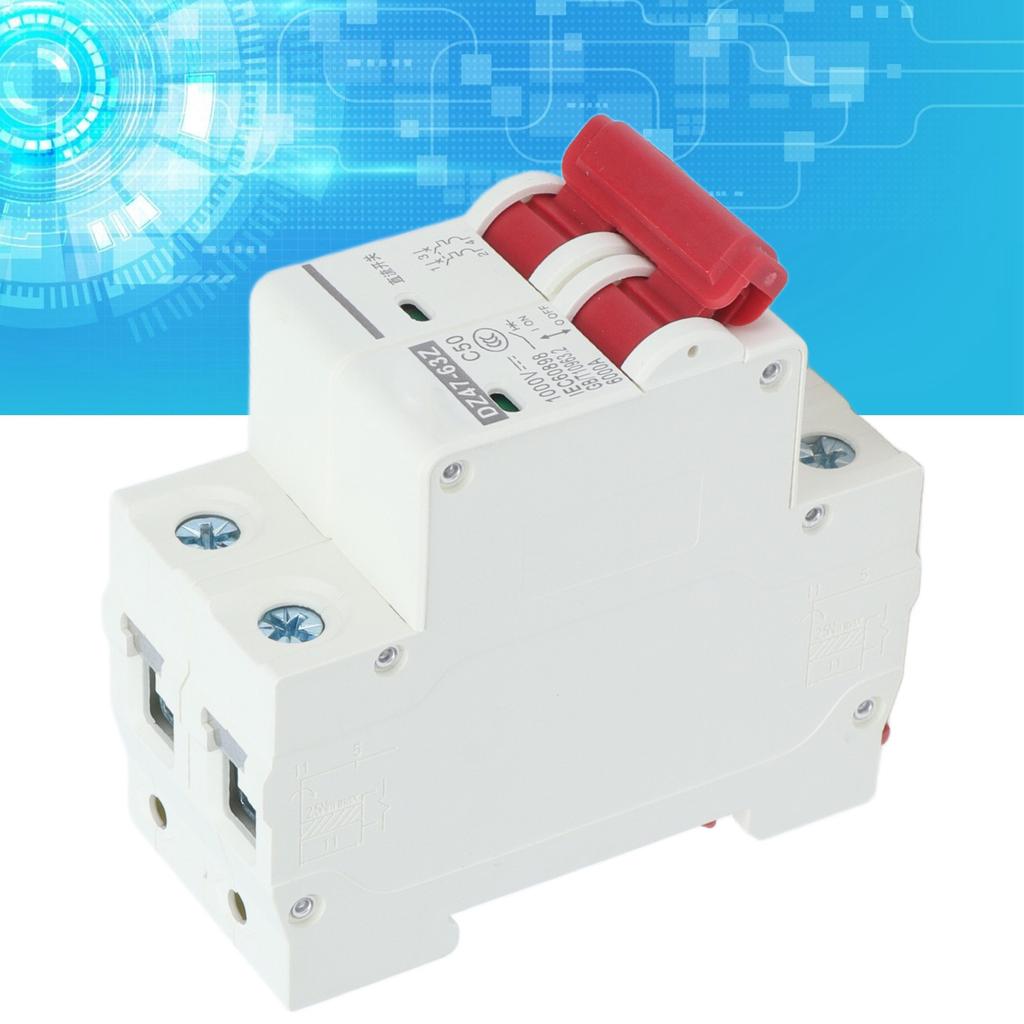

DC Miniature Circuit Breaker 2P Solar PV System Isolator DIN Rail Mount 1000V 50A DZ47‑63Z C50

Feature: 1. Control And Isolation: Circuit breaker works for protecting power distribution facilities from overload and short circuit damage, and can also be used for control and isolation 2. Electromagnetic Trip System: The electromagnetic trip system can trip immediately when the circuit is short circuited, thereby effectively protecting the safety of the circuit 3. Auxiliary Arc Extinguishing: DC arc extinguishing is more difficult than AC, this DC circuit breaker has an auxiliary arc extinguishing magnetic system, which is more fast 4. For DC Systems: Suitable for DC power systems, ship power systems, solar photovoltaic systems or other DC systems, with excellent performance 5. 35mm DIN Rail Installation: Circuit breaker come with modular structure, adopt screw clamps and 35mm DIN rail installation Specification: Item Type: DC Miniature Circuit Breaker Model: DZ47-63Z Material: PA66 Rated Current: 50A Rated Voltage: DC 1000V Rated Ultimate Short Circuit Breaking Capacity(home Icn): 6000A Uses: Solar photovoltaic, electric motorcycle, electric car Package List: 1 x DC Miniature Circuit Breaker
