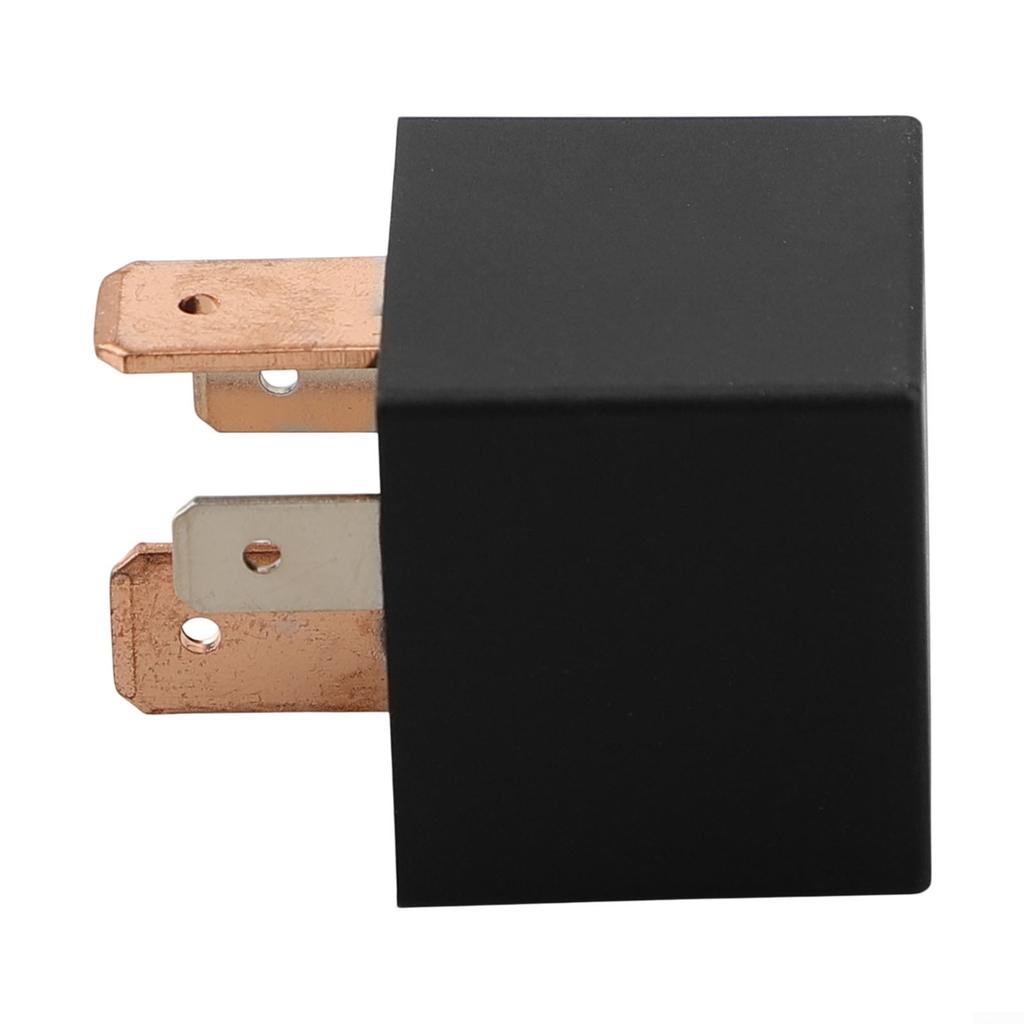

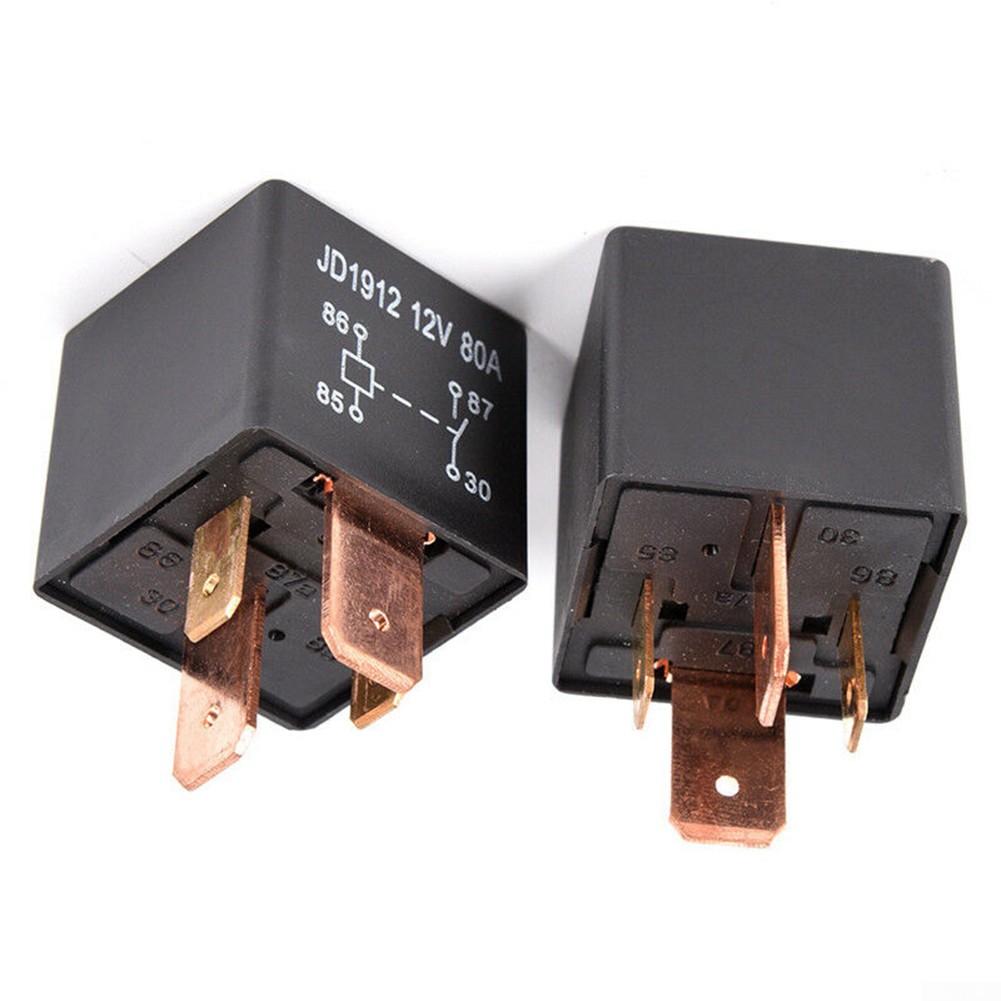

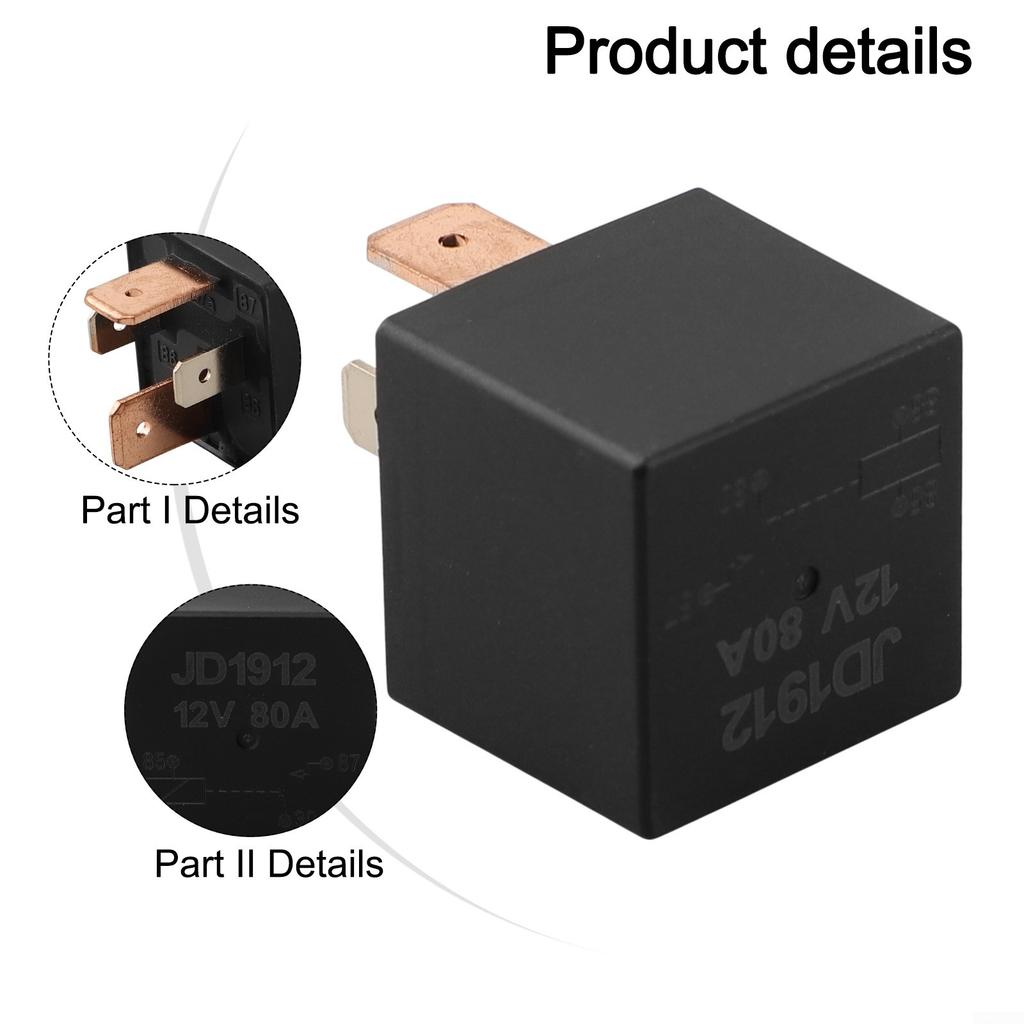

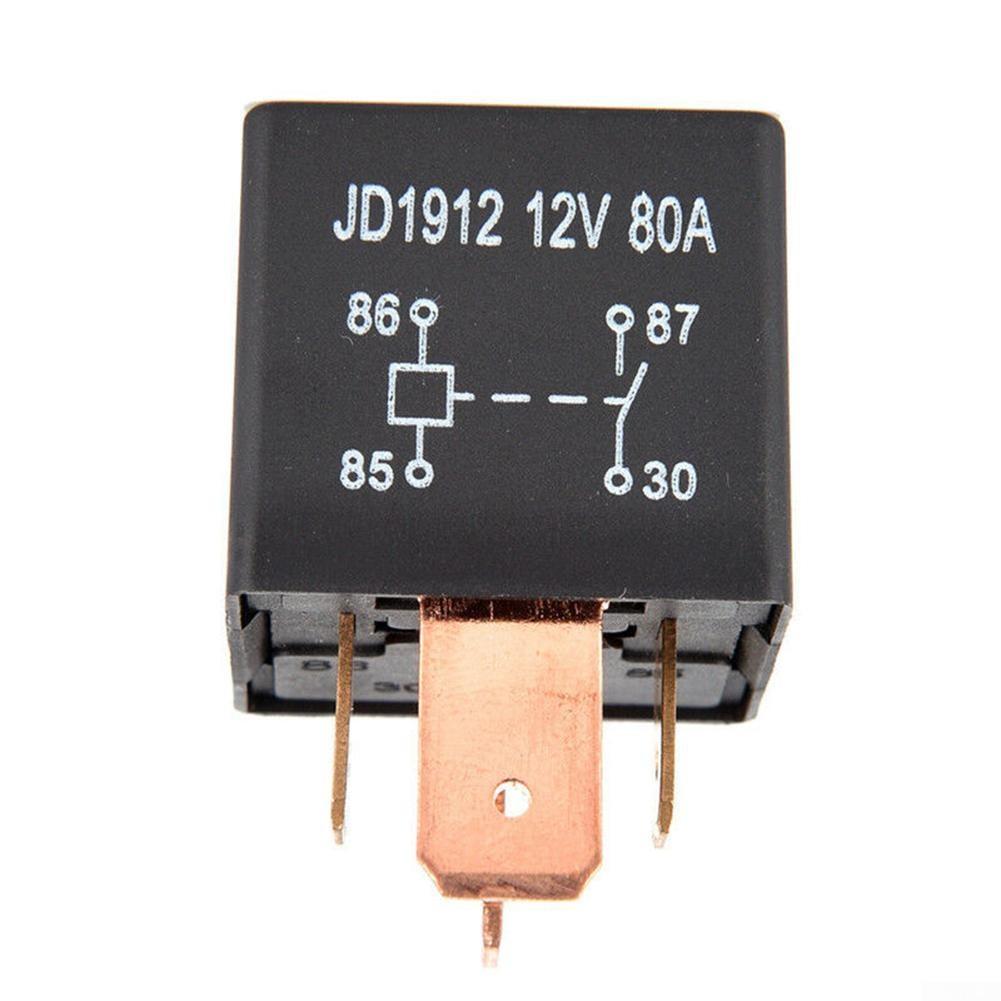

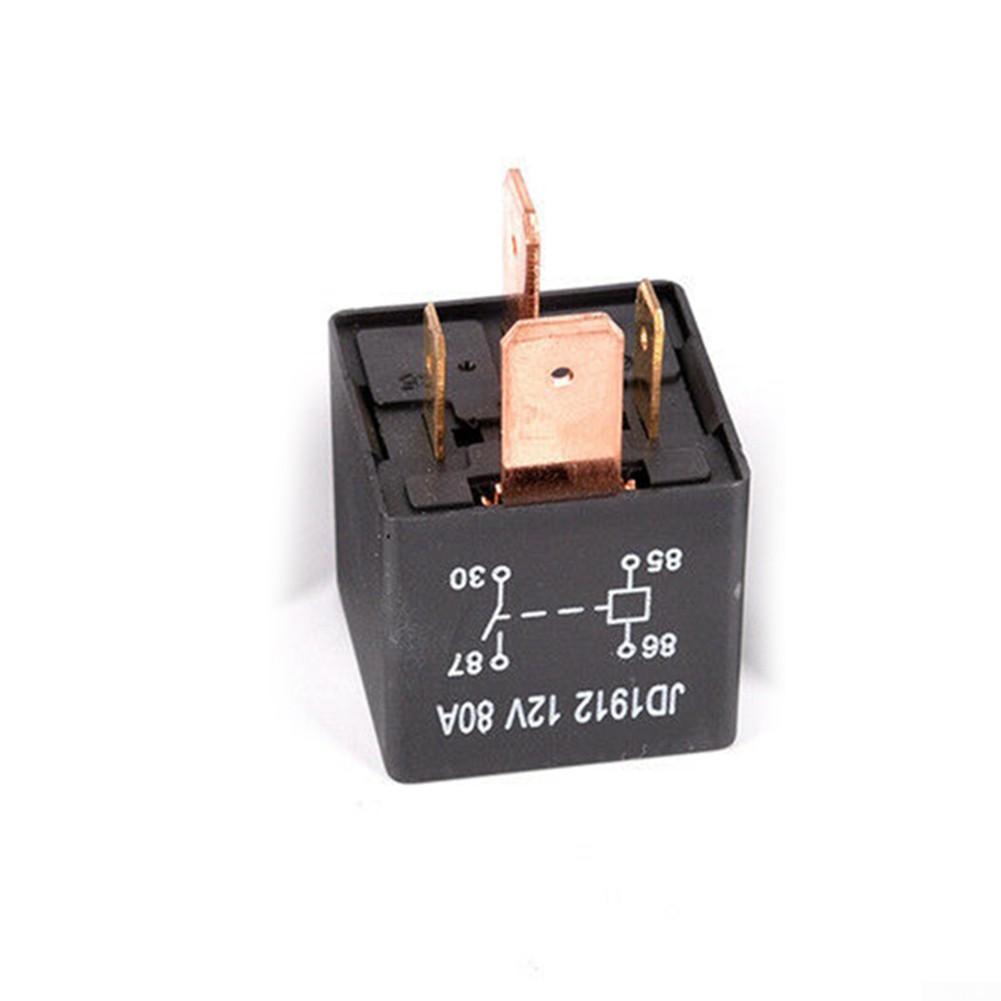

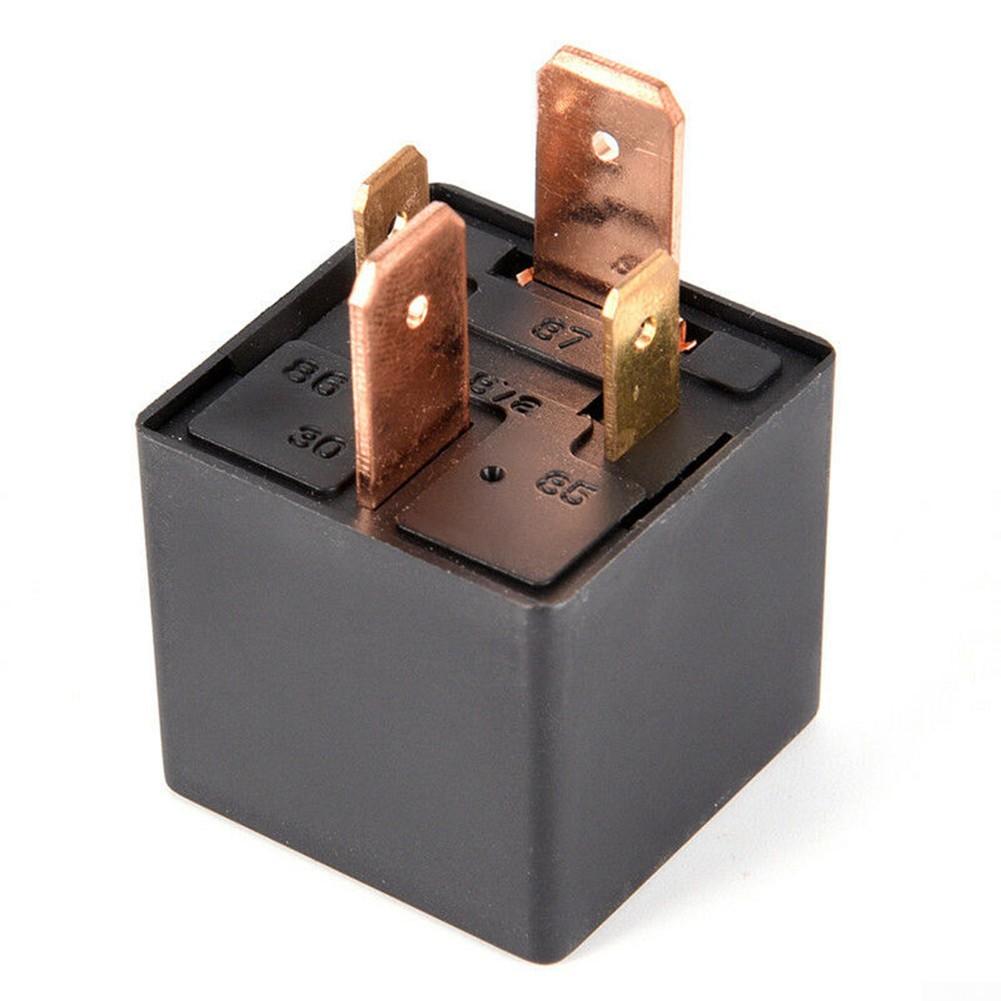

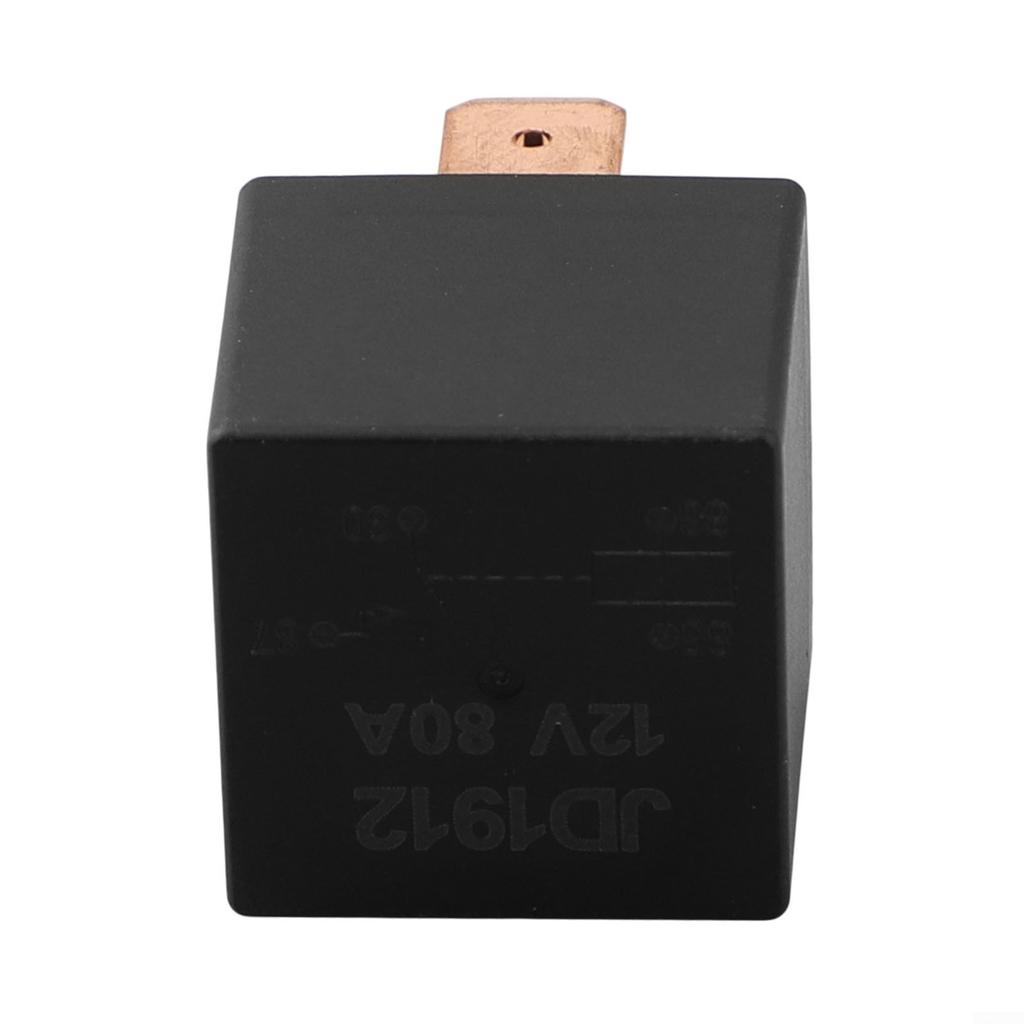

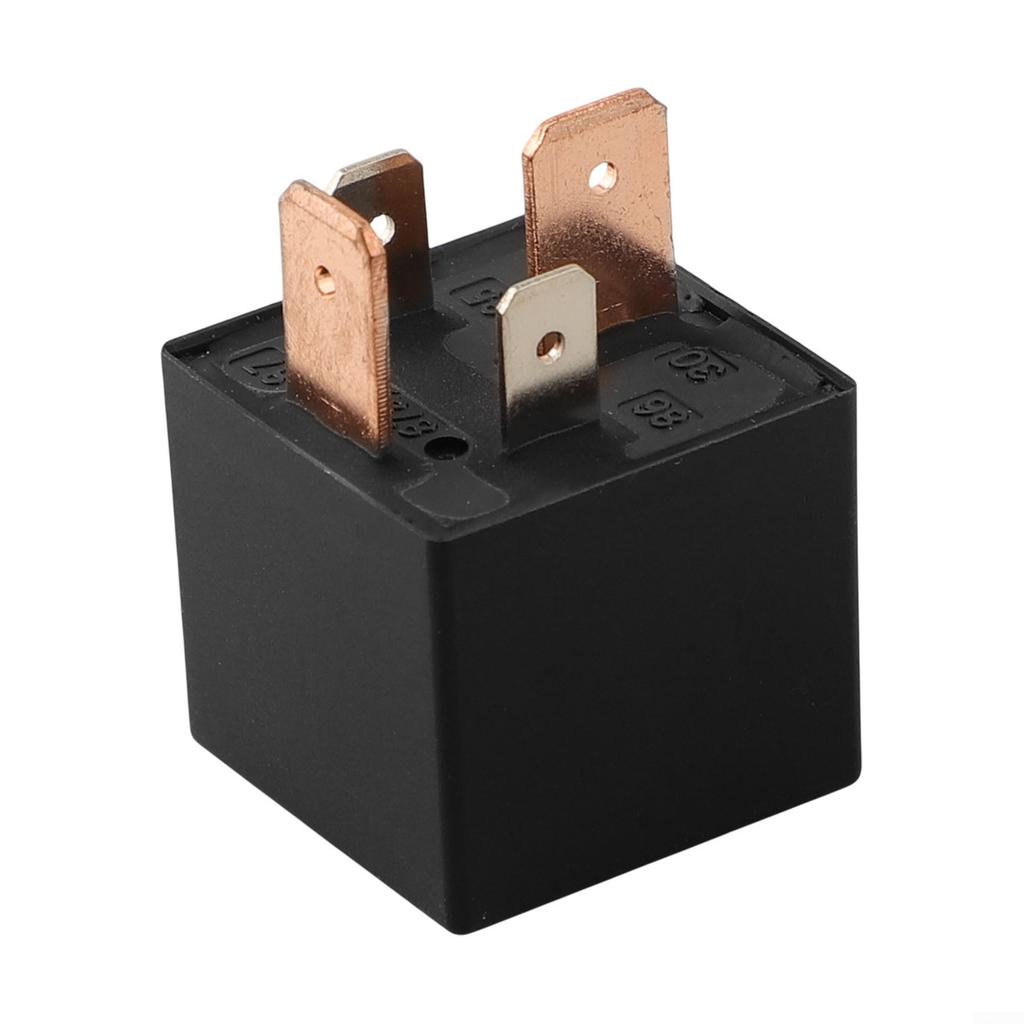

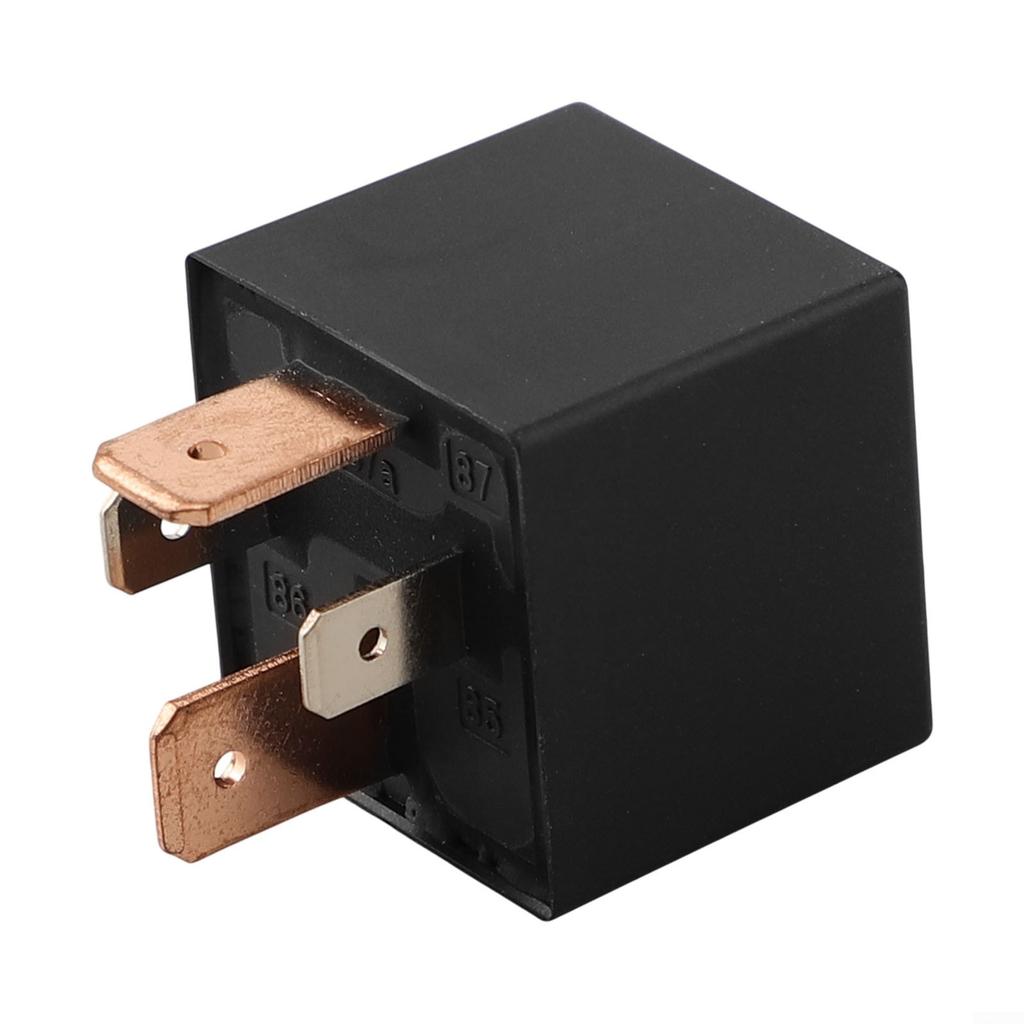

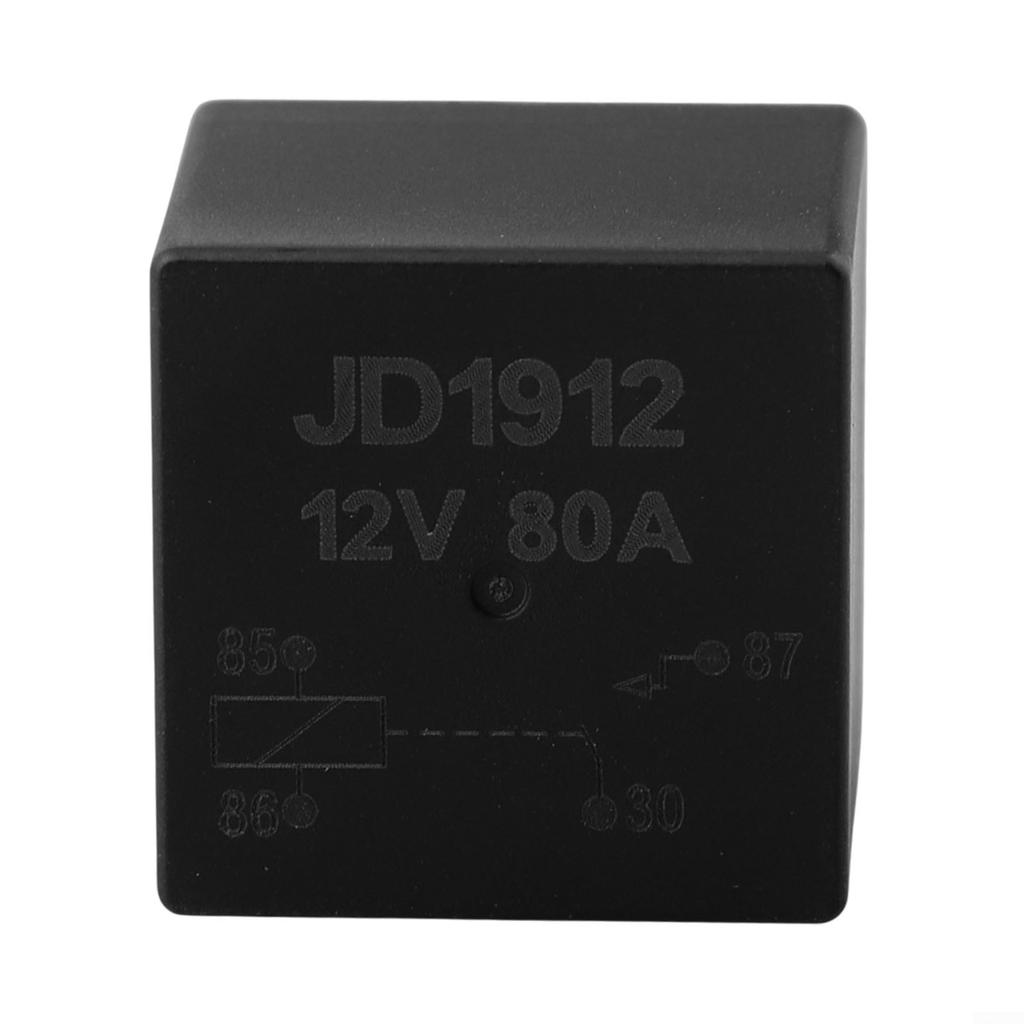

24V 12V 80A JD1912 Relay Automotive Car Waterproof

Features:

brand new and high quality Made of high-quality materials, Waterproof heavy-duty relay 4Pin DC 24V 12V 80A 1912 automotive relay With fuse, safer and more convenient 1form A.1form B.1formC.2 form A Contact arrangement Large capacity, 80A switching capacity

Product parameters:

Dimensions (length * width * height): 28mmx28mmx25mm/1.1inx1.1inx1in Ambient temperature: -40°C~+125°C Contact: 1a, 1b, Contact capacity: 1a:80A 14VDC 1b: 60A 14VDC : 80A/60A 14VDC Coil voltage: 12VDC/24VDC/48VDC Coil power: 1.8W Contact resistance: ≤50mΩ Initial insulation resistance: ≥1,00MΩ Life: electrical life 100,000ops Mechanical life: 1,000,000ops Dielectric strength between open circuits: 500VAC Between coil contacts: 500VAC Installation form: three-clamp connection, socket installation Ambient temperature: -40°C~+125°C Application: Automatic control device

Package list:

1 * Relay

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
