Feature:
1. Impact Resistance: The sealed limit switch housing is covered with reinforced PP material, waterproof, oil resistant, has higher mechanical strength and is impact resistant.
2. High Load Carrying Capacity: The sealed limit switch is made of thickened copper conductors and excellent silver contacts, with strong electrical conductivity, low resistivity, no arcing, stable performance, sensitive contacts and greater load carrying capacity.
3. Strong Sealing Performance: The seal limit switch has strong sealing performance, the front and rear cover and cylinder body adopt riveted and rolled package structure, the connection is reliable.
4. High Toughness: This sealed limit switch has a smoother mechanical action, high toughness and high fatigue resistance.
5. Wide Application: This sealed limit switch is widely used in conveyor belts, lifts, car parks, plastic processing machinery, self assembly machinery, packaging machinery, semiconductor manufacturing, stamping machinery, etc.
Specification:

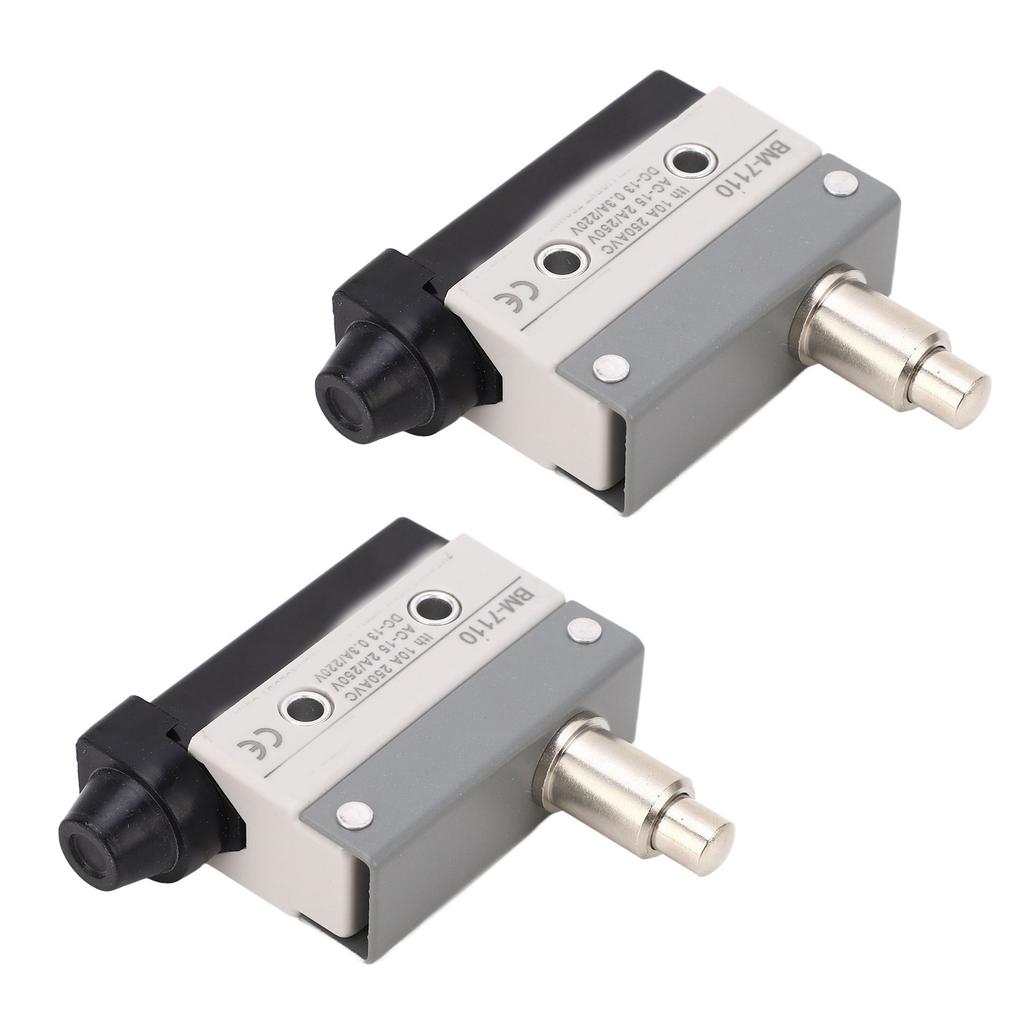

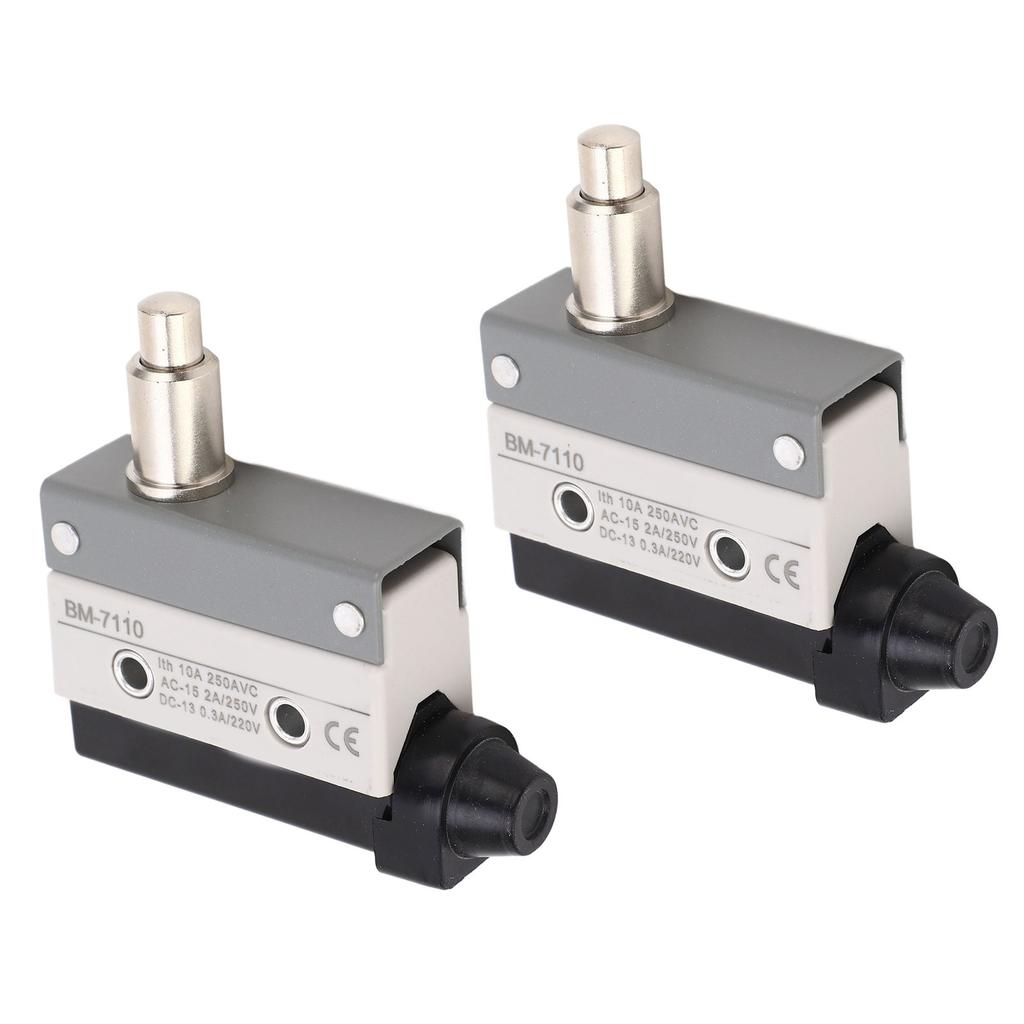

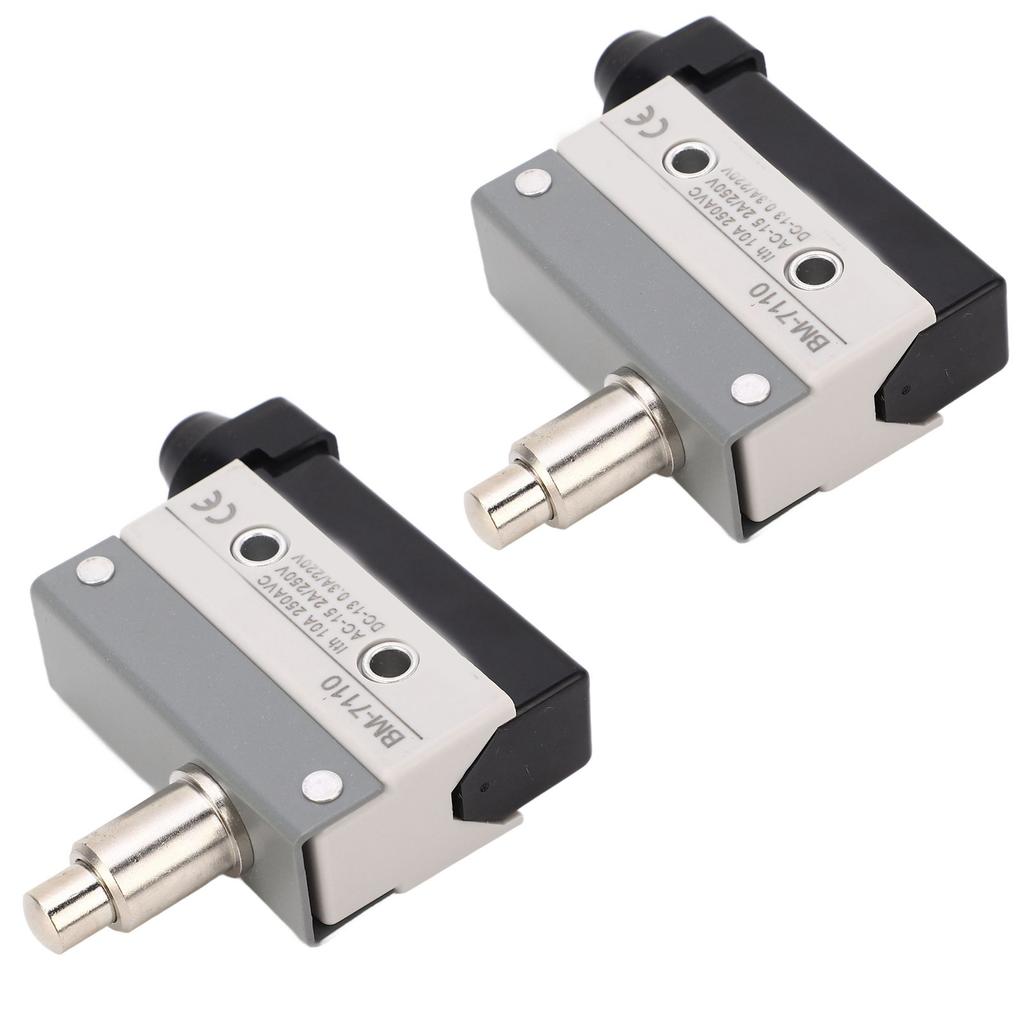

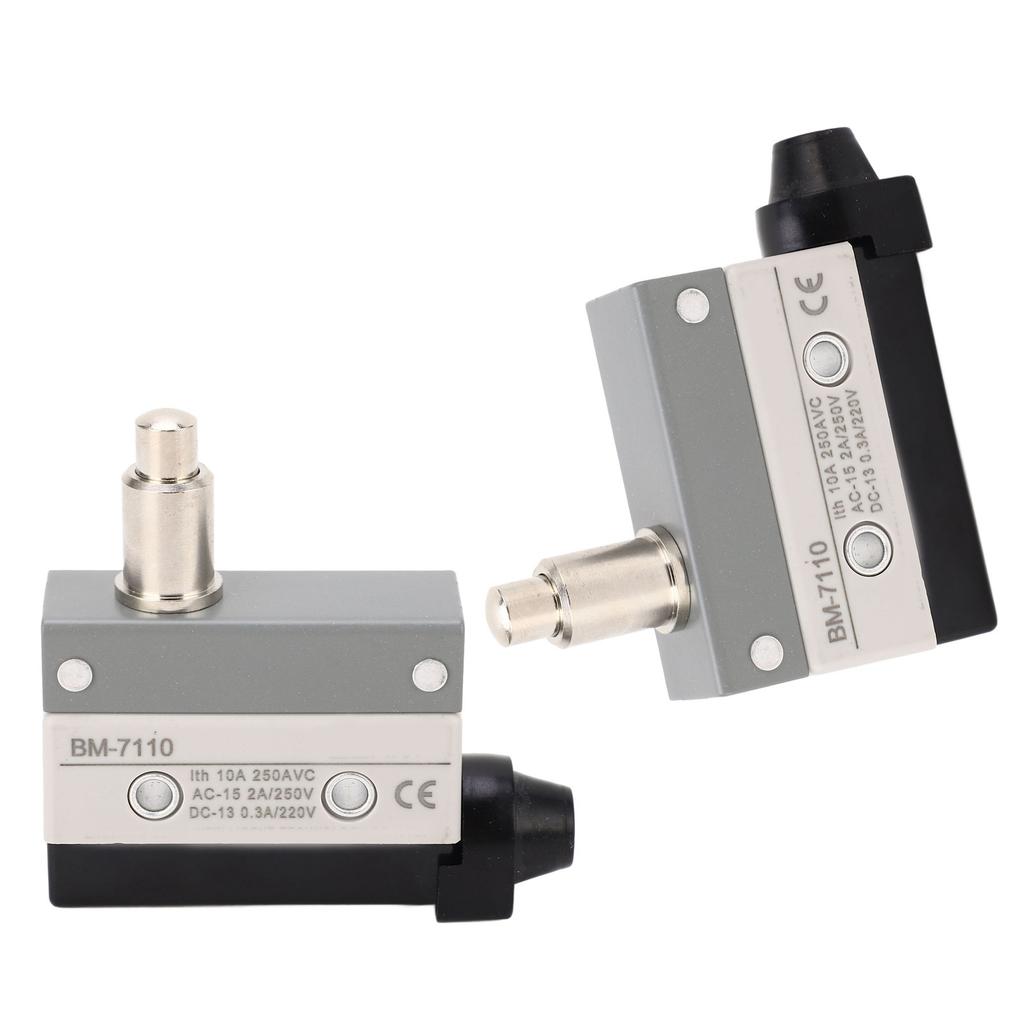

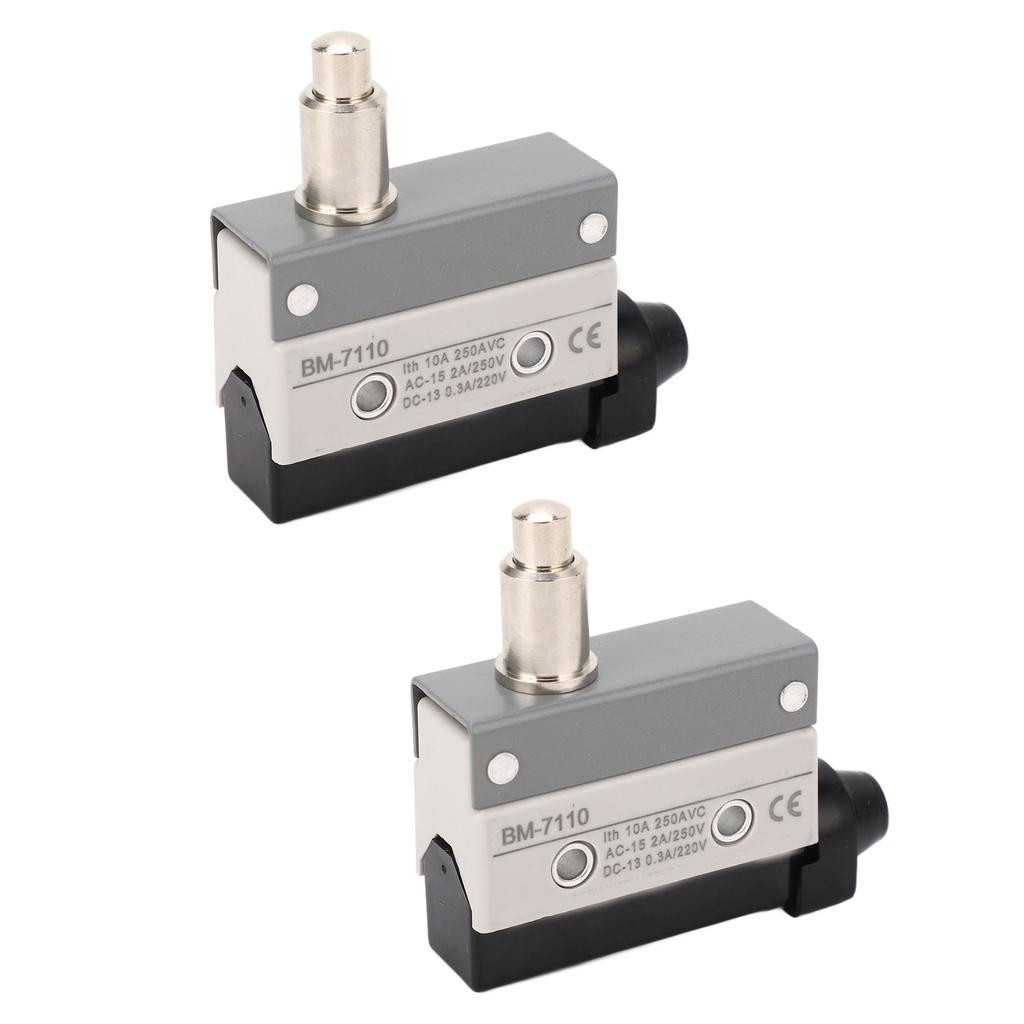

Item Type: Sealed Limit Switch
Material: PP flame retardant, brass
Non inductive loads
Resistive loads
NC
10
NO
Lamp loads
NC
2.5
NO
1.25
Inductive loads
Inductive loads
NC
10
NO
Motor loads
NC
3
NO
1.5
OF Maximum: 600 g 21.16 oz(approx.)
RF Minimum: 100 g 3.53 oz(approx.)
PT Maximum: 2mm 0.08in
OT Minimum: 5mm 0.2in
MD Maximum: 0.8mm 0.03in
OP (mm): 44+1.2
FP: \Operating Speed: 0.01mm to 50cmsec (locking plug type)
Operation Frequency: Mechanical: 120 timesmin, Electrical: 30 timesmin
Contact Resistance: 15m Ohm or less (initially)
Insulation Resistance: 100m Ohm or more (below 500VDC)
Dielectric Strength: 1,000VAC, 5060Hz for 1 minute between non continuous terminals, 1,500VAC, 5060Hz for 1 minute between current carrying and non current carrying parts, 1,500VAC, 5060Hz for 1 minute between terminals and earth
Vibration: Misfire Endurance: 10 to 55 Hz, 1.5 mm double amplitude
Shock: Mechanical endurance: 1,000mSec2 (approx. 100G"S), False action endurance: 300mSec2 (approx. 30G"S)
Ambient Temperature: When in use: 10 degrees C ~ +80 degrees C (no icing)
Humidity: <95percent RH
Operating Life: Mechanical: Over 10,000,000 cycles (at rated OT value), Electrical: Over 500,000 cycles.
Package List:
2 x
Sealed Limit SwitchImpact Resistance: The sealed limit switch housing is covered with reinforced PP material, waterproof, oil resistant, has higher mechanical strength and is impact resistant.
High Load Carrying Capacity: The sealed limit switch is made of thickened copper conductors and excellent silver contacts, with strong electrical conductivity, low resistivity, no arcing, stable performance, sensitive contacts and greater load carrying c
Strong Sealing Performance: The seal limit switch has strong sealing performance, the front and rear cover and cylinder body adopt riveted and rolled package structure, the connection is reliable.
High Toughness: This sealed limit switch has a smoother mechanical action, high toughness and high fatigue resistance.
Wide Application: This sealed limit switch is widely used in conveyor belts, lifts, car parks, plastic processing machinery, self assembly machinery, packaging machinery, semiconductor manufacturing, stamping machinery, etc.
