Feature:
1. WITH PROCESSOR: LCPI H3 ZERO development board is equipped with for Allwinner H3 processor, based on quad core Cortex A7 CPU architecture, supporting H.265HEVC 4K at 30fps video hard solution
2. FREQUENCY AND ENGINE: The quad core development board adopt the graphics processing architecture of ARM Mali series, with a working frequency of more than 600MHz, built in for t Coffer based on ARM for TrustZone security technology, and integrated the latest for SmartColor display engine of for Allwinner Technology
3. MULTIPLE INTERFACES: Development board integrated WiFi, High Definition Multimedia Interface, 1 x USB OTG, 1 x USB Host, UART Debug interface and 2x20Pin GPIO outlet (compatible with for I0), size compatible with for Zero
4. APPLICABLE SCENARIO: Not only a micro computer that can realize video and sound entertainment, but also can be used for Linux or for Android programming learning and project development, supporting for Android4.4, for Ubuntu, for Debian and other operating systems
5. WITH ACCESSORIES: The open source programming development board support 3pin single row pins and 20pin double row pins for easy installation and use
Specification:

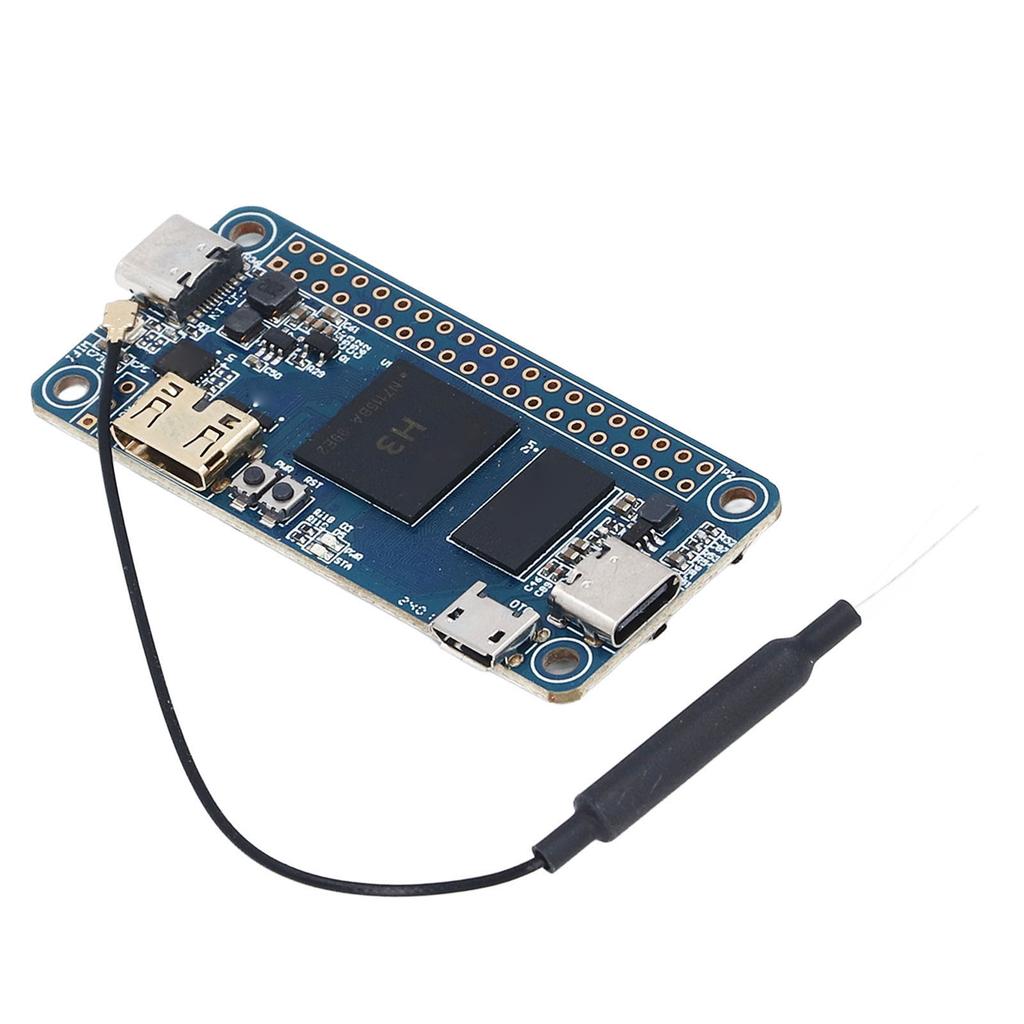

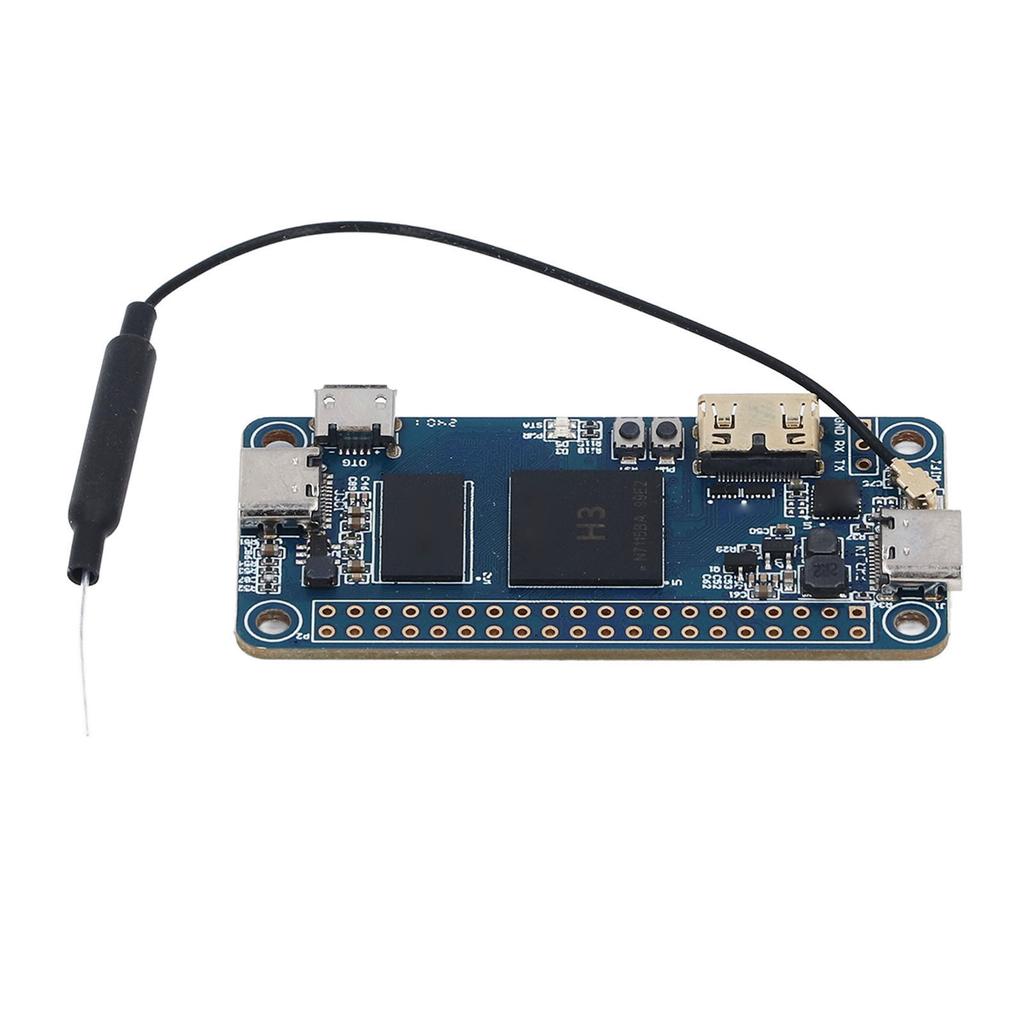

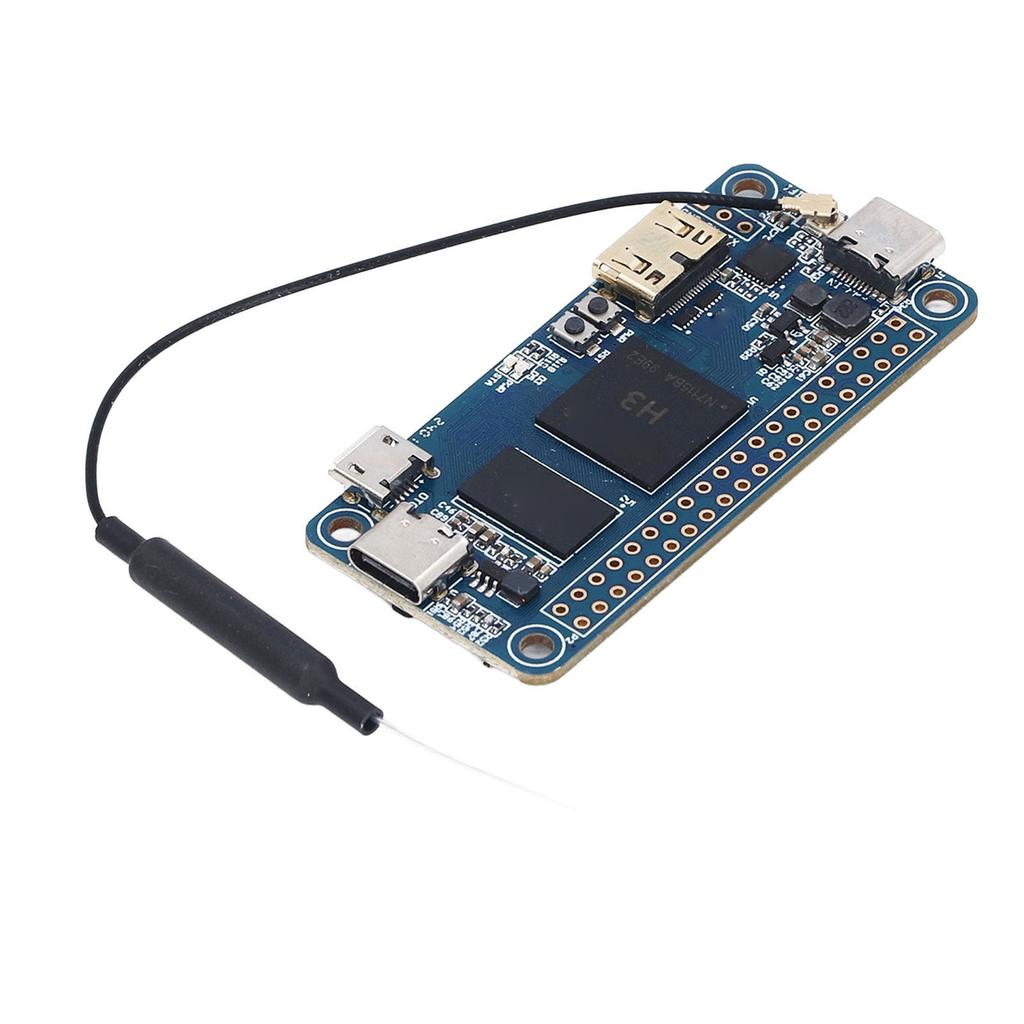

Item Type: LCPI H3 Zero Development Board
CPU: For Allwinner H3 quad core ARM Cortex A7 MP Core Processor
GPU: ARM Mali400MP2 GPU, support for OpenGL ES2.0 and for OpenVG 1.1 standard
Memory: 512MB DDR3 (shared with GPU)
Storage Card: Support up to 64GB small memory card(not included) for operating system
Wireless Network: On board for RTL8189 2.4GHz WiFi transmission IC and IPEX antenna interface
Sound Video Output: High Definition Multimedia Interface (MINI interface), support connection to High Definition Multimedia Interface display or TV
USB Interface: 1 x Micro USB OTG + 1 x Type C USB 2.0 host interface
GPIO: On board 2.54mm 2 x 20Pin GPIO header
UART: On board 2.54mm 1 x 3Pin UART header
Buttons: Power and reset buttons on board
Power Supply: Type C USB 5V power input
LED Indicators: Power(red) and Status(green) LEDs on board
System: Support for Android 4.4, for Ubuntu, for Debian operating systems.
Package List:
1 x Development Board
1 x 3 Pin Single Pin Header1 x 20 Pin Double Pin HeaderWITH PROCESSOR: LCPI H3 ZERO development board is equipped with for Allwinner H3 processor, based on quad core Cortex A7 CPU architecture, supporting H.265HEVC 4K at 30fps video hard solution
FREQUENCY AND ENGINE: The quad core development board adopt the graphics processing architecture of ARM Mali series, with a working frequency of more than 600MHz, built in for t Coffer based on ARM for TrustZone security technology, and integrated the la
MULTIPLE INTERFACES: Development board integrated WiFi, High Definition Multimedia Interface, 1 x USB OTG, 1 x USB Host, UART Debug interface and 2x20Pin GPIO outlet (compatible with for I0), size compatible with for Zero
APPLICABLE SCENARIO: Not only a micro computer that can realize video and sound entertainment, but also can be used for Linux or for Android programming learning and project development, supporting for Android4.4, for Ubuntu, for Debian and other operati
WITH ACCESSORIES: The open source programming development board support 3pin single row pins and 20pin double row pins for easy installation and use
