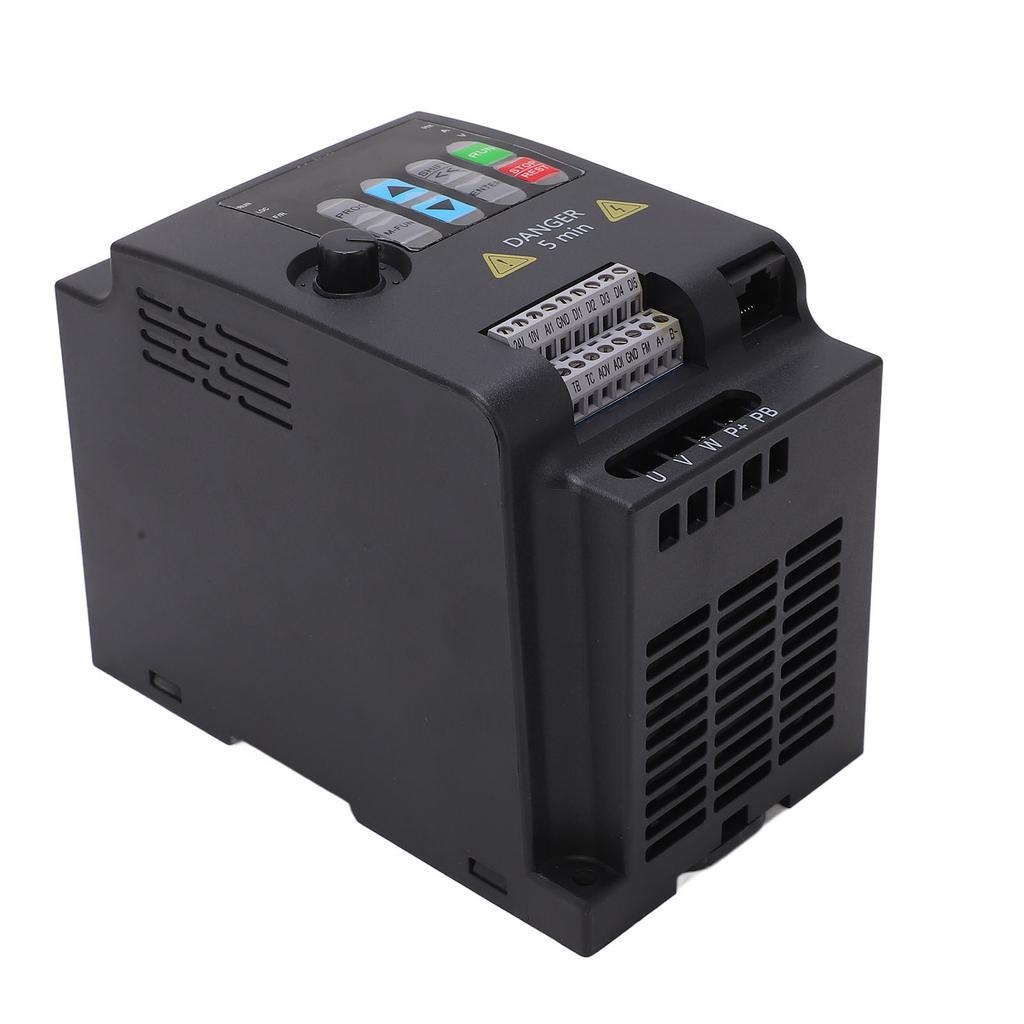

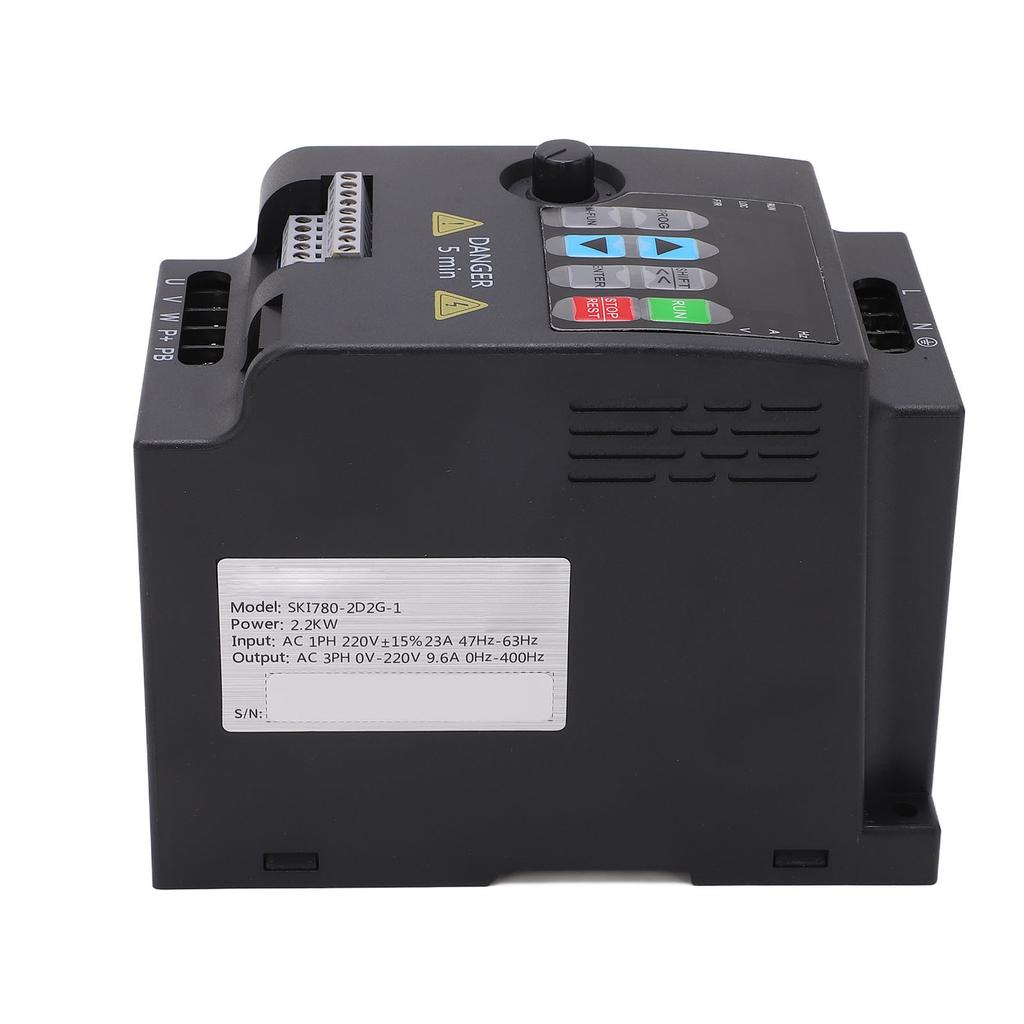

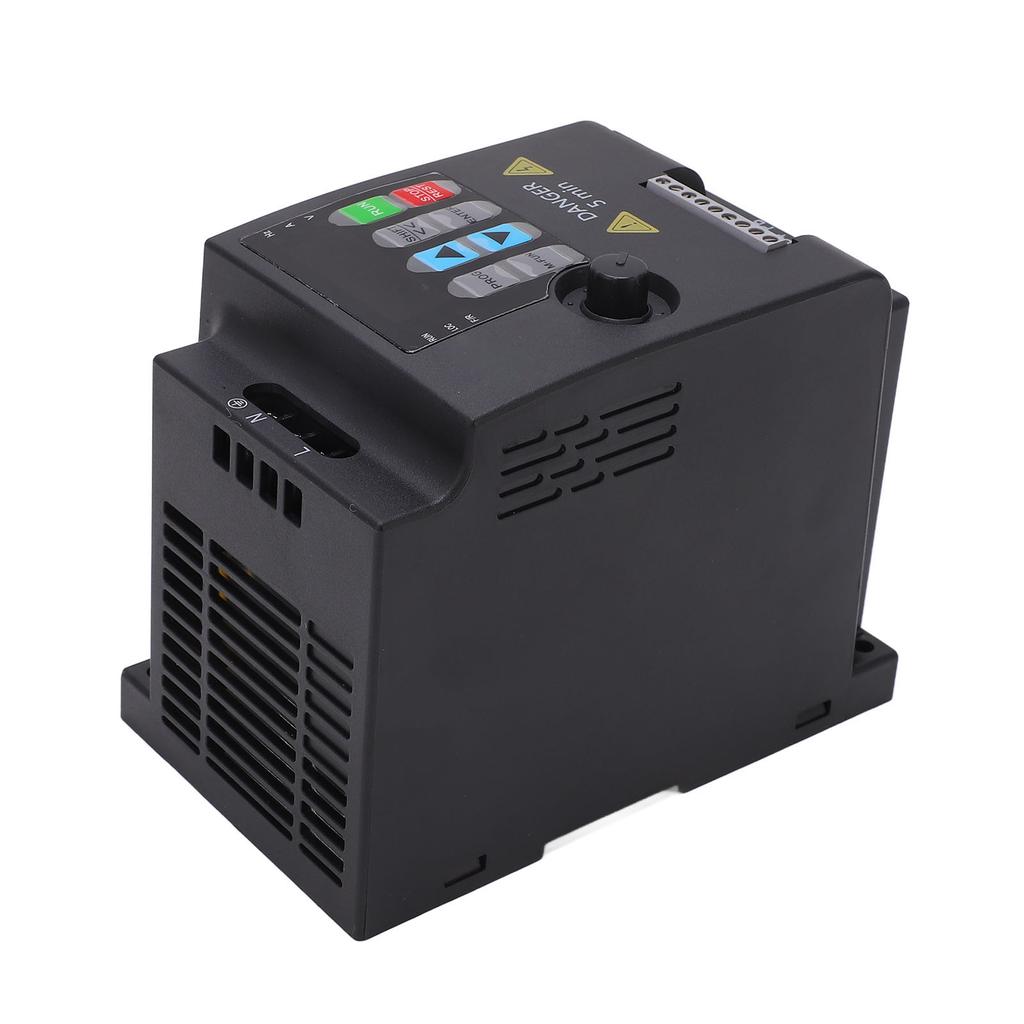

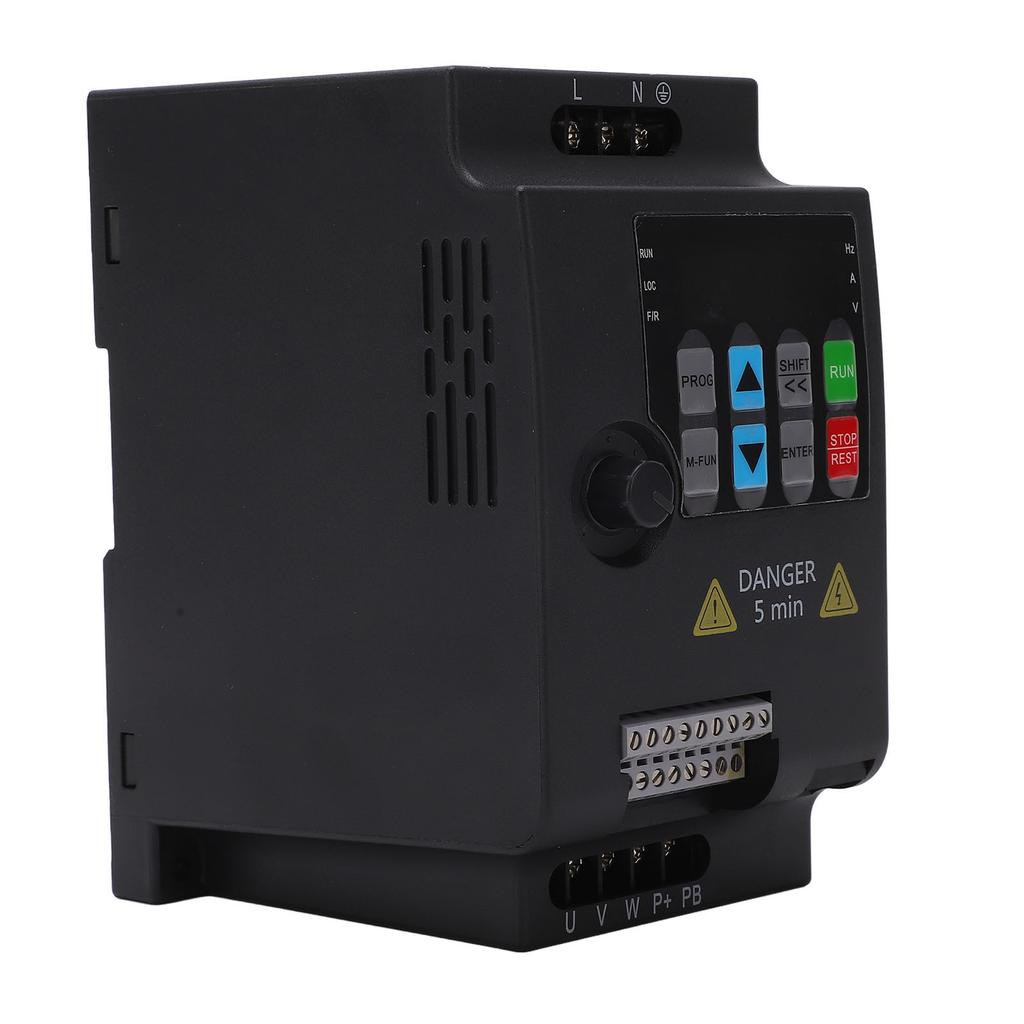

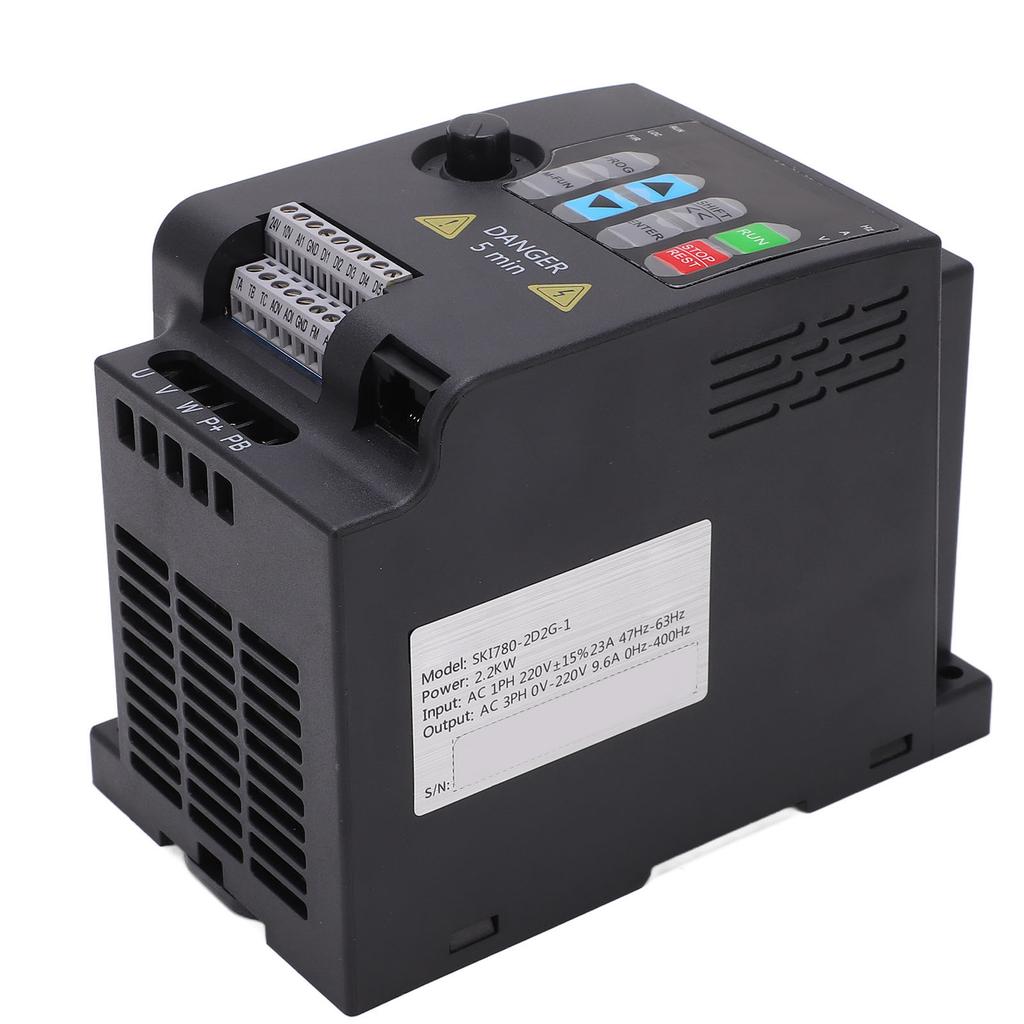

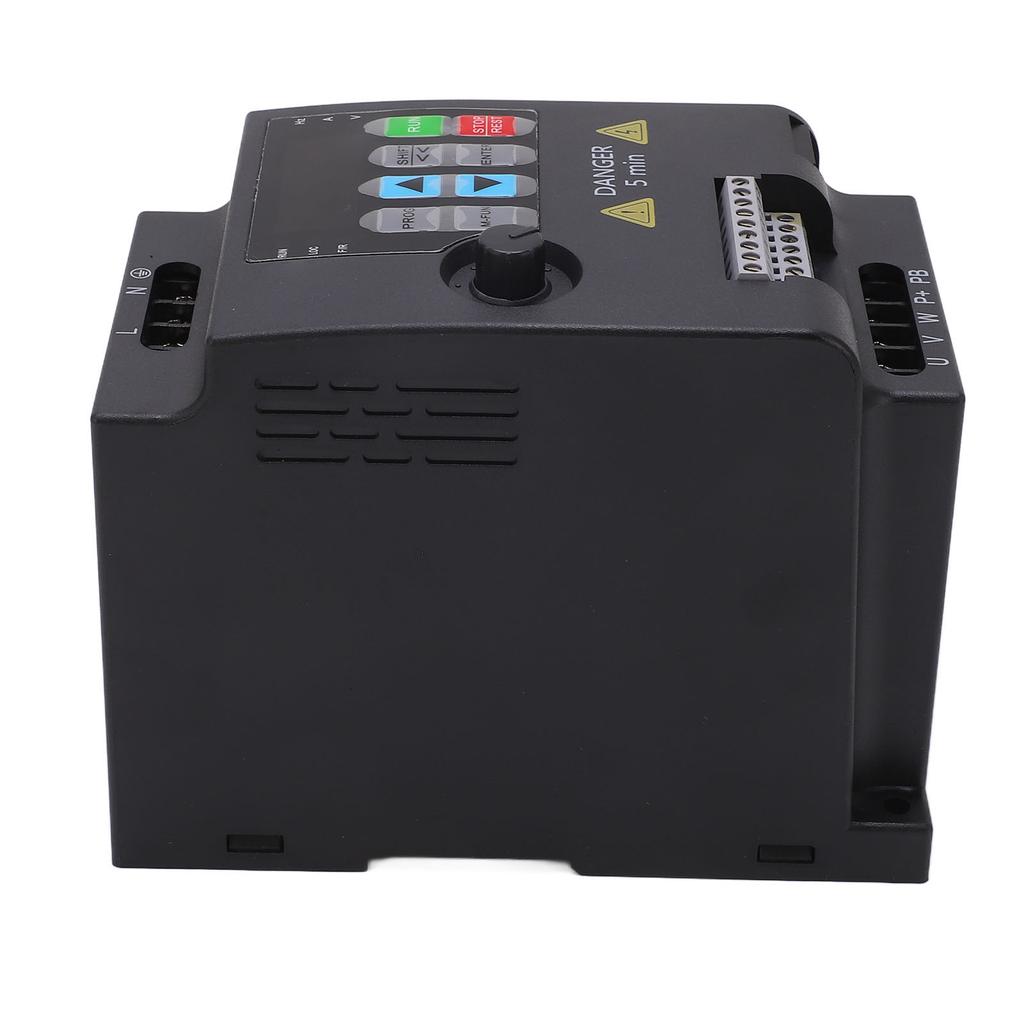

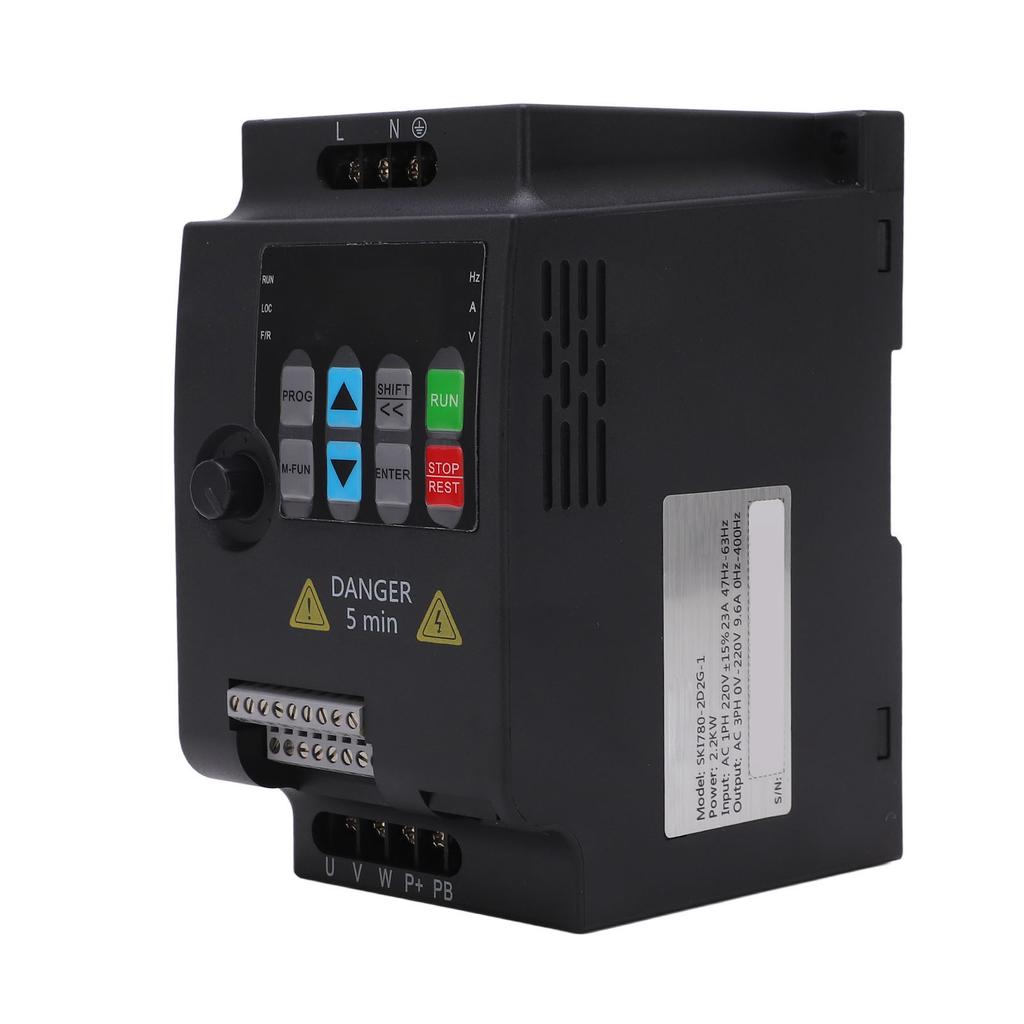

Variable Frequency Drive 2.2KW Single Phase To 3 Phase VFD Mini Frequency Inverter AC 220V Input AC

Feature: 1. SINGLE TO 3 PHASE VFD: This frequency inverter single phase AC220V inputs and 3 phase AC 0?220V outputs, small in size but has large torsion and strong function. 2. COPPER CORE COIL: The VFD has enough excellent copper core coil, features strong resistance, superior performance and strong load capacity. 3. MULTI MODES: The converter can be controlled by VF, vector control and output torsion control, has 6 speed control modes, can run automatically. 4. OTHER FUNCTIONS: The controller is equipped with RS485 communication interface, speed potentiometer and external panel, built in synchronous control and proportional synchronous control. 5. GOOD HEAT DISSIPATION: The converter has strong cooling fan, built in aluminum block to assist heat dissipation, safer and more reliable. 6. WIDE RANGE OF APPLICATION: The motor controller adopts rail type installation, suitable for wind generator, water pump, automatic machine tool, engraving machine, etc. Specification: Item Type: Variable Frequency Drive Material: PC, Aluminum Adapter Motor: 2.2KW 3HP Input: AC1PH 220V+15percent 23A 4763Hz Output: AC3PH 0V220V 9.6A 0400Hz Protection Class: IP20 Installation Height: Up to 1000 meters (3280 feet) above sea level, if the installation height is higher than this value, the current should be reduced by 1.2percent for every 10 meters (328 feet) of height Operating Ambient Temperature: 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F) Storage Temperature: 20 degrees C to 55 celsius (4 degrees F to 131 Fahrenheit ) Air Humidity: 5percent to 85percent during operation, no condensation or freezing; 5percent to 95percent during storage. Package List: 1 x Variable Frequency Drive1 x Manual Note: Pay attention to electricity safety when installing and using.SINGLE TO 3 PHASE VFD: This frequency inverter single phase AC220V inputs and 3 phase AC 0?220V outputs, small in size but has large torsion and strong function. COPPER CORE COIL: The VFD has enough excellent copper core coil, features strong resistance, superior performance and strong load capacity. MULTI MODES: The converter can be controlled by VF, vector control and output torsion control, has 6 speed control modes, can run automatically. OTHER FUNCTIONS: The controller is equipped with RS485 communication interface, speed potentiometer and external panel, built in synchronous control and proportional synchronous control. GOOD HEAT DISSIPATION: The converter has strong cooling fan, built in aluminum block to assist heat dissipation, safer and more reliable.
