Type : Voltage Regulator
Origin : China
Condition : New

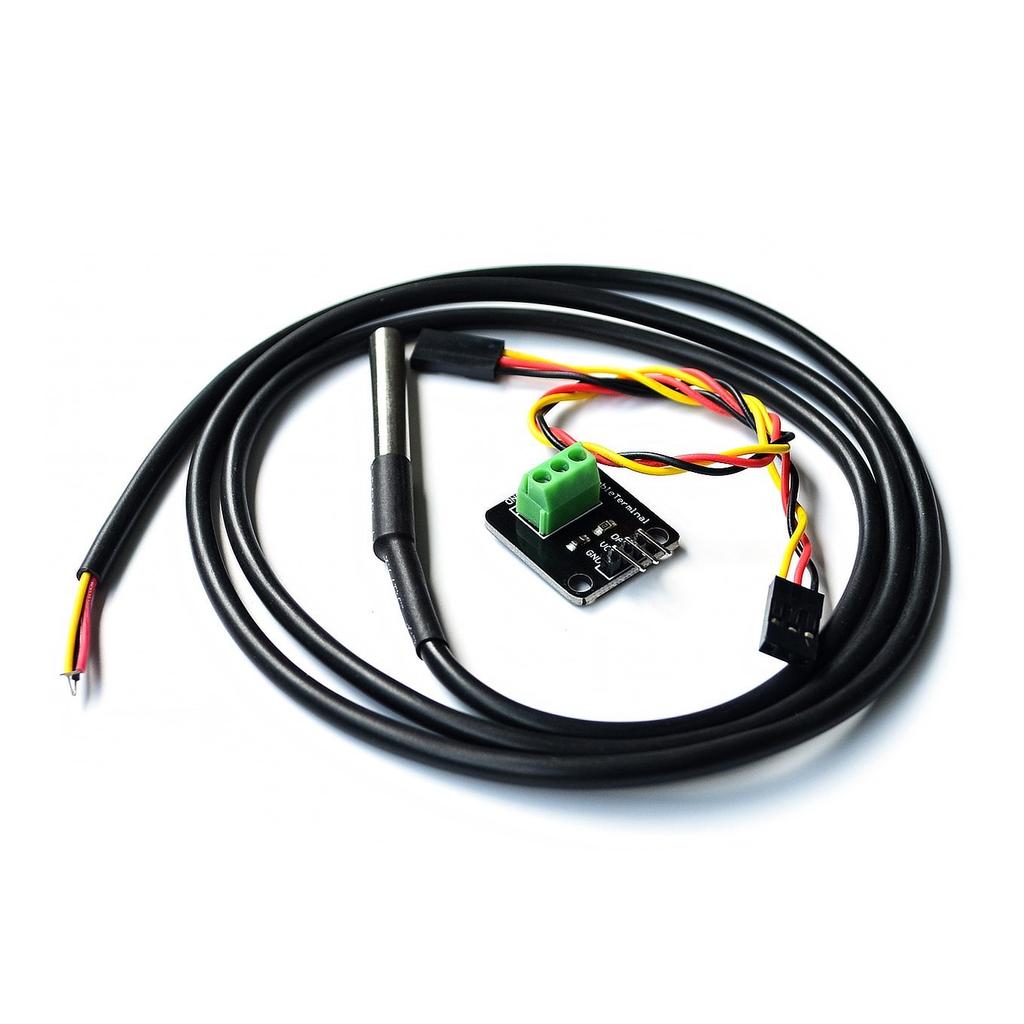

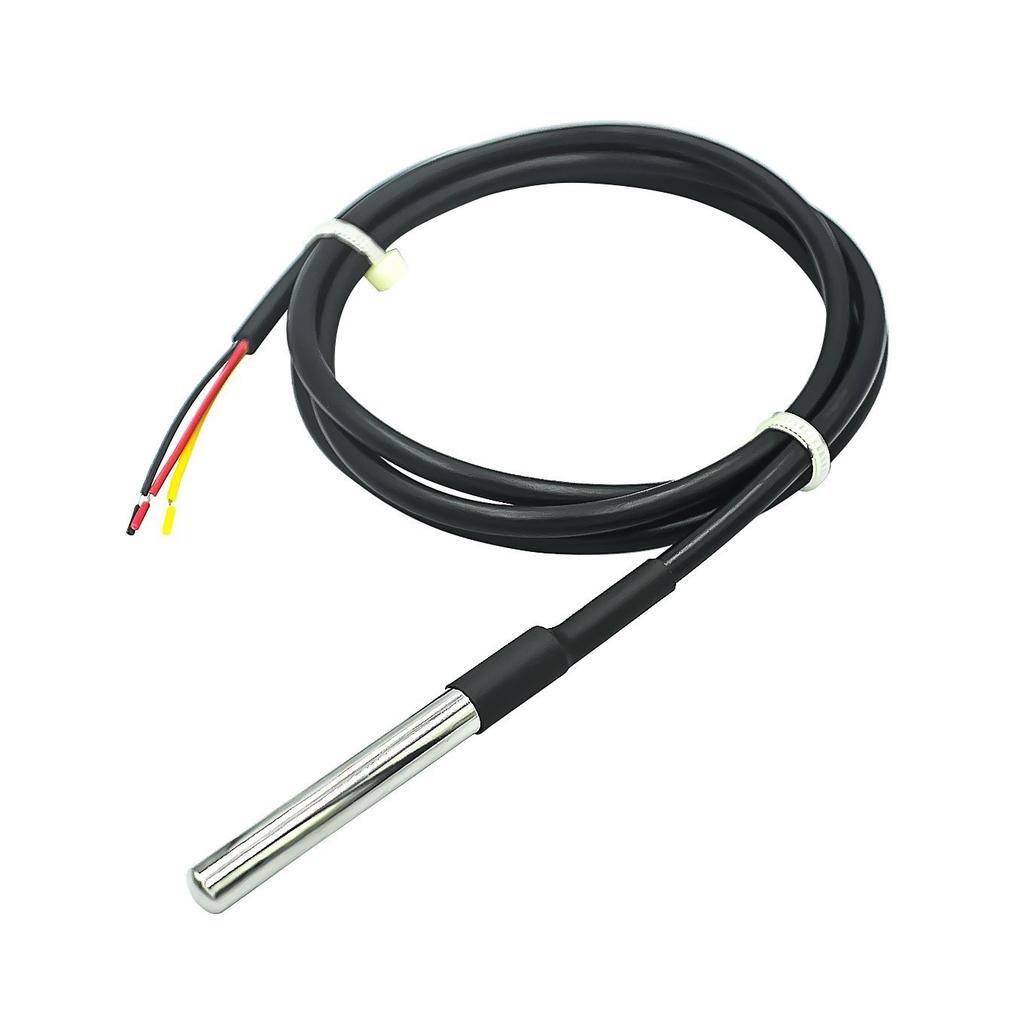

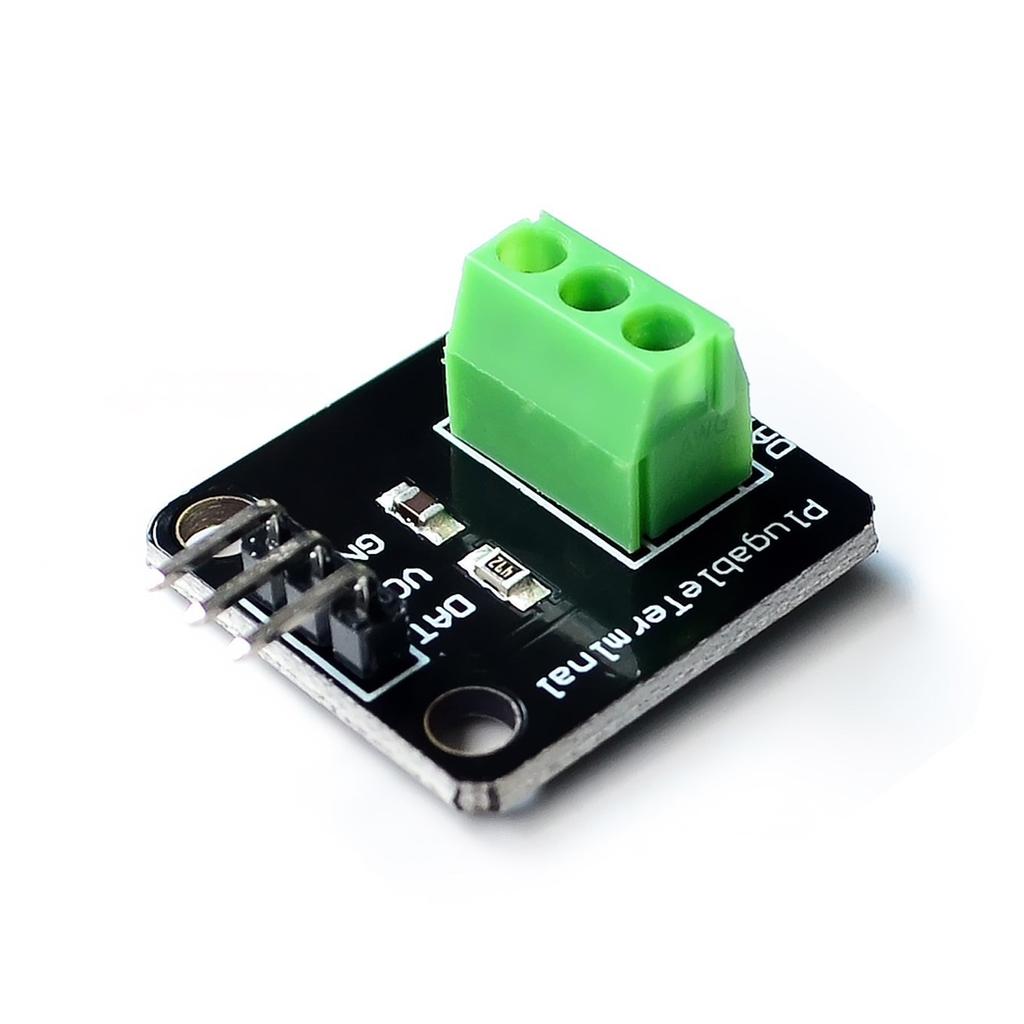

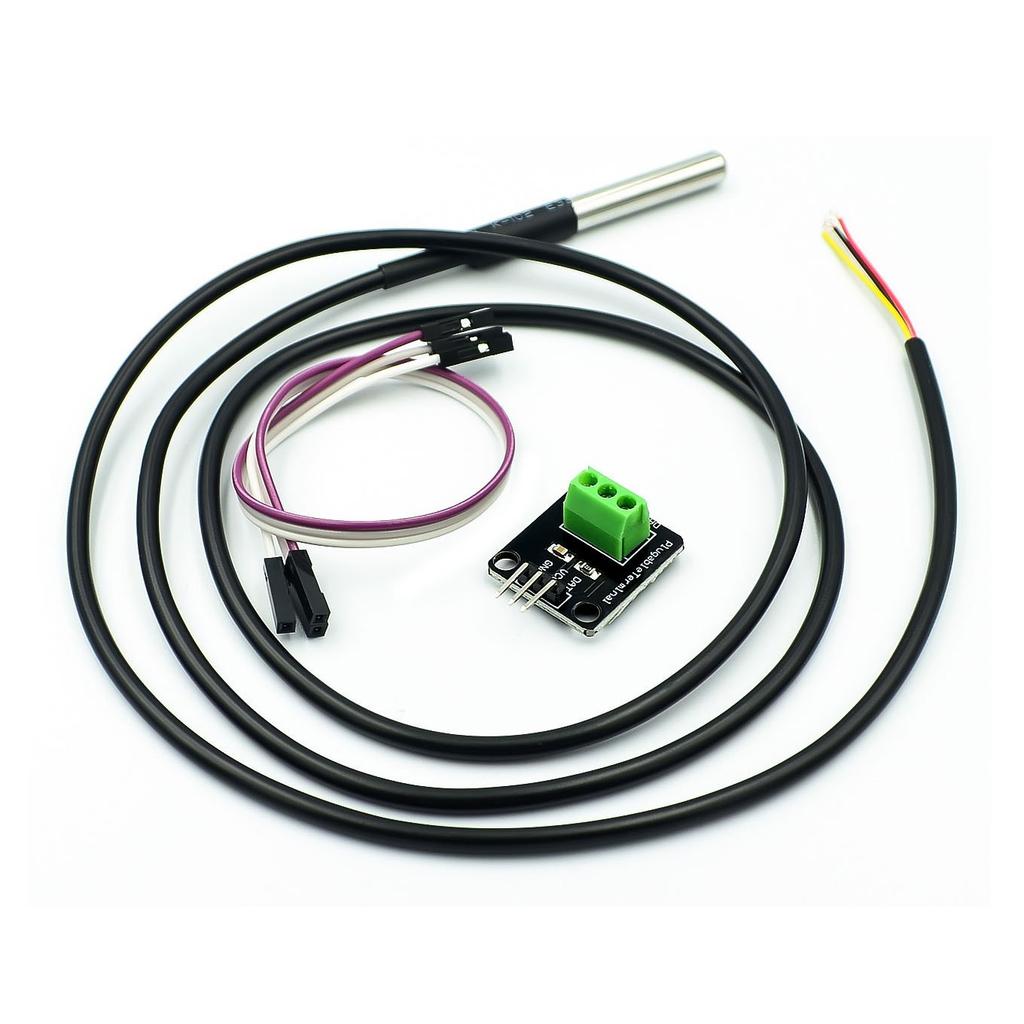

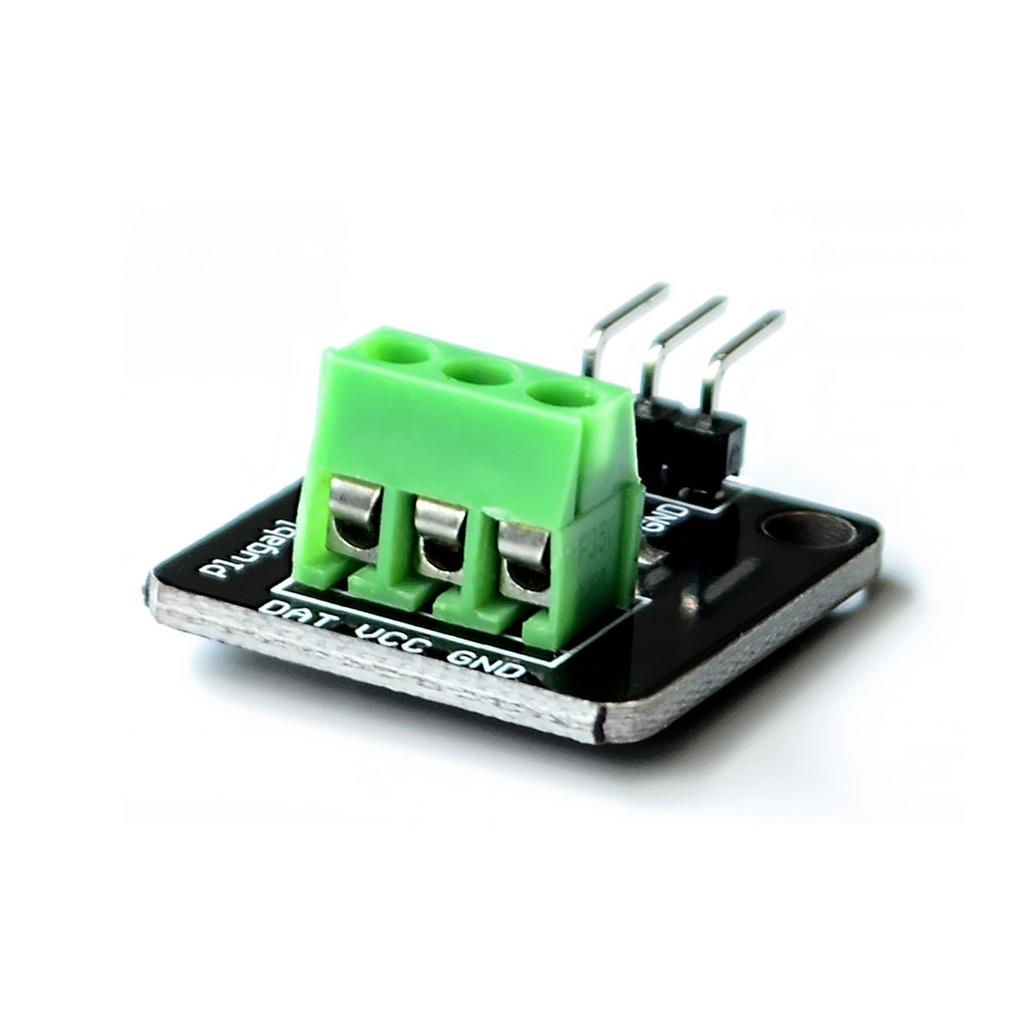

Description: Pluggable terminal waterproof DS18B20 temperature sensor can be used in many places, such as soil temperature detection, hot water tank temperature control, waterproof DS18B20 temperature sensor must also be connected to a pull-up resistor can be used, for which we designed the converter to send use. Product Specifications: Temperature sensor supply voltage: 3.0V ~ 5.5VTemperature sensor resolution: 9 to 12 adjustable resolutionTemperature range: -55 ~ +125 ° (lead can only withstand the highest temperature of 85 degrees)Temperature Sensor Output Lead: Yellow (DATA) Red (VCC) and Black (GND)Adapter Cables: DATA, VCC, BLK,Suitable platform: for Arduino and Raspberry Pi Package Included: 1PC * DS18B20 temperature sensor1PC * pluggable terminal adapter1PC * 3pin cable
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
No-delivery refund
