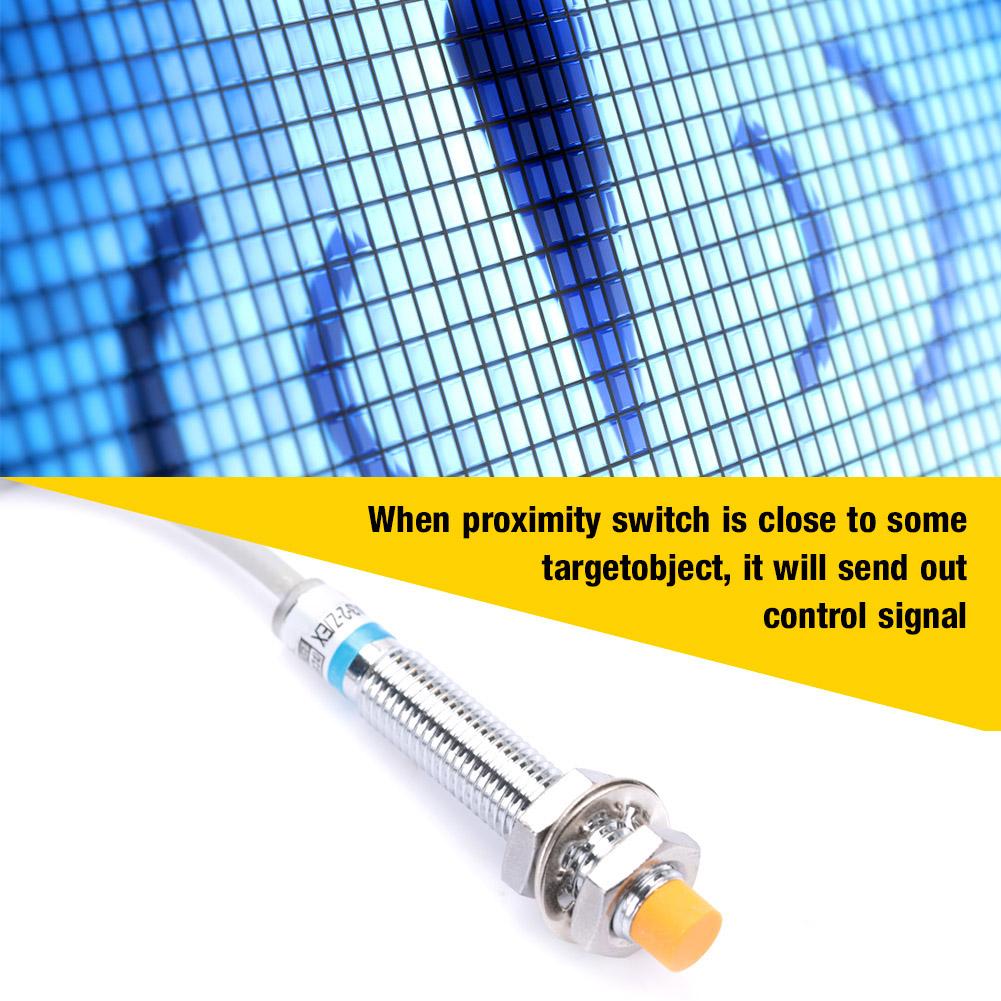

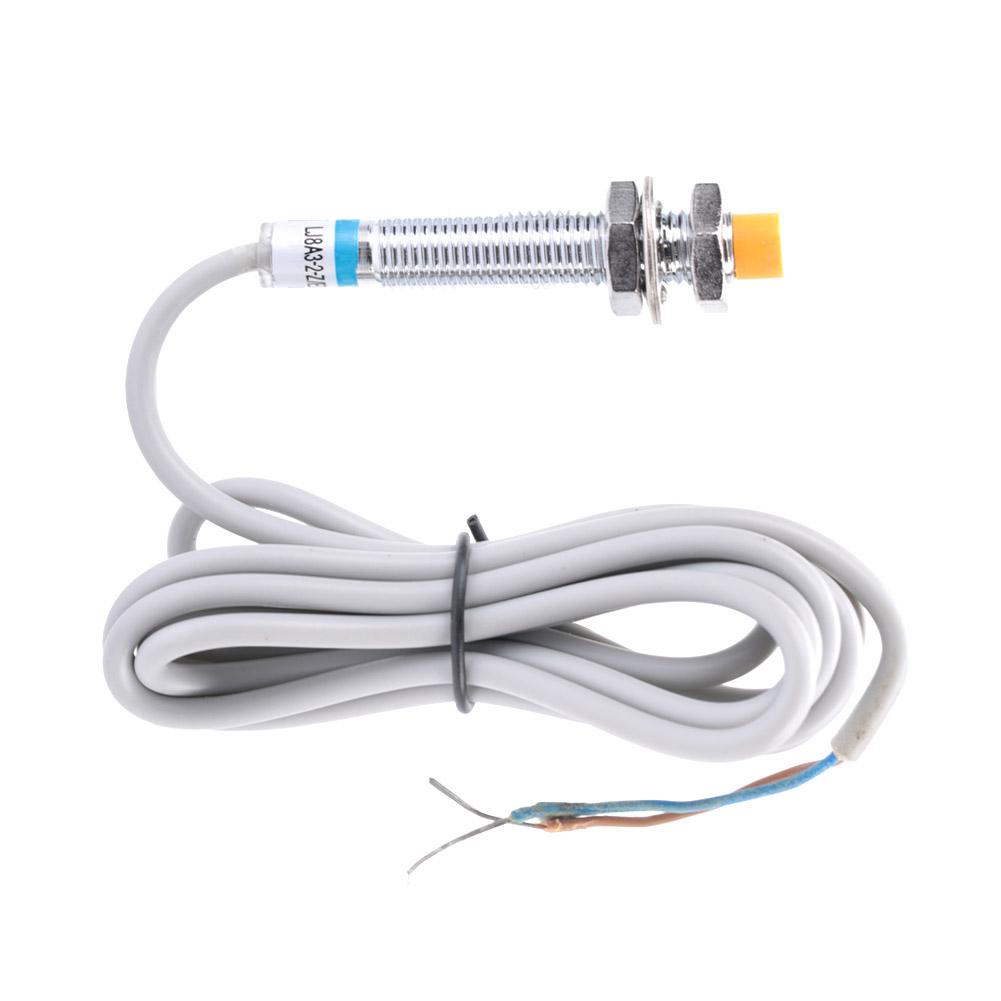

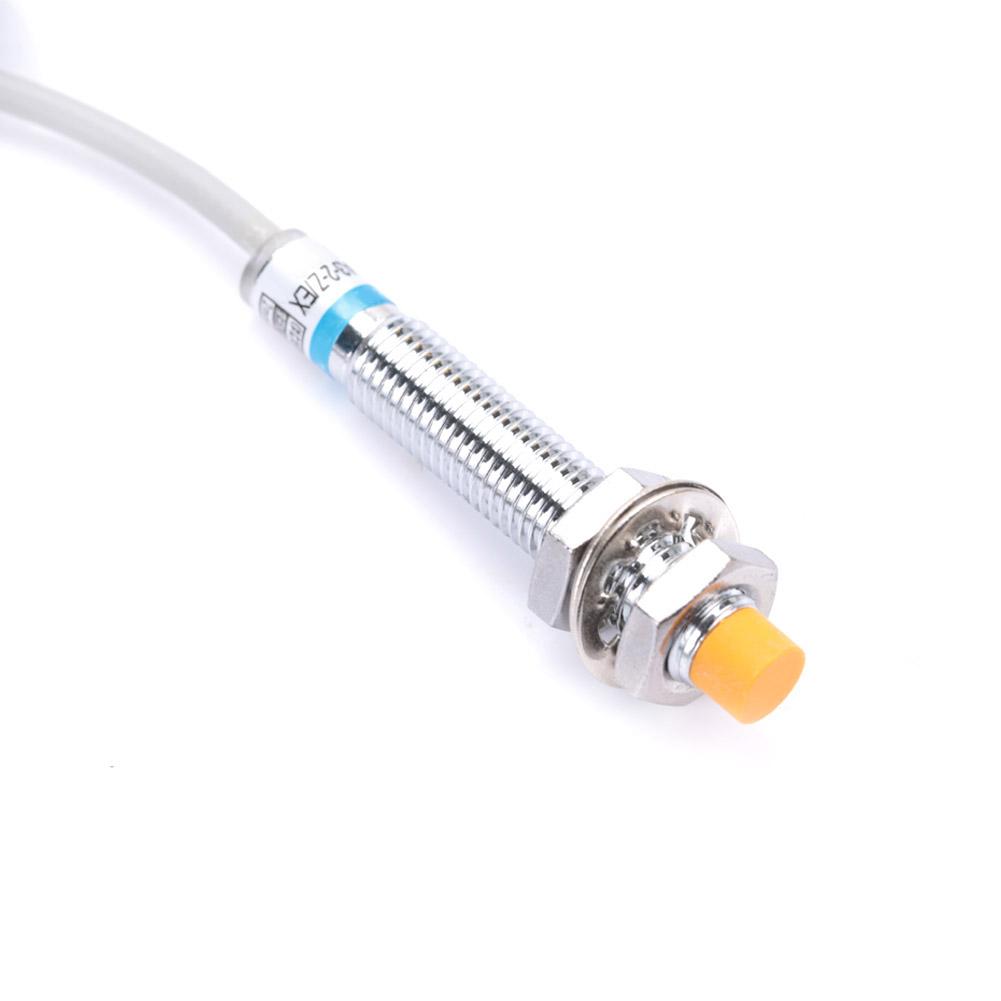

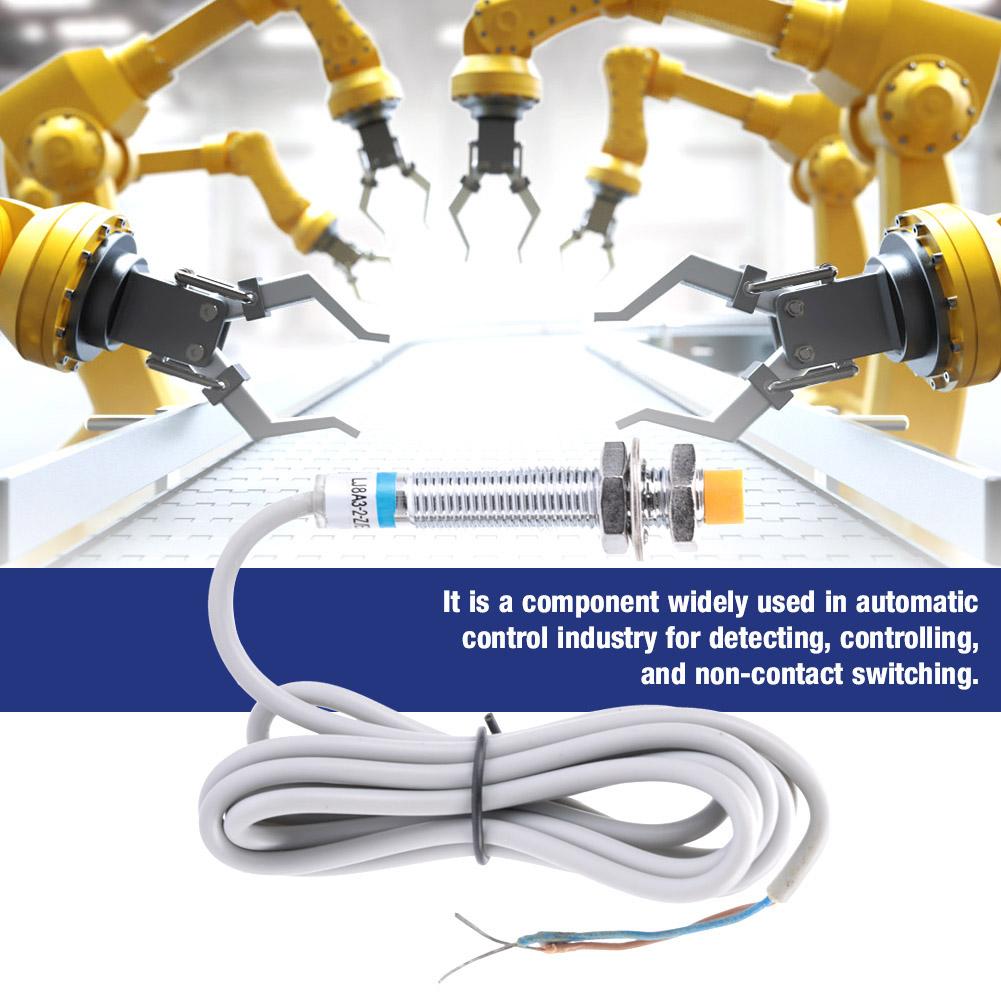

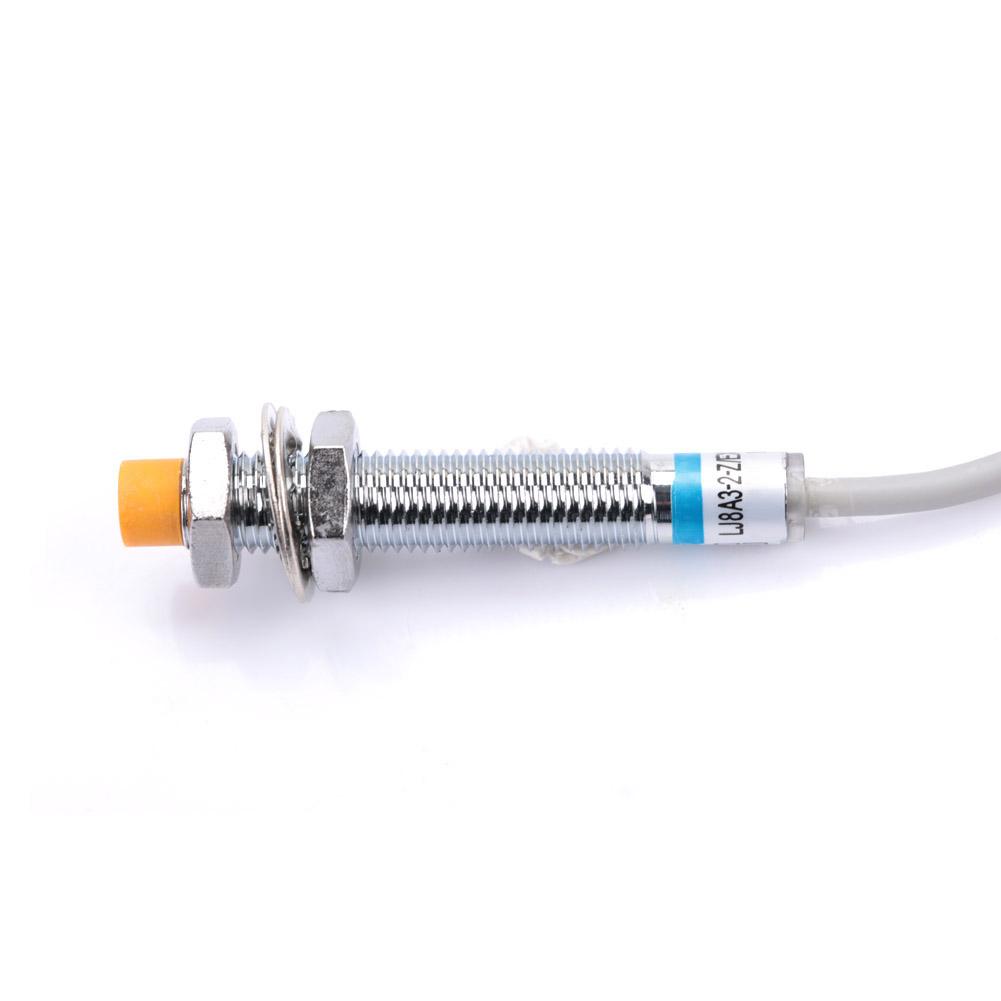

2mm LJ8A32ZEX DC 2Wire Normally Open Inductive Sensor Proximity Switch

Features: This is a normally close proximity switch sensor with 2mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. High sensitivity, quick response, stable performance. Noncontact detection avoids the sensor and the target object from damages. Specification: Model: LJ8A32ZEX Detection distance: 2mm+10percent Setting distance: 01.6mm Delay distance: <10percent of detection distance Detection object: Magnetic metal(The detection distance decreases when it is nonmagnetic metal) Standard detection object: Iron 12*12*1mm Response frequency: DC:0.5kHz AC:25Hz Supply voltage: DC1224V (636V) impulse (PP) below 10percent AC110220V(36250V) 5060hz Withstand voltage: AC1000V 5060Hz 1min Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption Ambient temperature and humidity: 30~65 celsius (No ice, no frost), 3595percent RH Temperature influence: Temperature range 30~65 celsius , at 23 celsius , +15percent detection distance Temperature range: 25~60 celsius , at 23 celsius , +10percent 0detection distance Insulation impedance: >50M Ohm Housing material: Nickel plated brass Detection surface: ABS Weight: Approx. 25g Package list: 1 * Inductive Proximity Switch This is a normally close proximity switch sensor with 2mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. High sensitivity, quick response, stable performance. Noncontact detection avoids the sensor and the target object from damages.
