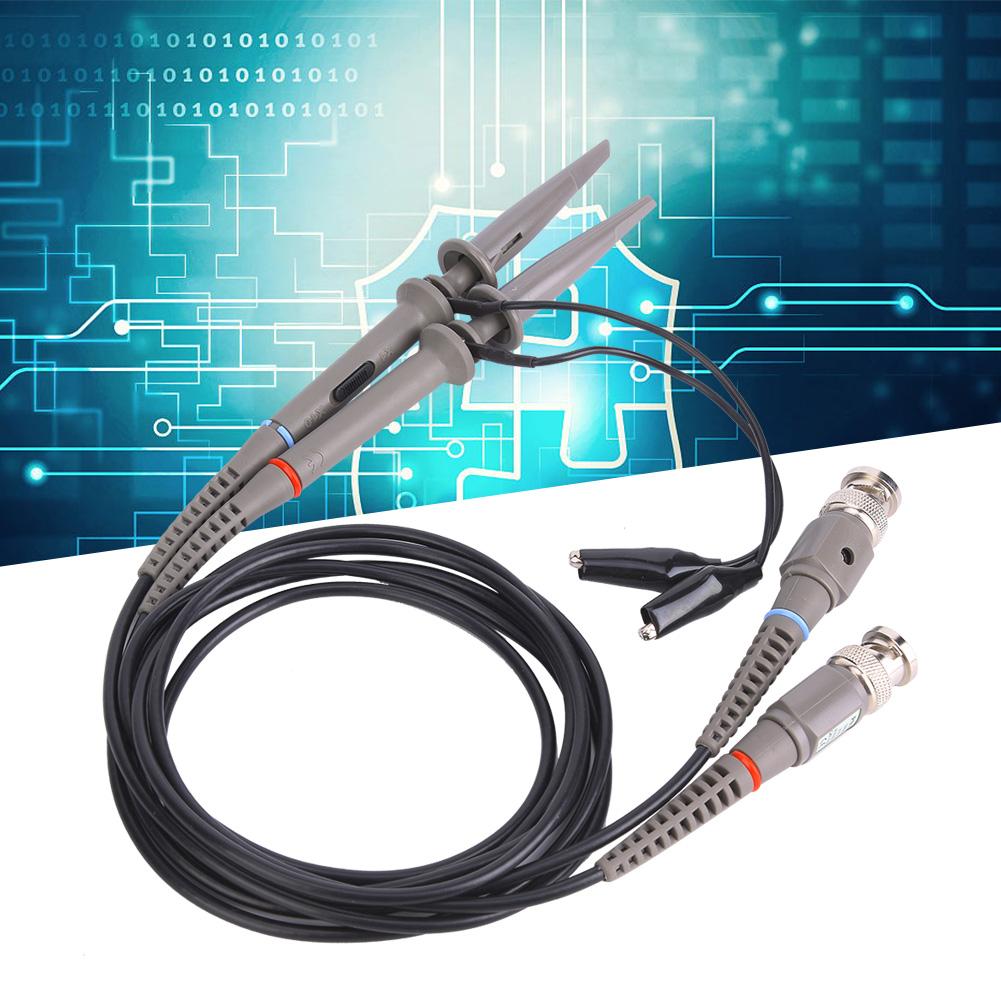

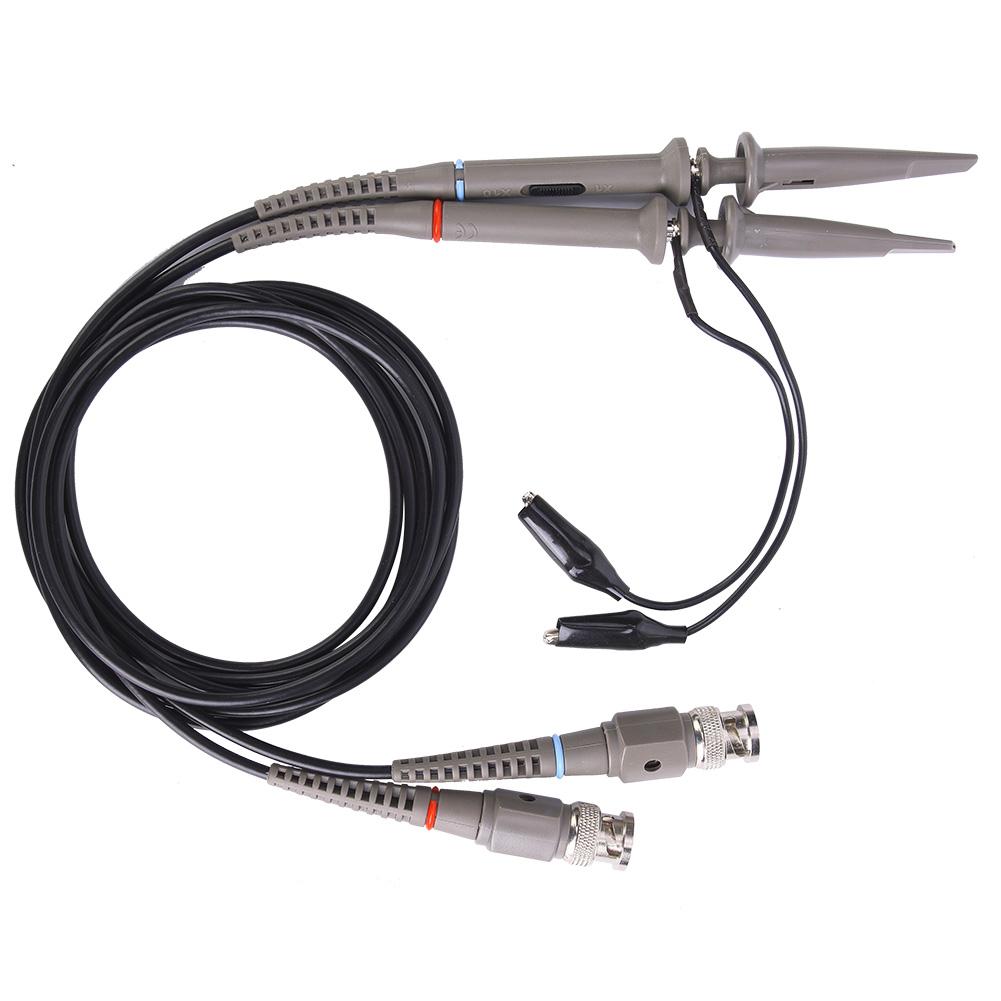

P6100 High Precision Oscilloscope Test Probe Kit 1X 10X 100MHz Oscilloscope Accessories

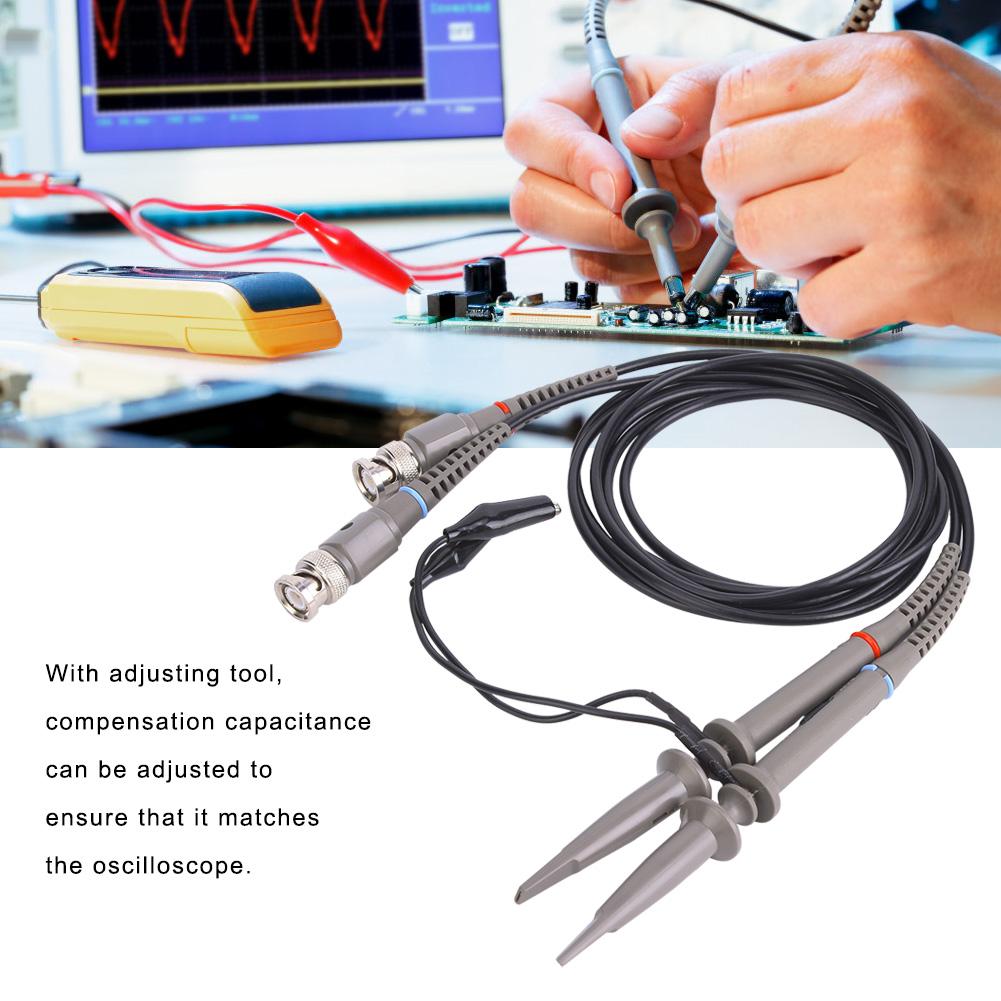

Feature: 1. The probe damping is adjustable, you can select 1X or 10X by pressing the switch. 2. Marking rings of different colors are helpful to identify different channels, and the operation is more simple and convenient. 3. With adjusting tool, compensation capacitance can be adjusted to ensure that it matches the oscilloscope. 4. Localization sleeves ensure the stability and reliability of the tip exposed to the test point. 5. It is made by integrated injection moulding process. It is durable, wearresistant and can be used for a long time. Specification: Condition: 100percent Brand New Item Type: Oscilloscope Probe Material: Plastic v\:* {behavior:url(#default#VML);} o\:* {behavior:url(#default#VML);} x\:* {behavior:url(#default#VML);} .shape {behavior:url(#default#VML);} Model P6100 Attenuation Ratio 1X10X Conversion Input Resistance 1M Ohm 10M Ohm Input Capacitance 1X: 85pF120pF 10X: 18.5pF~22.5pF Compensation Range 10pF30pF System Bandwidth 1X: DC6MHz 10X: DC100MHz Input Voltage 1X: <300VDC + AC VpP 10X: <600VDC+ AC VpP Range of Working Temperature 15 degrees C +75 degrees C Unoperated Temperature Range 20 degrees C +60 degrees C Process Injection Molding Integration Color Gray Weight 135g 4.8 oz Cable Length 120cm 47.2in Humidity

less than 85percent (Relative Humidity)

Package List: 1 x Pair of Oscilloscope Probe1 x Adjusting Tool2 x Pair of Marker Ring2 x Locating Sleeve1 x Instruction ManualThe probe damping is adjustable, you can select 1X or 10X by pressing the switch. Marking rings of different colors are helpful to identify different channels, and the operation is more simple and convenient. With adjusting tool, compensation capacitance can be adjusted to ensure that it matches the oscilloscope. Localization sleeves ensure the stability and reliability of the tip exposed to the test point. It is made by integrated injection moulding process. It is durable, wearresistant and can be used for a long time.
