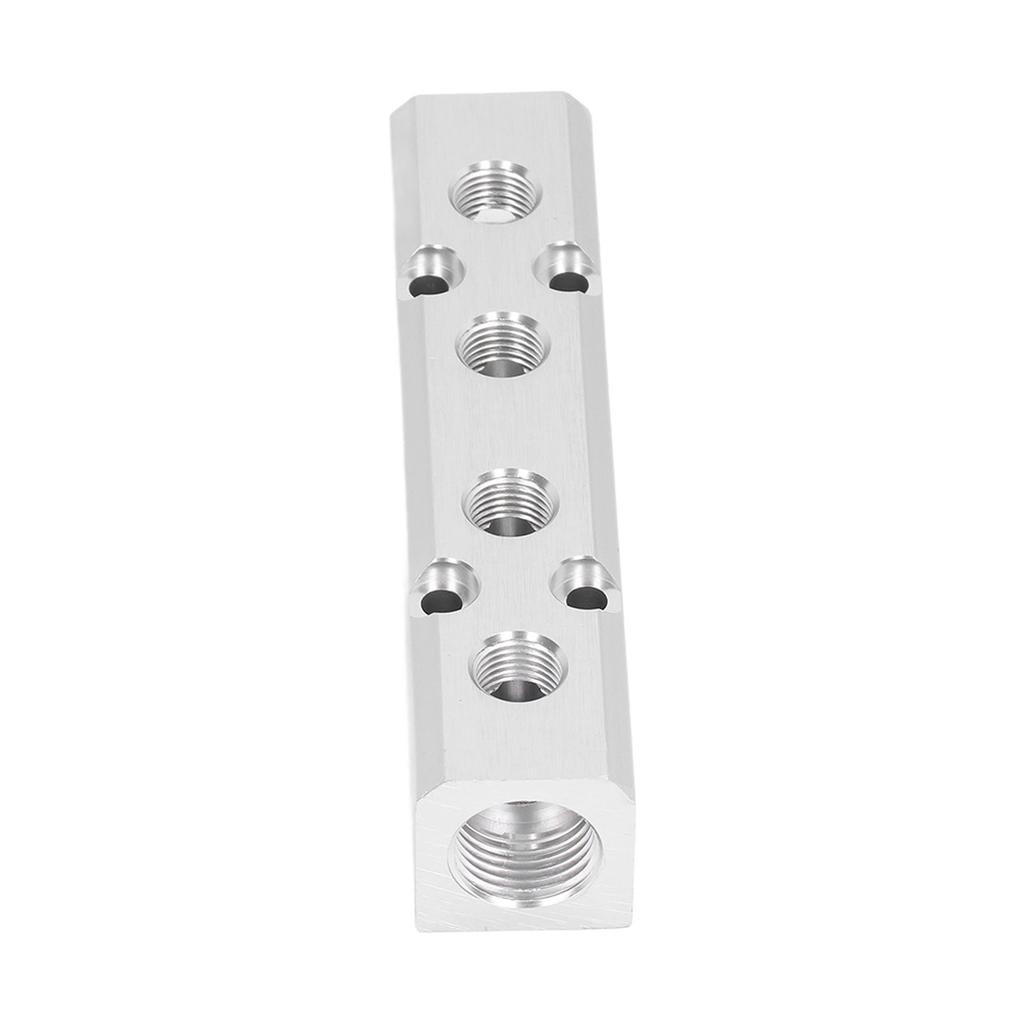

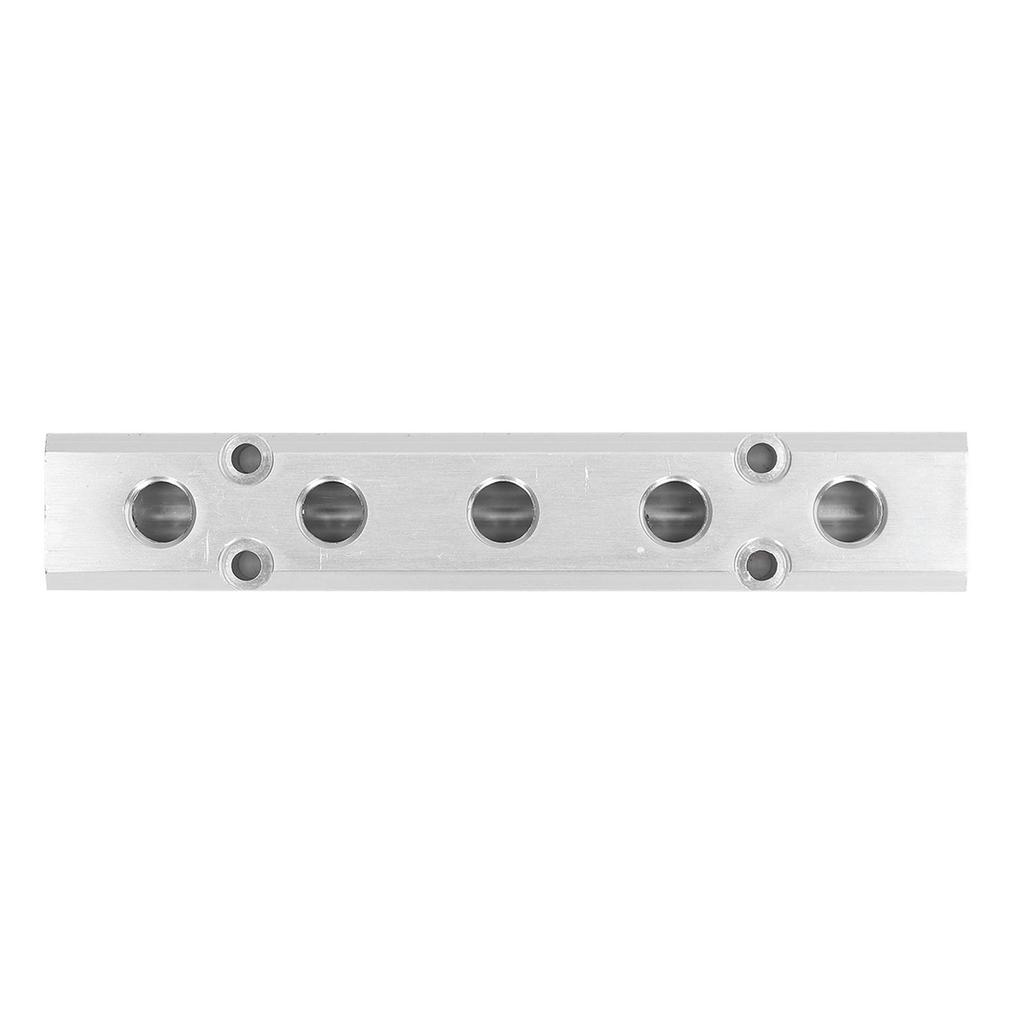

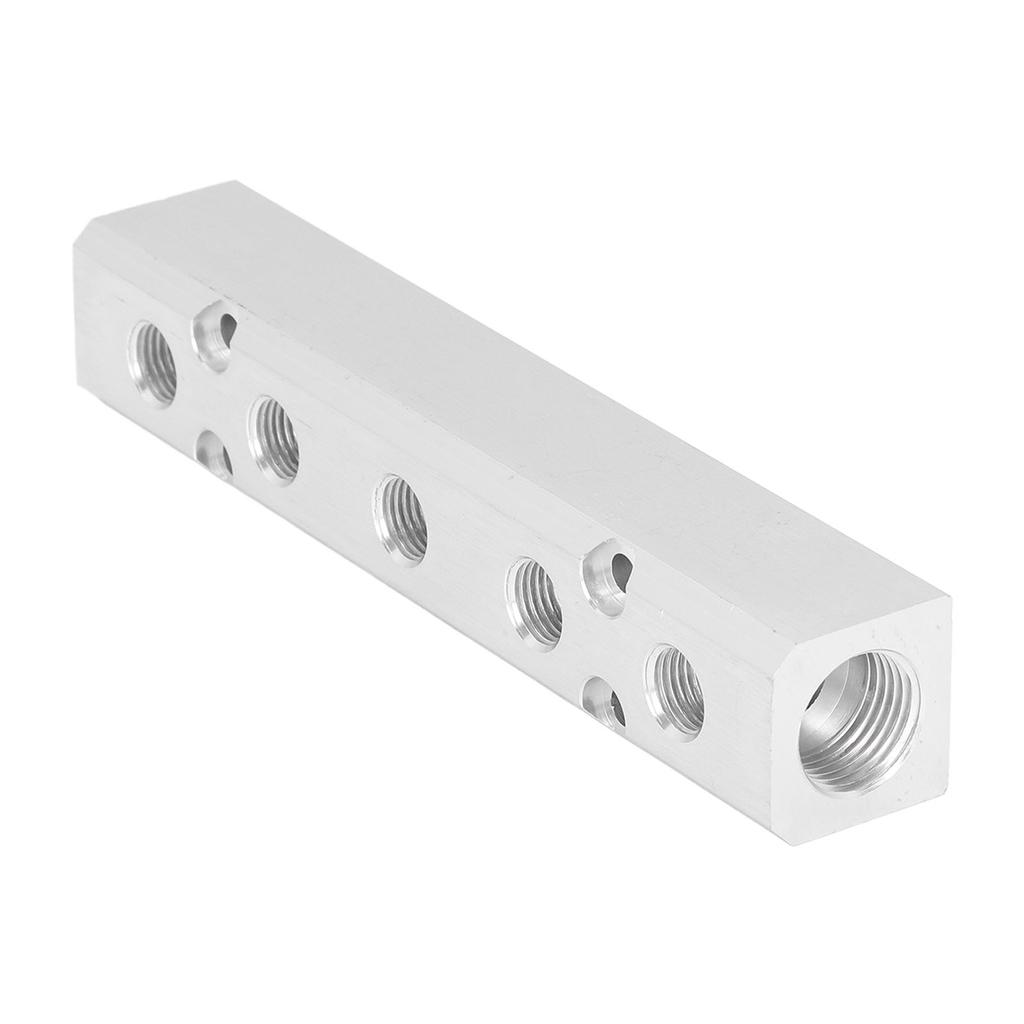

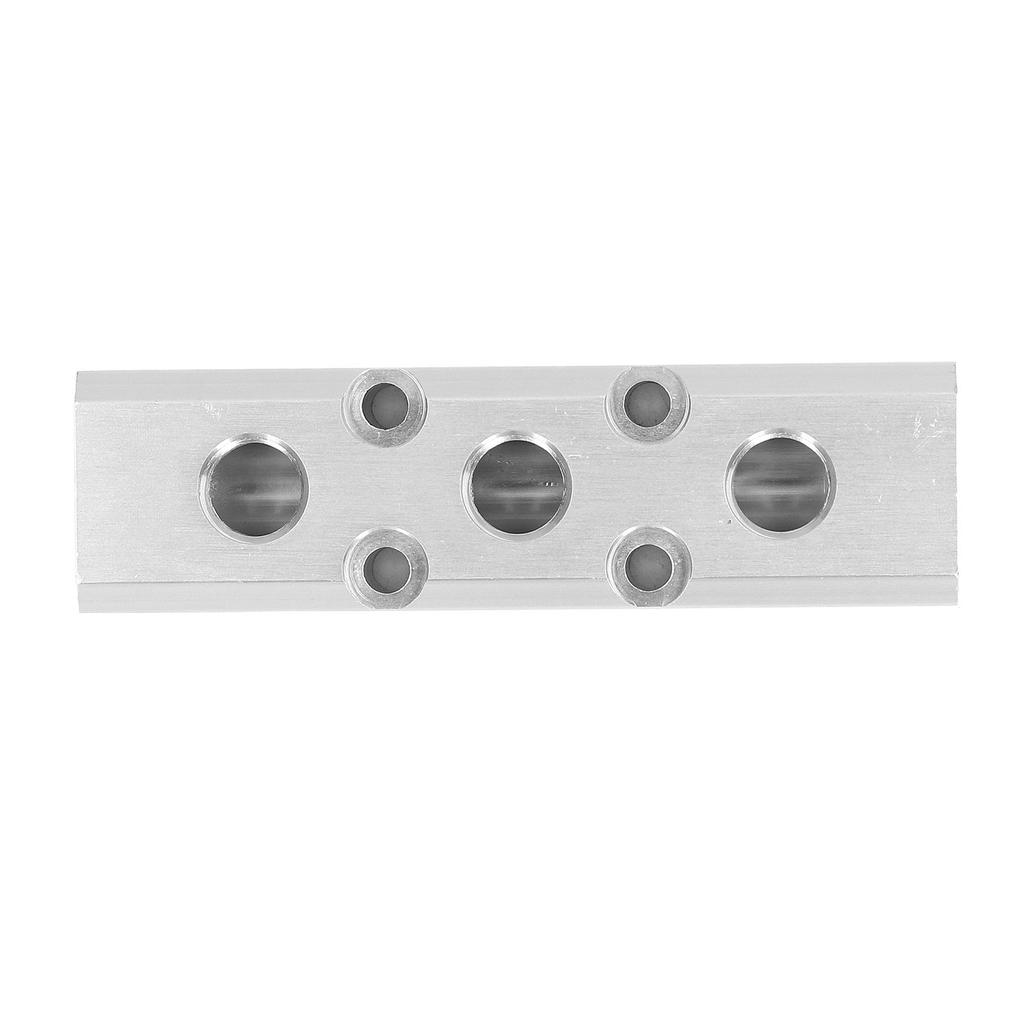

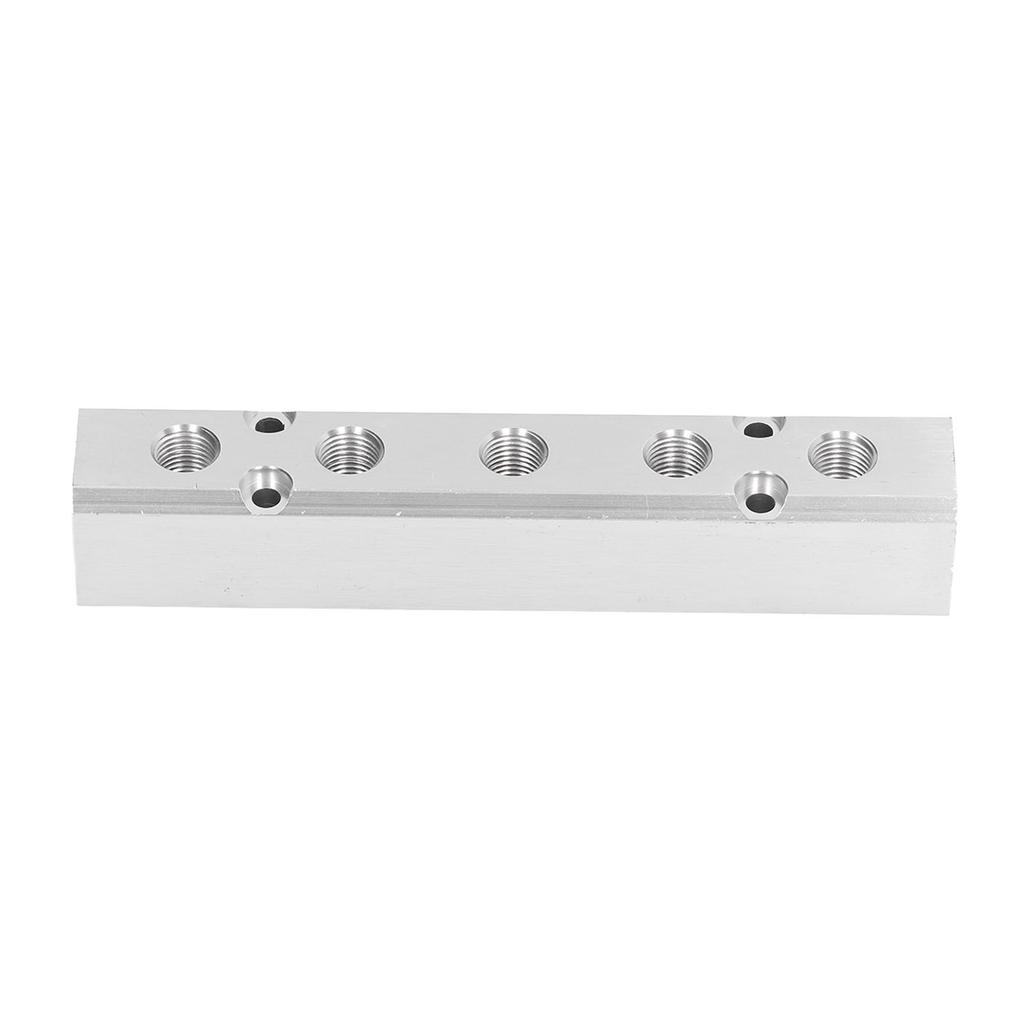

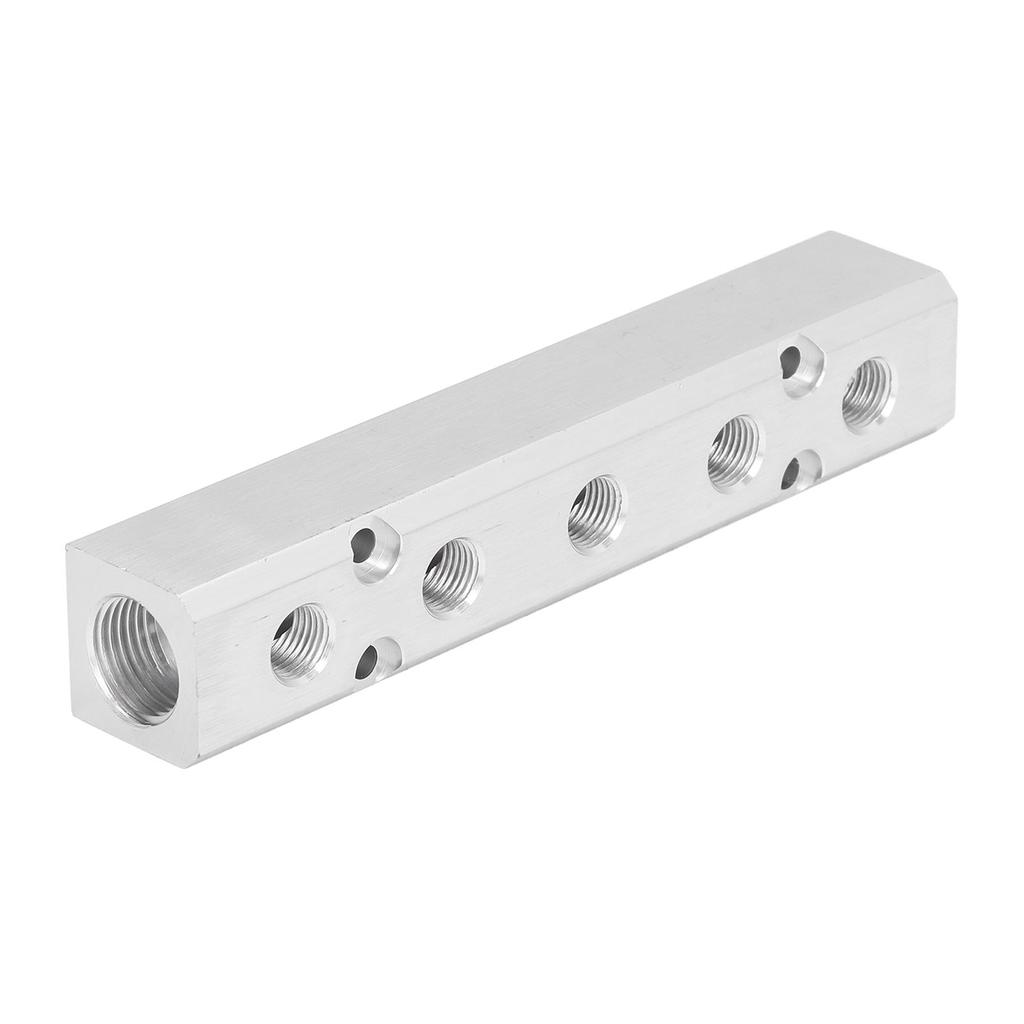

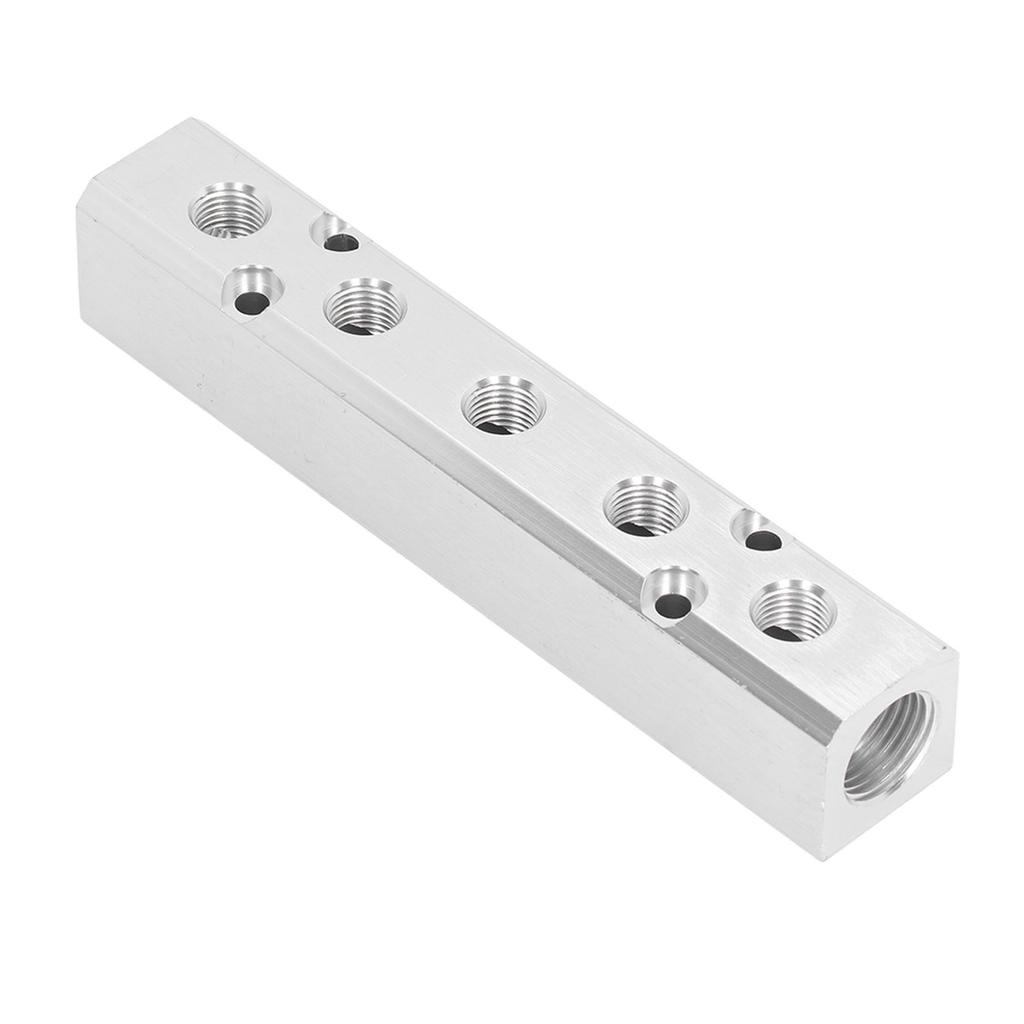

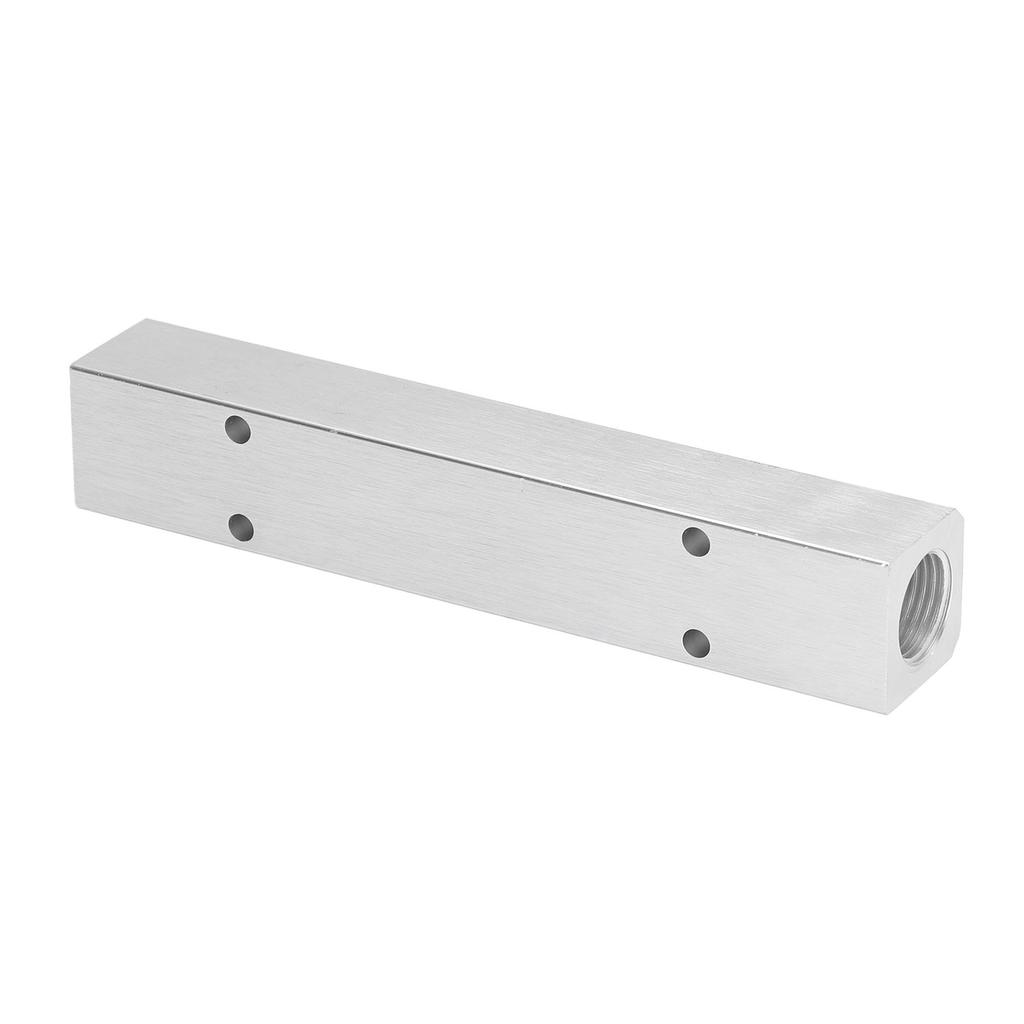

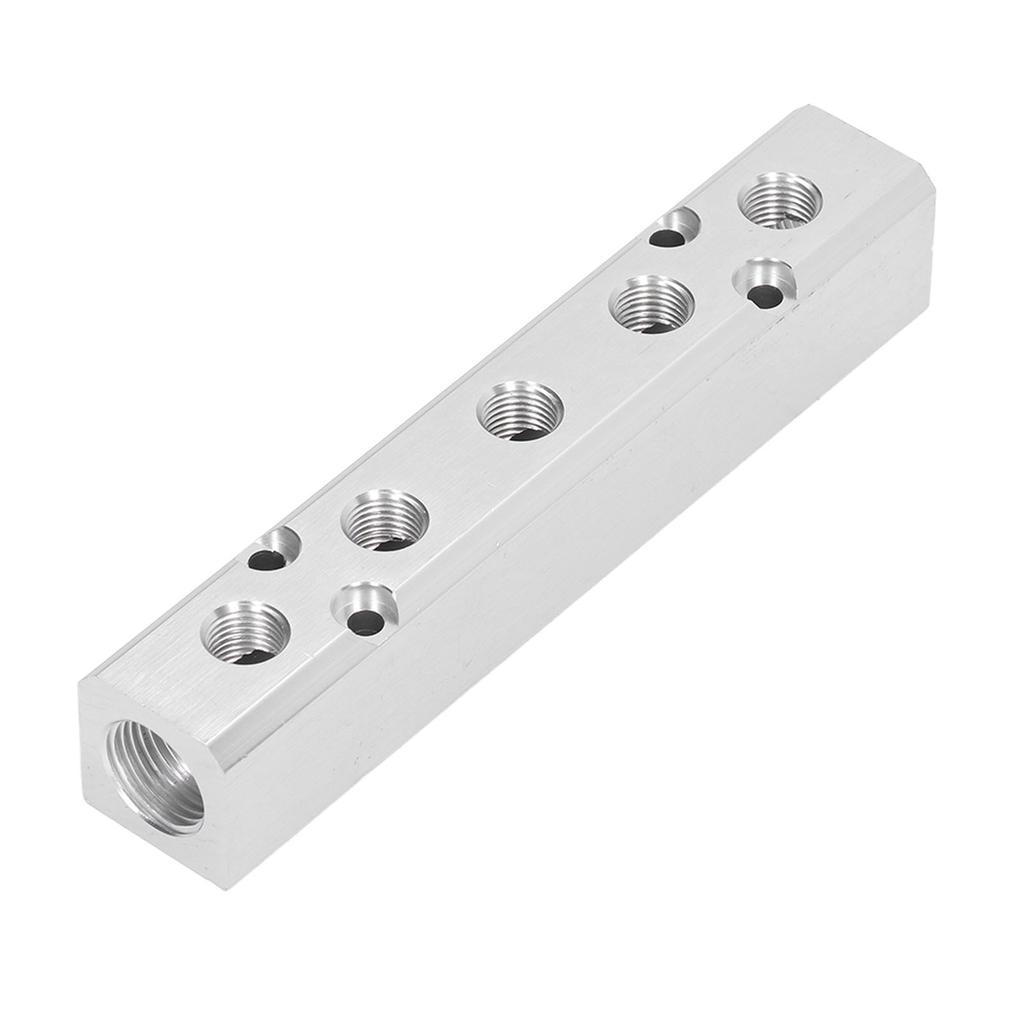

Pneumatic Manifold Air Distribution Block Connector Splitter G12 Input G14 Output

Feature: 1. CORROSION RESISTANT: Made of good quality aluminum material, corrosion resistant, no rust, with good strength 2. GOOD AIR TIGHTNESS: Pneumatic manifold air distribution block is easy to install, no air leakage, possess good air tightness 3. WIDELY USED IN ENGINEERING PROJECTS: Widely used in engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering 4. HIGH PRESSURE RESISTANCE: Working pressure from 0~0.9Mpa(0~0.92kfgcm2), pressure resistance is 1.0MPA (10kgfcm2), possess high pressure resistance 5. FOR AIR PUMPS: Air coupler fast connector is used for compressors, air pumps and some machines, etc., very practical Specification: Item Type: Pneumatic Manifold Air Distribution Block Material: Aluminum Pressure Resistance: 1.0MPA(10kgfcm2) Working Pressure: 0~0.9Mpa(0~0.92kfgcm2) Adaptation Temperature: 0~60 celsius Model Total Length(approx.) PositionsHoles Length x Width(approx.) Main Air Pipe Branch Branch Center Hole Diameter Mounting Hole Diameter Vertical Mounting Hole Center Spacing Horizontal Mounting Hole Center Spacing SY30023F 106mm 4.17in 3 Position 5 hole 30 x 30mm 1.18 x 1.18in G12 (approx.20mm 0.79in) G14 (approx. 12mm 0.47in) Approx.32mm 1.26in Approx.5.2mm 0.2in Approx.20.5mm 0.81in Approx.32mm 1.26in SY30024F 138mm 5.43in 4 Position 6 hole Approx.64mm 2.52in SY30025F 170mm 6.69in 5 Position 7 hole Approx.96mm 3.78in . Package List: 1 x Pneumatic Manifold Air Distribution Block Note: 1. Do not unplug and insert the air pipe frequently during the use of the connector, which will affect the service life of the connector and air pipe.2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage.3. When pulling out the air pipe, first confirm that there is no pressure in the tube, press the end cap of the joint to the end and pull out the air pipe.CORROSION RESISTANT: Made of good quality aluminum material, corrosion resistant, no rust, with good strength GOOD AIR TIGHTNESS: Pneumatic manifold air distribution block is easy to install, no air leakage, possess good air tightness WIDELY USED IN ENGINEERING PROJECTS: Widely used in engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering HIGH PRESSURE RESISTANCE: Working pressure from 0~0.9Mpa(0~0.92kfgcm2), pressure resistance is 1.0MPA (10kgfcm2), possess high pressure resistance FOR AIR PUMPS: Air coupler fast connector is used for compressors, air pumps and some machines, etc., very practical
