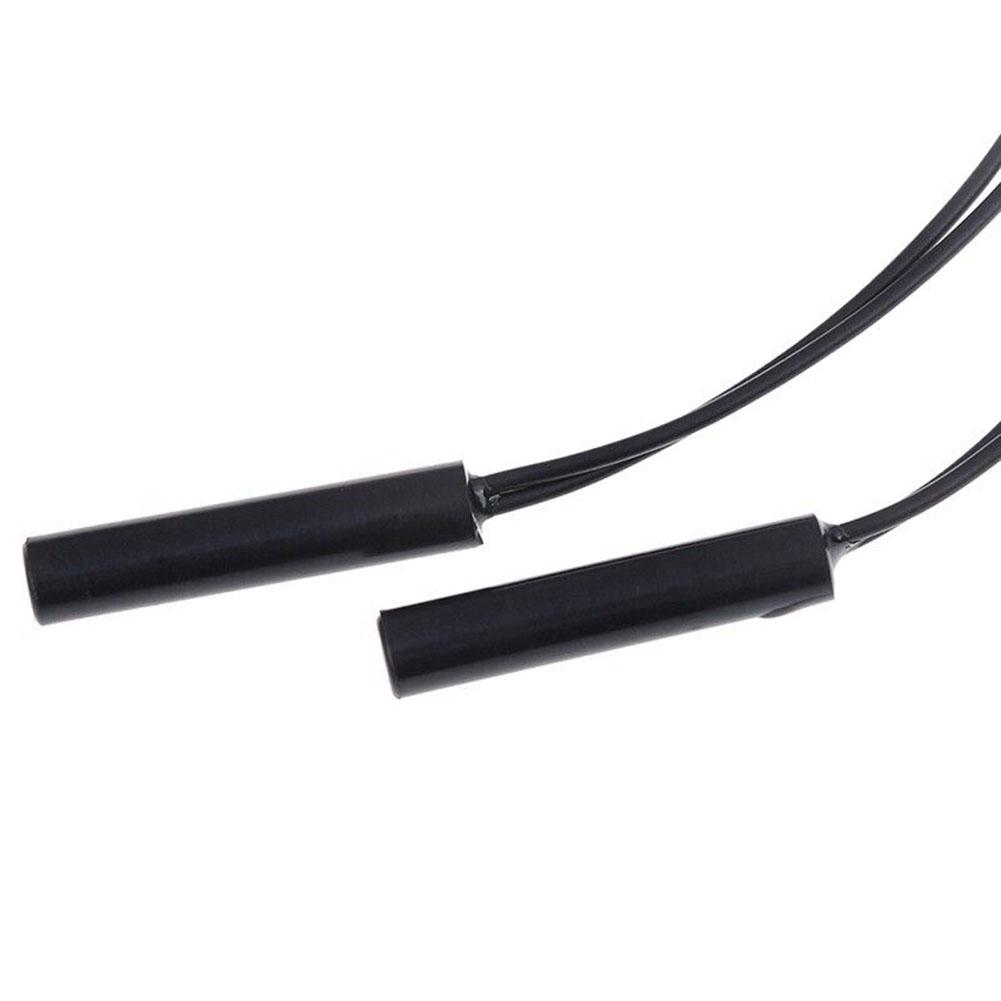

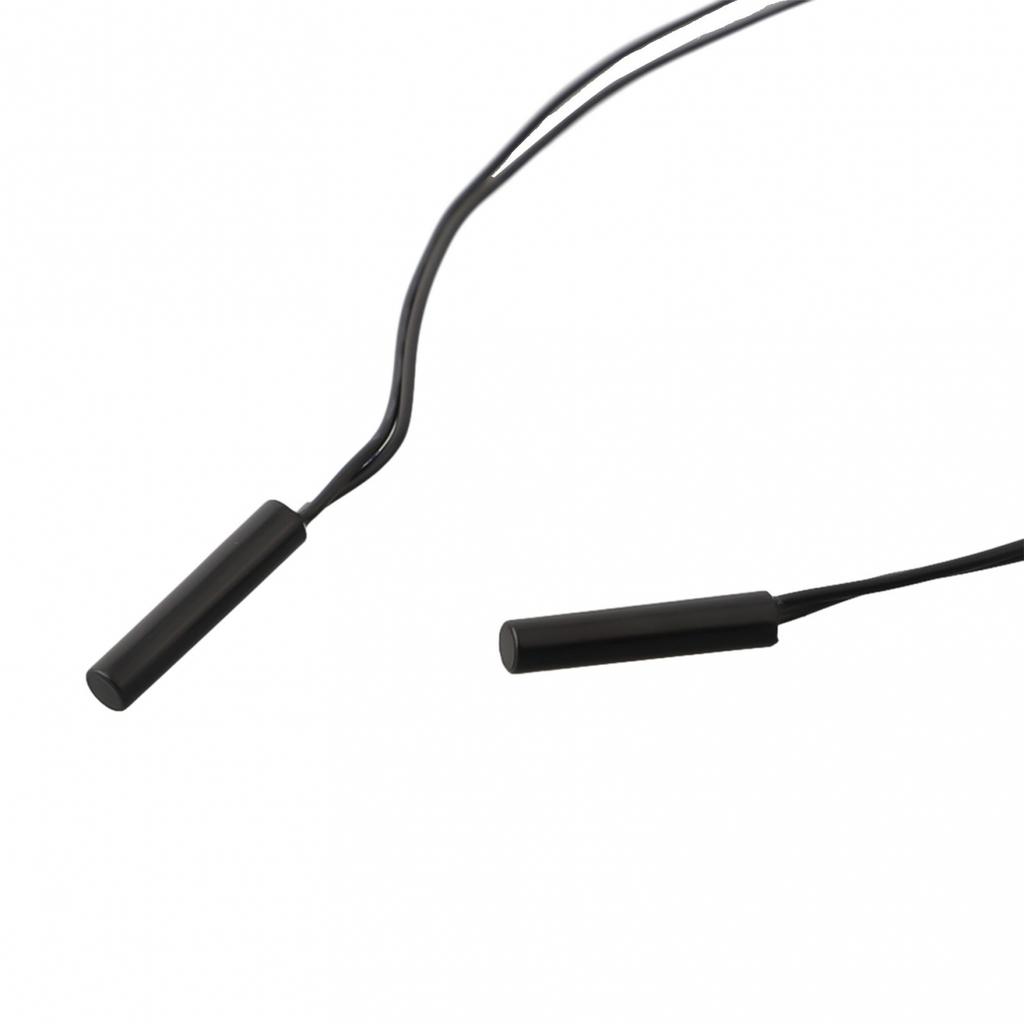

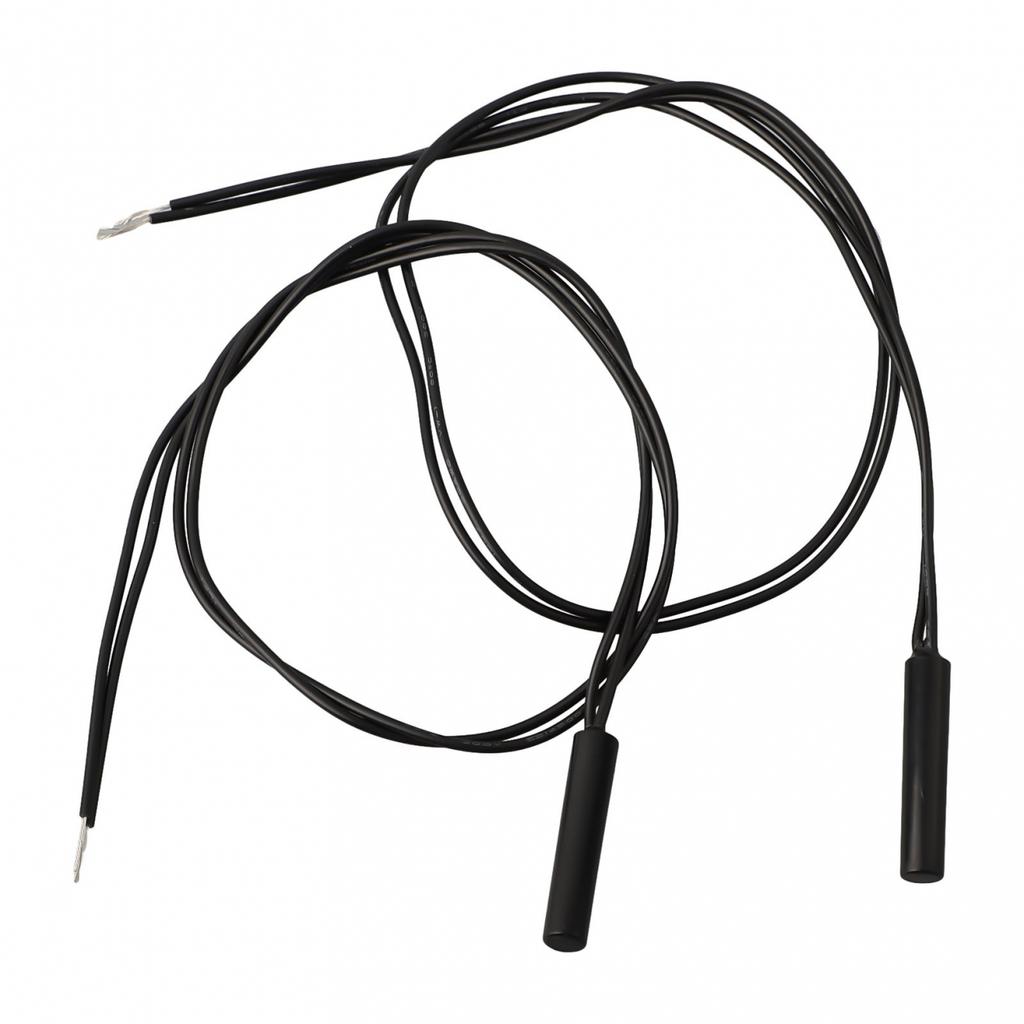

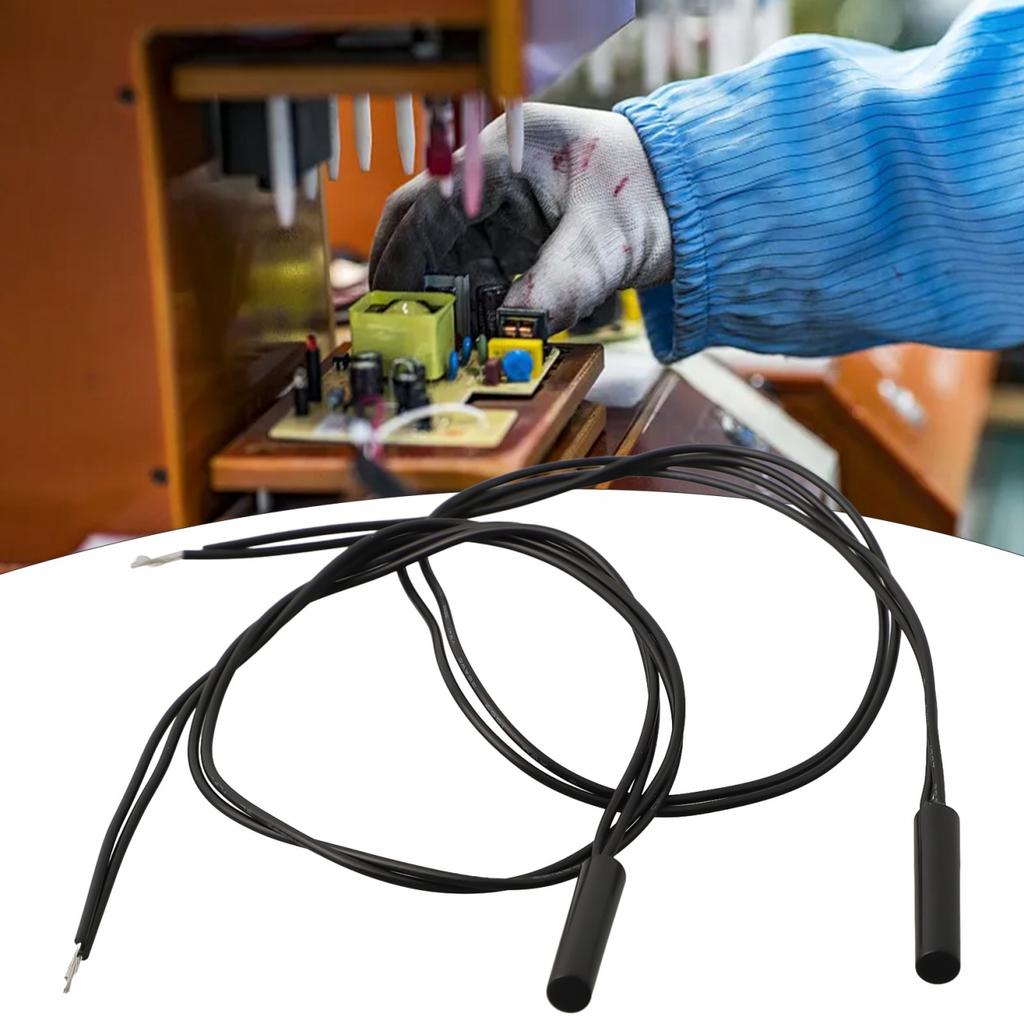

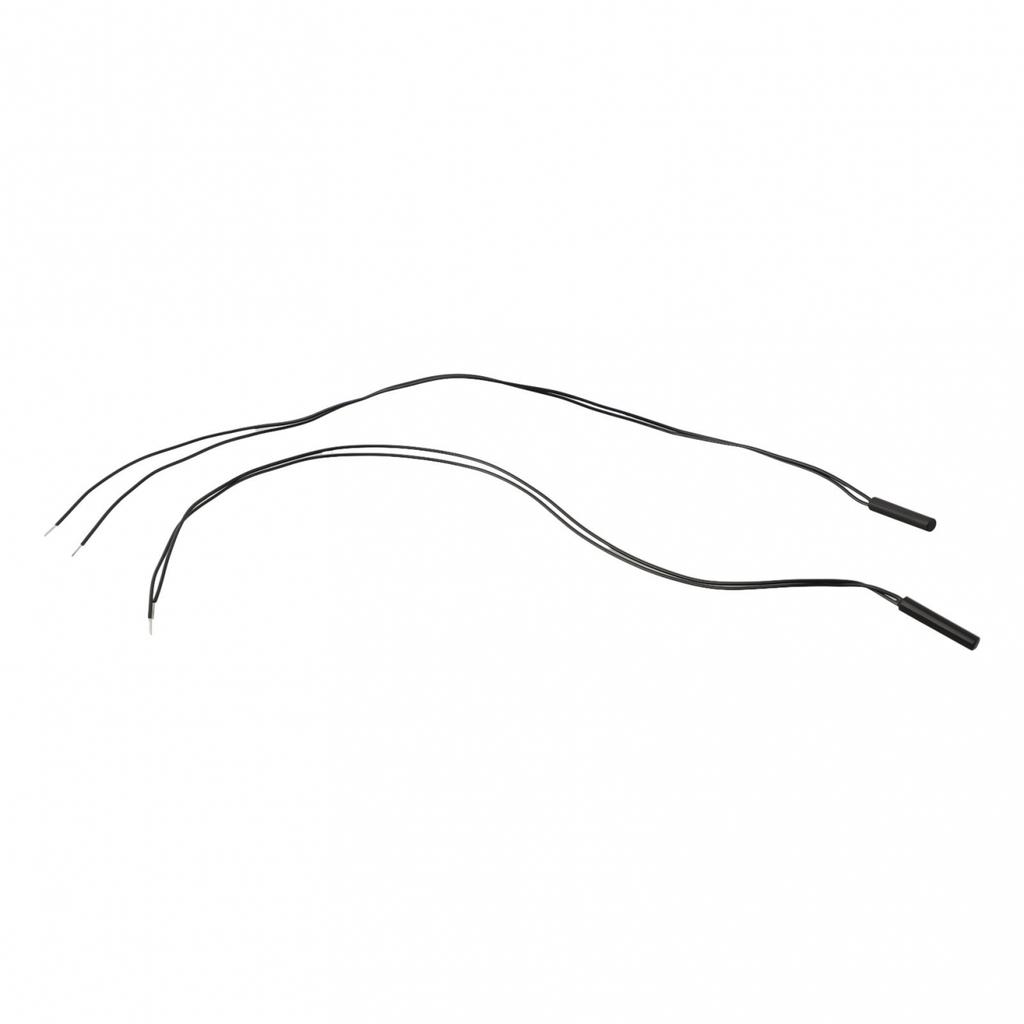

Proximity Switch Black Fully Sealed Design Long Service Life

Feature:

- brand new and high quality - Made of high quality material, - The proximity sensor is constructed of a magnetic spring tube formed and sealed with wires attached. Switching will occur when there is a magnetic object nearby. - It is commonly used as a position sensor and is widely used in measuring instruments, office automation equipment, household goods, safety and security equipment, transportation and transportation equipment. - Easy installation and adjustment, panel mount sensor - No standby power requirement, fully sealed design, long service life - Applications: position and limit sensing, safety switches, door switches

Specification:

- Name: proximity switch - Rated current: 0.4 (A) - Contact resistance: 400 (Ω) - Insulation resistance: 10 (MΩ) - Material: ABS and epoxy resin - Maximum contact rating: 10w - Maximum switching voltage: 100v DC - Minimum breakdown voltage: 200vdc - Maximum carrying current: 1.0A - Release time: 0.4ms max - time: 1.0ms or less - Diameter: 5.6mm - Sensor length (not including cable): 30mm - Cable length: about 30cm - Colour: Black - Quantity: 2PCS - Type: 6x30MM, 6x25MM, 6x20MM, 5x25MM, 4x18MM (optional)

Package includes:

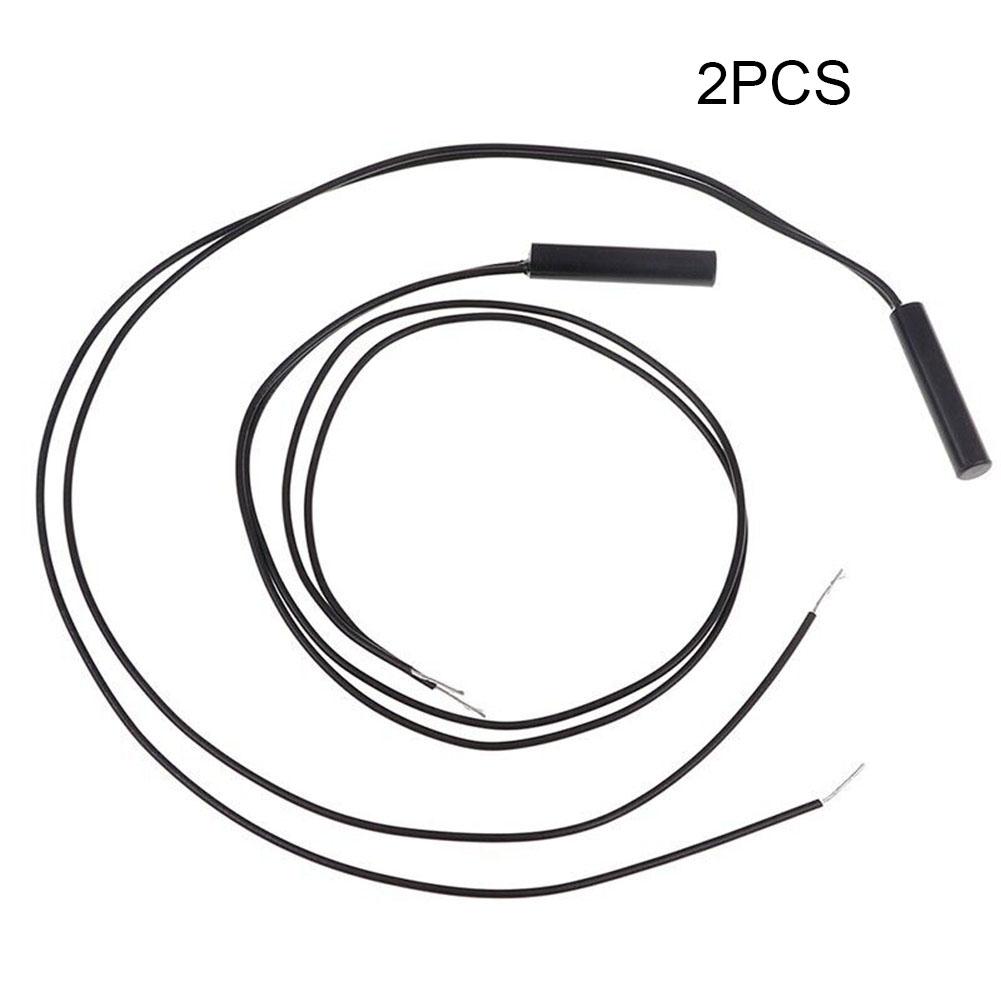

2 * Proximity switch(optional)

Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement.
