Feature:
1. 4 Poles High Torque Rotor Motor: The 2150KV brushless motor has stable output power, with enhanced throttle response, excellent acceleration, strong brake and throttle linearity.
2. CNC Machining: Adopted CNC machined 6061 T6 aluminum front and rear cover, the brushless motor has high purity and high temperature resistant copper windings, which can provide its efficiency.
3. High Toughness: The high toughness stainless steel output shaft ans bearings with high accuracy brings the aluminum alloy RC brushless motor kit durable, waterproof and dustproof, powerful resistance current ability, good heat dissipation.
4. Efficient ESC: The electronic speed controller has built in 5.8V 3A BEC, with heat sink and fan can control its temperature, keeping your motor running efficiently and cool.
5. Multiple Protection: The RC brushless motor kit possesses low voltage cut off protection, overheat protection, throttle signal loss protection, with programming card, which can easily changed internal timing, make motor suitable for different motors.
Specification:
Item Type: RC Brushless Motor Set
Weight: Approx. 507g/17.88oz
Motor:
Shell Material: Aluminum Alloy
Color: Red
Diameter: Approx. 36mm/1.42in
Height: Approx. 70mm/2.76in
Shaft Length: Approx. 17mm/0.67in
Shaft Diameter: Approx. 5mm/0.20in
KV: 2150KV
Rotation Speed: 50000
Maximum Power: 1600W
Maximum Current: 70A
Maximum Voltage: Connector: 4mm Golden Banana Connector
Electronic Speed Controller:
Continuous Current: 120A
Peak Current: 600A (10 Seconds)
BCE Output: 5.8V, 3A
Power Plug: T Shaped Plug
Applicable Power Supply(Not Included): 2-4S LiPo, 4-8S NiMh
Heat Sink:
Material: Plastic, Aluminum Alloy
Color: Red
Single Fan Size: Approx. 30x30x10mm/1.18x1.18x0.39in
Operating Voltage: 5-6V
Application: for Traxxas, for HSP, HPI 1/8 Remote Control Crawler
Package List:

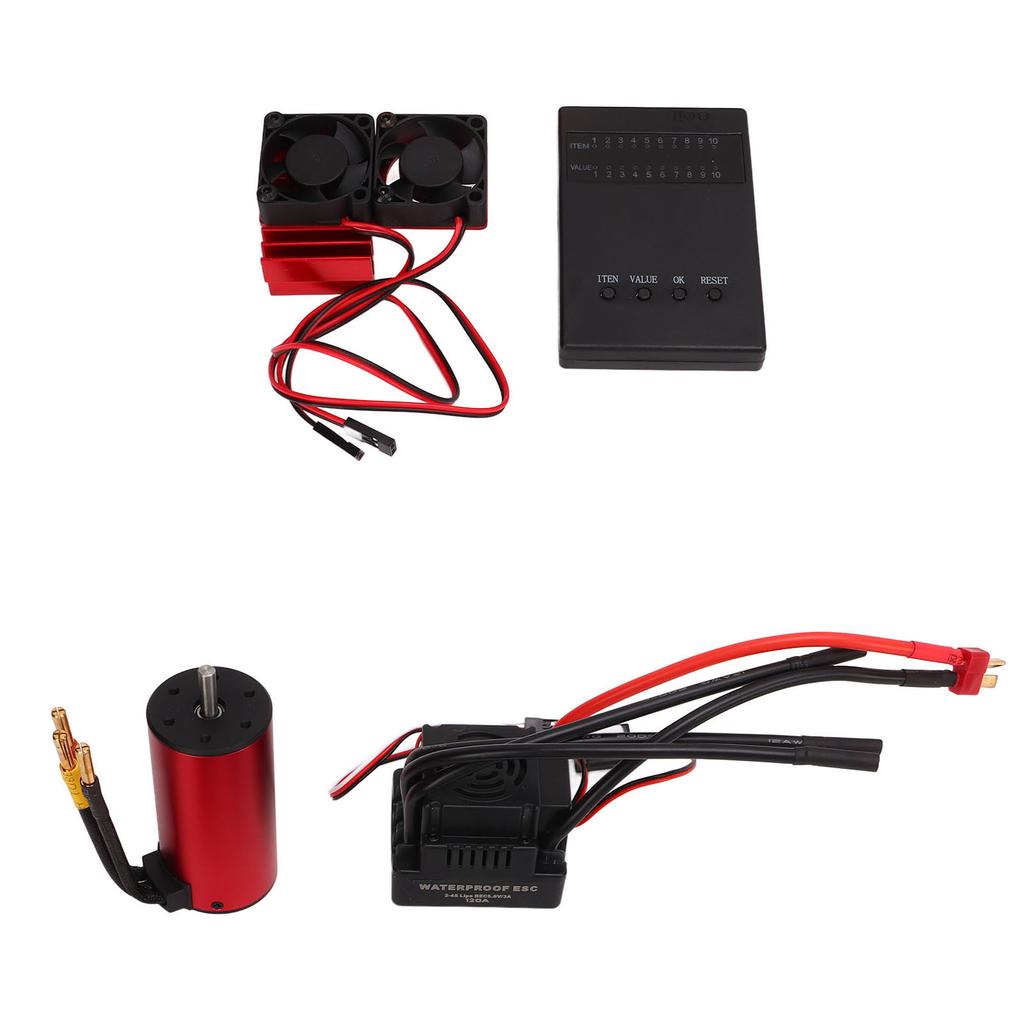

1 x Brushless Motor
1 x Electronic Speed Controller
1 x Use Manual
1 x Heat Sink

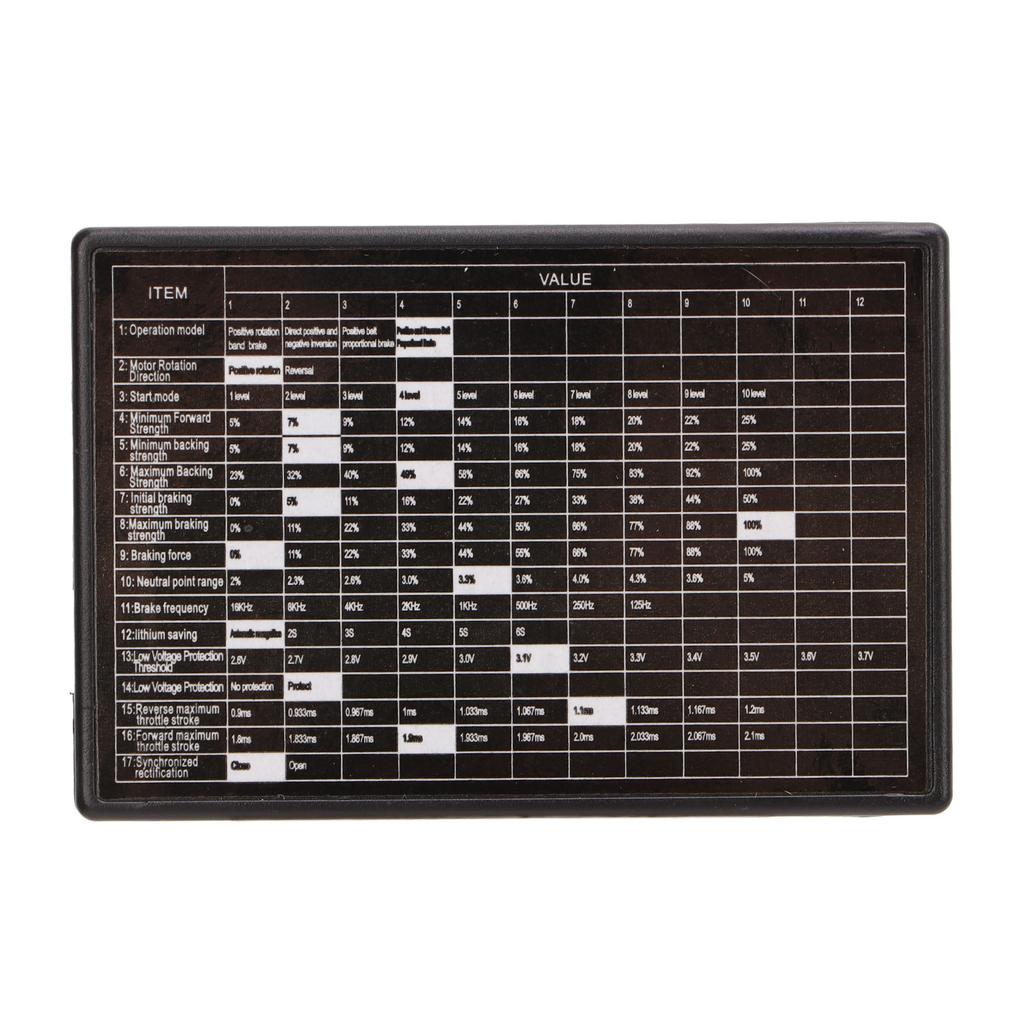

1 x Programming Card
