Ayzeze: Please note that in most European countries the speed limit for electric scooters is 20 km/h.
-----
❗Purchase Notes❗
1. Some electric scooters come with a speed limiter by default. For instructions on how to remove or install the speed limiter, please refer to the relevant videos on YTube, depending on your brand and model.
2. We recommend using the speed limiter mode on public roads in urban areas. This mode has a maximum speed of 25 km/h, which is more compliant with traffic regulations and better ensures your personal and traffic safety.
3. This product does not include VMP or ABE certification. If you require these certifications, please do not place an order. If you place an order for this reason, we will not accept a refund request for that reason.
4. All speed figures refer to the maximum values measured under controlled laboratory conditions with a rider weight of 60–65 kg, a fully charged battery, and a flat road surface. Actual riding speed may vary depending on real-world conditions.
5. All range figures refer to extreme values measured under controlled testing conditions, including a rider weight of 60-65 kg, a fully charged battery, and riding at a constant speed on a flat surface. Actual range may vary depending on real-world conditions.
6. For any other questions, please scroll down on the product page and find the "ⓘ Seller Information and Responsibilities" button next to the store icon (website), or click the store icon and find "ⓘ About the seller" (APP), then obtain relevant information via ✉️ or Whats.

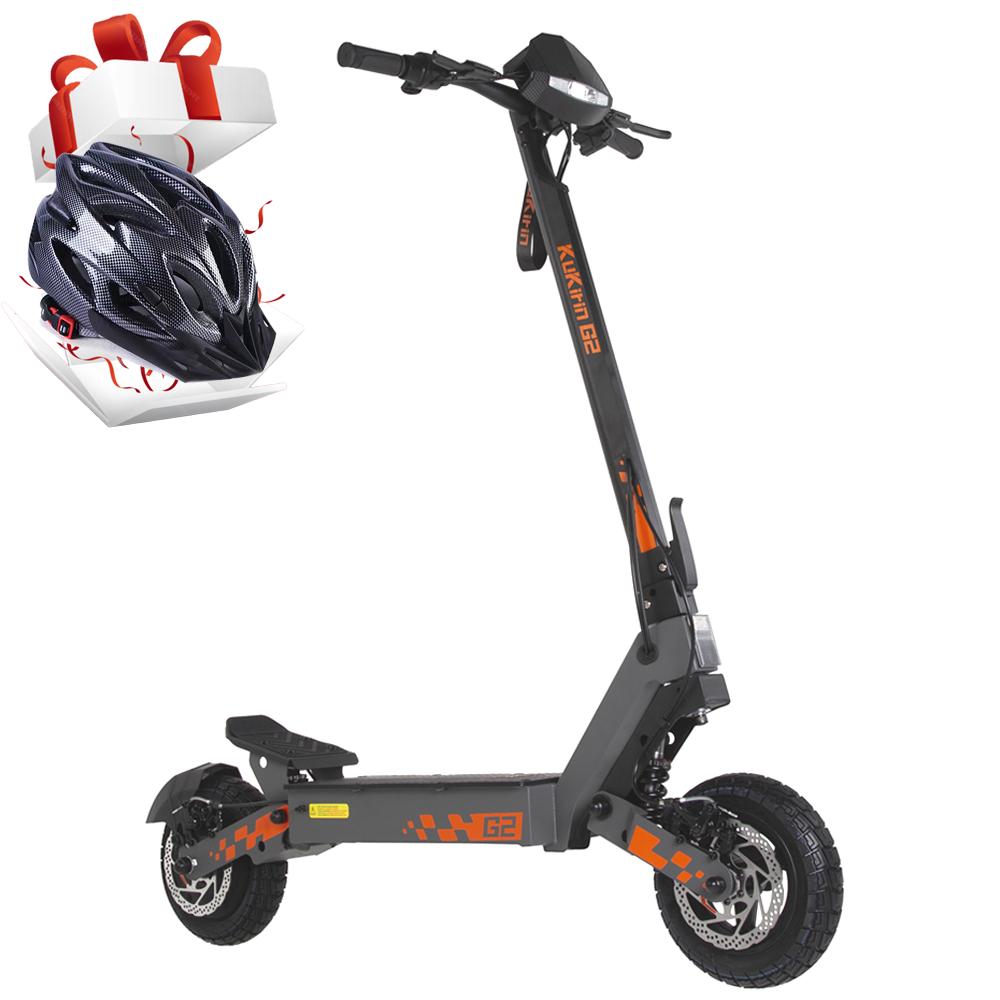

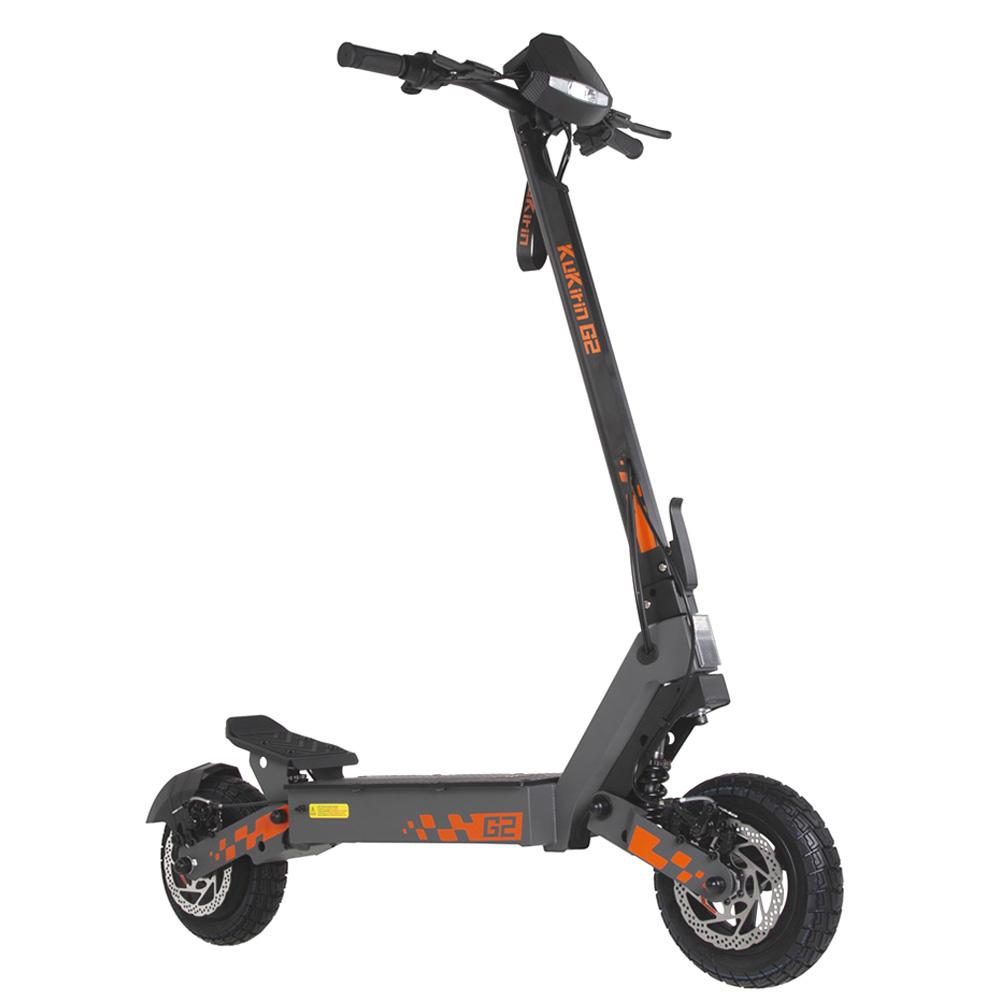

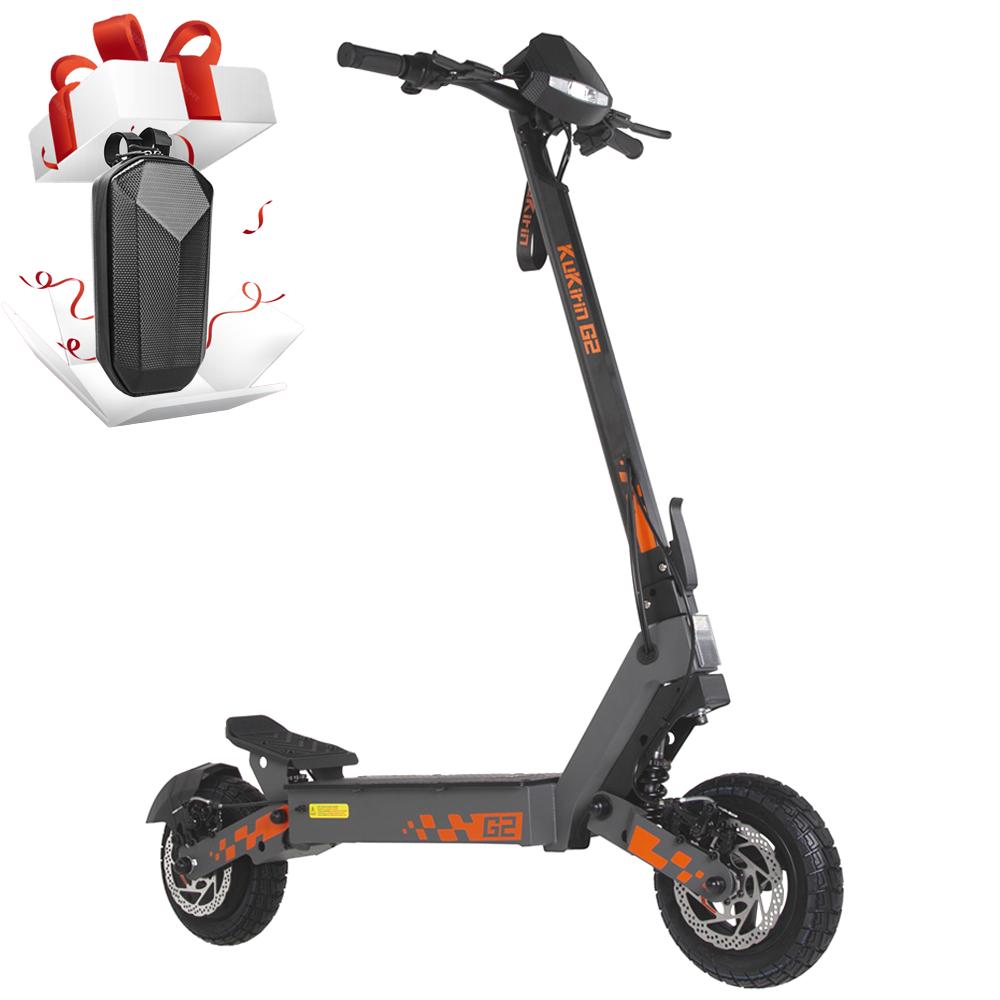

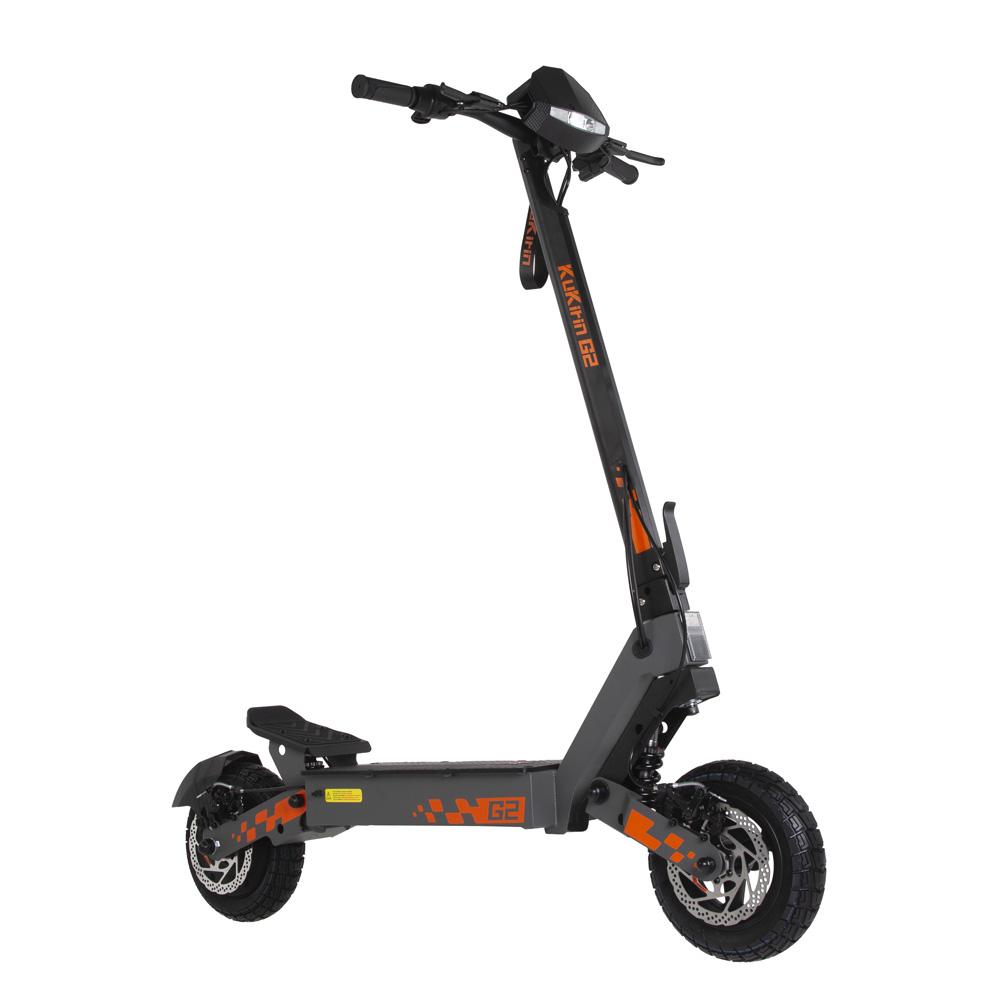

🛴Kukirin-G2-E-Scooter🛴
A. Core Power
Motor type: Integral hub motor (rear wheel single drive)
Voltage: 48V
Rated power: 800W
Instantaneous maximum power: 1200W
Rated speed: 1100±30 rpm
Max output torque: 29 N·m
Accelerate mode: Sine wave
Max speed: 45km/h
Speed gear:
1st gear: 25km/h (65kg Load)
2nd gear: 35km/h (65kg Load)
3rd gear: 45km/h (65kg Load)
1st gear: 25km/h (speed limit)
2nd gear: 35km/h (speed limit)
3rd gear: 55km/h (speed limit)
Performance Climbing ability: ≤20° slope
B. Energy System
Battery Model: 18650 Lithoum battery
Voltage: 48V
Single cell capacity: 2500mAh
Battery pack capacity: 15Ah
Standard power consumption: 0.72kW·h
Battery protect system: Battery protective board（BMS）
Charger Input voltage: 100-240VAC~50/60Hz
Charger Output voltage: 54.6V
Charging time: 8-9h
C. Riding Control
Brake system: Front and rear disc brake&e-brake
Brake distance: 4-10m
Instrument type: LED
Instrument functions: Speed/power/mileage/cruise control/speed mode/start mode/light mode/mileage unit mode
Menu settings:
"1. Click set to switch speed and mileage units, long press set to switch non-zero start/zero start.
2. Click mode to switch gears, long press mode to turn off cruise control.
3. Click light to turn on and off the headlights.
4. Click the multi-function button to turn on and off the headlights, double-click to switch gears, long-press to enter the hibernation state, hibernation state click to wake up.
5. Press and hold the brake, click the multi-function button four times in a row to switch the speed limit mode."
D. Riding Components
Frame material: Steel + Aluminum Hybrid Frame
Tire size: 10in（102.75-6.5）
Tire type: Vacuum tire
Optimum tire pressure: 220-230kpa
Disc brake outer diameter: /
Pedal size: 175mm
Handlebar size: 660mm
Pedal to Handlebar size: 460185mm
Chassis height: 990mm
E. Comfort & Safety
Shock absorber system:
Front: Spring shock adsorption
Rear: Spring shock adsorption
Light System:
Headlight type: LED
Headlight power: 3W
Headlight illumination angle: 60°
Headlight irradiation area: 4㎡
Turn light: Yes
Taillight: Yes，The taillights are on when the headlight is on, taillight flash when breaking.
Waterproof level: IP54
Max Load: 120kg
Fold size: 1258*660*540mm
F. Other parameters
Packing size: 1235*205*575mm
Product G.W: 30kg
Package includes: User manual*1,Charger*1,Toolkits*1,Rear fender*1,Rear fender mounting bolts*2.
