Ayzeze: Please note that in most European countries the speed limit for electric scooters is 20 km/h.
-----
❗Purchase Notes❗
1. Some electric scooters come with a speed limiter by default. For instructions on how to remove or install the speed limiter, please refer to the relevant videos on YTube, depending on your brand and model.
2. We recommend using the speed limiter mode on public roads in urban areas. This mode has a maximum speed of 25 km/h, which is more compliant with traffic regulations and better ensures your personal and traffic safety.
3. This product does not include VMP or ABE certification. If you require these certifications, please do not place an order. If you place an order for this reason, we will not accept a refund request for that reason.
4. All speed figures refer to the maximum values measured under controlled laboratory conditions with a rider weight of 60–65 kg, a fully charged battery, and a flat road surface. Actual riding speed may vary depending on real-world conditions.
5. All range figures refer to extreme values measured under controlled testing conditions, including a rider weight of 60-65 kg, a fully charged battery, and riding at a constant speed on a flat surface. Actual range may vary depending on real-world conditions.
6. For any other questions, please scroll down on the product page and find the "ⓘ Seller Information and Responsibilities" button next to the store icon (website), or click the store icon and find "ⓘ About the seller" (APP), then obtain relevant information via ✉️ or Whats.

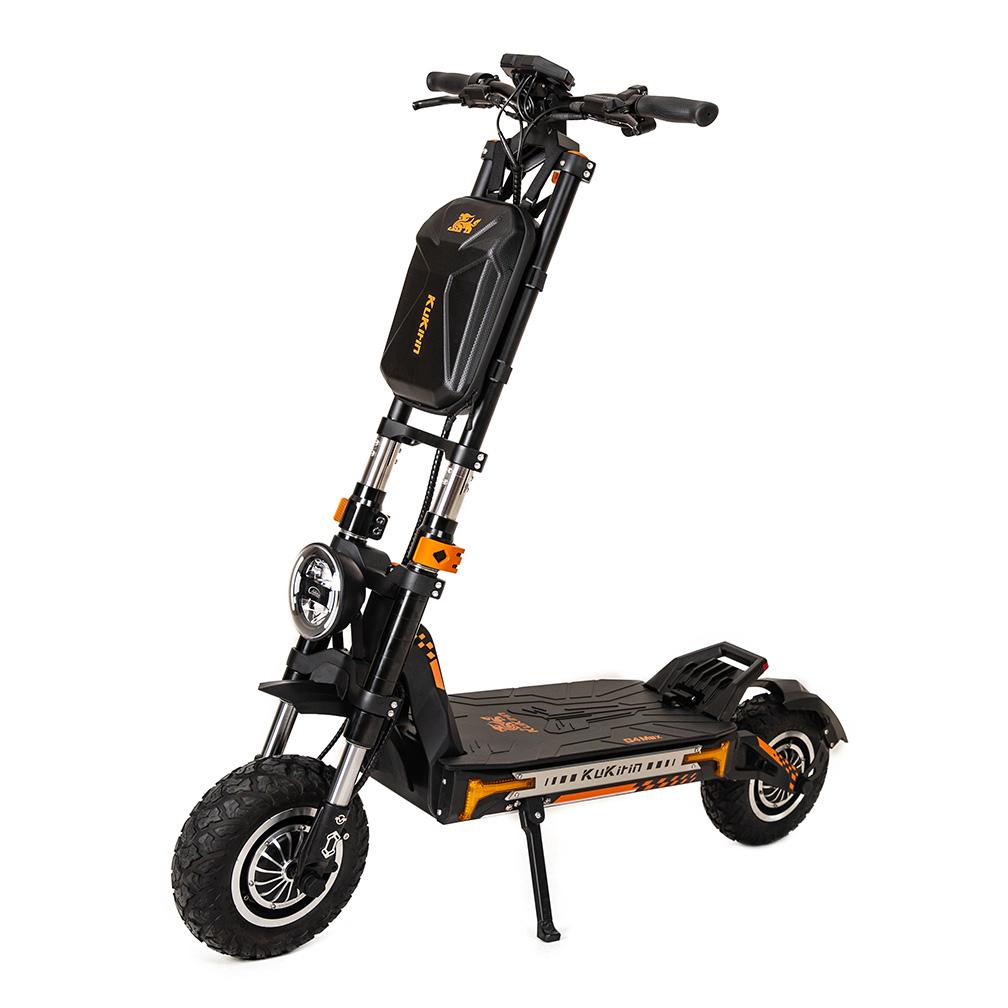

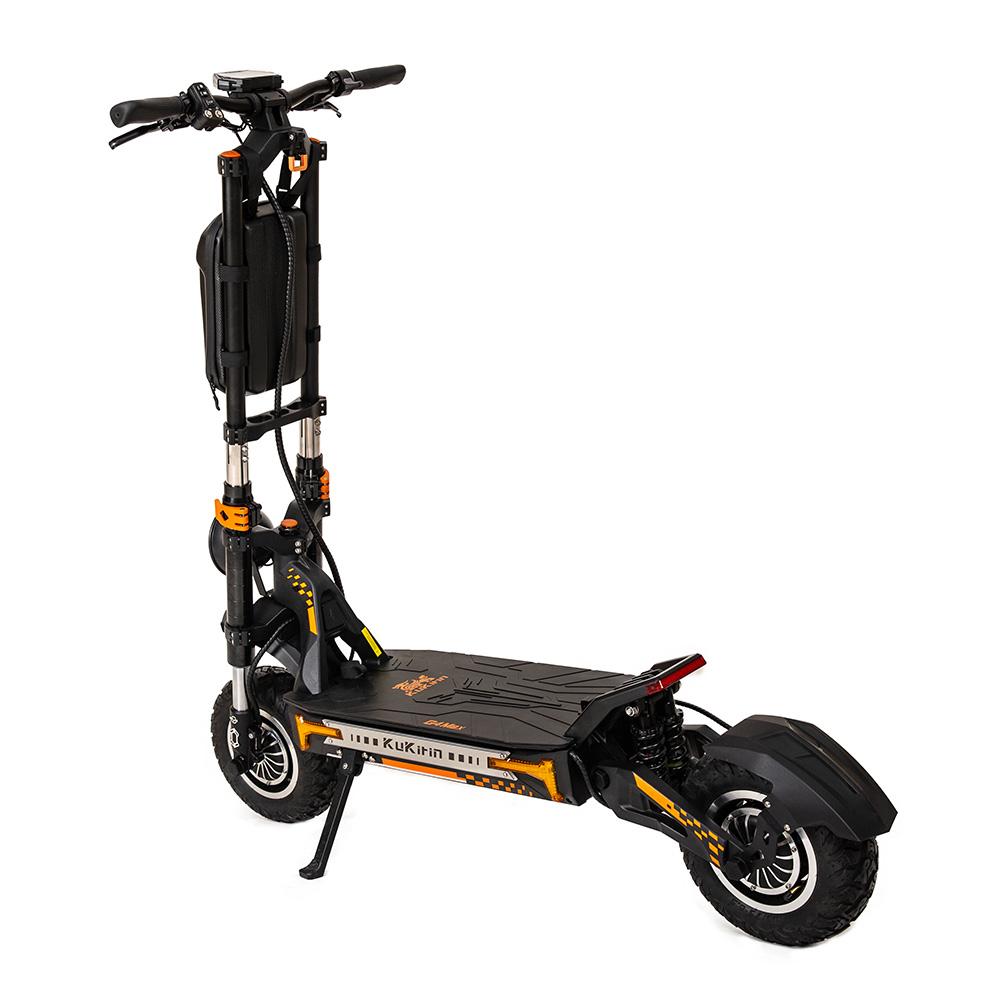

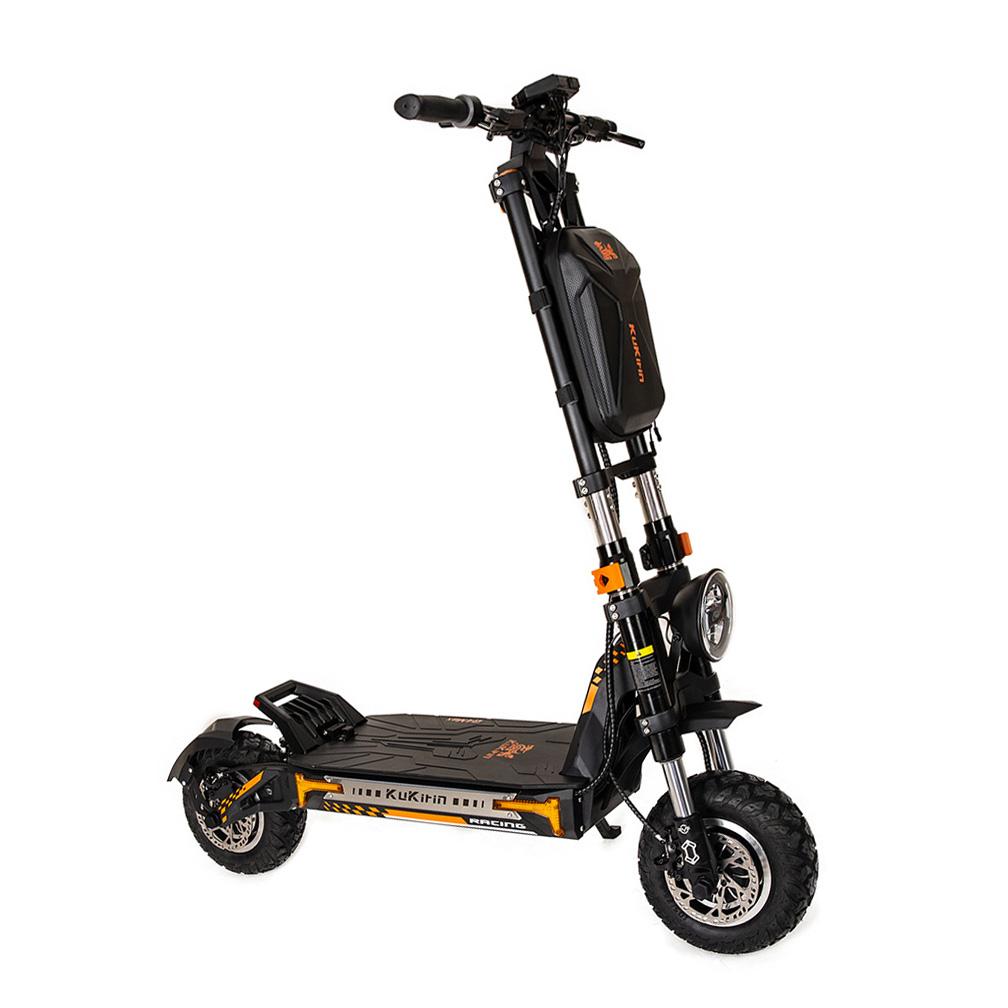

Model:KuKirin G4 Max
📊Basic parameter
Product G.W:79kg
Product N.W:65kg
Expend size:1425*640*1340mm

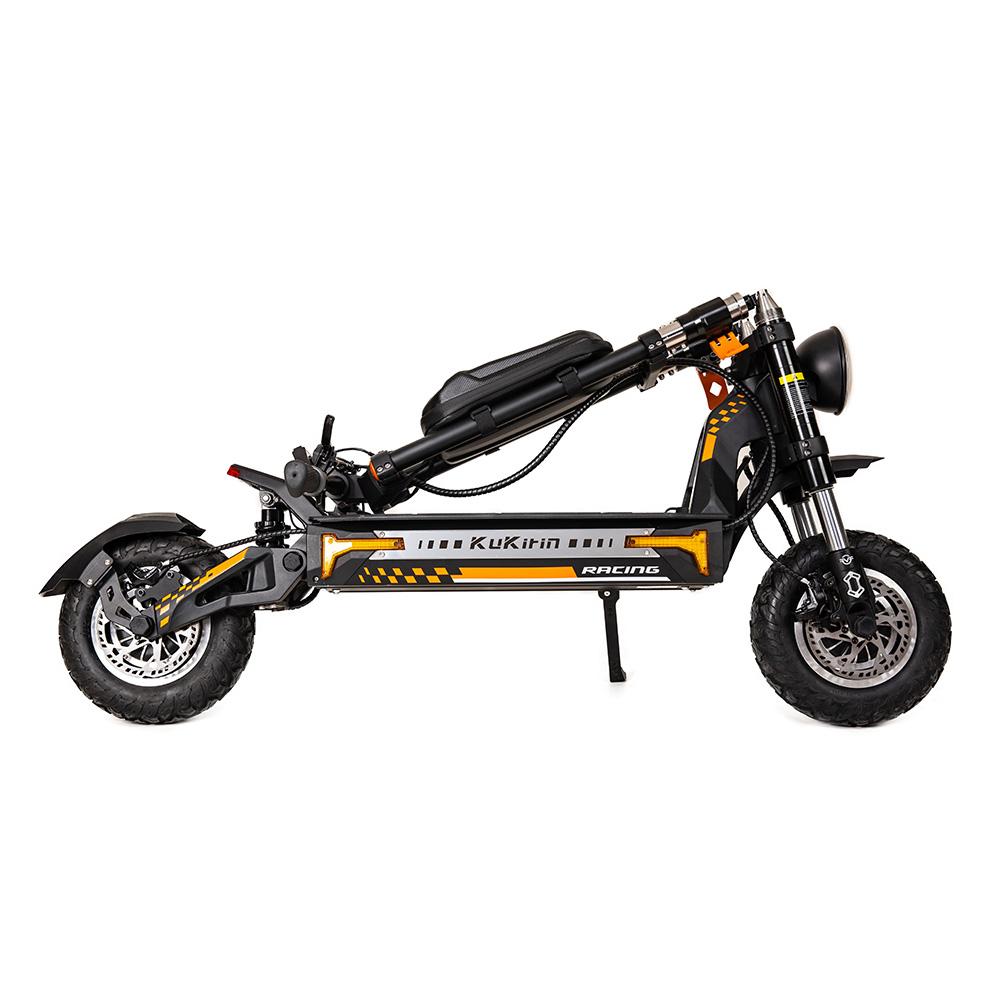

Fold size:1425*640*668mm
Handlebar size:640mm
Pedal to Handlebar size:640*305mm
Chassis height:1035mm

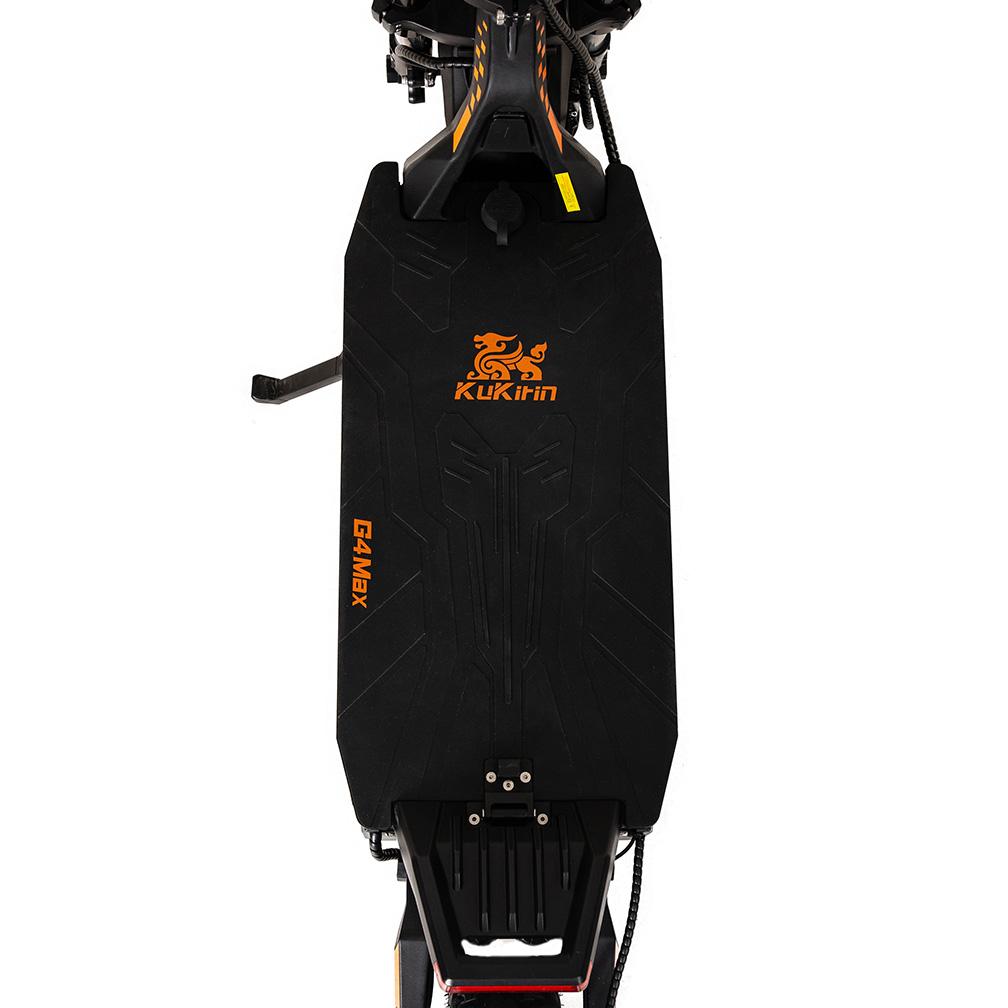

Pedal size:210mm
Max Load:150kg
Max speed:86km/h
Speed gear:1st、2nd、3rd(speed limit) 1 gear:36km/h、2 gear:66km/h、3 gear:68km/h
1st、2nd、3rd(65kg Load) 1 gear:38km/h、2 gear:70km/h、3 gear:86km/h
Middle speed mileage(65kg Load):≤95km
Performance Climbing ability:≤38° slope
Brake system:Front and rear oil disc&e-brake
Brake distance:6-10m
Waterproof level:IP54
Material Frame material:Aluminum alloy
⚙️Motor
Motor type:Brushless DC Hub Motor(front and rear wheel dual drive)
Voltage:60V
Acclerate mode:Sine wave
Rated power:1600W*2
Instantaneous maximum power:2000W*2
Rated speed:1900 rpm
Max output torque:41 N·m
🔋Battery
Model:21700 Lithium battery
Voltage:60V
Single cell capacity:4400mAh
Battery pack capacity:35.2Ah
Standard power consumption KW.H:2.112kW·h
Battery protect system:Battery protective board(BMS)
🔌Charger
Input voltage:200-240VAC~50/60Hz
Input current:5A
Output voltage:67.2V
Output current:5A
Charging time:7-8h
🛡️Shock absorber system

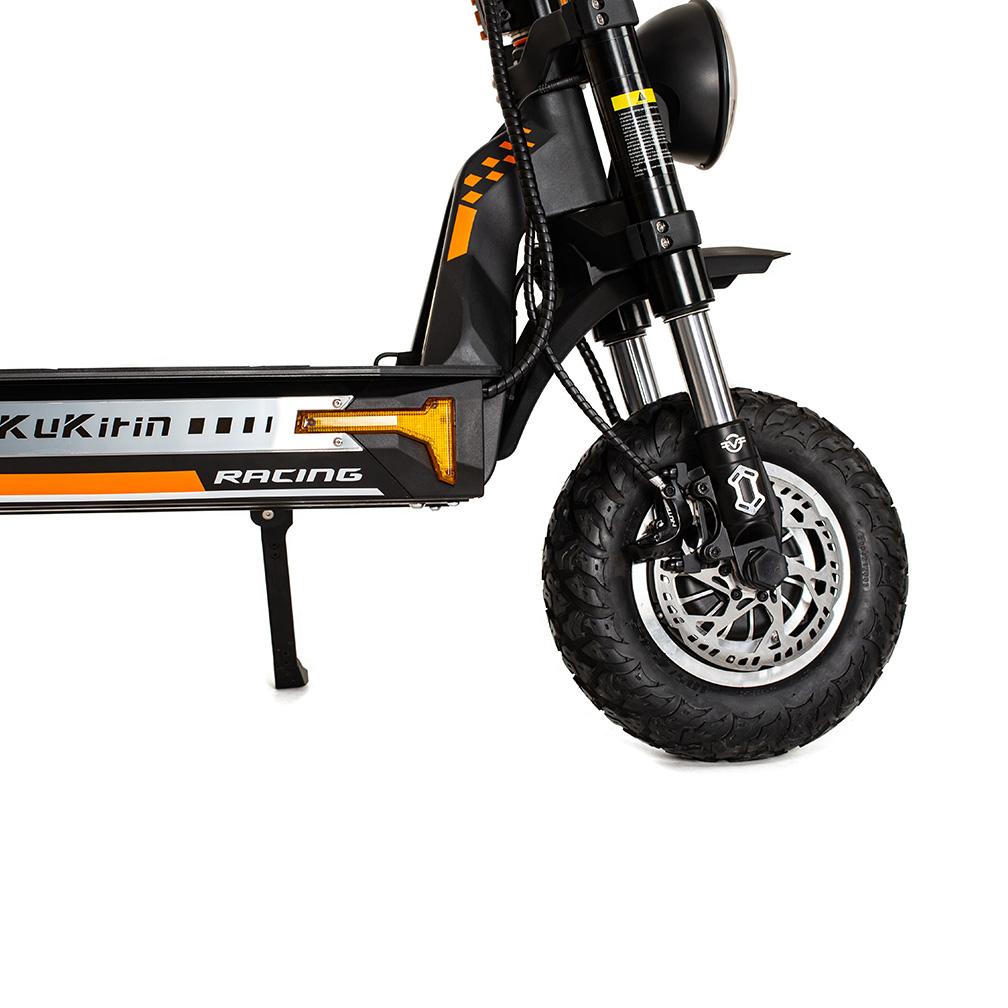

Front shock absorber:Hydraulic inverted shock absorber

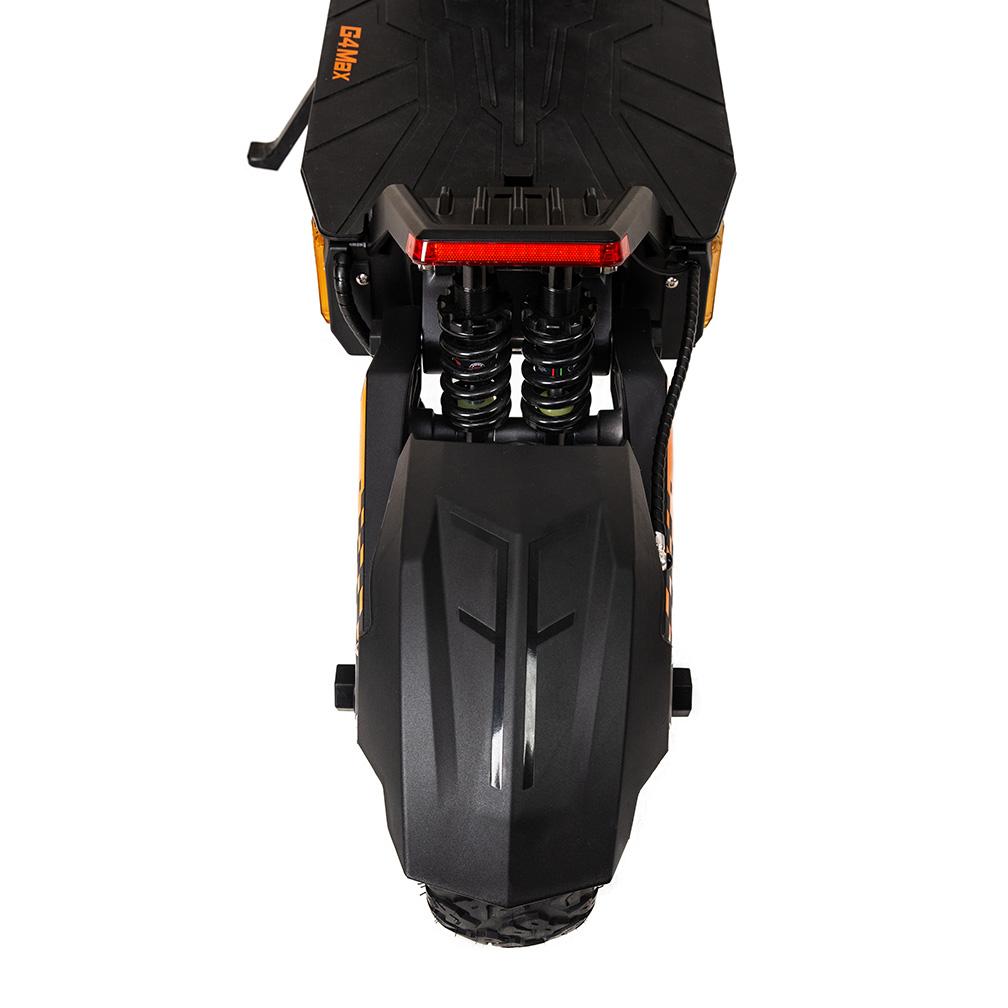

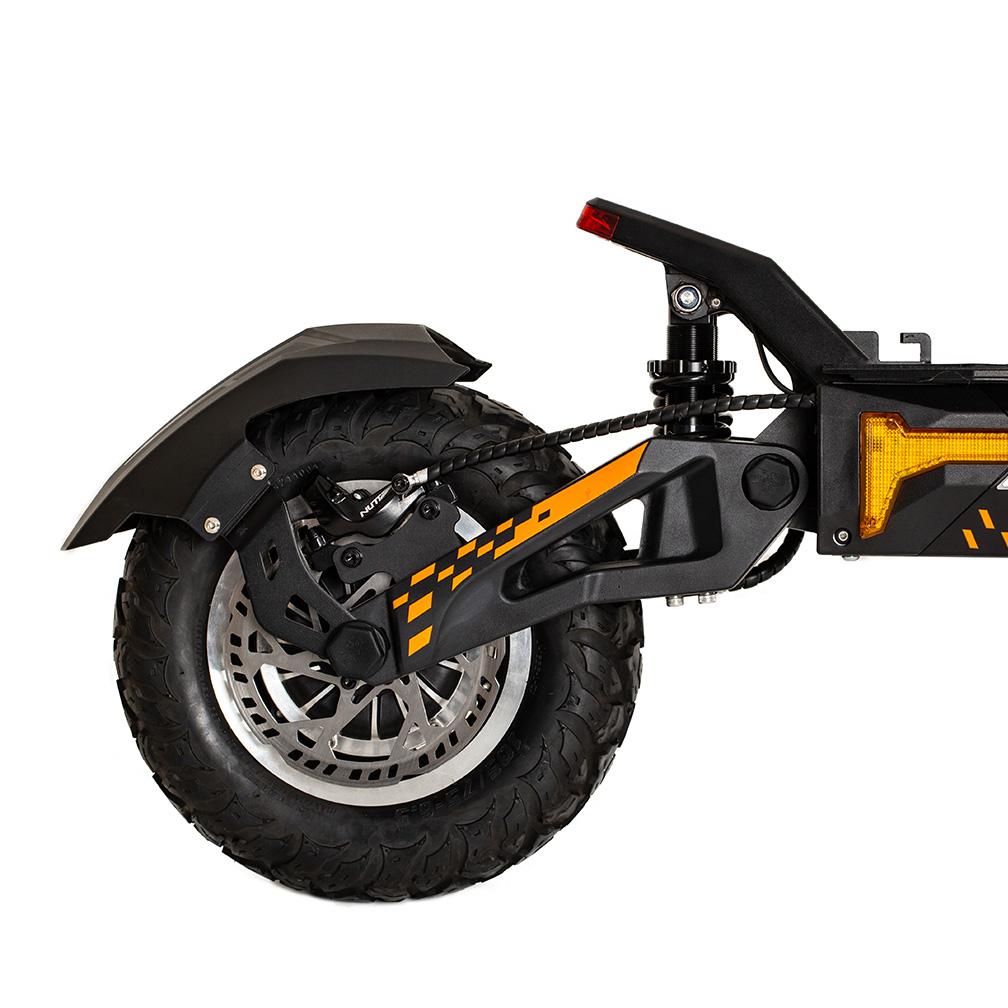

Rear shock absorber:Dual hydraulic damping shock absorption
💡Light System

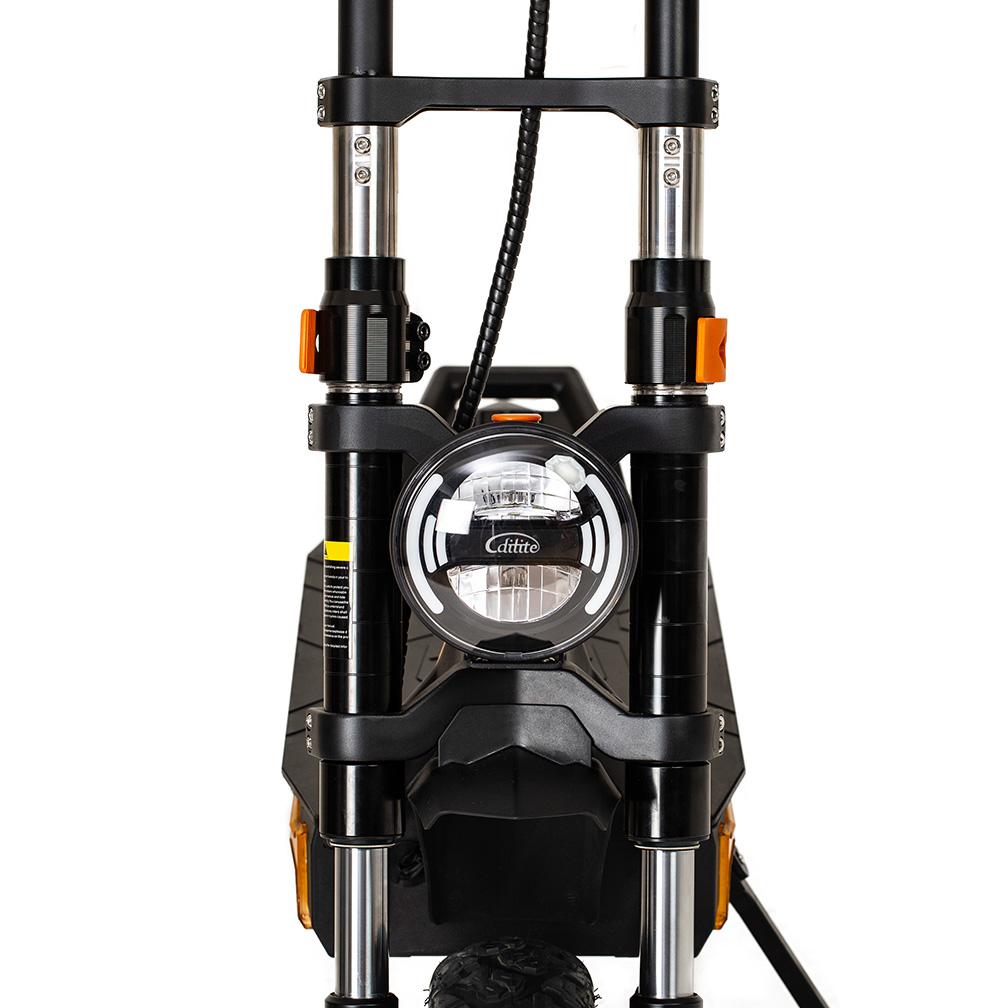

Headlight type:LED
Headlight power:15W
Headlight illumination angle:130°
Headlight irradiation area:35㎡
Turn light:Yes
Taillight:Yes,The taillights are on when the headlight is on, taillight flash when braking.
🛞Tire
Size:12in
Type:Vacuum tire
Optimum tire pressure:282kPa(41psi)
🛑Disc brake disc
Outer diameter:/
Thread hole diameter:/
📱Instrument
Type:LCD
Instrument material:Instrument case ABS / instrument bracket PA6
Size:133*76mm
Show content:Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication unit, battery power indication, fault code indication, start mode indication, single and dual drive indication, etc.
Function setting:
"After short pressing the power button three times continuously to enter the menu setting interface, the meter will display P1, P2, P3, P4, P6, P7, P8, Pa, Pb, Pc; respectively: P1 is the selection setting for kilometers/miles; P2 is the voltage level; P3 is the wheel diameter setting; P4 is the magnetic pole pair number setting; P5 is the cruise and no cruise selection setting; P6 is the non-zero start and zero start selection setting; P7 is the speed limit setting; P8 is the automatic sleep time setting; PA is the starting strength setting; PB is the braking strength setting; PC is the total mileage clearing setting.
Speed limit mode: Hold the brake handle and double-click the power button to switch to speed limit mode. In speed limit mode, the instrument border icon flashes (no speed limit by default)."
📦Package Information
Packing size:1450*350*715(inner)/1470*355*740mm(outer)

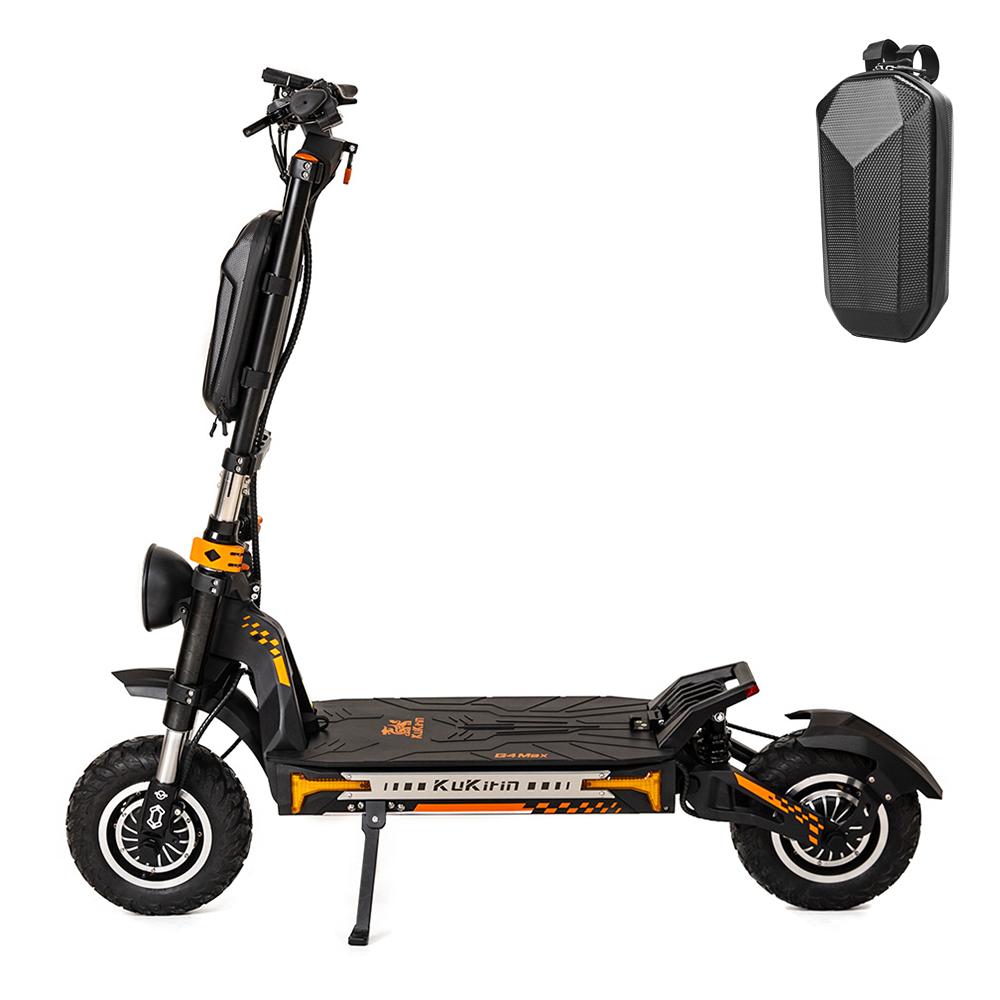

Packing list:User manual*1,charger*1,pump*1,tool*1,bag*1
