300MHz-868MHz Garage Door Remote Control Receiver
Specifications
1. Name:Multifrequency Remote Control Receiver
2. Operating Voltage :AC/DC 9V-30V
3. Channels:2
4. Frequency:300MHz - 868MHz
5. Code: Rolling and Fixed Code & Learning Code
6. Distance:About 100m
7. Size:56mm*46mm*20mm
8. One receiver can work with 400 Remote Control
9. It don't interference other remotes and receivers.
10. Brand selector: With 8 dip switches user can make different combination for different remote brands.

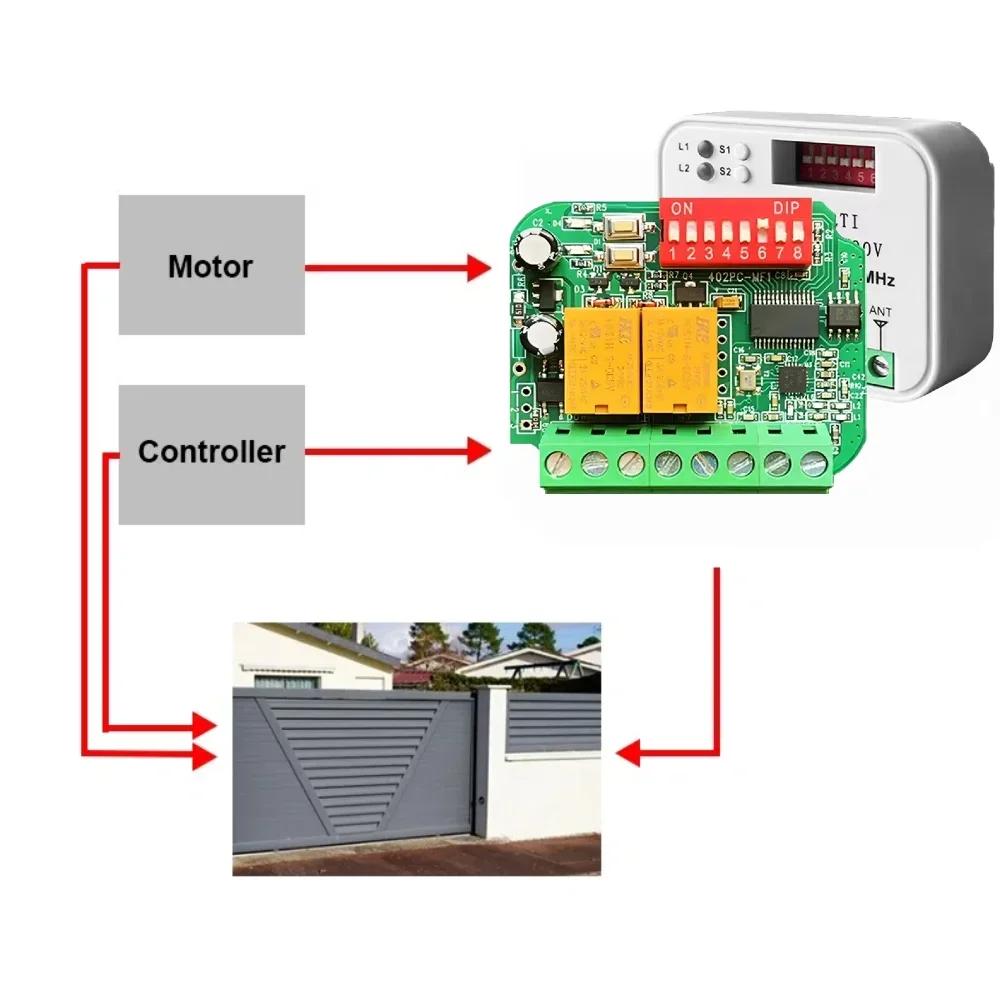

11. Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12. Power Input Selector: This receiver can work at AC/DC 9V 30V. However, it's better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.
Programming a new remote

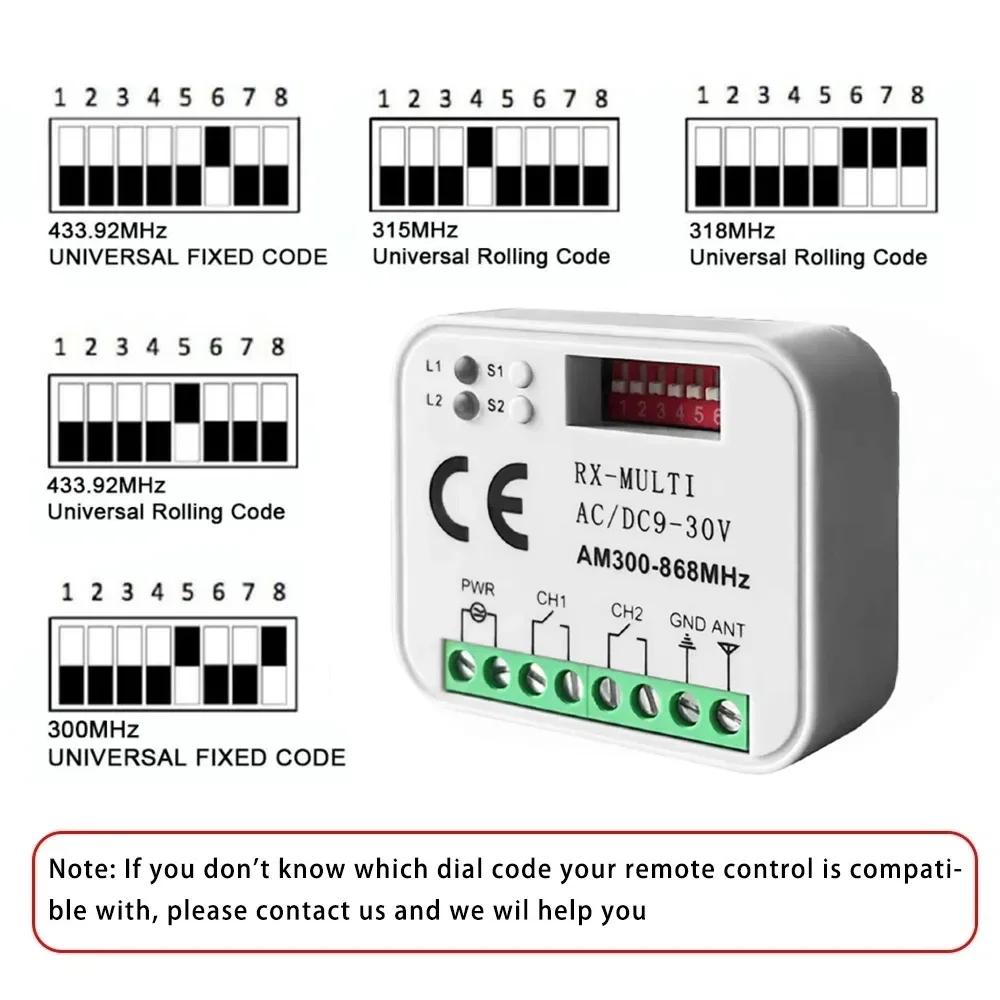

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433Mhz remote controls, just move Dip-switch 7 UP.
2) Press the learn button. The will LED turn on.
3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat step 2 for another button.
5)The 2-nd channel programming procedure is the same.
Working frequency: 300-900MHz(Rolling code & Fixed code)
300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz
Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on).
All Learning code (1527, 2240, 6P20B, 6P20D and so on),
Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),and many other main brands in the market.

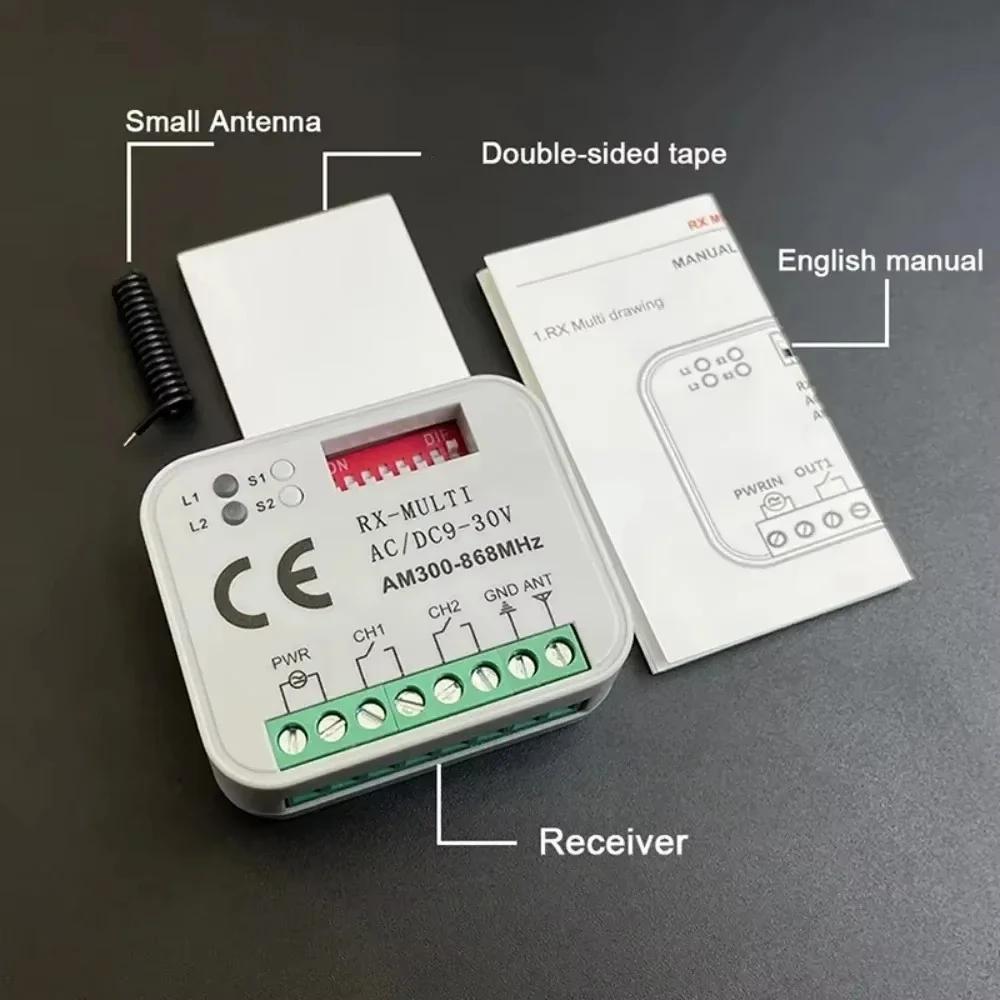

Package includes:
AS the Pictures
NOTE:
①Images on this page are for illustration only and due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
②Please allow 1-3cm measuring deviation due to manual measurement.
