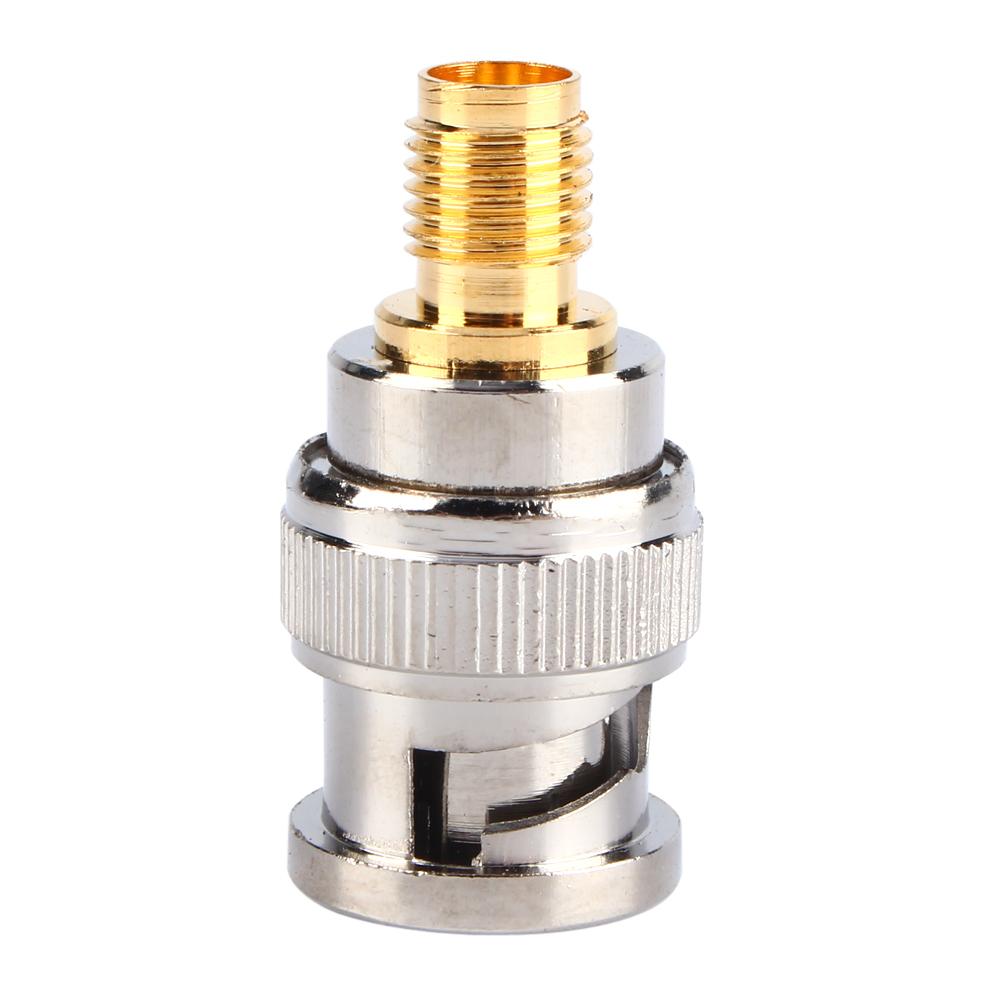

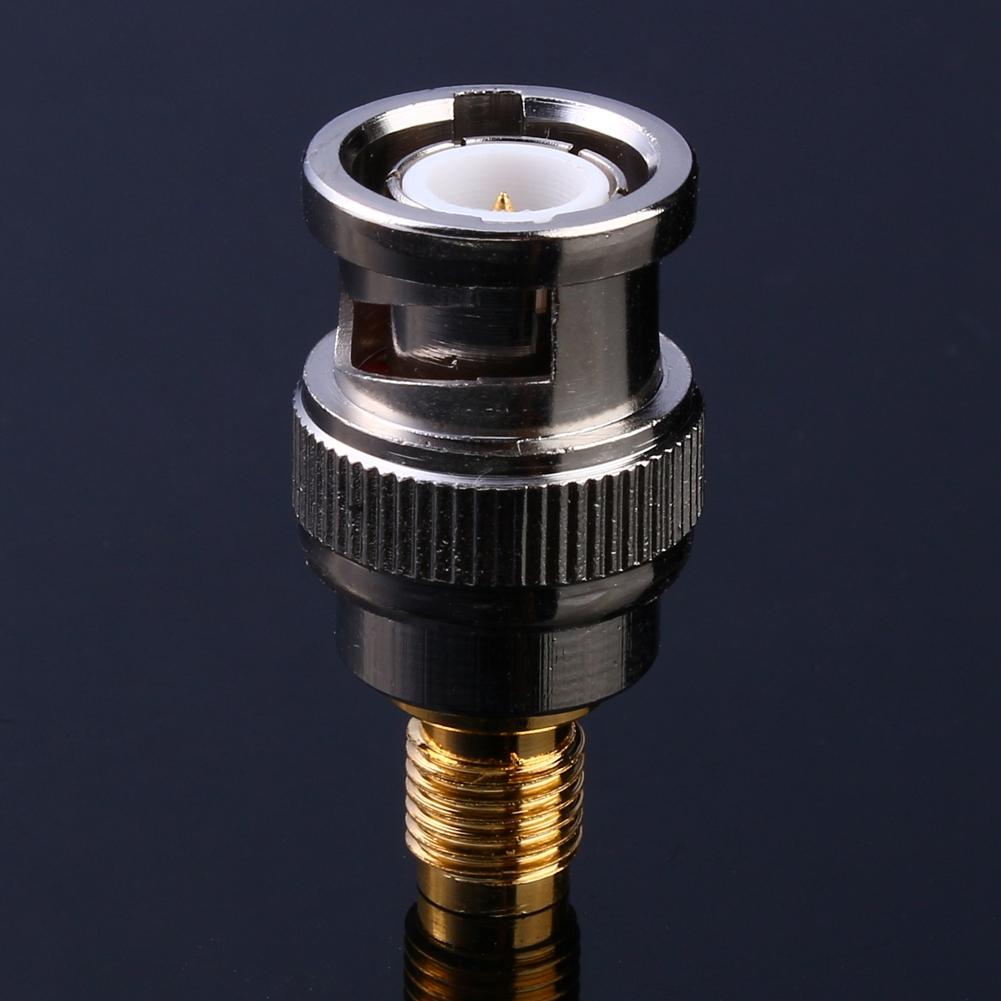

BNC Plug Male To SMA Female Jack Adapter RF Connector Straight Joiner Coupler

Feature: 100percent brand new and high quality Model: SMAK BNCJ MATERIAL & PLATING: shell: brass, gold plated contact pin: brass, gold plated socket: beryllium, gold plated elastic contact: beryllium, gold plated insulator: PTFE crimp ferrule: copper alloy, nickel or gold plated o ring sealing: silastic Insulation material: High temperature Working Frequency: High frequency Characteristic: Fire retardant flame retardant Applications: communication Specification: Temp.range 65 +165 degrees C (PE Cable 40 +85 degrees C) Vibration: MIL STD 202, Method 213 Impedance: 50 Ohm Frequency Range: DC 12.4GHz(Semi rigid cable: 0 18GHz) Working Voltage: 335V max(RMS) Withstand Voltage: 1000V rms Contact resistance Center Contact less than 3 m Ohm Outer Contact less than 2 m Ohm Insulation resistance more than 5000 M Ohm Insertion loss less than 0.15 dB 6GHz VSWR (Straight) Flexible cable less than 1.10+0.002f Semi rigid cable less than 1.05+0.001f (Right angle) Flexible cable less than 1.20+0.003f Semi rigid cable less than 1.10+0.001f Durability(mating) more than 500 times(cycles) Package Includes: 1* Adapter .
