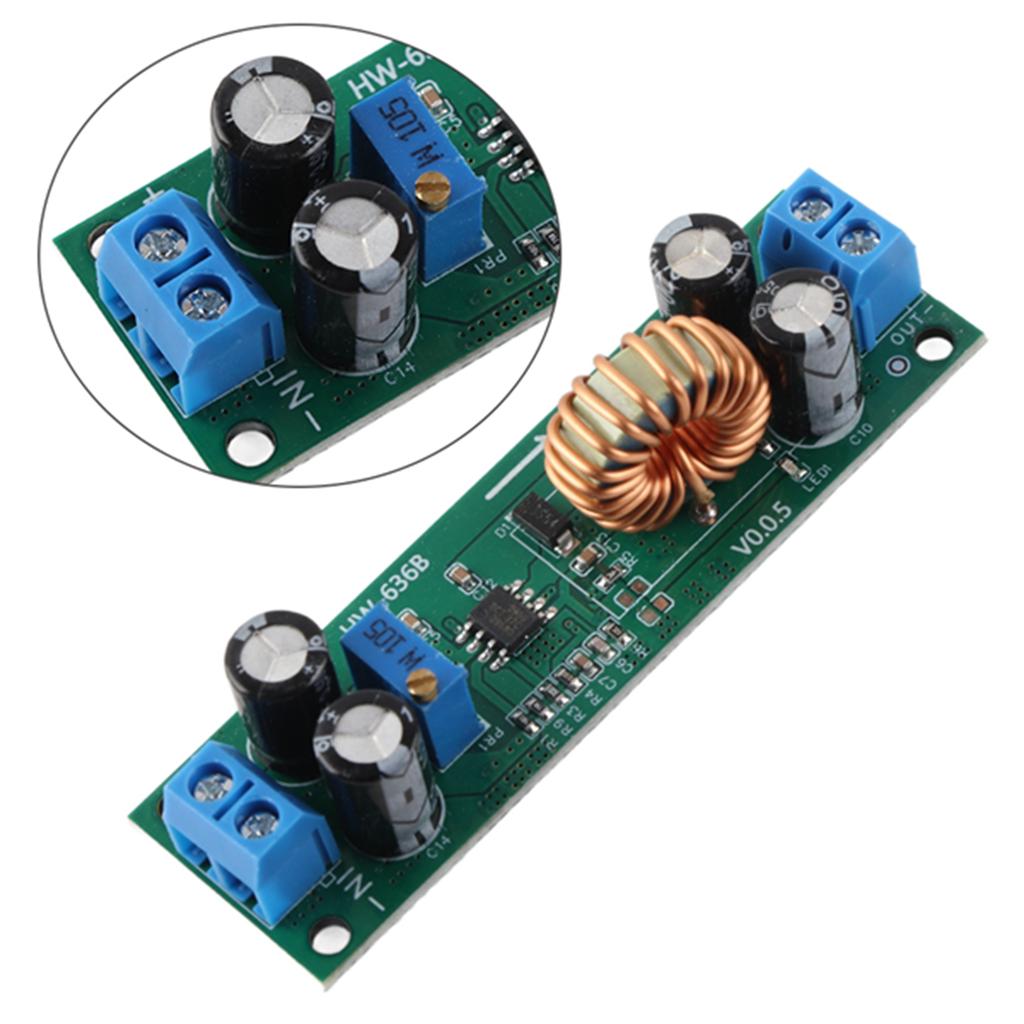

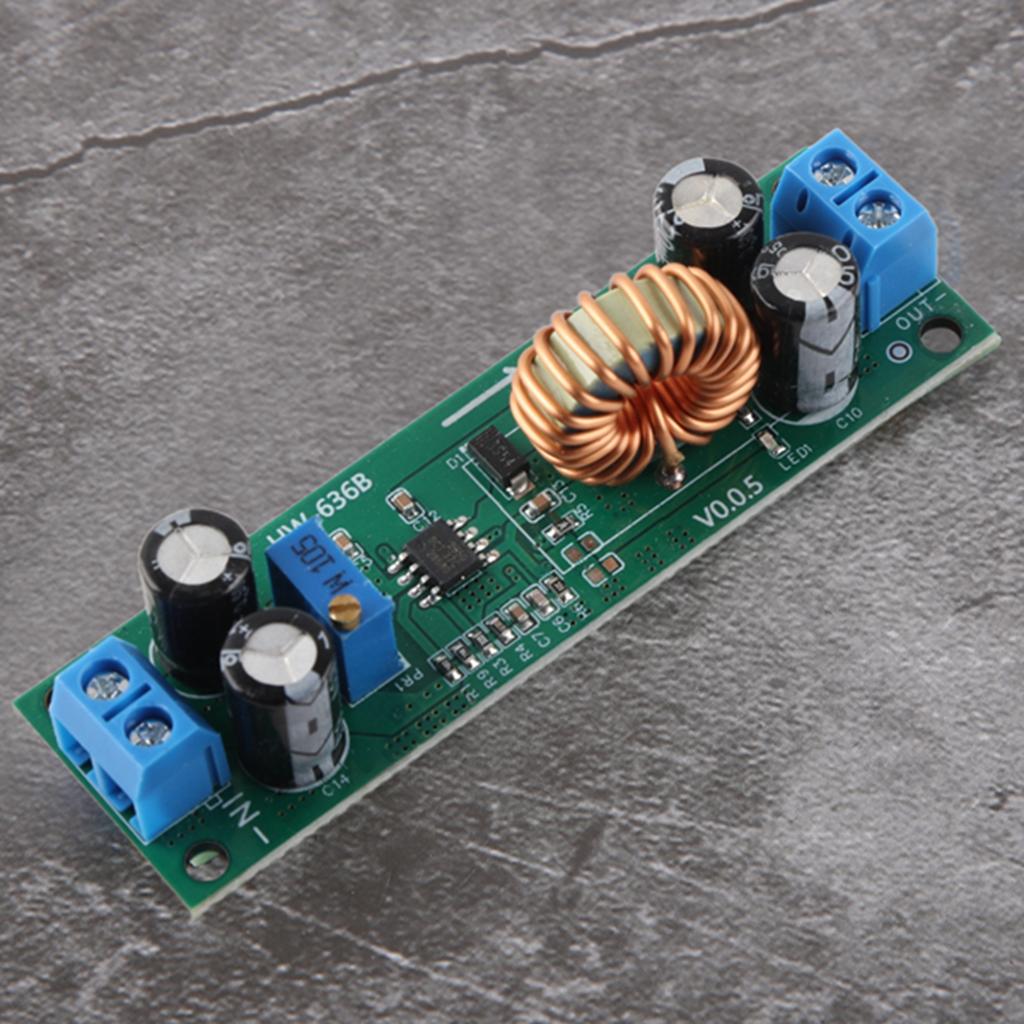

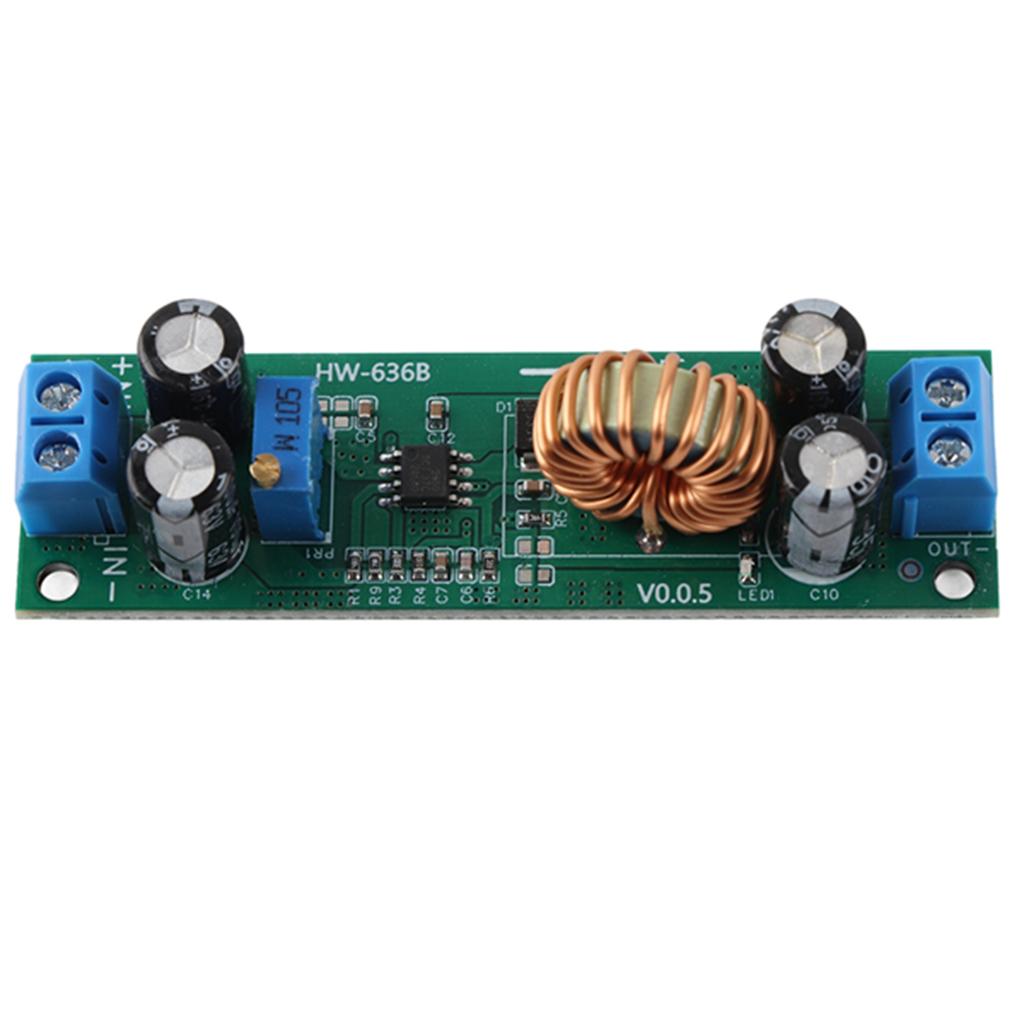

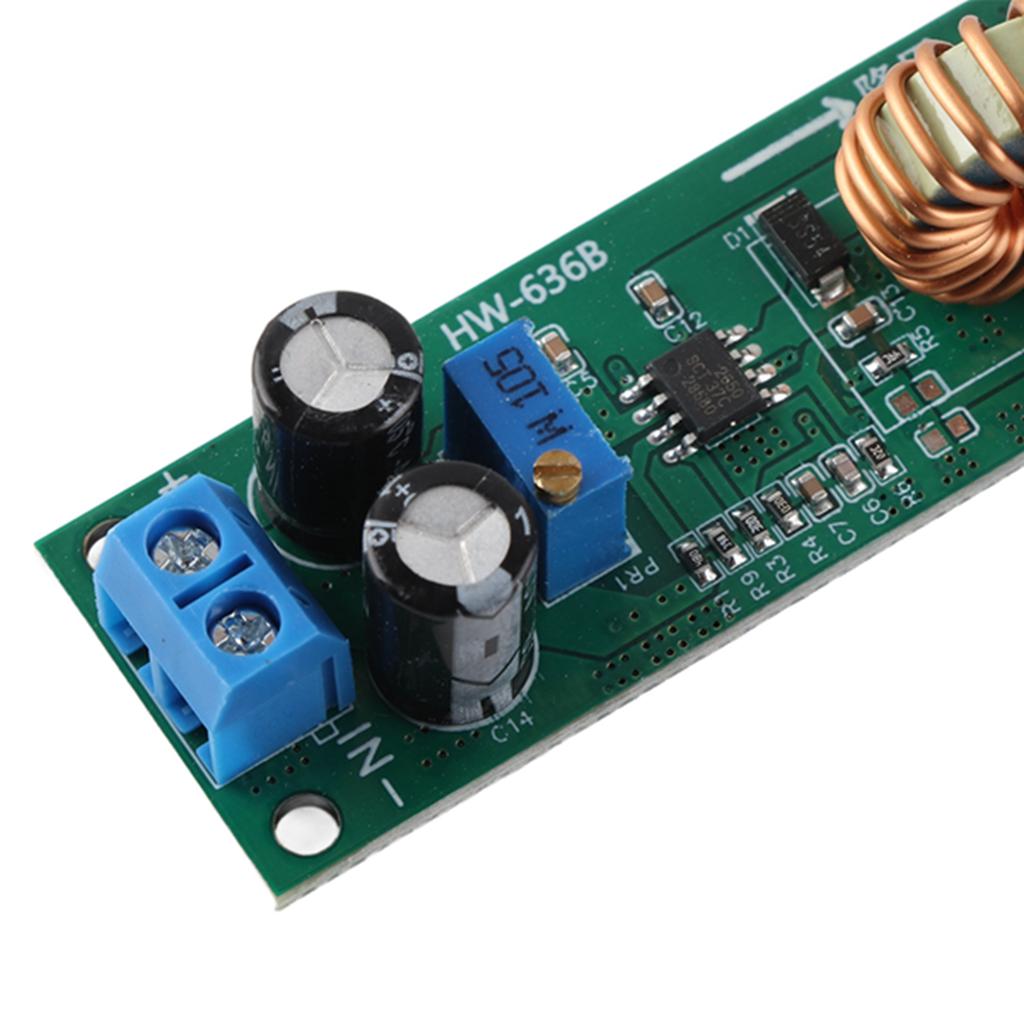

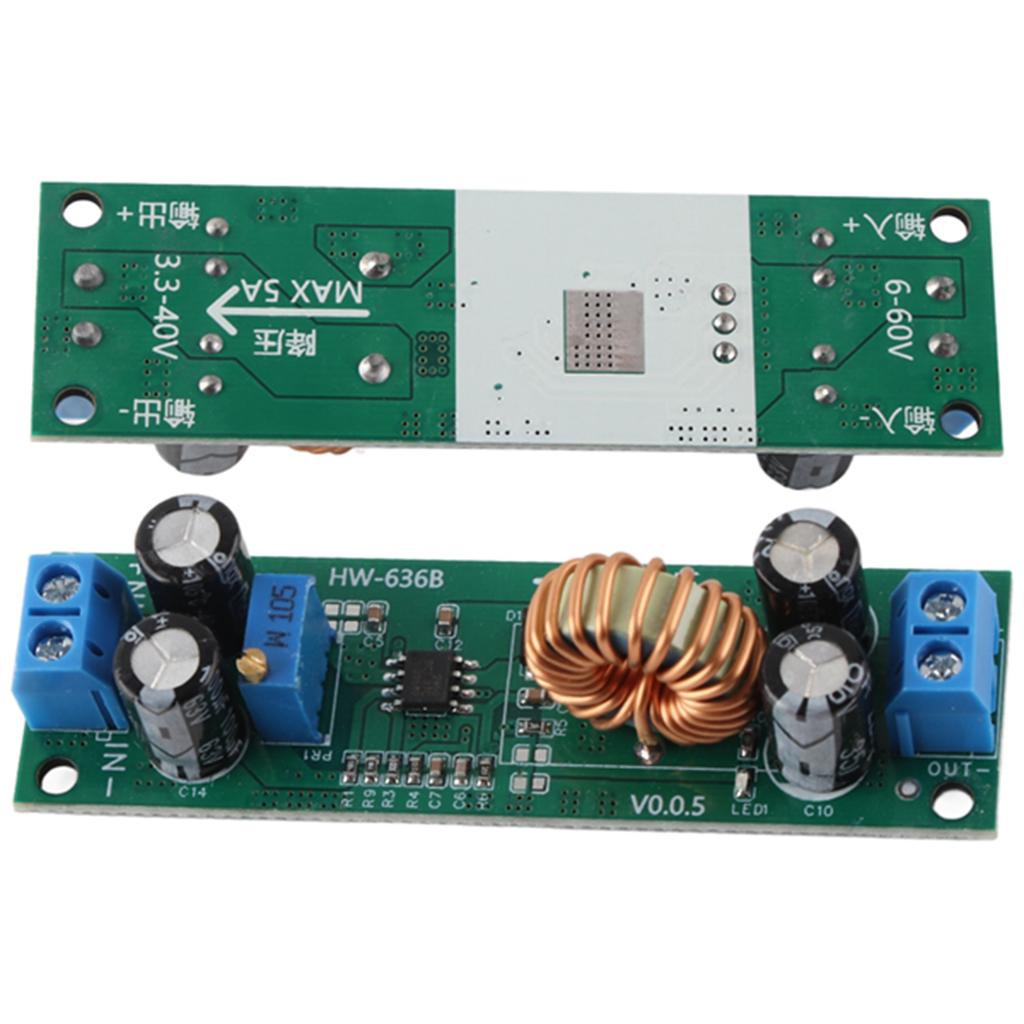

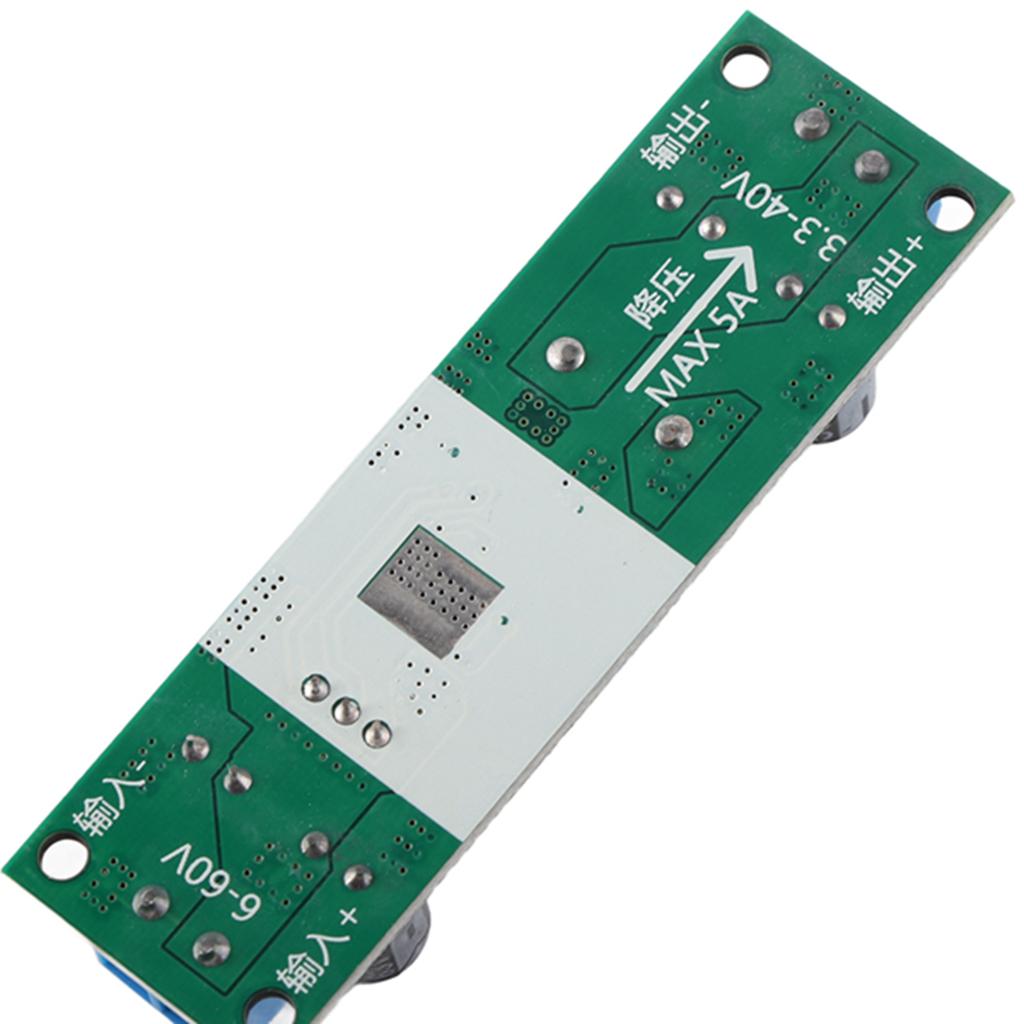

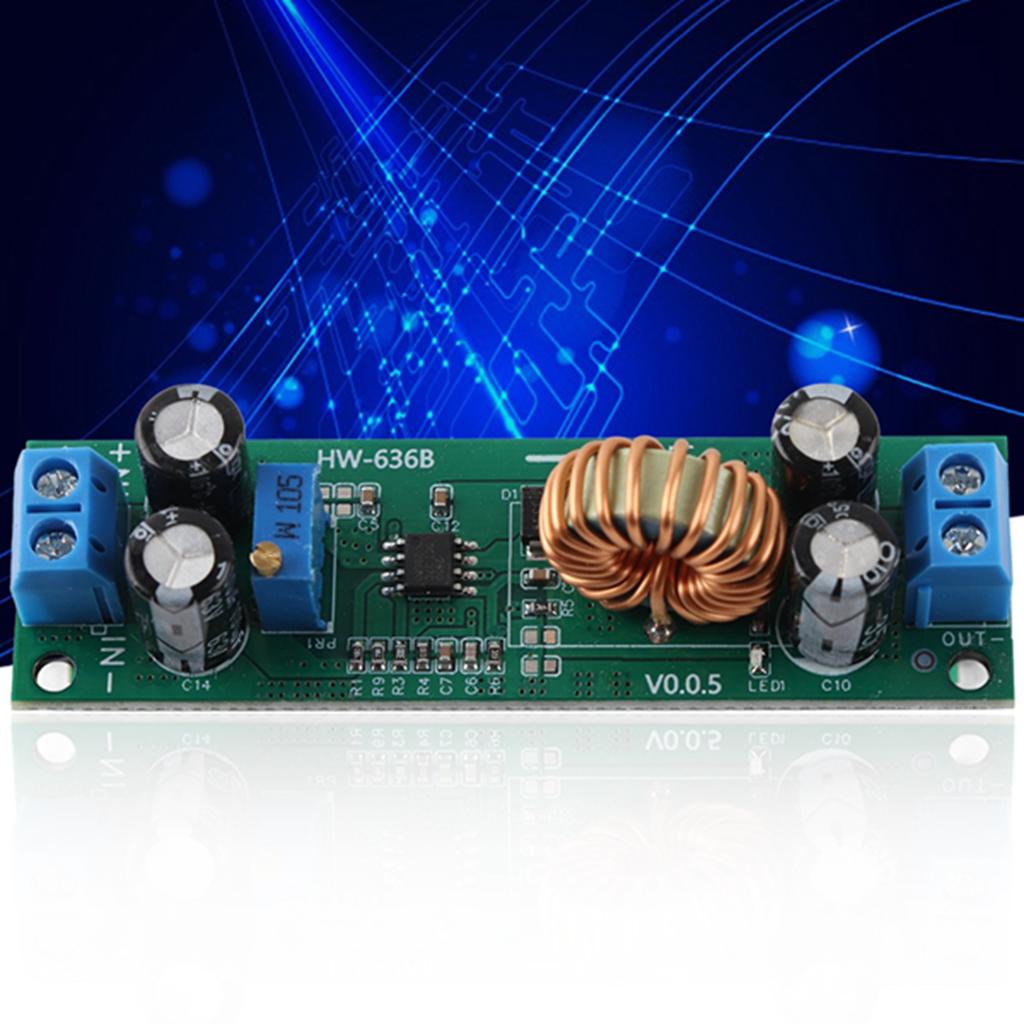

Buck Module Converter Adjustable Voltage Regulator DC 60V 48V 36V 24V To 19V 12V 9V 5V 3V

Feature: 1. The DC buck module has stable operation and output after buck. 2. Adjustable output voltage, more convenient for your use, quality assurance, long service life. 3. The program uses synchronous rectification circuit conversion efficiency is very high. 4. A buck pressure modules with overcurrent protection capability. 5. When the voltage is too high, the output voltage can meet the needs of the electrical load through the buck module to prevent the device from being burned. Specification: Item Type: Buck Module Material: Enginering Plastic Input Voltage Range: DC 6.5V 60V Output Voltage Range: DC 1.25V 30V adjustable Efficiency: 97percent (Maximum) Lengh: Approx.75mm 3in Wide: Approx. 21mm 0.8in High: Approx. 16mm 0.6in Work Tempreture: 40 celsius to +85 celsius Maximum Load Capacity: 10A Wiring Method: Terminals are solderless, IN is input, OUT is output.. Package List: 1 x Buck Module Note: Precautions: 1. After power on, the blue indicator light of the module lights up, where IN is the input and OUT is the output; 2. Reduce voltage anticlockwise and increase voltage clockwise, and the output voltage is smaller than the input voltage; 3. Do not adjust the voltage with load; 4. It shall not be used for a long time with high voltage, high current and hot plug. Heat dissipation shall be strengthened when the current is above 5A.
