Features:
1. No need to consider the frequency of the original remote control
2. Support rolling code and encrypted copy (see copy list)
3. remote control distance
4. One four-button remote control can be converted into two four-button remote controls without affecting each other
Common code ICs of the original remote control that can be copied are:
*PT2262/PT2264/SC2262/SC2260/HS2262/2260/LX2262/2260/EV1527/PT2240/SMC5326/HT6P20B/6P20D/HCS101/some rolling codes such as HCS200/HCS301 and some non-standard encrypted remote controllers in China
*The frequencies that can be copied in China are, and more frequencies can be edited in the program:
315MHZ, 433.92MHZ, 306MHZ, 310MHZ, 318MHZ, 330MHZ, 350MHZ, 370MHZ, 390MHZ 418MHZ, 430.5MHZ, 431.5MHZ, 432.8MHZ, 580MHZ, 868.35MHZ, 915MHZ
Specifications:
1. Working frequency: 300MHz-915MHz
2. Working current: 20MA (12V)/12MA (3V)
3. Working voltage: 3V or 12V
4. Modulation method: AM ASK
5. Remote control distance: ≥50M
6. Copy method: copy together at close range
7. Copy range: see list
Package included:
1*Remote control
Instructions:
Step 1: Before copying, you need to reset the new copy remote control. The method is as follows: Press the two buttons on the upper row of the remote control at the same time, and wait for 2 seconds. flashes, it means the code clearing is successful.
Step 2: Two remote controls are close together, press the corresponding buttons at the same time, and the indicator light flashes and turns off, and then lights up to indicate that the copy is successful, and then use the same method to copy the remaining buttons in turn.
Step 3: If you accidentally reset the code of the copy remote control, and you want to recover, just press the two buttons at the same time and don't let go, wait for 2 seconds, and you can let go when the LED keeps flashing, press the remote control after recovery, the buttons are always on.

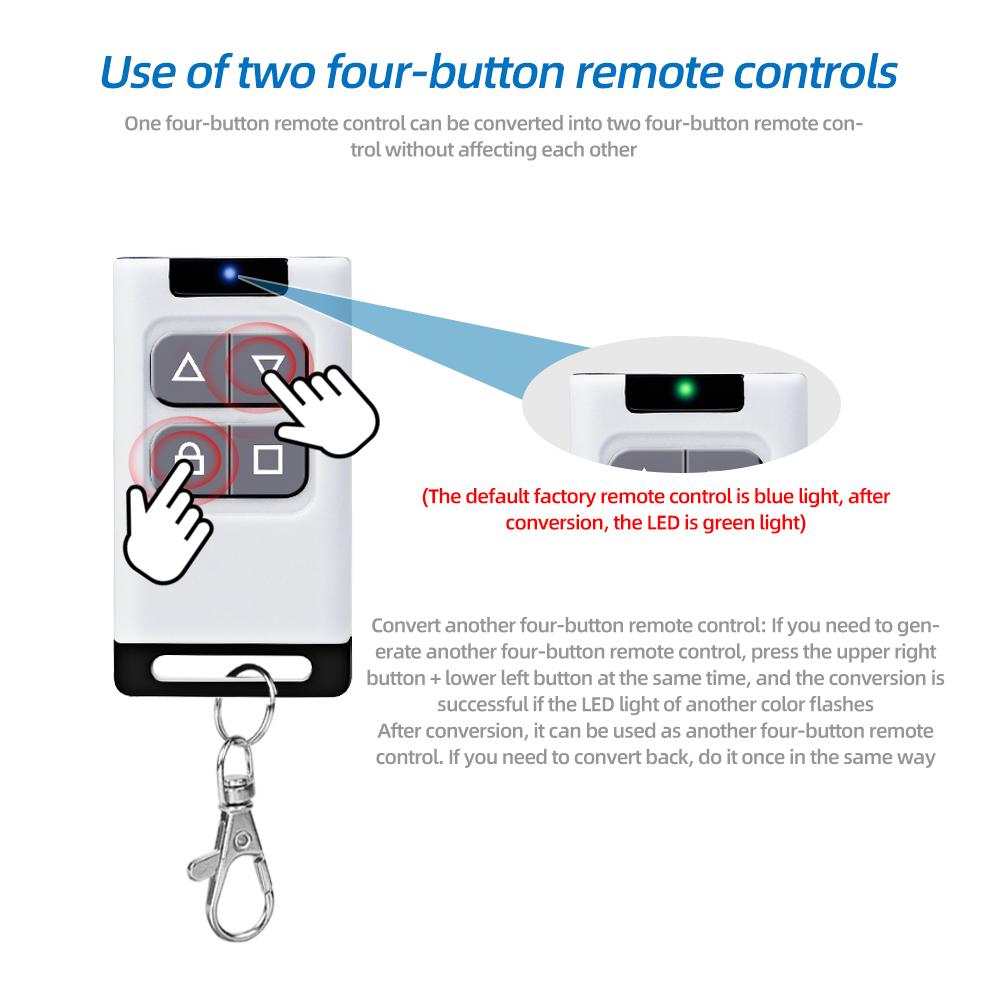

Convert another four-button remote control: If you need to generate another four-button remote control, press the upper right button + lower left button at the same time, and the conversion is successful if the LED light of another color flashes
(The default factory remote control is blue light; after conversion, the LED is green light) After conversion, it can be used as another four-button remote control. If you need to convert back, do it once in the same way
