Feature:
1. 4CH 12V wireless smart receiver controller with 4 relays, high sensitivity, stable performance.
2. 433 MHz RF frequency, the maximum outdoor control distance up to 164ft, low interference.
3. Built‑in 120mAh CR2016 button battery, which has low power consumption and long service life.
4. Negative motor rotation, turn on and off, and various special control procedures.
5. Strictly follow the manufacturing standard to make sure excellent performance, dependable to use.
Specification:

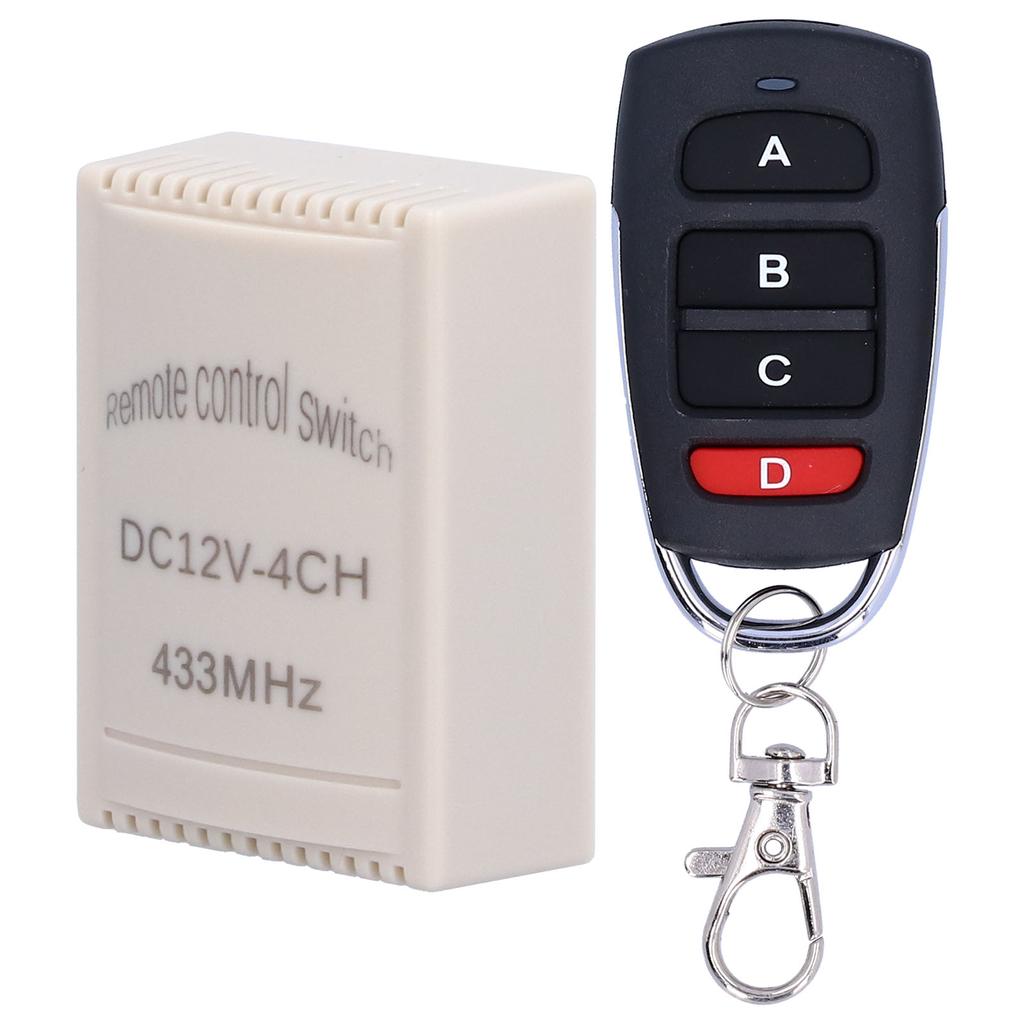

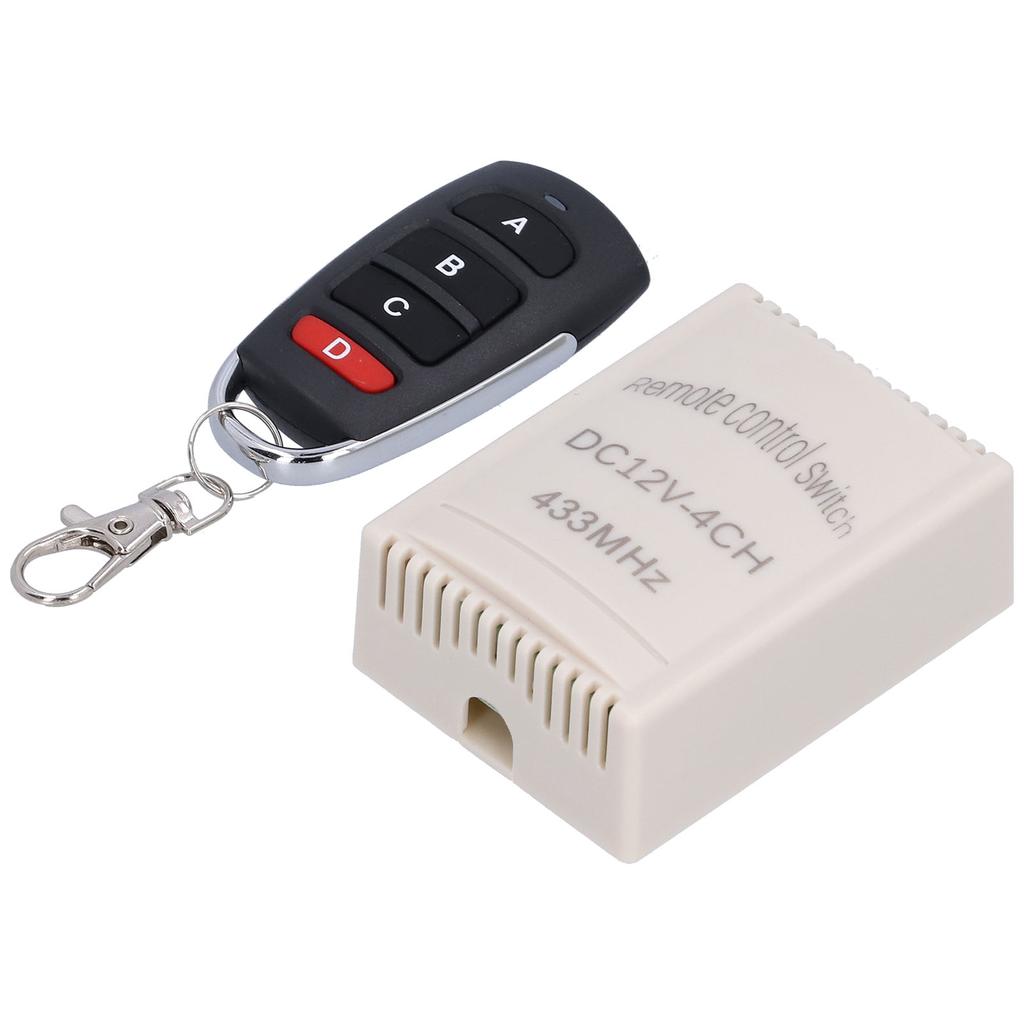

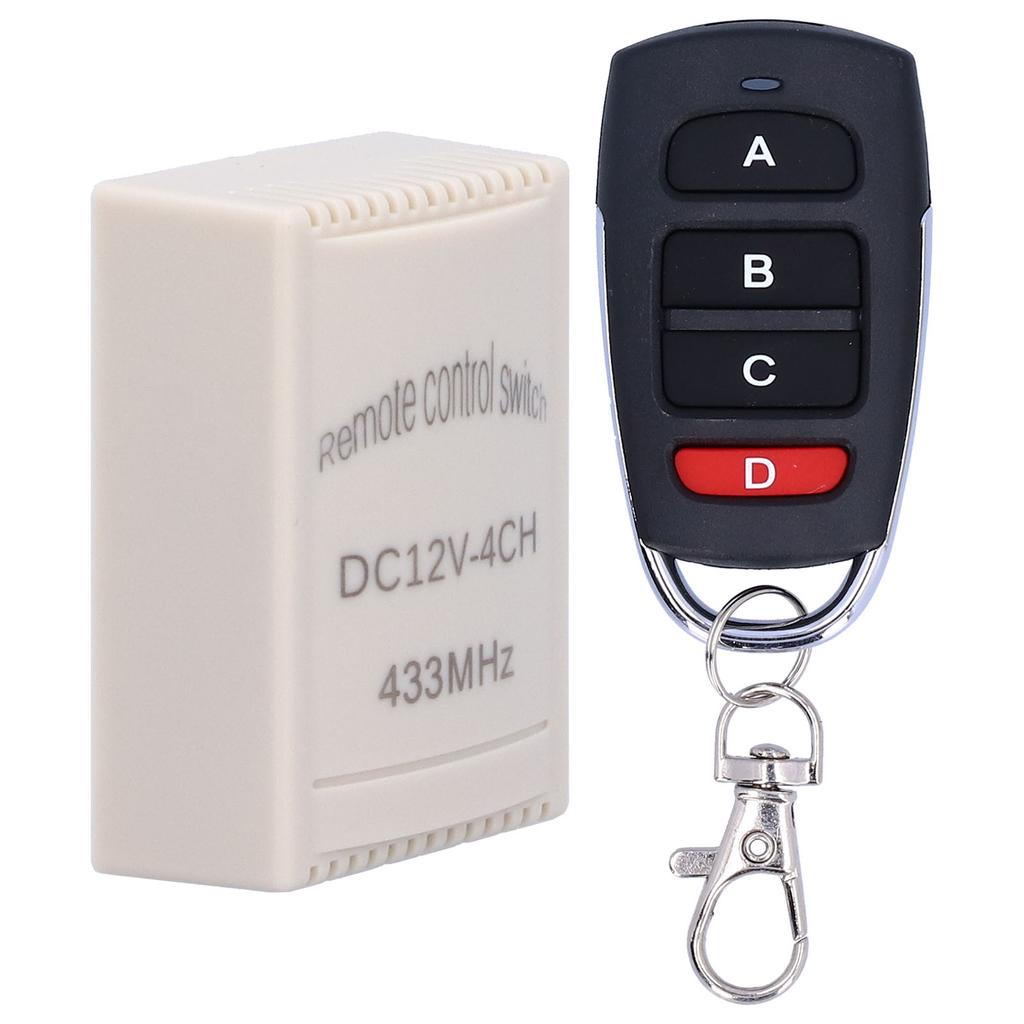

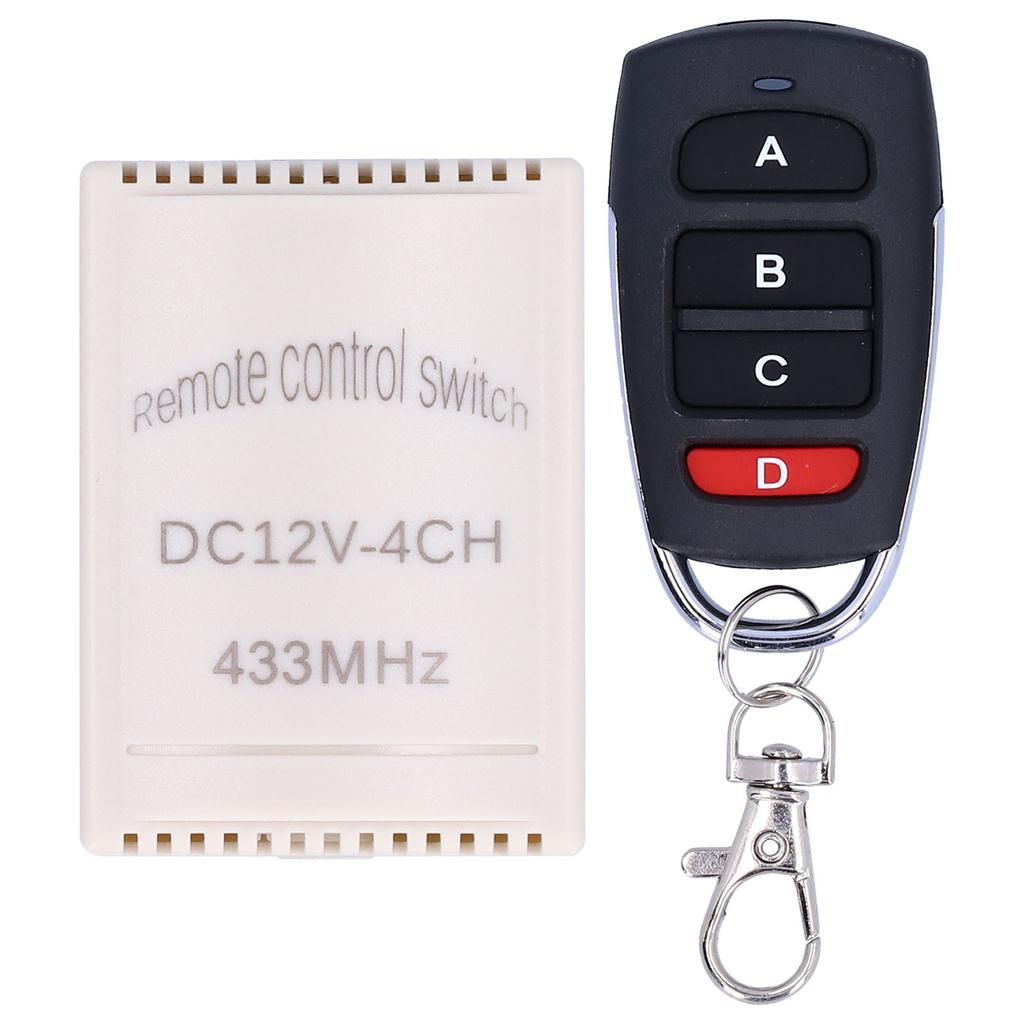

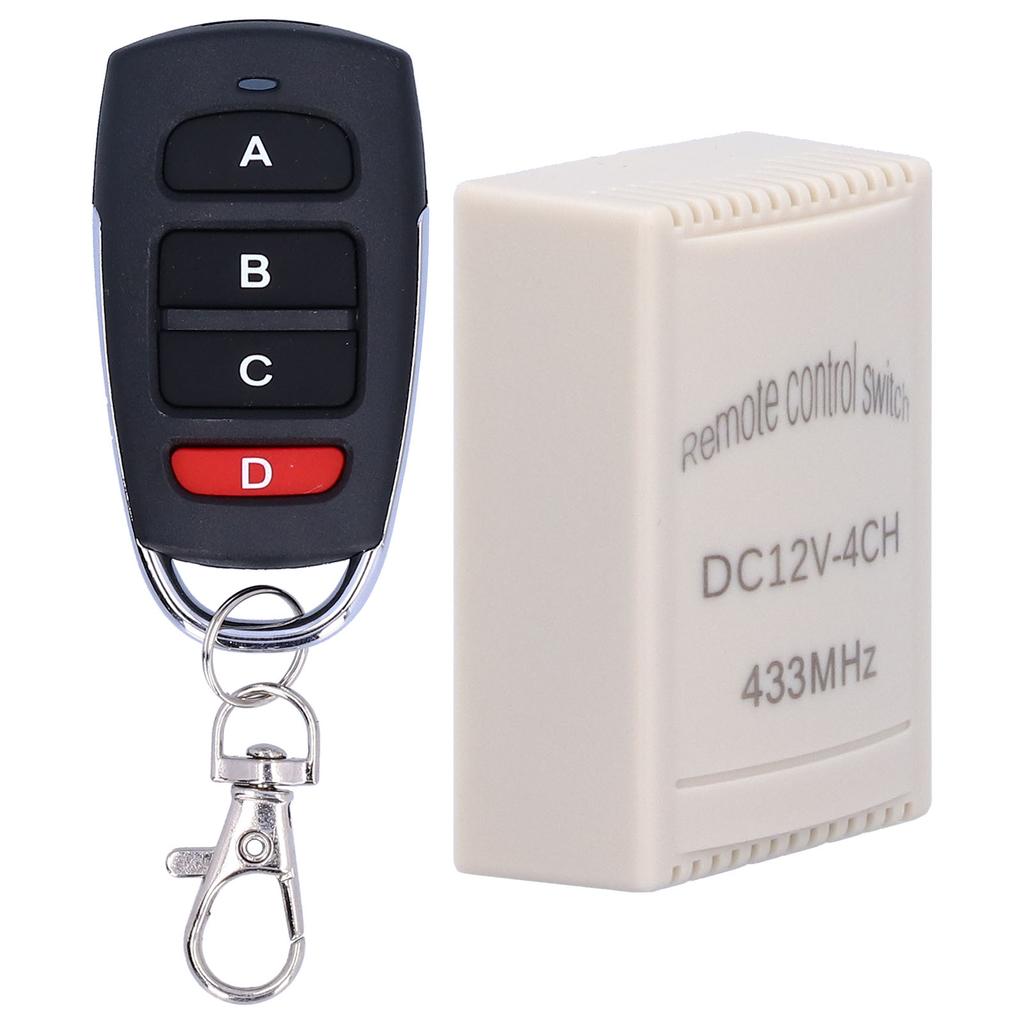

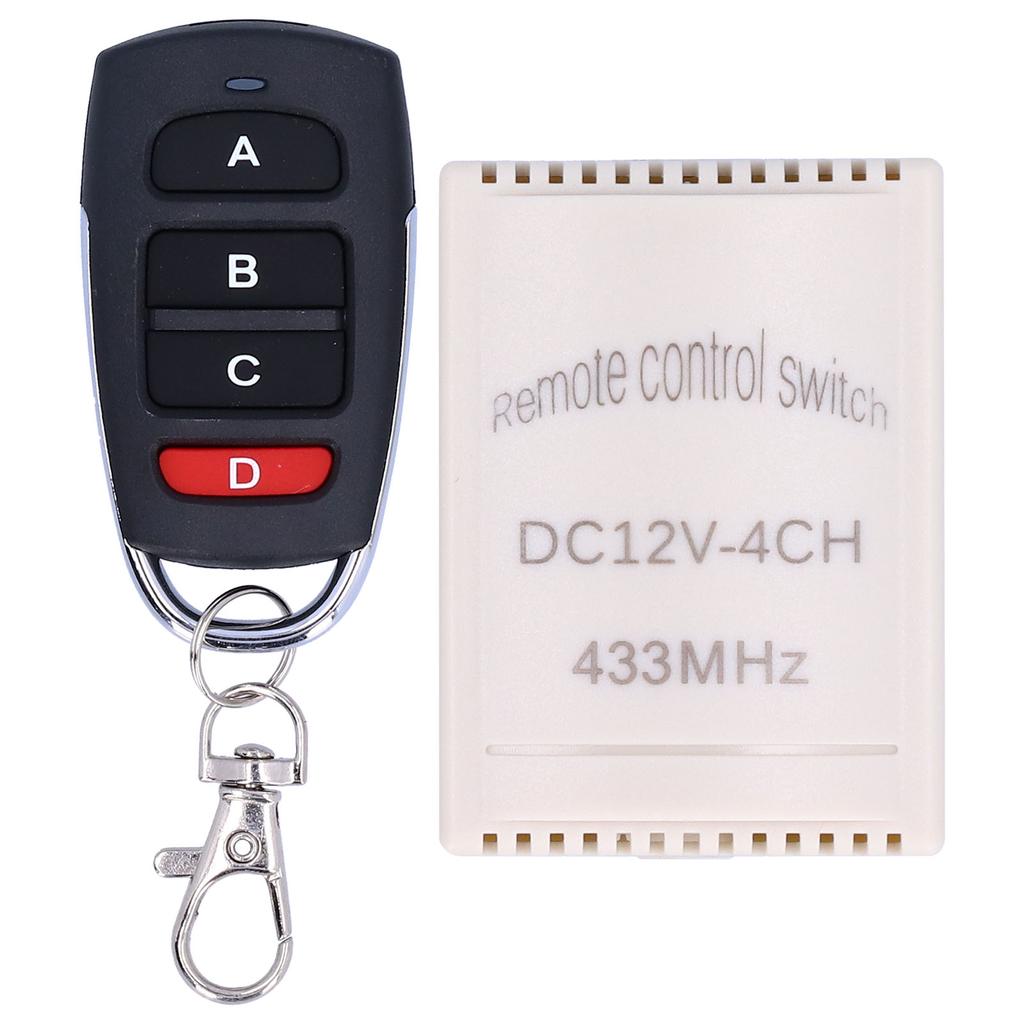

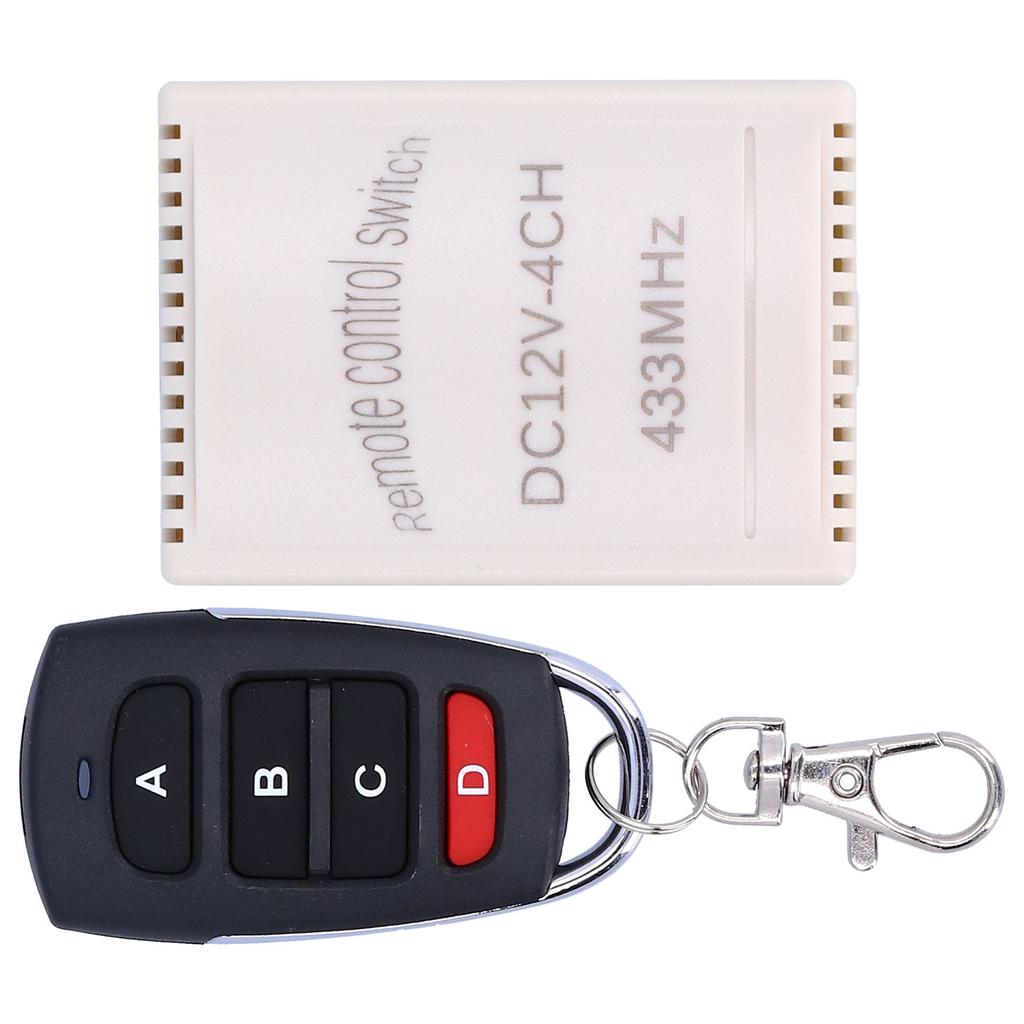

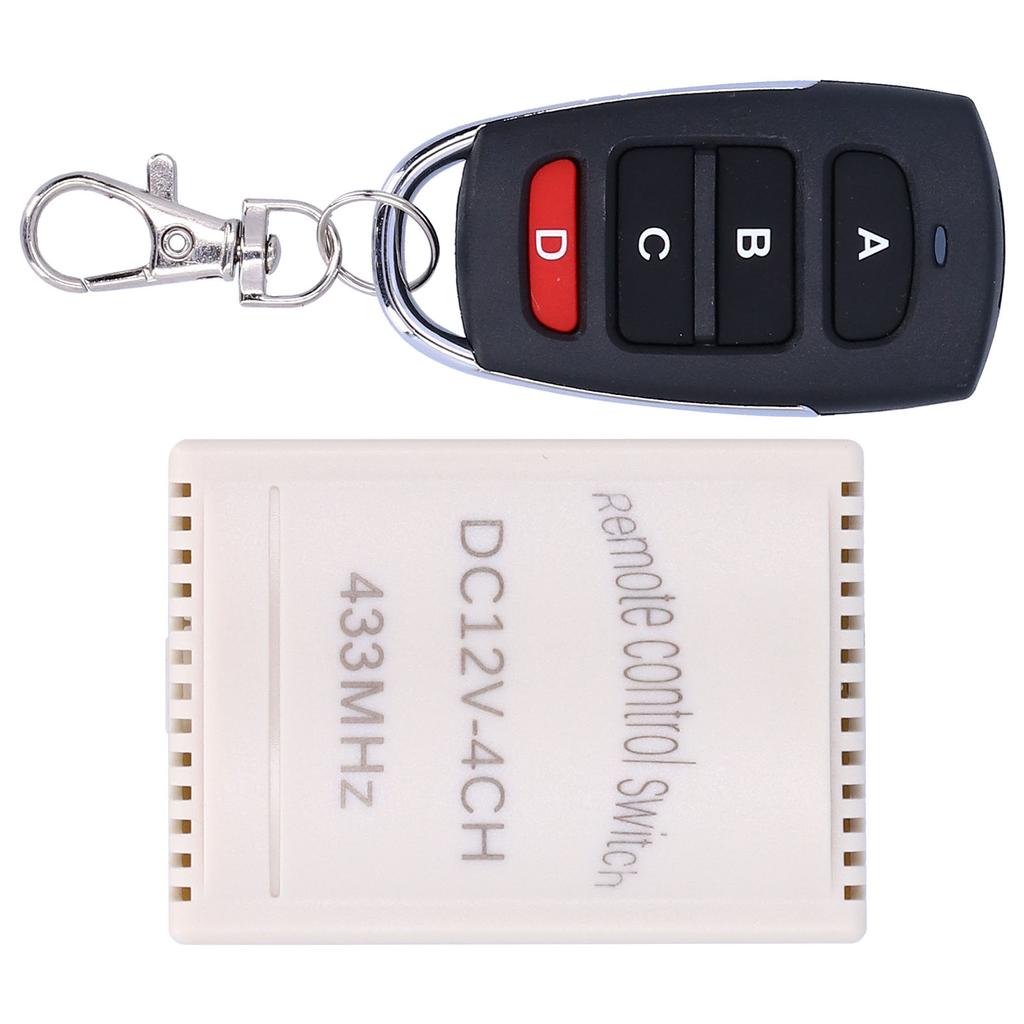

Item Type: Garage Remote Controller
Material: Metal + ABS
Battery Type: Button Battery (included)
Battery Capacity: 120mAh
Battery Model: CR2016
Receiver:
Quiescent Current: 5mA
Working Frequency: 433Mhz
Receiving Sensitivity: 104dBm
Function Selection: Momentary switch close
Modulation Method: ASK
Pairing Method: Smart learning code
Working Temperature: 30 +80 celsius
Transmitter:
Material: Metal + ABS
Type: Learning code (1527) remote control with remote control.
RF Frequency: 433 MHz
Supported Channels: 4 channels
Encoding Type: Learning code (1527), fixed code (2262)
Buttons: 4 Buttons (A B C D)
Power Supply: 3V button battery (included)
Modulation System: ASK
Working Current: <25mA
Transmitting Power: +13dBm
Frequency Wind: + 0.2 MHz
Transmission Distance: Approx. 50m 164ft (free space)
Terminal Function Description:
1. (+V power positive input)
2. (GND power negative input)
3. (1 KC1 relay normally closed terminal) (2 KC1 relay common terminal) (3 KC1 relay normally open terminal)
4. (4 KC3 relay normally closed end) (5 KC3 relay common end) (6 KC3 relay normally open end)
5. (7 KC2 relay normally closed end) (8 KC2 relay common end) (9 KC2 relay normally open end)
6. (10 KC4 relay normally closed end) (11 KC4 relay common end) (12 KC4 relay normally open end)
Learning Code:
1. Jog learning method:
Press the code matching button on the control panel once, and the LED indicator will flash once. After the LED indicator lights up, press the remote control button that needs to be coded. The control panel LED indicator flashes 3 times in succession and the code matching is successful.
2. Self locking learning method:
Press the code matching button on the control panel twice, the LED indicator flashes 2 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in succession.
3. Interlocking learning method:
Press the control panel pairing button 3 times in succession, the LED indicator flashes 3 times, after the LED indicator lights up, press the remote control button that needs to be paired, the control panel LED indicator flashes 3 times in a row, and the code pairing is successful.
4. Two way jog and two way self locking learning method:
Press the code matching button on the control panel 4 times, the LED indicator flashes 4 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in a row. The code is successful.
5. Two way jog and two way interlocking learning method:
Press the control panel pairing button 5 times in a row, and the LED indicator will flash 5 times. After the LED indicator lights up, press the remote control button that needs to be paired. The control panel LED indicator flashes 3 times in a row and the code is successfully matched.
6. Two way self locking and two way interlocking learning method:
Press the code matching button on the control panel 6 times continuously, and the LED indicator will flash 6 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in a row, and the code matching is successful.
7. Two way interlocking and two way interlocking learning method:
Press the code matching button on the control panel 7 times, the LED indicator flashes 7 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in succession.
clear data:
Press the code matching button on the control panel 8 times continuously, and the LED indicator will flash 8 times. At this time, the LED indicator will flash 8 times continuously, then the code is cleared and all the remote control key codes learned before are cleared.
Explanation of Output Mode:
1. Self locking: Press the same remote control button, press it once, the relay is turned on, and press it again, the relay is turned off.
2. Interlock: Press the A button on the remote control to turn on the relay, and press the B button on the remote control to turn off the relay.
3. Jog: Press the A button on the remote control to turn on the relay, and release the A button on the remote control to turn off the relay. If you keep pressing the A button of the remote control, the relay will always be on. When you release the remote control, the relay will be off..
Package List:
1 x Receiver1 x Remote Controller
Note:
1. Do not operate with power, turn off the power to operate, and power on after the test is confirmed.2. When the remote control voltage is low, please replace the battery in time (when the remote control battery voltage is low, the remote control distance will generally become shorter).3. When using wireless electronic products, pay attention to avoiding metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, and avoid the short distance between the remote control and the receiving device or the failure of normal operation.4. Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product. In severe cases, it will damage the product and bring concealed dangers to your safety.(Please find professional personnel to install)
