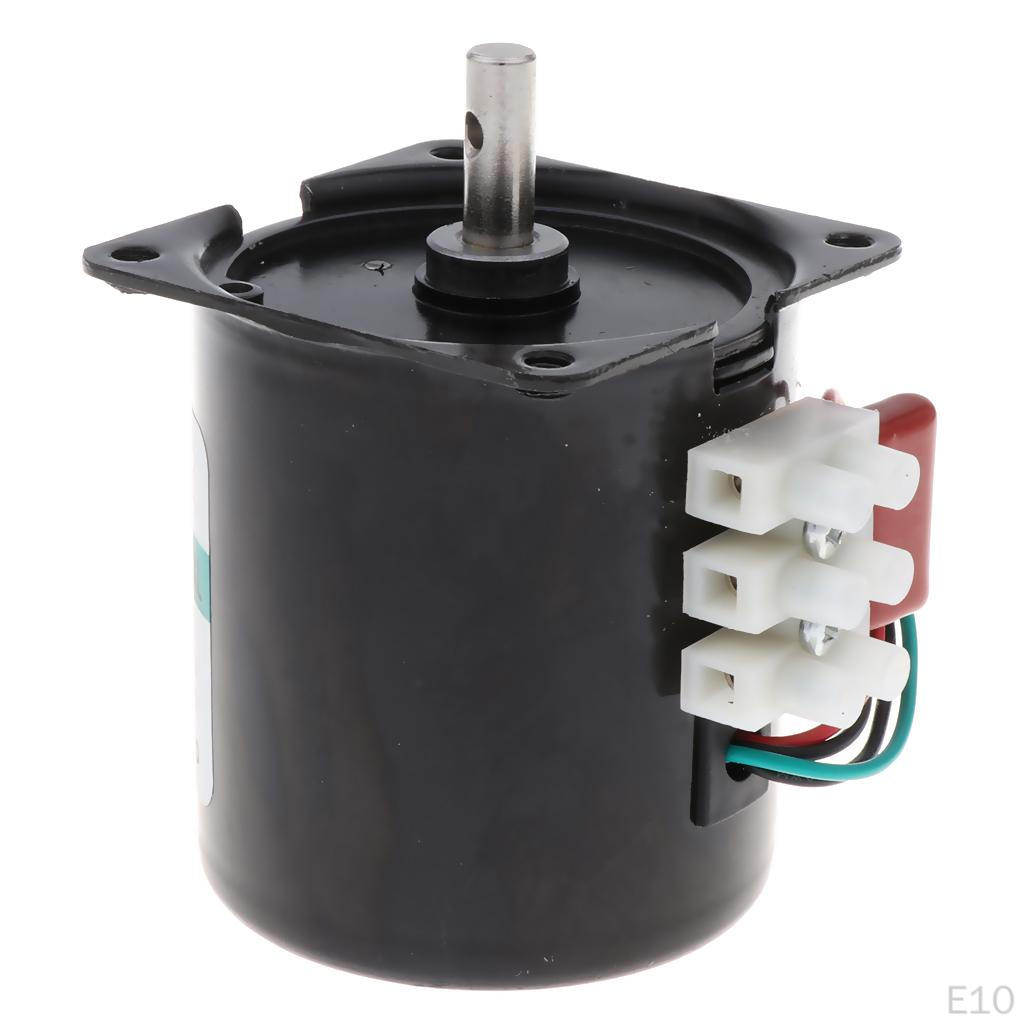

220V 28W Reversible Motor CW/CCW Large Permanent Magnet Electric Synchronous

Description:

- All gears are metal, smooth transmission, wear-resistant, not easy to hit teeth.

- The stator windings of the motor are copper wire, reduce resistance and enhance conductivity, support CW/CCW control.

- This micro motor uses high quality butter to reduce friction, remain large torque but low noise and small dynamic loss.

- The synchronous motor gets constant under the rated frequency, very stable, not affected by voltage.

- Mainly used in instrument, automation, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, etc.

Specification:

- Material: Metal

- Current: 0.1A

- Voltage: AC 220V

- Frequency: 50Hz-60Hz

- Power: 28W

- Speed(Optional): 10RPM, 15RPM, 20RPM, 30RPM, 40RPM, 50RPM, 60RPM, 80RPM, 110RPM

- Torque(kgf.cm): 38(10RPM), 22(15RPM), 16(20RPM), 11(30RPM), 9(40RPM), 7(50RPM), 6(60RPM), 4(80RPM), 3(110RPM)

- Shaft Type: D-Type

- Weight: 500g

Package Includes: 1 Piece Permanent Magnet Synchronous Motor
