Specifications
Power Supply (Operating Voltage): DC 12V 24V 9V

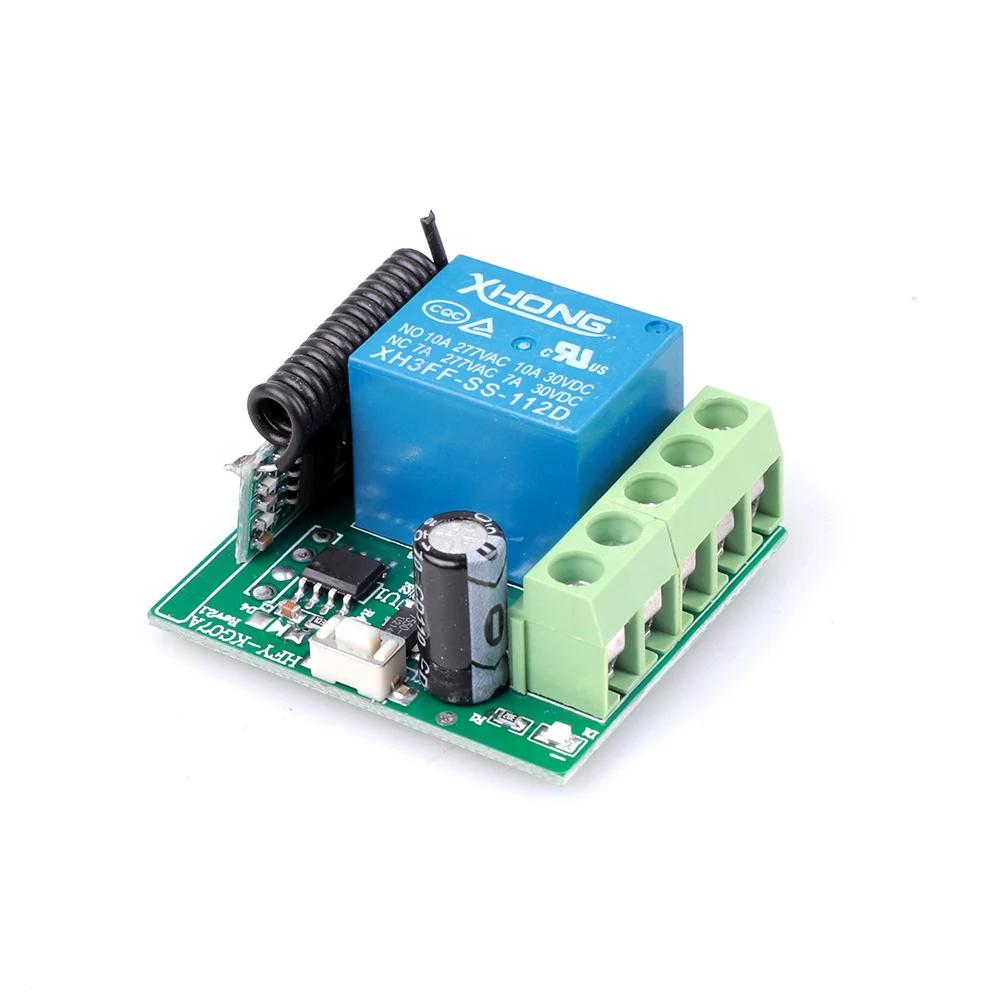

Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Operating Temperature:-40'C - 80'C
Features:
Three output working modes for choosing
Safe and flexible for operation and install
Widely use in house, mall, electromobile, cars, motorcycle anti-theft alarm system or other control systems
Specified as preferred components in remote control garage, roller curtain, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry
Decode: Fixed code, soldering

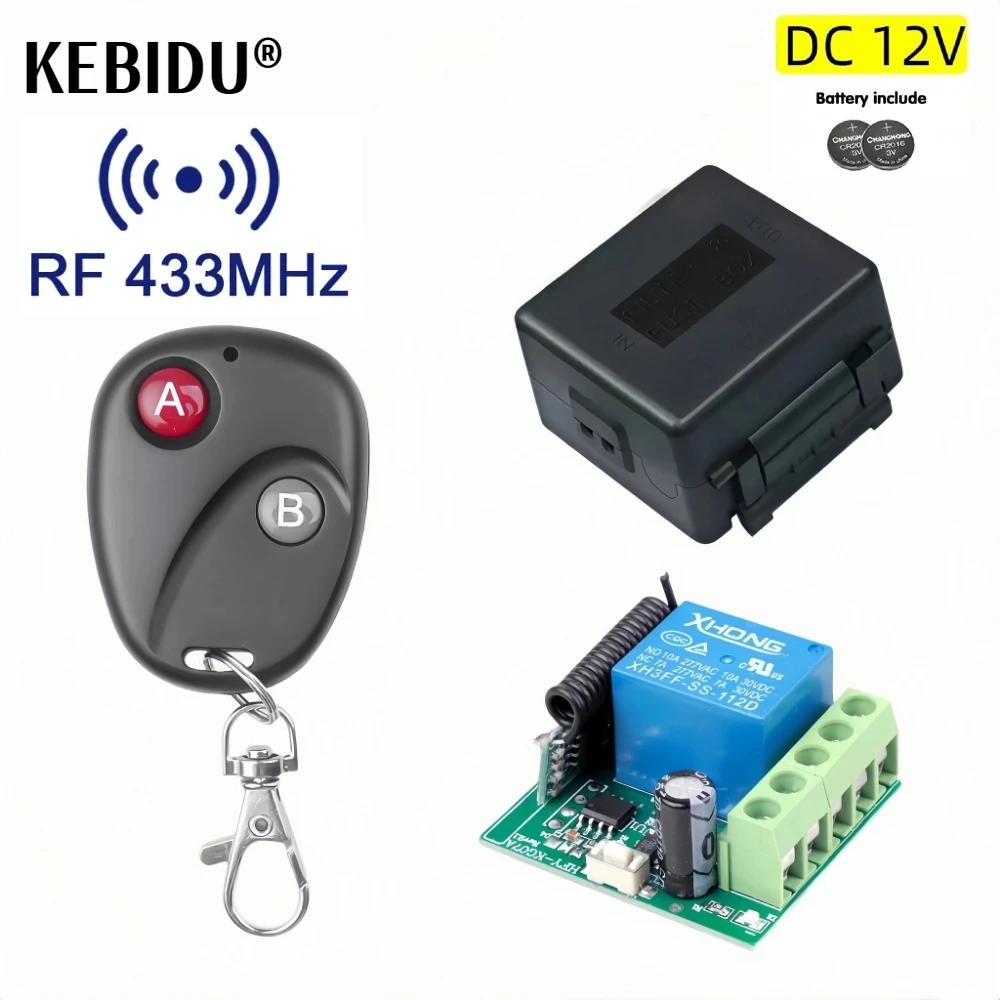

1.Transmitter
Channel: 2 CH
Remote Control Distance:0-100m
Encode: Fixed code, soldering 2260 2262
Frequency: 433.92
Size: 68mm x 48mm x 15mm
Power Supply: 1 X 12V/23A (NOT included)
2.Models:
1)Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .
(1 channel switch-(receiver) need 1 button remote control-(transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
Clearing method:
Press the code pairing button on the control panel eight times, then it will automatically clear all the learned remote controls. After clearing, the remote control previously learned can no longer be used.

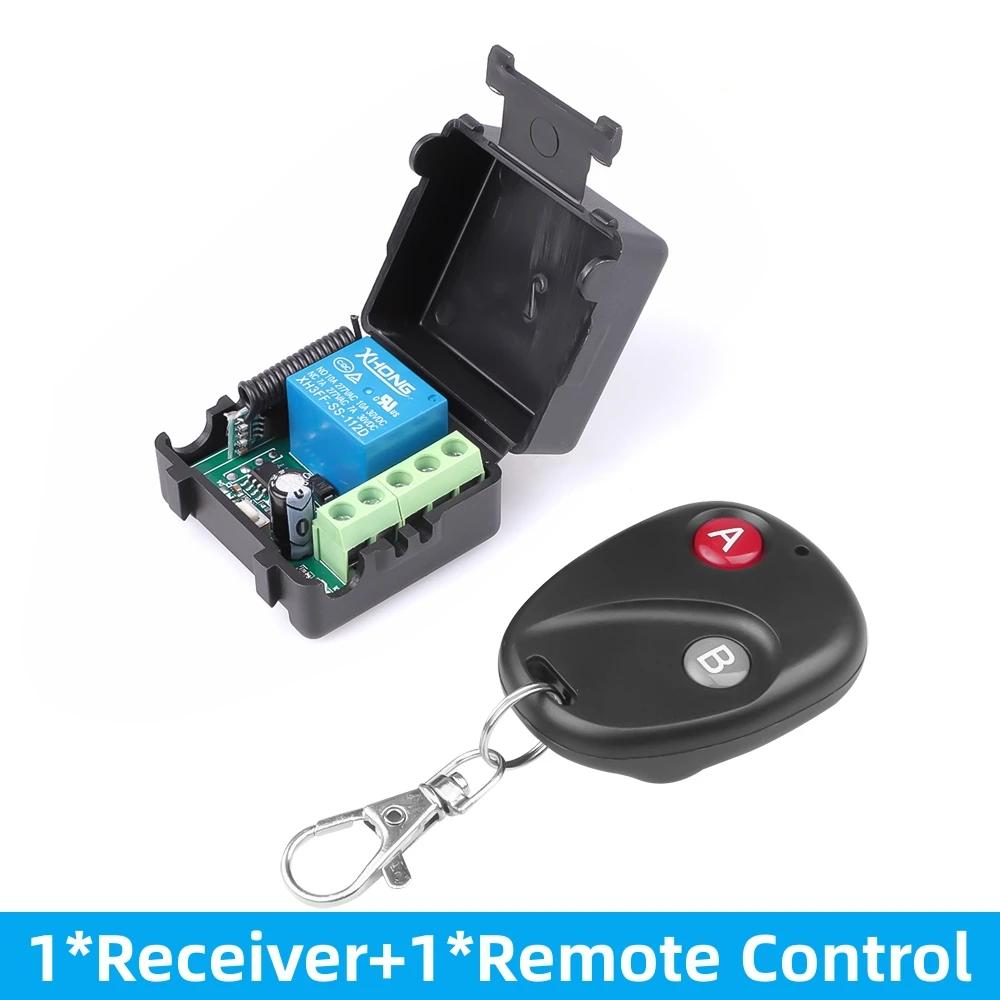

Package Included:
AS the picture
NOTE:
①Images on this page are for illustration only and due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures,Thank you!
②Please allow 1-3cm measuring deviation due to manual measurement.
