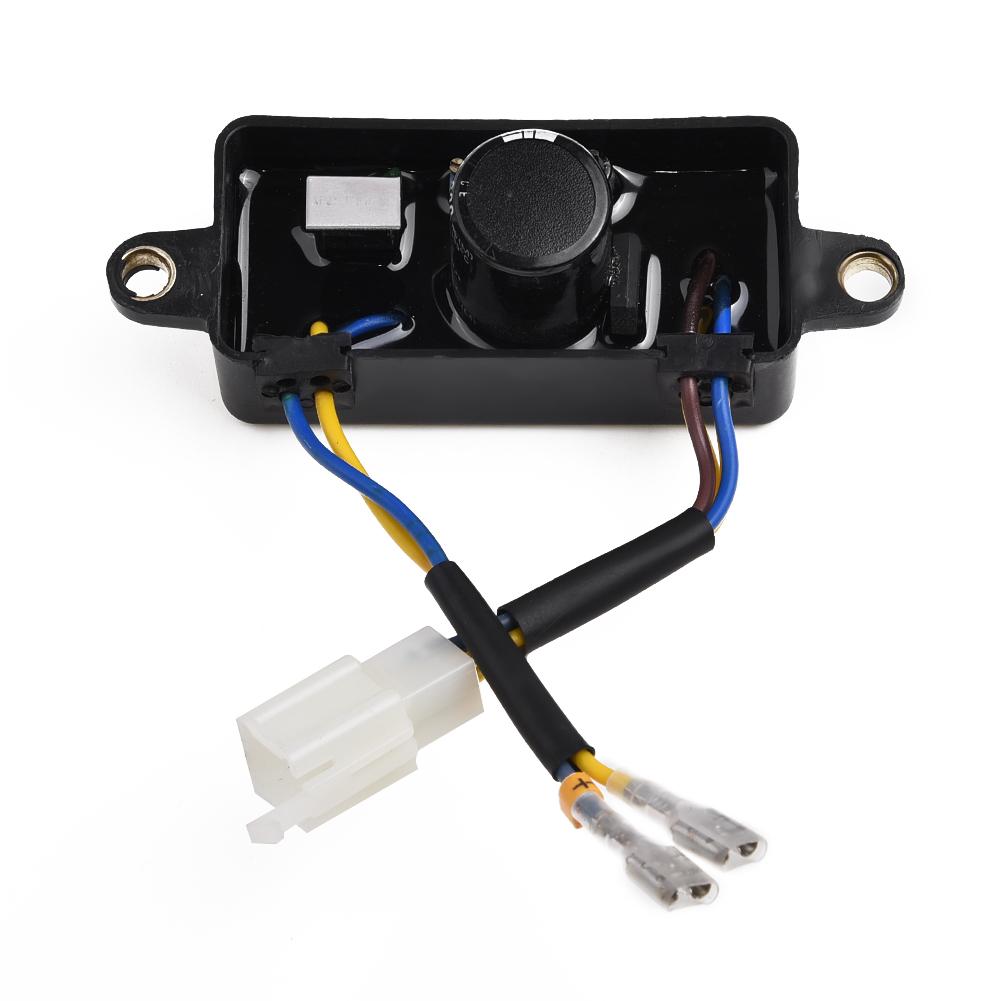

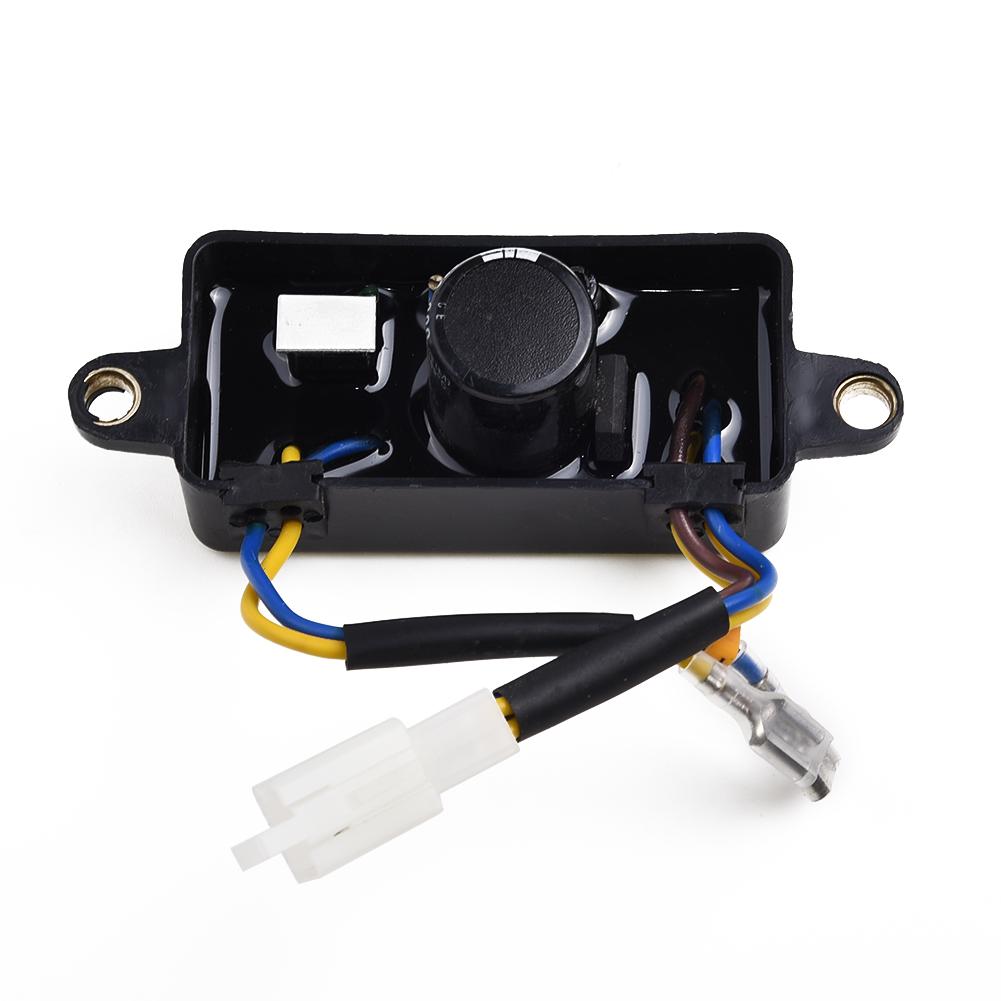

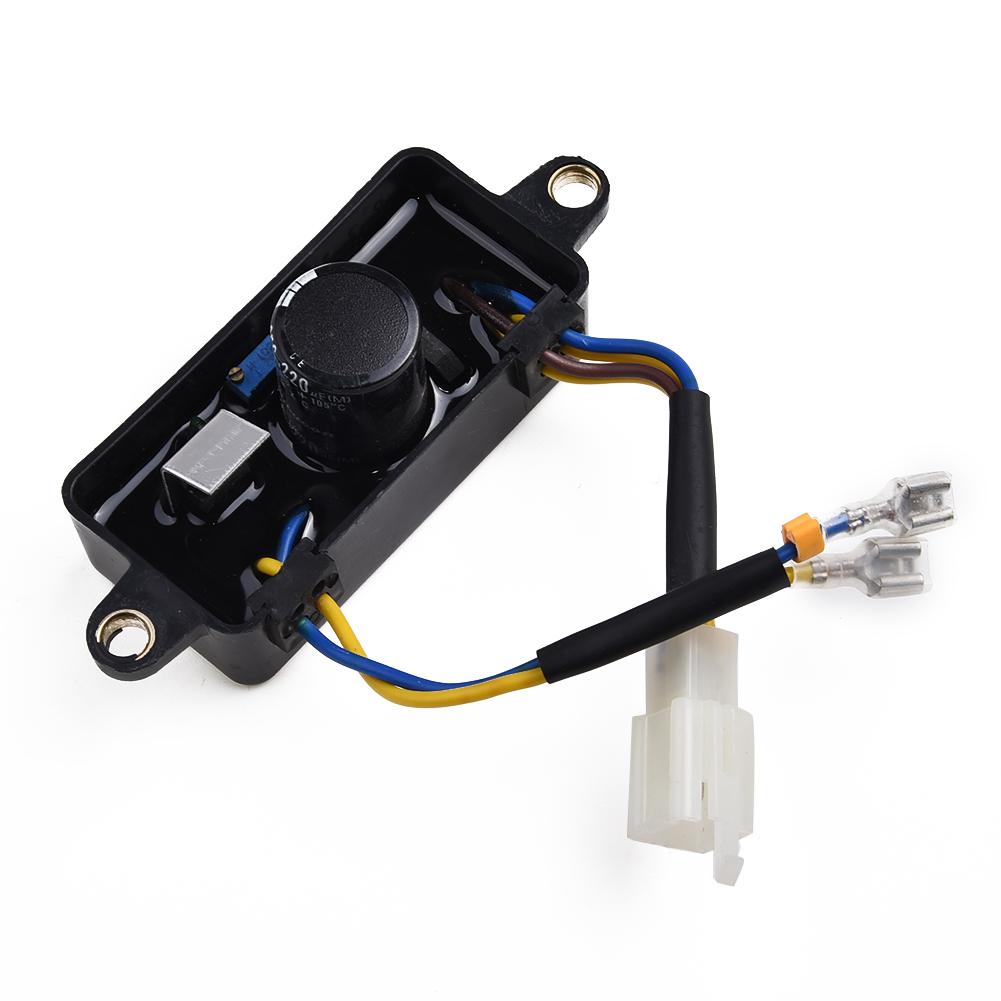

Regulator Generator Voltage Regulator Mainly Black

Feature:

* and * Built-in Full-Wave Output Bridge Rectification. * Voltage Output Increase with Loading. * Stable Voltage Output with Negative Voltage . * Over Voltage, Over Current and Short Circuit for Protection. * Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.

Specification:

* Power: 2KW~ 3KW * Type: Square * Color: Mainly black * Capacitance: 250V 220uF * Material: Plastic+wires+power * Maximum Output: DC 90V 2.5A. * Excitation Voltage: 90V * Voltage: 16V ~ 20V * Frequency: 50/60Hz * Auto Voltage Adjusting Accuracy: ≤ ±%. * Maximum Temperature Rise: 130C or 266F. * Continuous Working Time: ≥ 20 Hours. * Suitable for Powerstroke / for BlackMax generator ranging from 2KW to 4KW

Special Note:

) A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output. 2) If our AVR is out of adjustment for your generator, please MANUALLY turn clockwise or counter-clockwise a small bronze screw in a blue rubber part(potentiometer) to reach your desirable power output. Clockwise turning is for increasing and counter-clockwise turning for decreasing voltage output. If this does not help you out, please with us for tech support.

Package included:

x Voltage Regulator

Note: . The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
