Label:Yes
Operation mode: Copy
Emission current: <21 mA
Product dimensions: 55x37.8x16.5 mm (2.17x1.49x0.65 inches)
Feature:
Channel: 4
Operating temperature: -20-70°C
Transmitting power: 3-6dBm
3. Fast replication speed: Utilizing a high-performance RF chip, combined with a stable crystal oscillator frequency and precise frequency points, it can quickly search for and replicate frequencies, and the replication process will not affect the original remote control.
4. High transmission sensitivity: This replicated remote control boasts a long transmission distance, no directional restrictions, high transmission sensitivity, and unobstructed signal, enabling quick door opening and closing.
Operating frequency: 433MHz
Wireless communication: Radio Frequency (RF)
Static current: <0.15uA
Material: ABS
Color: Red, Blue (optional)
Operating voltage: DC12V

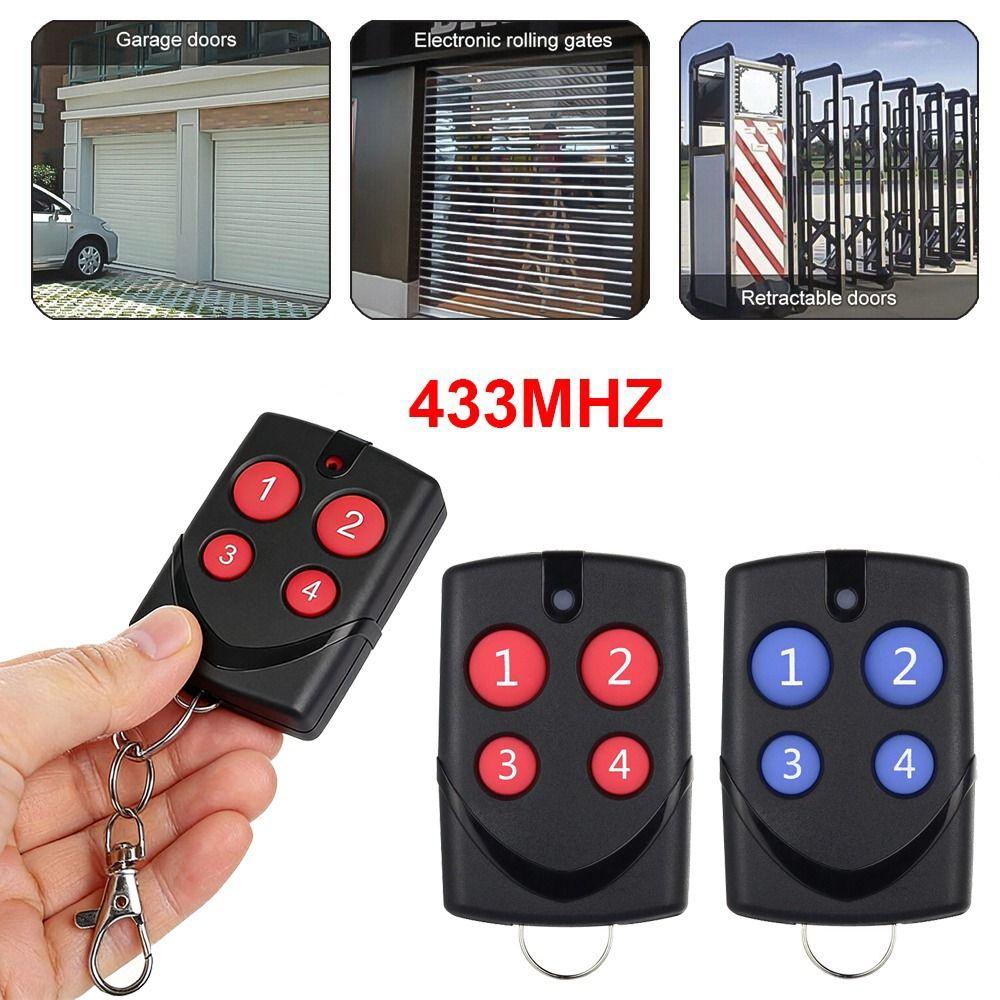

2. Scope of use: This smart shape-following remote control is suitable for electric bicycles, balance bikes, electric doors, garage doors, and other household appliances.
Purpose: Lighting, electric door
1. Copying function: This remote control copying device can copy most wireless remote controls, whether they use fixed codes or learning codes. It features fast copying speed and easy operation.
5. High quality: This imitation remote control is made of high-quality ABS material, which is sturdy, durable, wear-resistant, and has a long service life.
Packing List
1*Remote Control
Function Description:
1. Copy to code operation:
If the remote control has already been paired, you need to clear the pairing code to re-pair it. The pairing process is as follows: Simultaneously press a button on the currently paired remote control and the corresponding button on the spare remote control until the indicator light on the spare remote control changes from rapid flashing to steady on. Then release the buttons on both remote controls, and the pairing is successful. Follow this method to pair other buttons until all buttons are successfully paired.
2. Clear code operation:
Press and hold the "Copy Remote Unlock" and "Unlock" buttons simultaneously until the indicator light flashes, then press the "Unlock" button three times to clear the code (keep holding the "Unlock" button during this process).
3. Restore code operation:
Press and hold the Mute and Ring buttons simultaneously until the indicator light flashes, and then you can restore the previously cleared remote control codes.
Replication chip:
PT2242, PT2260, PT2262, EV1527, 527, PT2240, SMC918, HT-12E, AX5326-3, AX5326-4, AX5026, HT600, HT680, HT6207, HT6010, HT6014, MC145026, HT640, etc.
Note:
Due to variations in monitors and lighting effects, the actual color of the product may slightly differ from the color shown in the picture. Thank you.
Due to manual measurement, please allow a measurement error of 1-2 centimeters.
