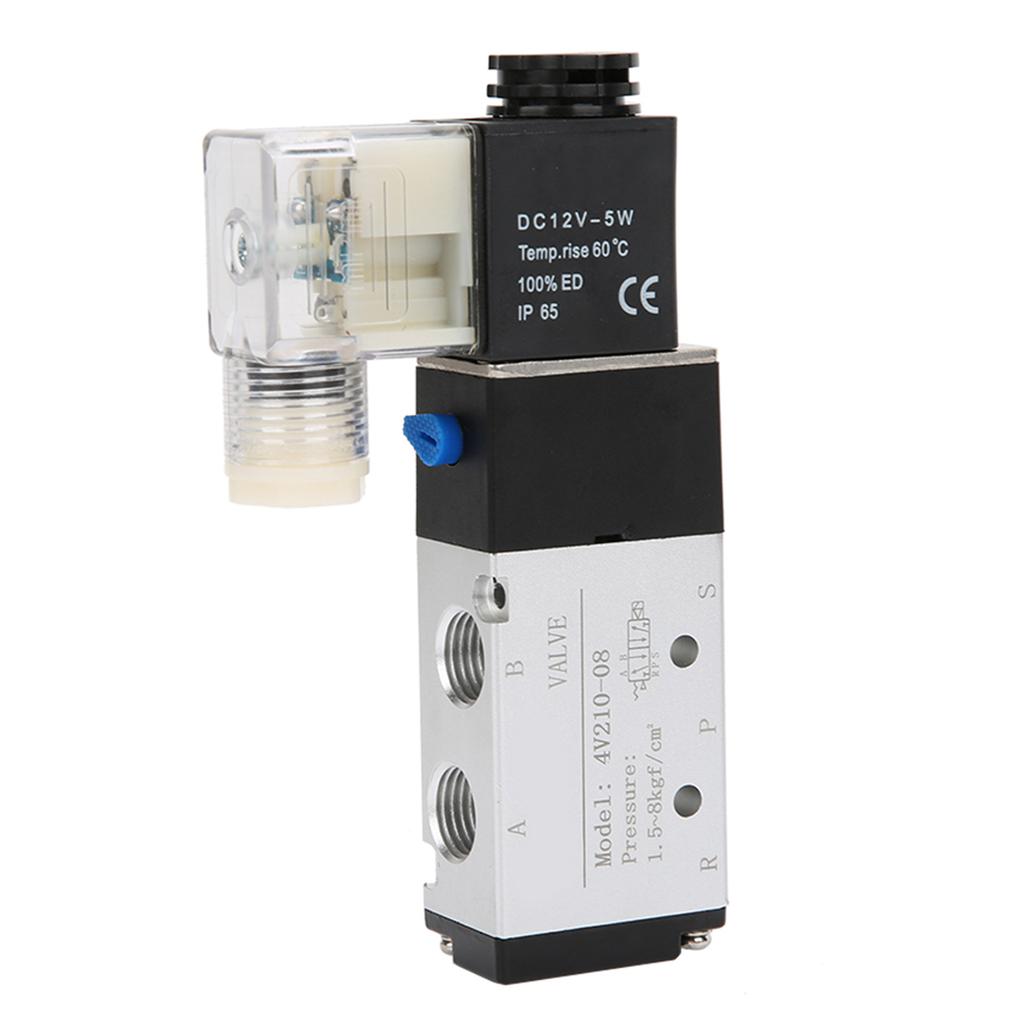

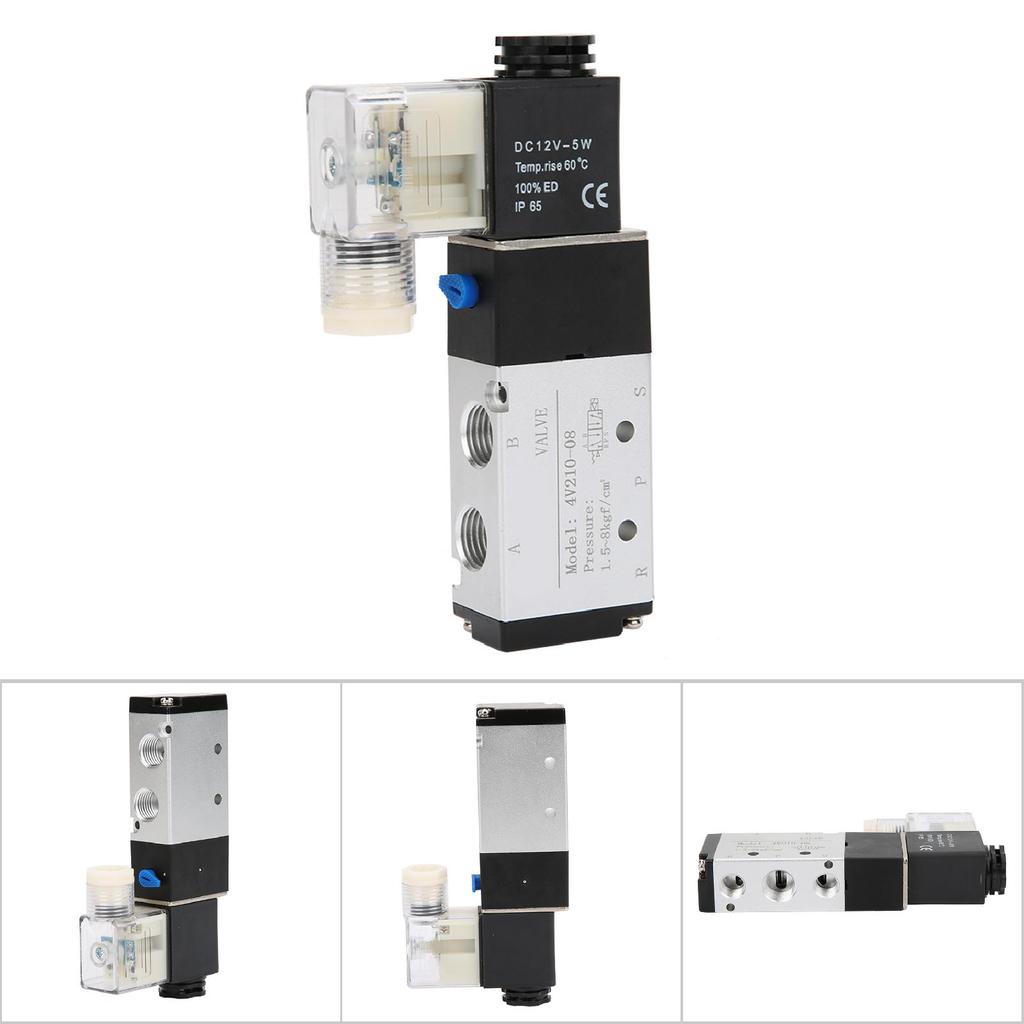

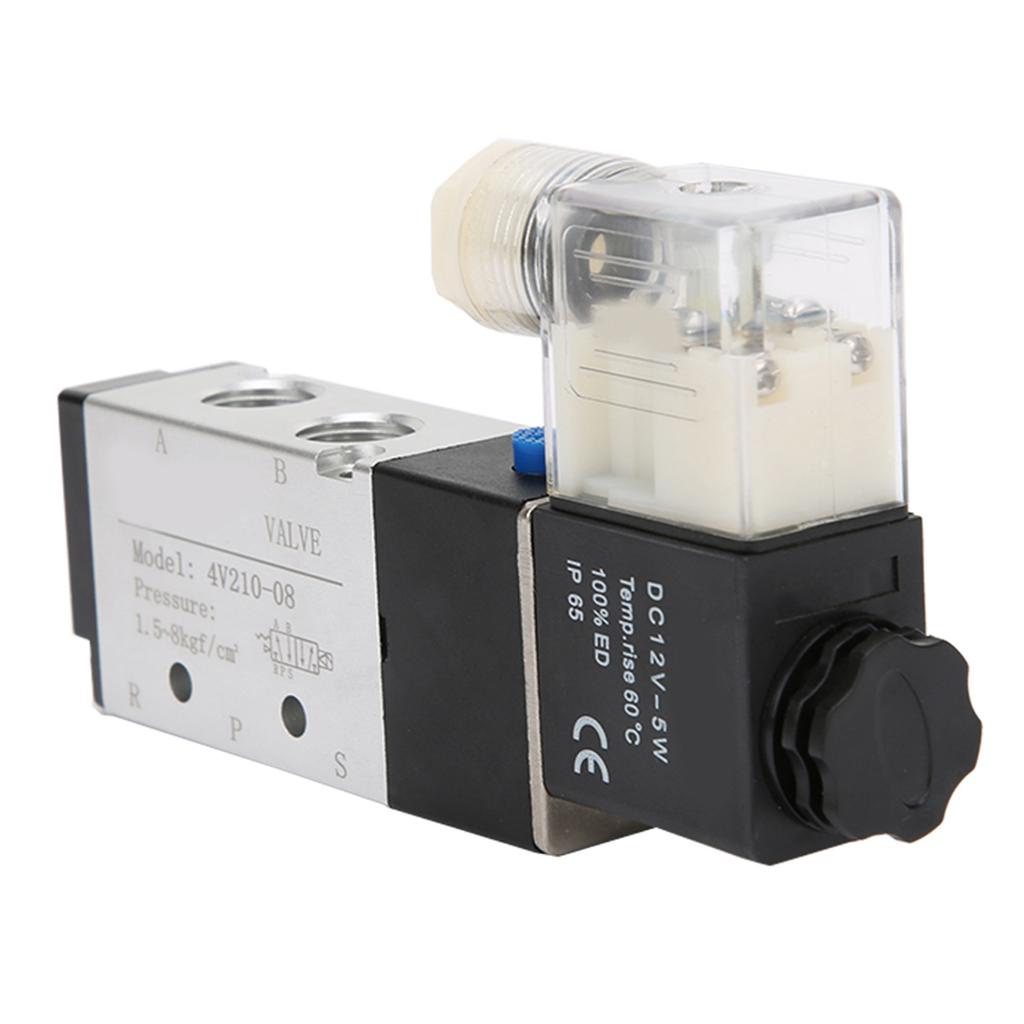

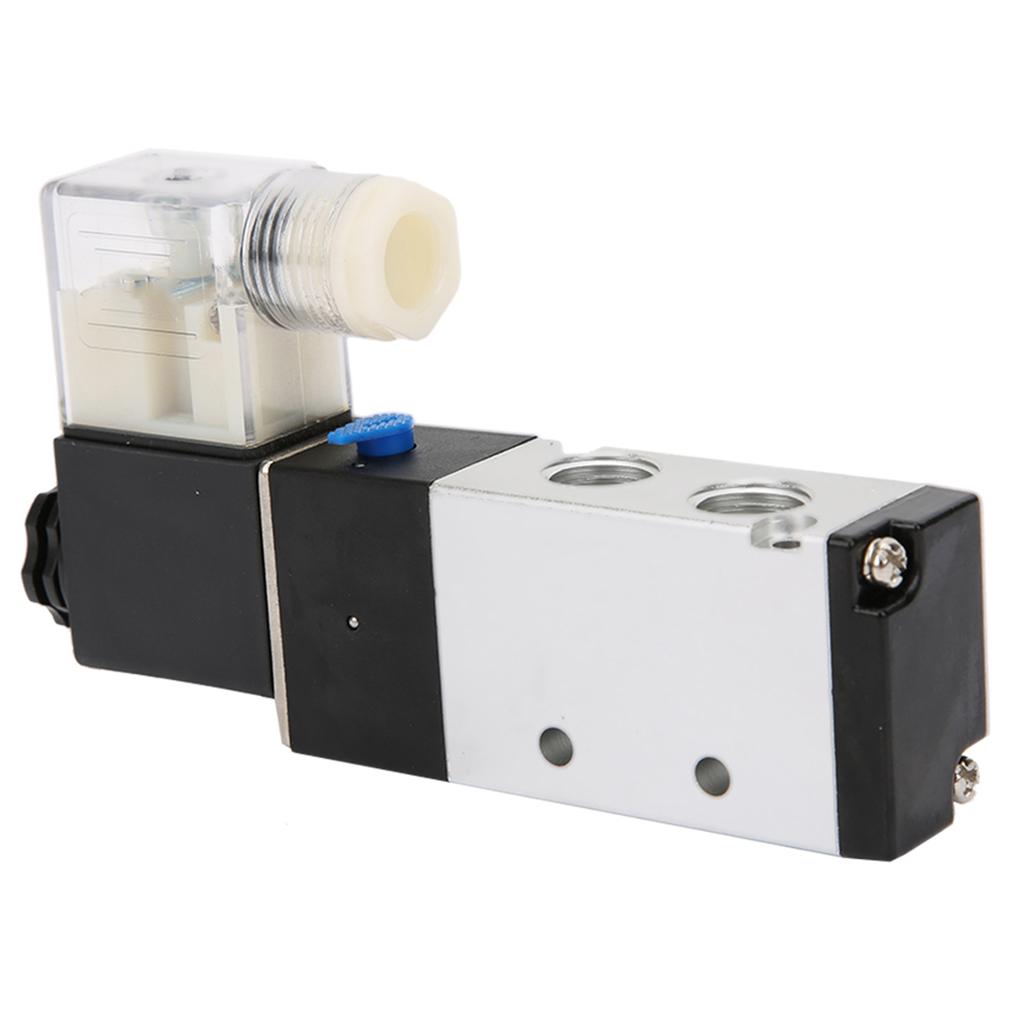

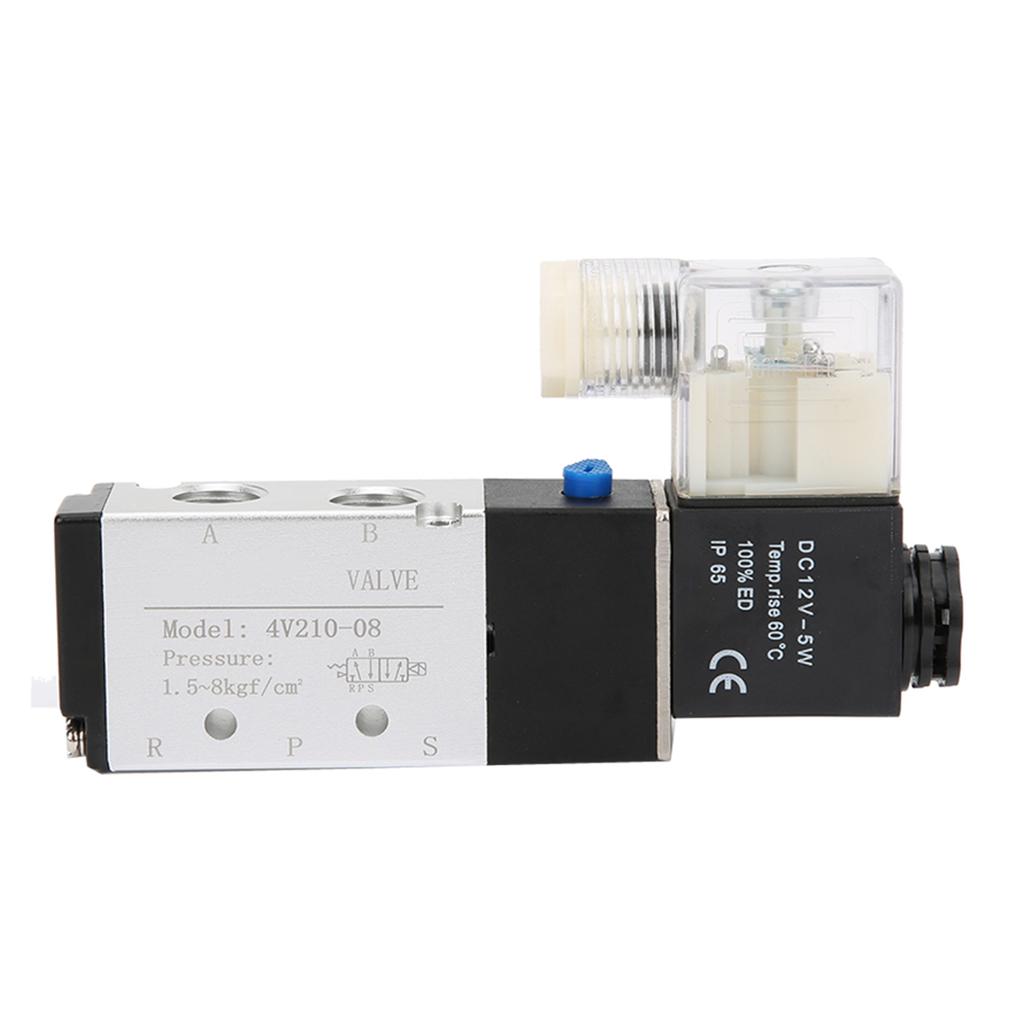

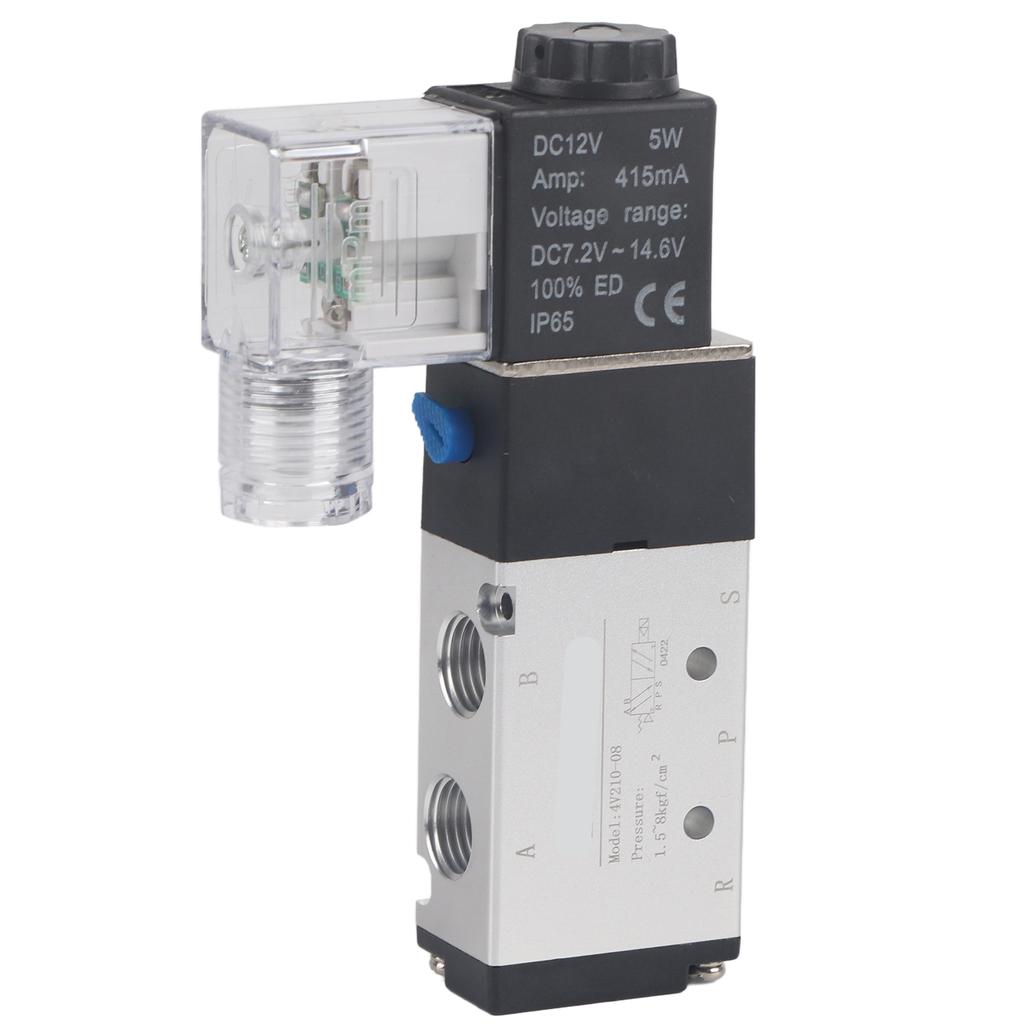

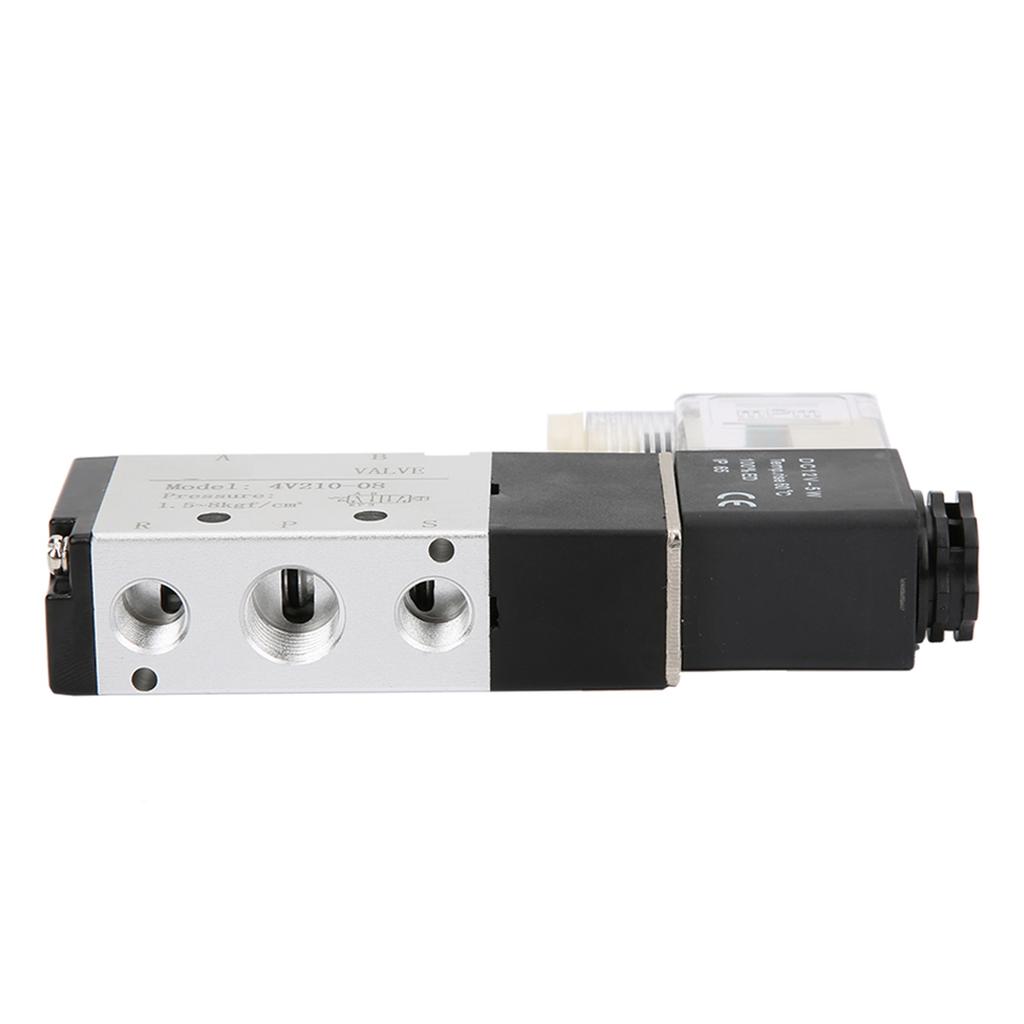

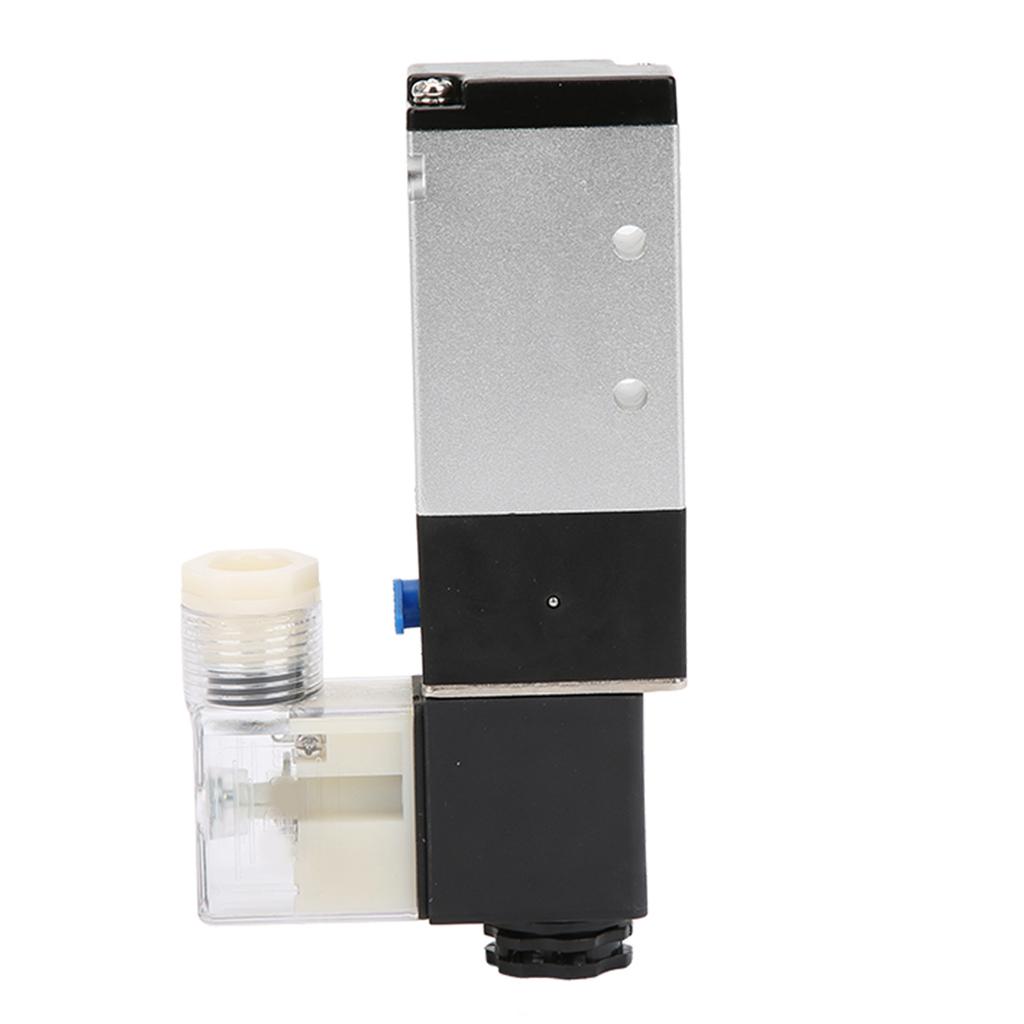

4V210 08 Solenoid Air Valve 2 Position 5 Port Pneumatic Control Valve (DC12V)

Features: 100percent brand new and high quality. 2 Position 5 Port Solenoid Air Valve. Good seal, safe and reliable to use. Compact size, easy to assemble and disassemble. Stable performance, long service life. Specification: Model: 4V210 08 Use fluid: Air (filtered through 40 micron screen) Actuating mode: Internal guide mode Lubrication: No need Use pressure: 1.5 8.0kgf cm2 Maximum pressure: 10.5kgf cm2 Working temperature: 5 50 celsius Voltage range: +15percent 25percent Power consumption: AC: 5.4VA, DC: 2.5W Insulation: F CLASS Service life: About 10 million times under normal use Maximum actuating time: 0.05sec Protection class: IP65 (DIN40050) Voltage: DC 12V 24V (Optional ) Instructions: 1. Check the components before use, whether they are damaged during transportation, then install and use them. 2. When installing, please pay attention to the direction of gas flow and whether the nozzle is correct. 3. When i Installing, pay special attention to whether the voltage meets the requirements, the whole machine debugging, it is recommended to use manual device debugging, and then power on debugging. 4. Please pay attention to dust prevention and suggest installing muffler at the exhaust port. 5. When connecting the pipeline, pay attention to the winding of the stop strip not to exceed the tooth end surface, and pay attention to the elimination of pipe joints, metal particles in the pipe, dust and oil pollution. Package List: 1 x Solenoid Air Valve Note:

.
