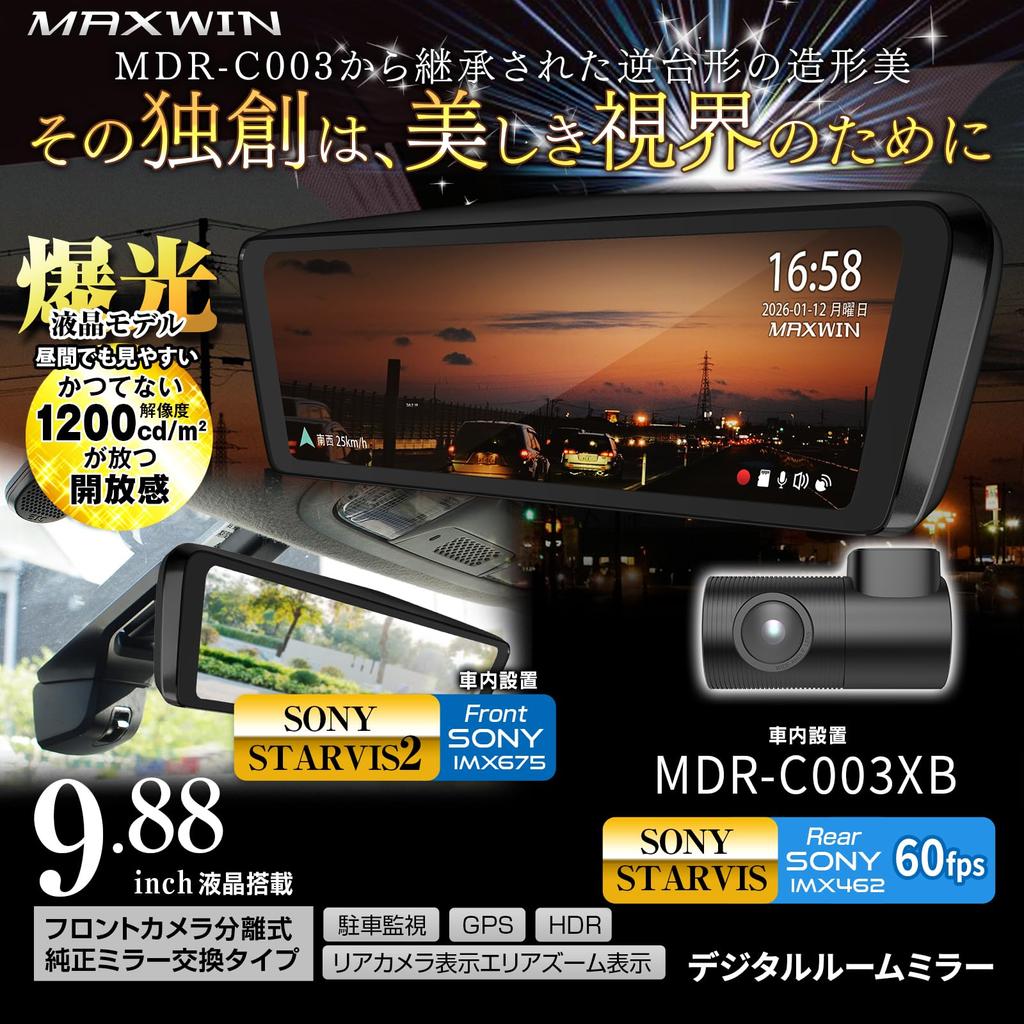

MAXWIN Dashcam, Replacement for Original Mirror, 2K STARVIS 2, 60fps, 9.88-inch, High Brightness 1200cd, MDR-C003XB

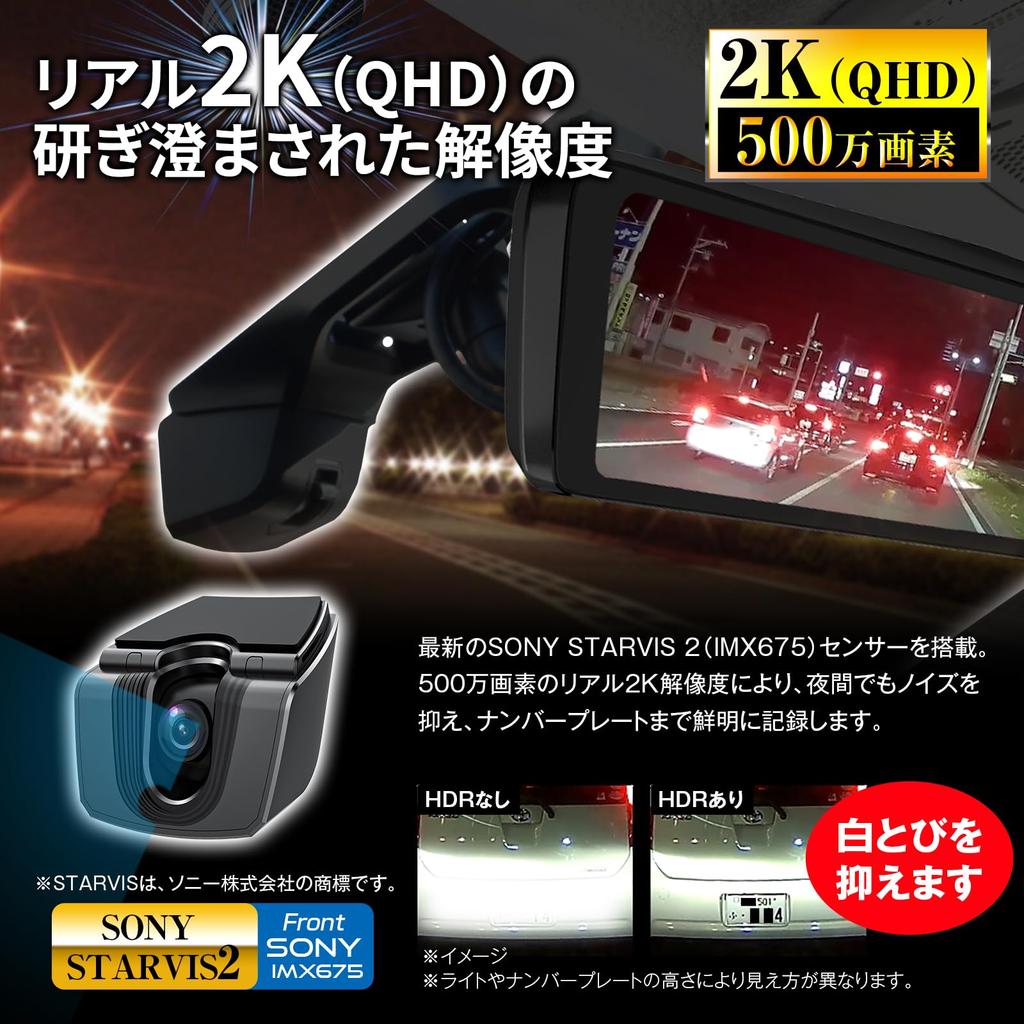

◆Next-Generation Sensor "STARVIS 2" for Stunning 2K High-Definition Image The front camera employs the latest high-sensitivity image sensor, "STARVIS 2 (IMX675)." With a 2K (5-megapixel) resolution far exceeding conventional Full HD, it clearly records even license plates, even during nighttime driving or in dark parking lots.

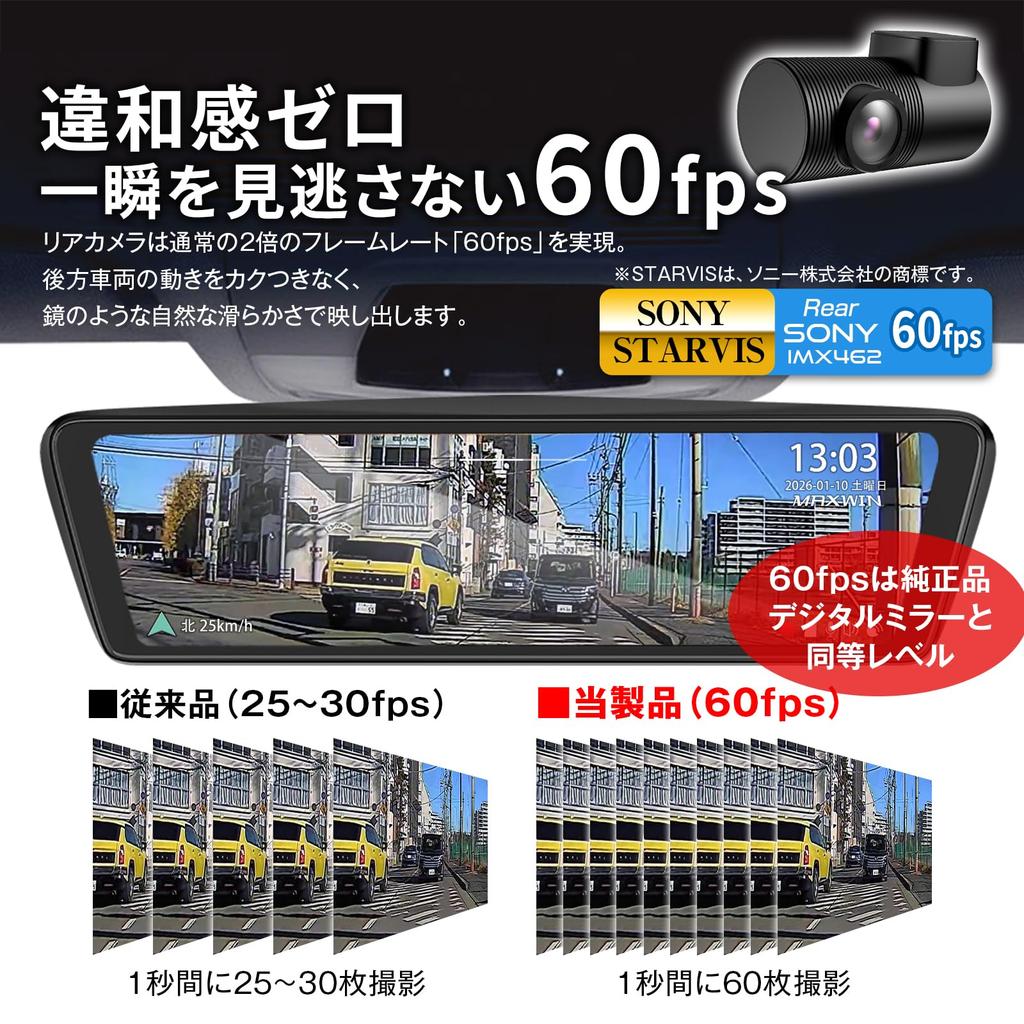

◆Industry-Leading Smoothness: 60fps Rear Camera The rear camera employs a 60fps (high frame rate), more than double the usual frame rate. This suppresses the stuttering characteristic of digital mirrors, displaying the movement of vehicles behind with extremely smooth images close to those of a real mirror.

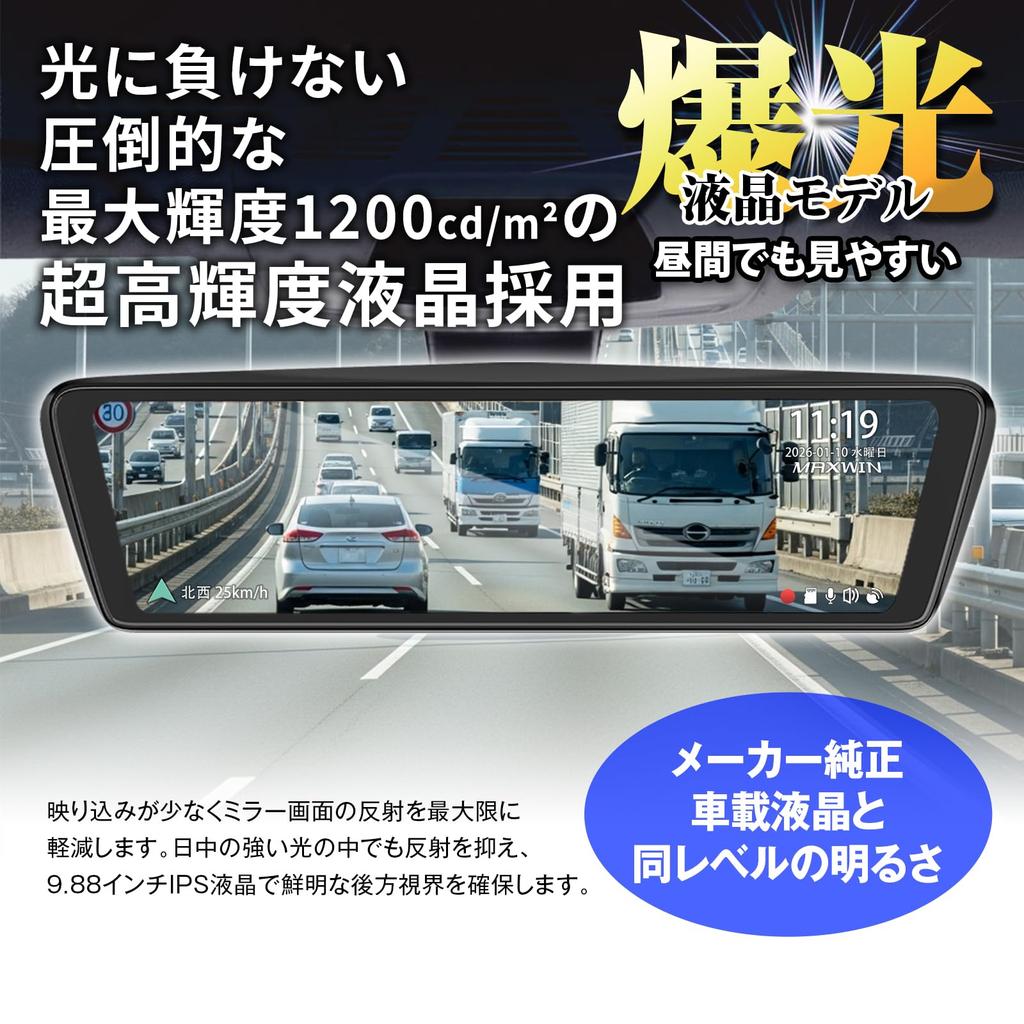

◆"Super Bright" 1200cd/m² High-Brightness LCD That Can Withstand Sunlight Equipped with an LCD panel with a maximum brightness of 1200cd/m², far surpassing previous models. Even in convertibles or cars with strong sunlight, the screen won't overexpose, ensuring consistently clear visibility.

◆Clean and Beautiful Interior with Original Mirror Replacement By replacing the entire original mirror, there's no aftermarket feel, resulting in a sleek interior. The included wiring cover conceals the wiring, creating a beautiful finish reminiscent of luxury cars.

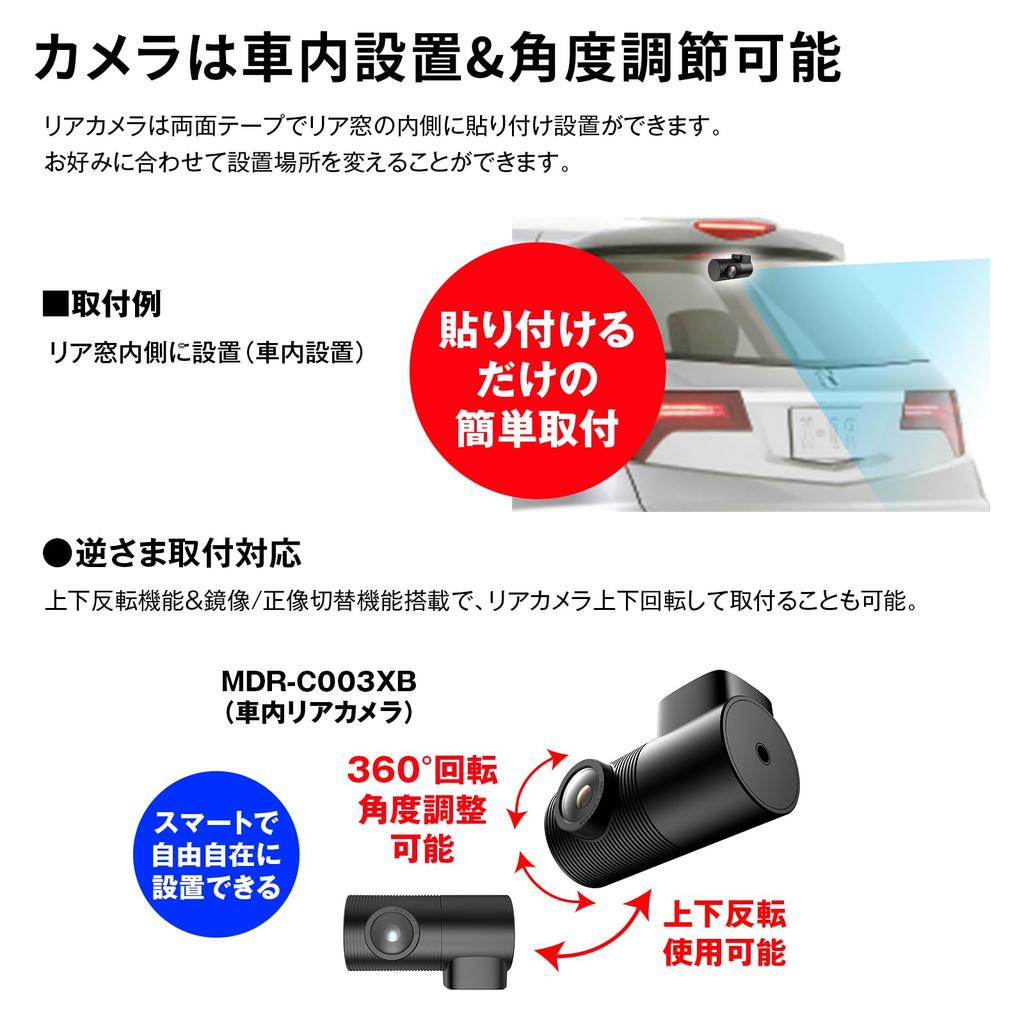

◆Separate Front Camera for Flexible Installation By separating the camera from the main unit, interference from brake sensors and automatic braking systems is avoided. Even if you change the mirror's orientation to your liking, it won't affect the camera's recording angle.

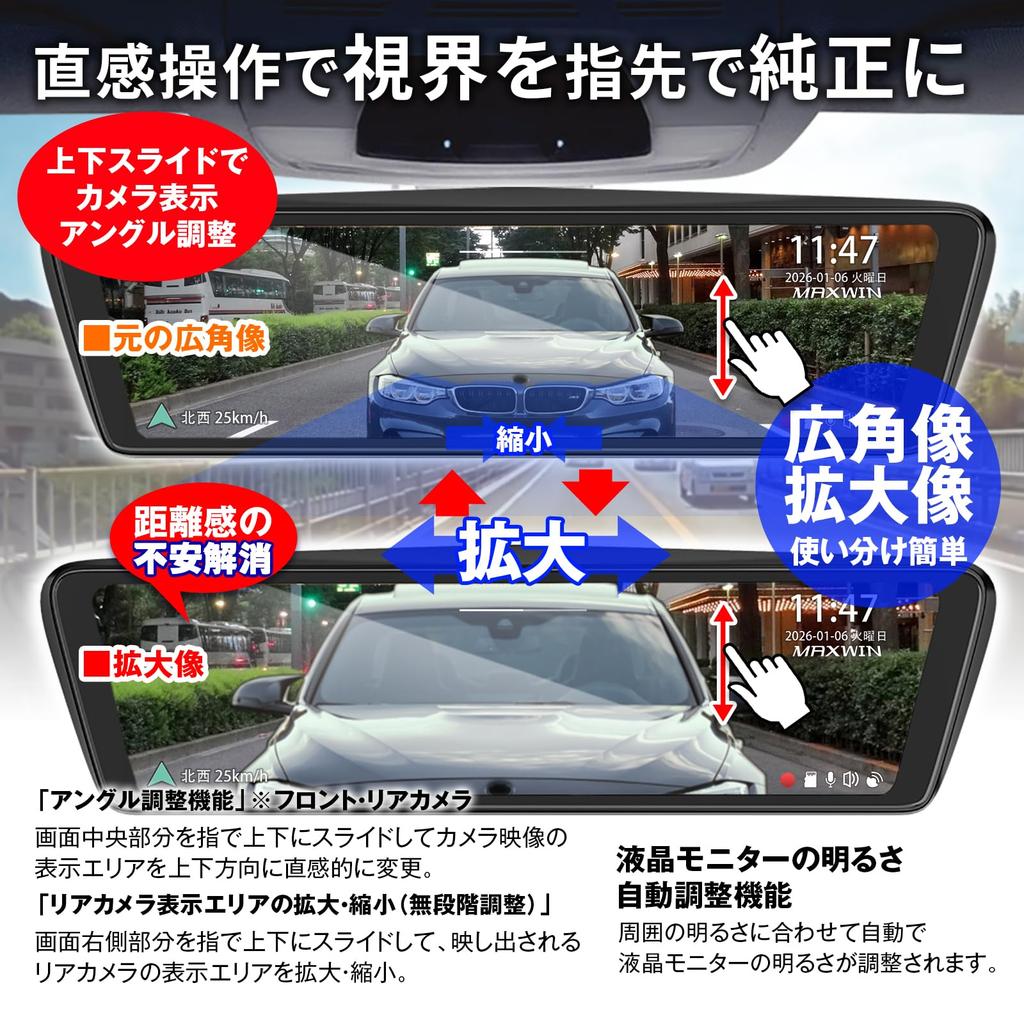

◆Intuitive "Stepless Zoom" and "Angle Adjustment" Simply slide the right side of the screen up and down to zoom in and out (steplessly) of the rear camera image. You can adjust it to a distance similar to a traditional mirror, and intuitively change the vertical angle by sliding the center of the screen.

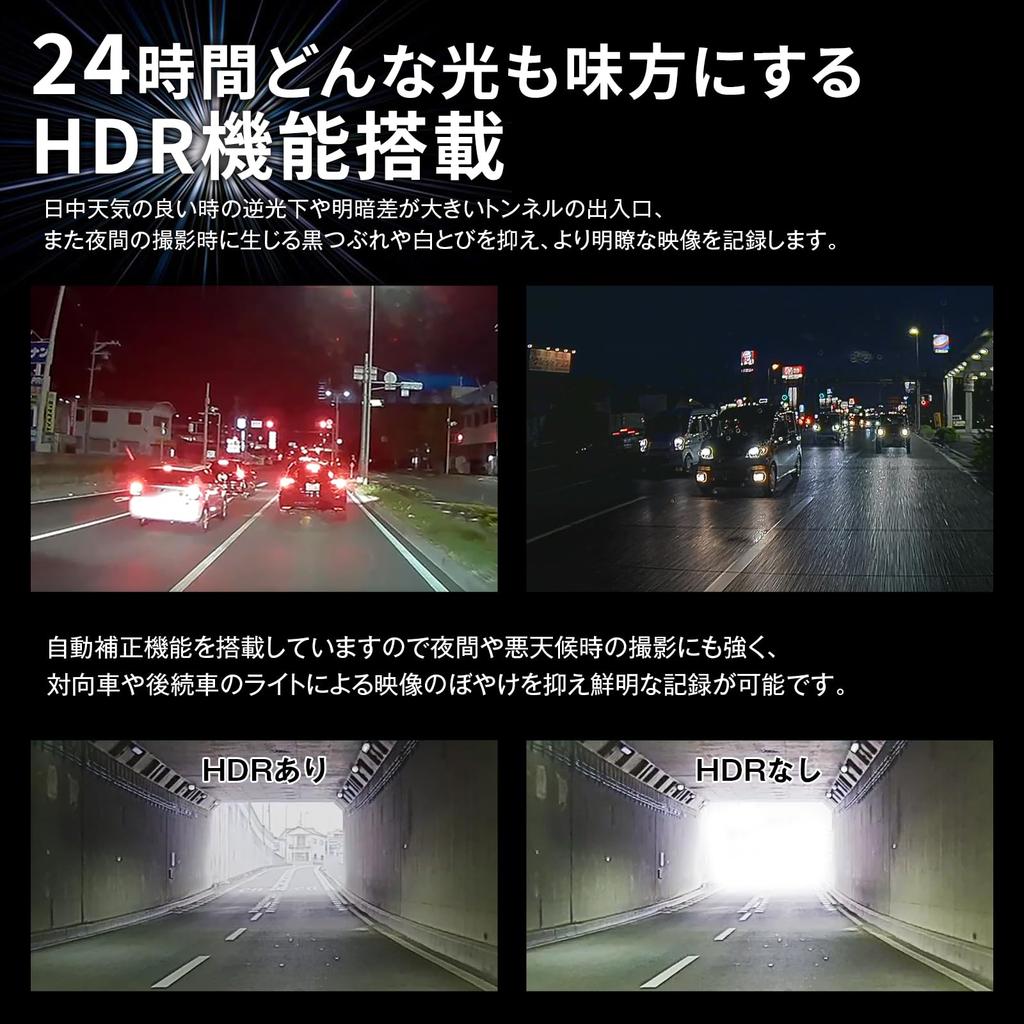

◆Clear Recording Even at Night and in Backlit Conditions with HDR Function Both front and rear cameras are equipped with HDR (High Dynamic Range). It automatically corrects overexposure and underexposure caused by tunnel entrances/exits and headlights at night, always outputting with optimal brightness and contrast.

◆24-Hour Advanced Parking Surveillance Function In addition to impact detection recording, it supports time-lapse recording for extended periods. Equipped with a vehicle battery voltage monitoring function, it prevents battery drain while providing 24-hour surveillance of your vehicle.

◆"TS File" to Prevent Data Corruption and Impact Detection The "TS file" recording format is used. Even if the power is cut off in the event of an accident, the footage up to the immediate aftermath is reliably saved. When the 3-axis G-sensor detects a strong impact, it automatically saves the footage to a dedicated folder that will not be overwritten.

◆Prevents Recording of Unlit LED Traffic Lights: "Nationwide LED Traffic Light Compatible" The front camera is processed to ensure that the recording cycle does not match the LED traffic light illumination cycle.

◆Digital TV Noise Reduction Measured Noise reduction design minimizes interference with digital TV reception and GPS reception for navigation systems.

(EMC Standard: EN55032)

◆Dedicated Playback Software (Free) Available; Video Can Be Checked on This Device When playing back with the dedicated viewer software, it is possible to display speed, direction, and simultaneously show the driving trajectory on a map.

Recorded video can be checked on the device itself, as well as on a PC, allowing you to simultaneously review the situation in chronological order.

◆microSD Card Included A 64GB microSD card is included as standard, so you can use it immediately.

*Pre-installed on the unit

●Detailed Specifications Monitor: 9.88-inch IPS LCD (1600 x 400 pixels) Operating Temperature Range: -20℃ to 60℃ Recording Resolution: Front Camera (1440P) / Rear Camera (1080P) Frame Rate: Front Camera (27.5fps) / Rear Camera (60fps) Field of View: Front Camera Horizontal (102°) / Rear Camera (External Installation Type) Horizontal (111°) / Rear Camera (In-Vehicle Installation Type) Horizontal (102°) Waterproof Rating: Rear Camera IP67 (MDR-C003XA included rear camera) Recording Mode: Loop Recording (1 minute / 3 minutes / 5 minutes) Recording Method: Continuous Recording / Emergency Recording / Parking Surveillance Recording Video File Format: .TS Recording Media: microSD card 64GB Class 10 included Power Supply: DC 12V / 24V Warranty Period: 1-Year Warranty Product Model Number: MDR-C003XB (In-Car Rear Camera)

●Package Contents Dashcam Unit (64GB microSD card installed) x 1 Front Camera x 1 Front Camera Mount x 1 Front Camera Wiring Cover x 1 Rear Camera x 1 Main Unit Mounting Mount x 1 Fixing Screw x 1 Back Cover x 1 Power Cable x 1 Wiring Cover x 1 Rear Camera Connection Cable x 1 Instruction Manual x 1

*Product photos are for illustrative purposes only. Actual product may differ. Please be aware of this beforehand. *Traffic signals may appear to flicker in recordings; this is a normal characteristic of this product.

【First-Ever Front Camera with "STARVIS 2"! 2K High Resolution for Unbeatable Clearness Even at Night】 Adopts the next-generation high-sensitivity image sensor "STARVIS 2 (IMX675)". With 5-megapixel 2K resolution, it records detailed images that surpass conventional Full HD. Even on dark roads or in dimly lit parking lots, it suppresses noise in dark areas and minimizes overexposure of lights, enabling clear recording.

[Industry-leading smoothness! 60fps rear camera] The rear camera uses a high frame rate camera with "60fps," more than double the frame rate of typical dashcams (27.5fps/30fps). The movement of vehicles behind is not jerky, and it displays an extremely smooth image on the mirror, almost like a mirror. This provides a natural rear view, strongly supporting safe driving.

[High-brightness 1200cd/m² LCD that can withstand sunlight] Equipped with an ultra-high brightness IPS LCD panel with a maximum brightness of 1200cd/m². Even in strong sunlight during the day, the screen does not darken, allowing you to clearly see the image. In addition, the automatic anti-glare function automatically reduces the glare of headlights from following vehicles at night, maintaining optimal visibility at all times.

[Ideal installation with genuine mirror replacement & separate front camera] Because it replaces the entire genuine mirror, there is no aftermarket feel, resulting in a clean interior. By separating the front camera from the main unit, interference from brake sensors and other elements is avoided, allowing for recording at the optimal angle. Furthermore, changing the mirror's orientation does not affect the camera's direction.

[Intuitive "Zoom Function" and "Angle Adjustment"] The rear camera image can be zoomed in and out (steplessly) with a single fingertip. You can customize it to your preference, whether to match the distance to that of a traditional mirror or to view a wider area. The viewing angle can also be smoothly adjusted with up and down slide operations.
