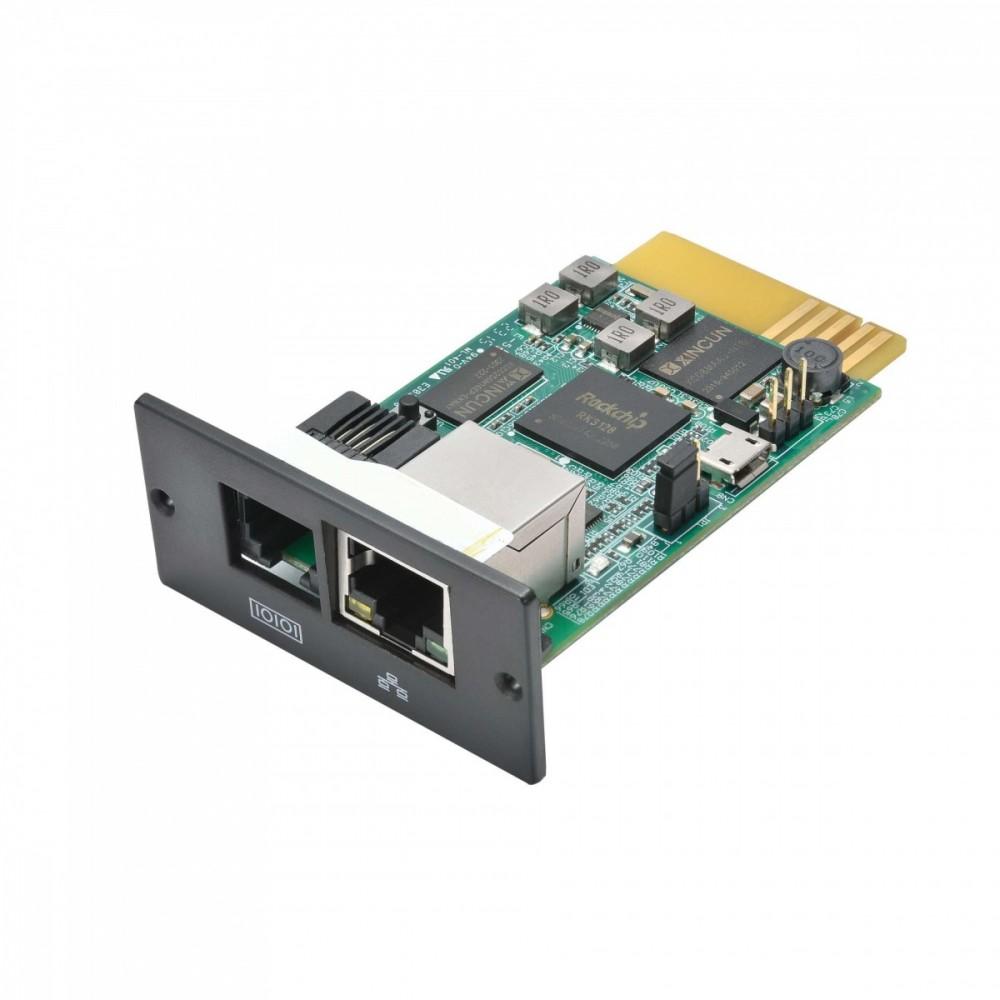

SNMP Module for UPS 1013102

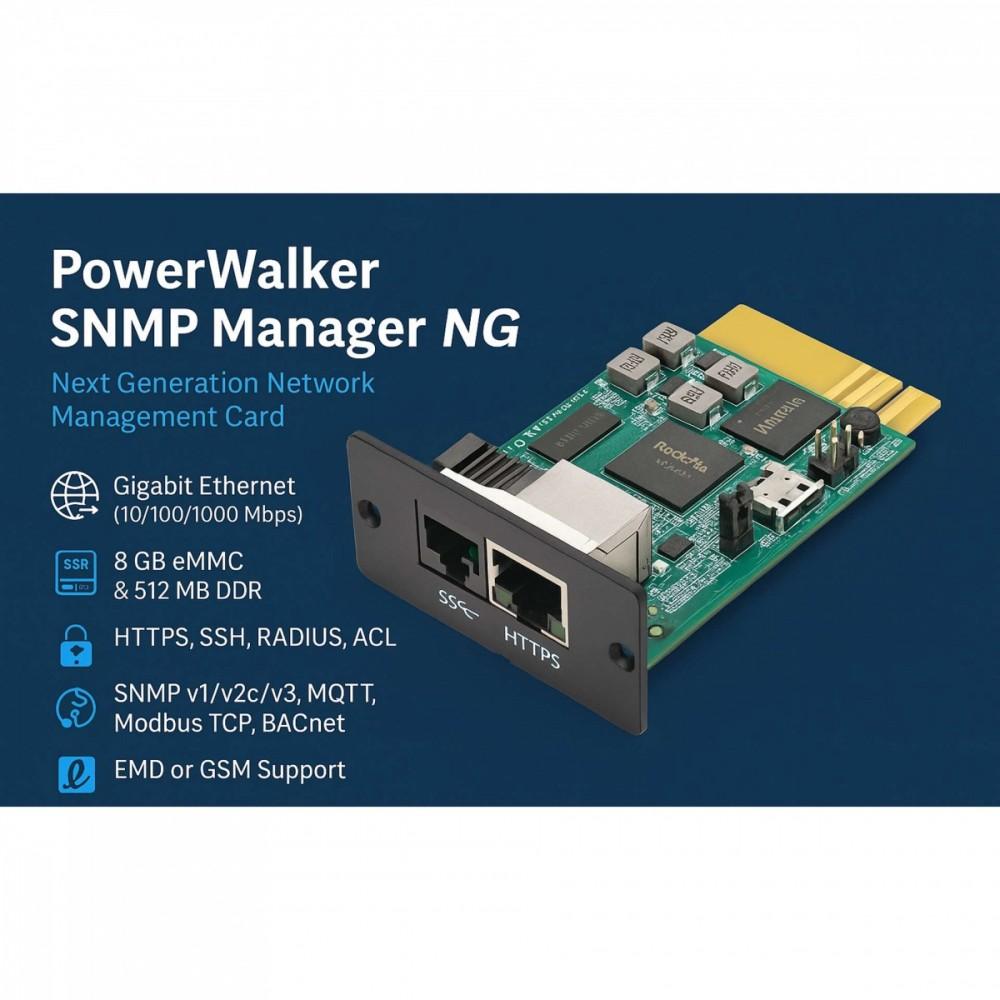

UPS SNMP Module for UPS 1013102UPS SNMP Module for UPS 1013102UPS SNMP Module for UPS 1013102The SNMP Manager NG is a network management module designed for UPS monitoring and remote administration in a connected environment. It provides a practical way to integrate UPS systems into a broader supervision setup and access operational data over a network.

Built around Gigabit Ethernet with support for 10/100/1000 Mbps connections, the module is intended for stable communication in modern infrastructure. It is suitable for use where UPS status, event handling, and data logging need to be accessed remotely and in a structured way.

This module supports SNMP v1, v2c, and v3, making it compatible with standard network management workflows. It also includes Modbus TCP, MQTT, and BACnet support, which helps it fit into different automation and monitoring environments.

Security-focused features include advanced HTTPS, SSH, RADIUS, ACL, and certificate upload support. These functions help maintain controlled access and secure communication when the module is used in sensitive networked installations.

The SNMP Manager NG also supports EMD or GSM integration for sensor input or SMS alerts. This allows the monitoring setup to be extended with external inputs and notification options depending on the installation requirements.

It works seamlessly with ViewPower Pro, enabling centralized monitoring and management within that software environment. The module also supports secure email and syslog notifications, which can be used for event reporting and system oversight.

Long-term data logging is another important feature of this module. Stored operating data can support later analysis, record keeping, and review of UPS-related events over time.

The device includes 8 GB eMMC storage and 512 MB DDR memory, providing the resources needed for network management functions and data handling. These specifications support reliable operation in a dedicated monitoring role.

In practical use, the module is appropriate for UPS installations that require remote status access, integration with management platforms, and configurable alerting. It is designed for environments where network visibility and controlled supervision are important.

Overall, the SNMP Manager NG combines communication options, security features, and logging capabilities in a compact management solution for UPS systems. It is intended to support day-to-day monitoring as well as long-term operational oversight.

Specifications: Product name: SNMP Manager NG Ethernet: Gigabit Ethernet Network speeds: 10/100/1000 Mbps Memory: 8 GB eMMC Memory: 512 MB DDR SNMP support: SNMP v1 SNMP support: SNMP v2c SNMP support: SNMP v3 Protocols: Modbus TCP Protocols: MQTT Protocols: BACnet Security: HTTPS Security: SSH Security: RADIUS Security: ACL Security: Certificate upload Alert options: EMD support Alert options: GSM support Notifications: Secure email notifications Notifications: Syslog notifications Data logging: Long-term data logging Software compatibility: ViewPower ProColor: Not applicableDimensions: 47 x 23 x 15 mmPower supply: input voltage: 12 V DC, Input current: 120 mA DCEnvironment requirements: Temperature: 0°C - 40°C, Humidity: 0% - 95% RH (non-condensing)Other features: Management card slotRJ-45 for network connectionRJ-45 EMD connectionWeight with packaging: 0.1 kgEAN: 4260074984958Manufacturer: PowerWalker165.92PowerWalker
