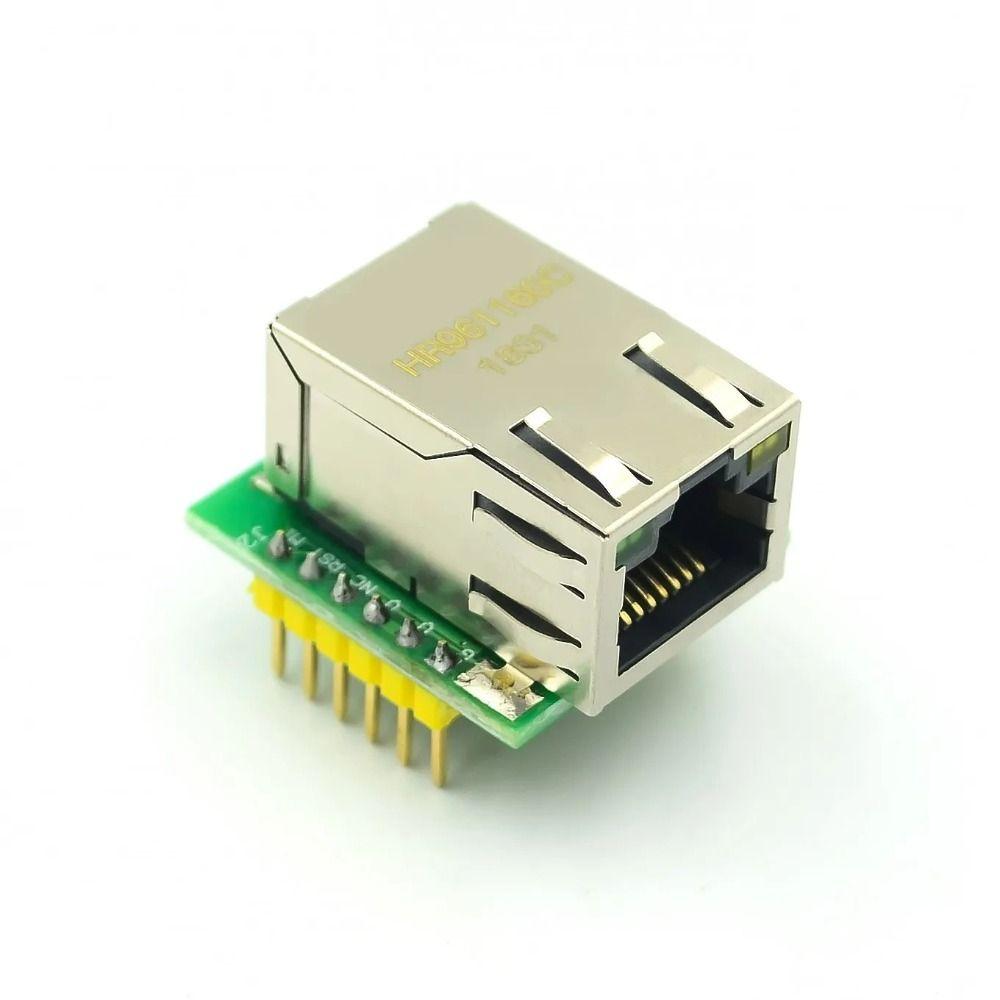

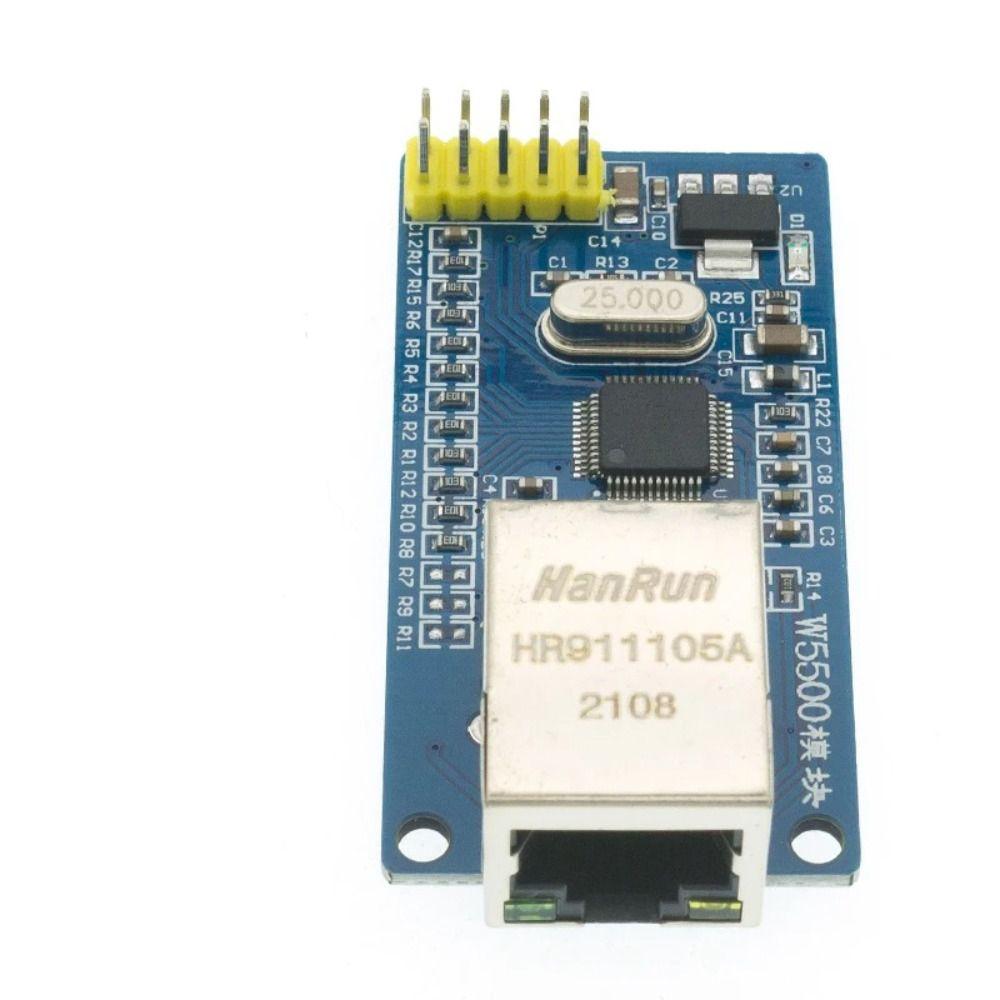

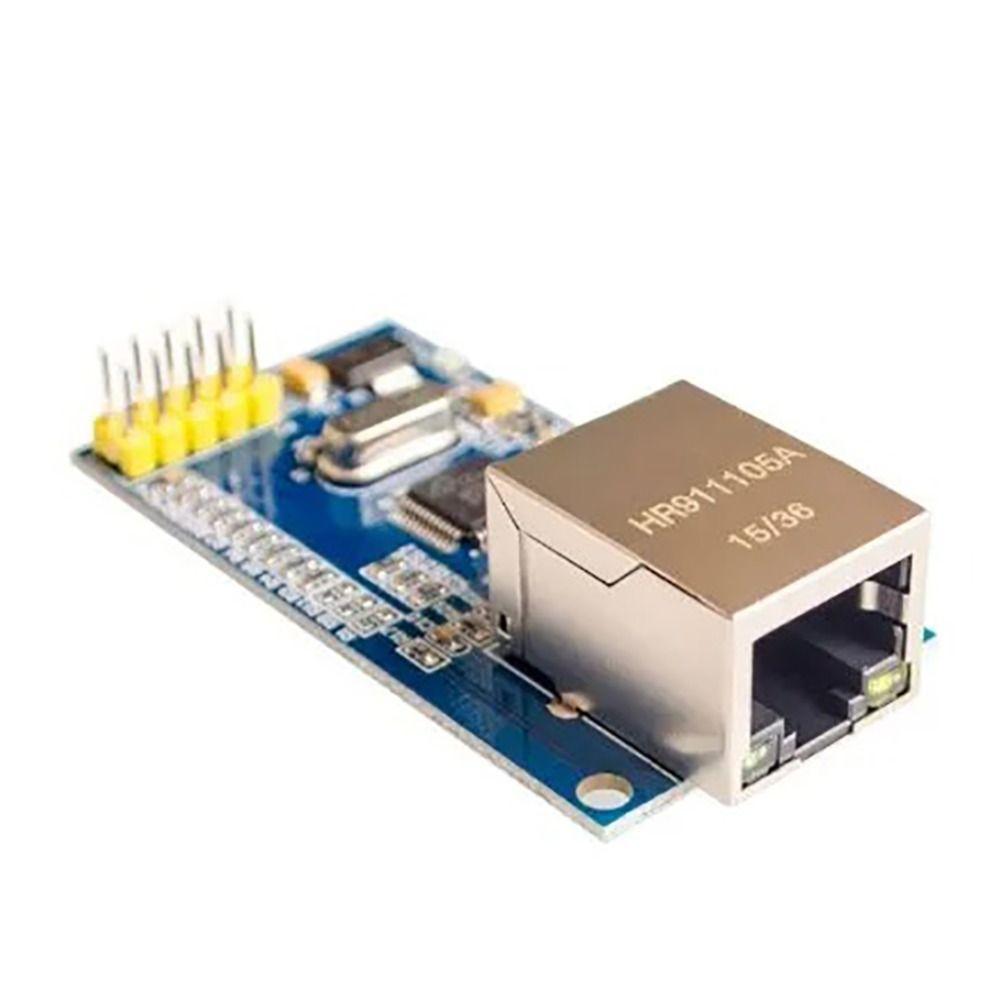

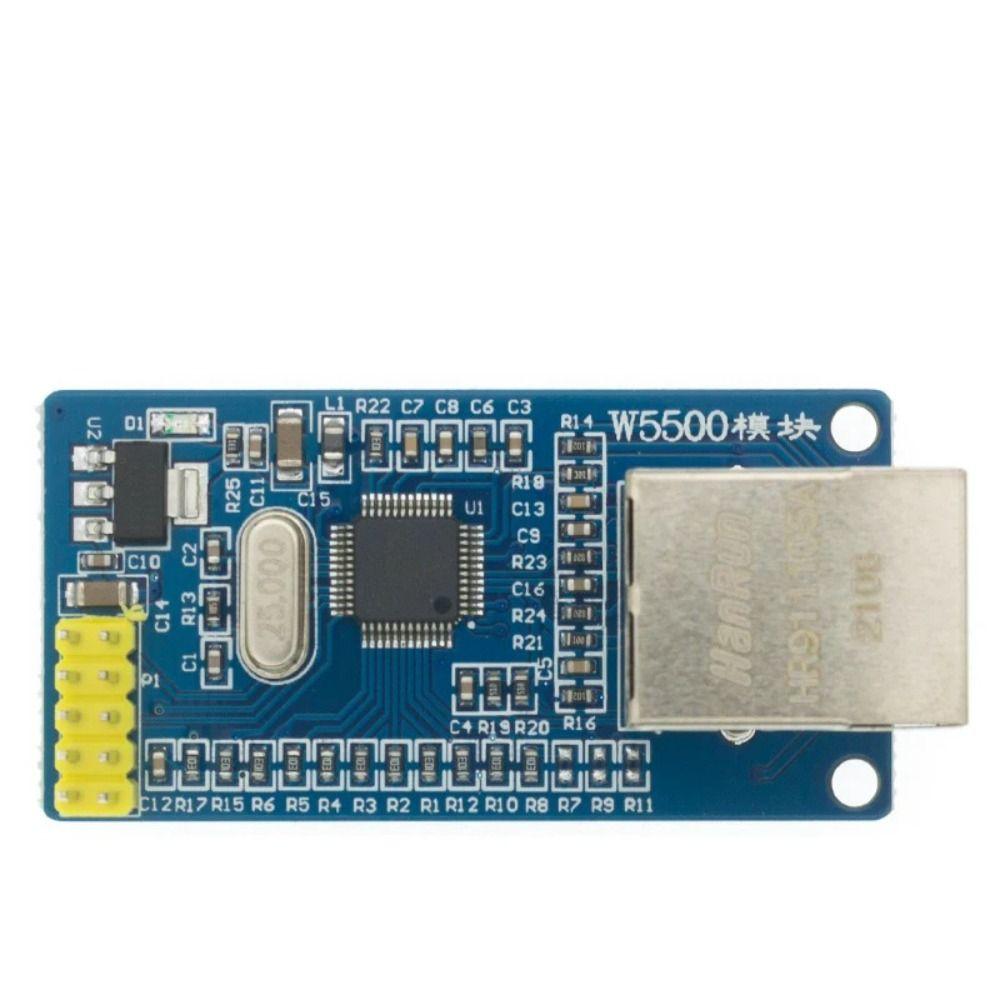

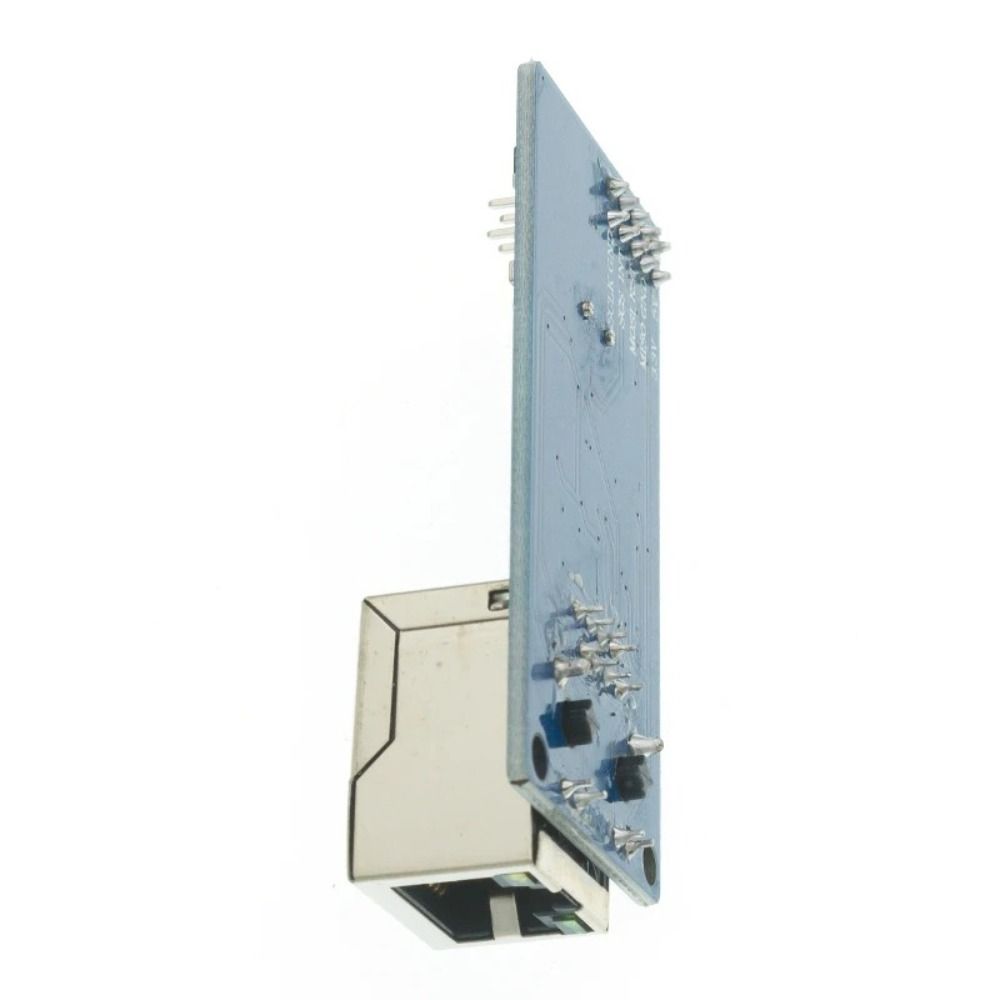

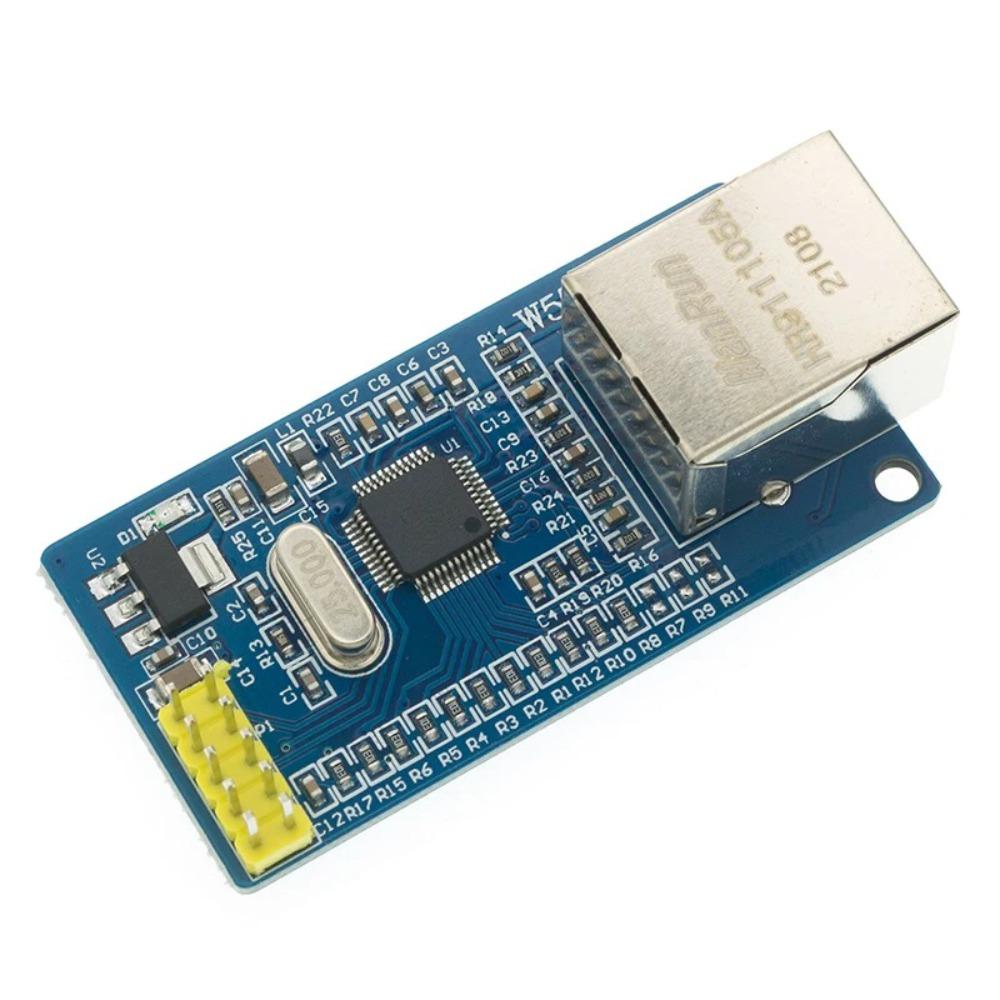

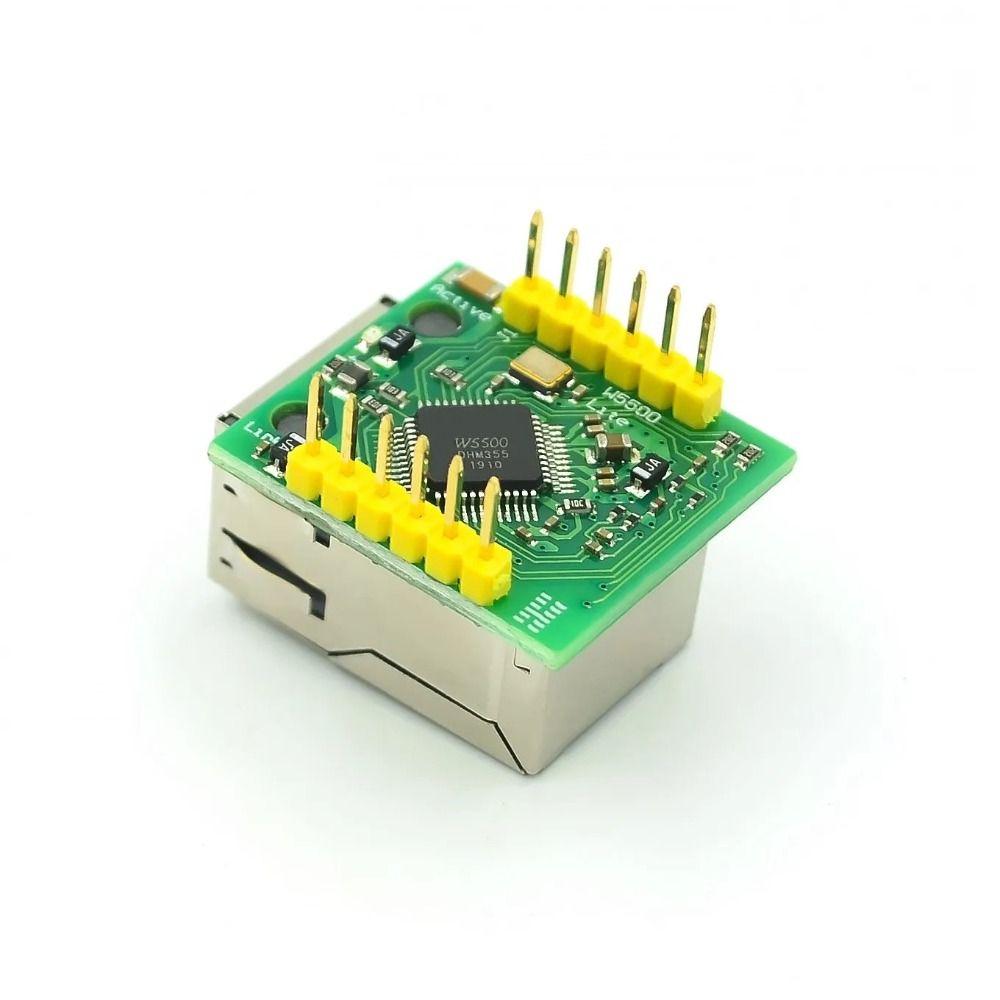

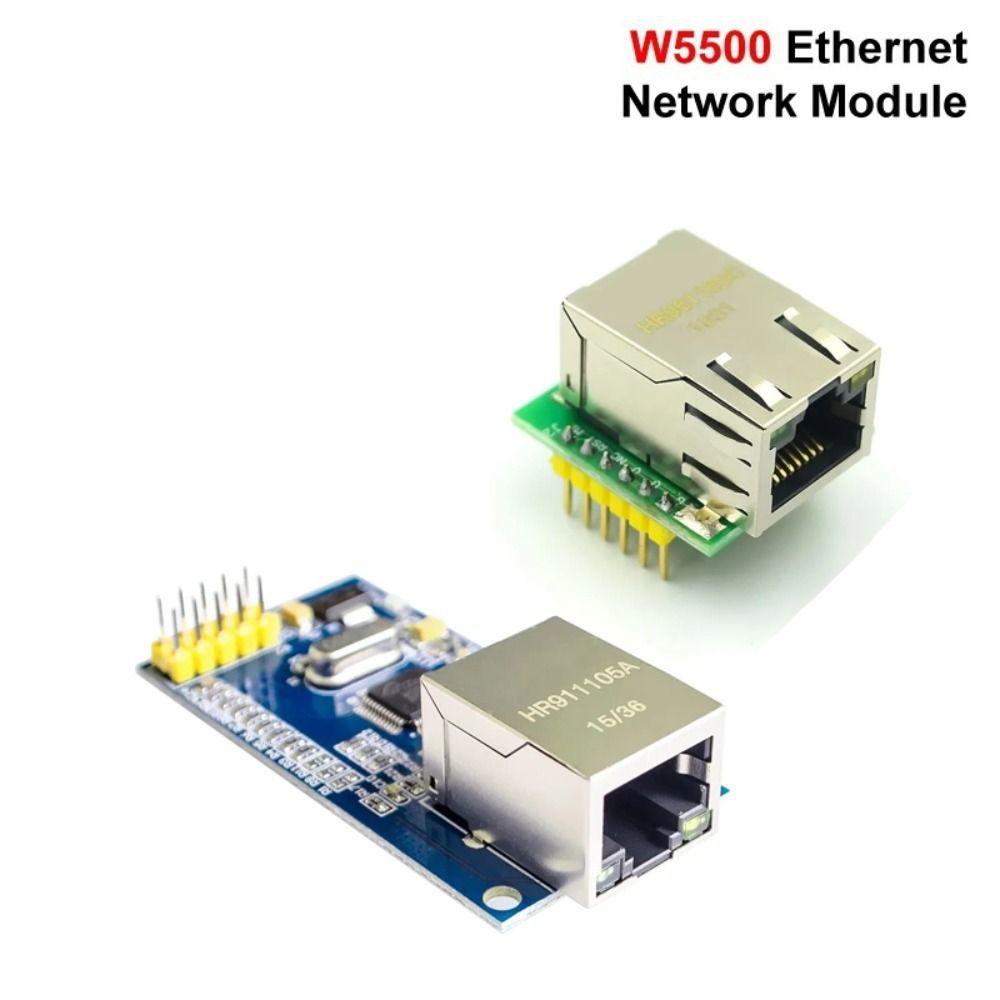

3.3V Network Module DIY SPI To LAN Converter Professional Ethernet Converter Electronics Projects

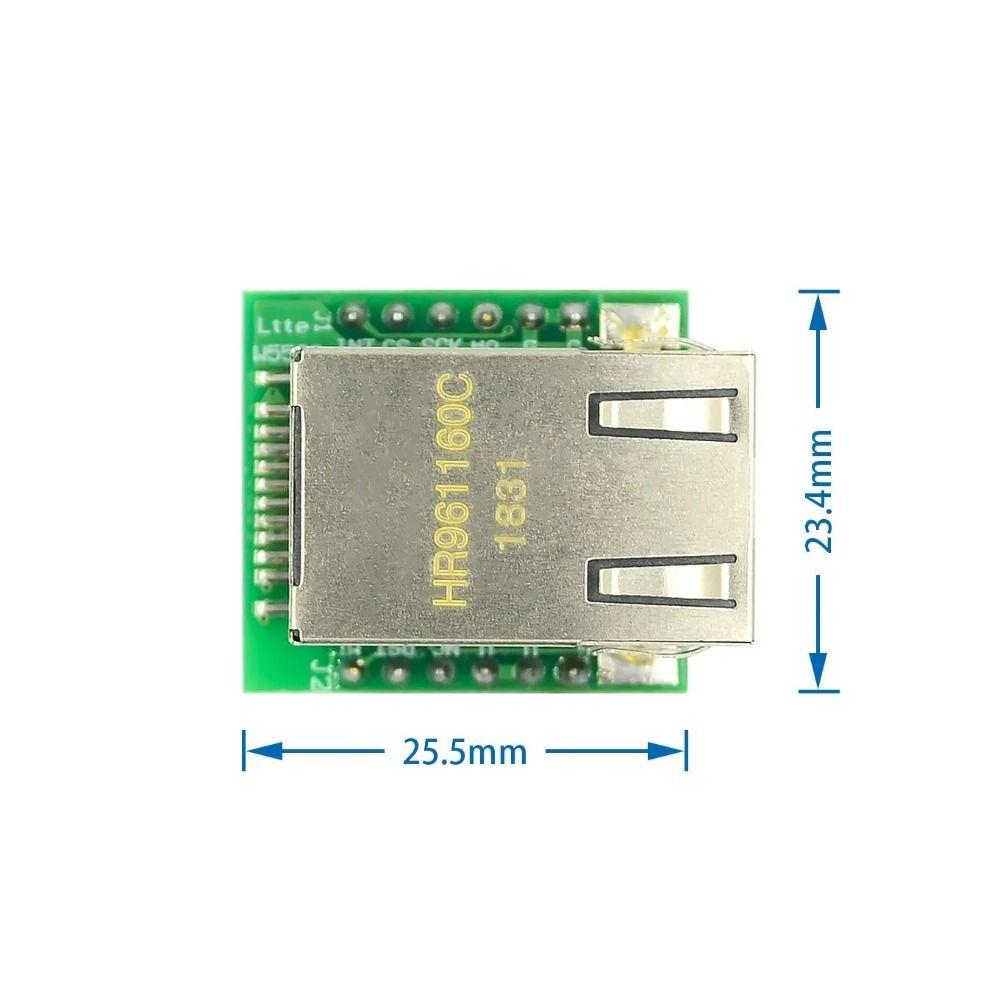

Label:Yes PCB Size:25.5*23.4MM(1.00*0.92in) Compatible for Arduino WIZ820io RC5 Control interface:The TTL level, 3.3V SPI interface Current should be more than 200mA Power supply mode: 3.3V external power supply

Supports hardware TCP/IP protocols: TCP, UDP, ICMP, IGMP, IPv4, ARP, IGMP, PPPoE and Ethernet Supports 8 independent ports Provide sleep mode,Provide network wake-up Supports high-speed SPI bus (SPI mode 0,3) Internal 32K byte memory as TX/RX cache Embedded 10/100Mbps Ethernet Physical Layer Support automatic negotiation (10/100-Based full duplex/half duplex) IP segmentation is not supported 3.3V working voltage, I/O port can withstand 5V voltage Multiple indicator signal output (full duplex/half duplex mode, network connection and network speed)

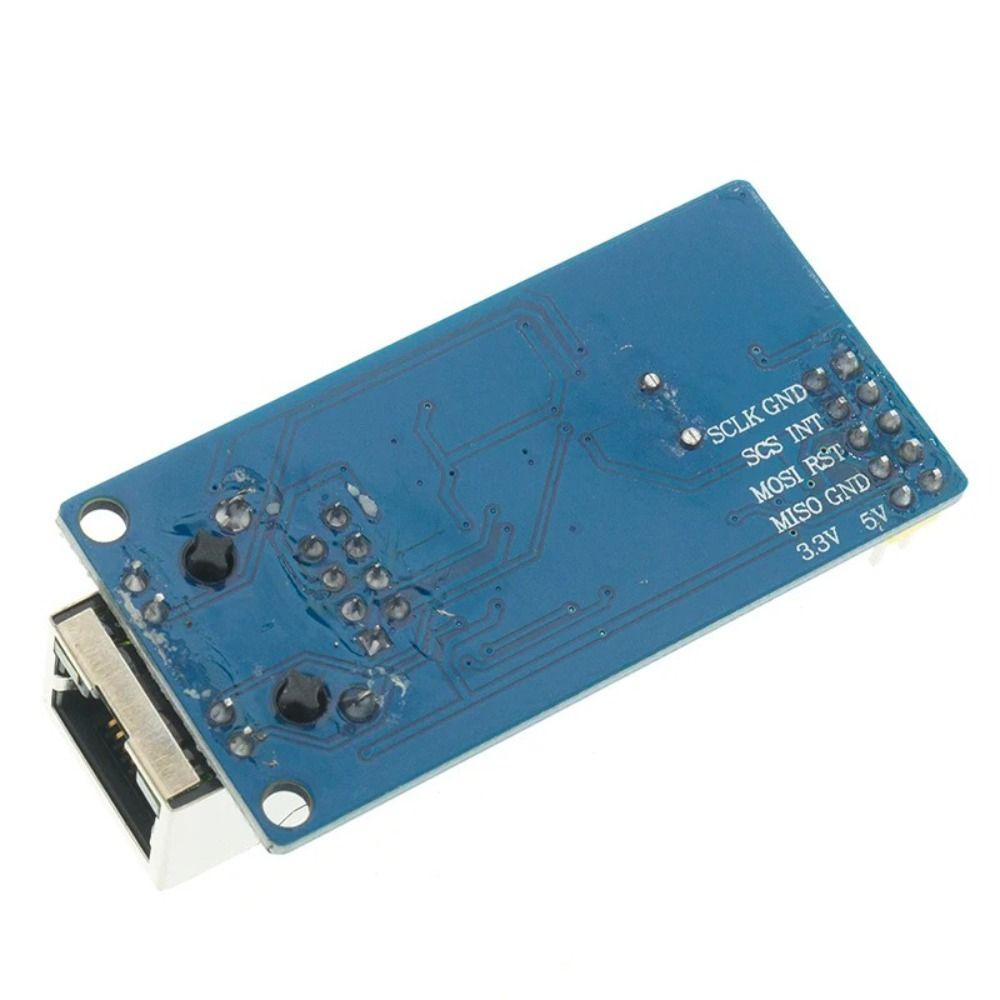

Module pin arrangement function: 3.3V:3.3V power input pin. 5V:5V power input pin MISO:SPI host input slave output pin,GND: Power ground pin MOSI:SPI Host Output Slave Input Pin RST:W5500 Hardware Initialization Pin (Active Low) SCS:SPI SLAVE select pin (active low) INT:W5500 interrupt pin (active low) SCLK:SPI clock pin NC: hanging

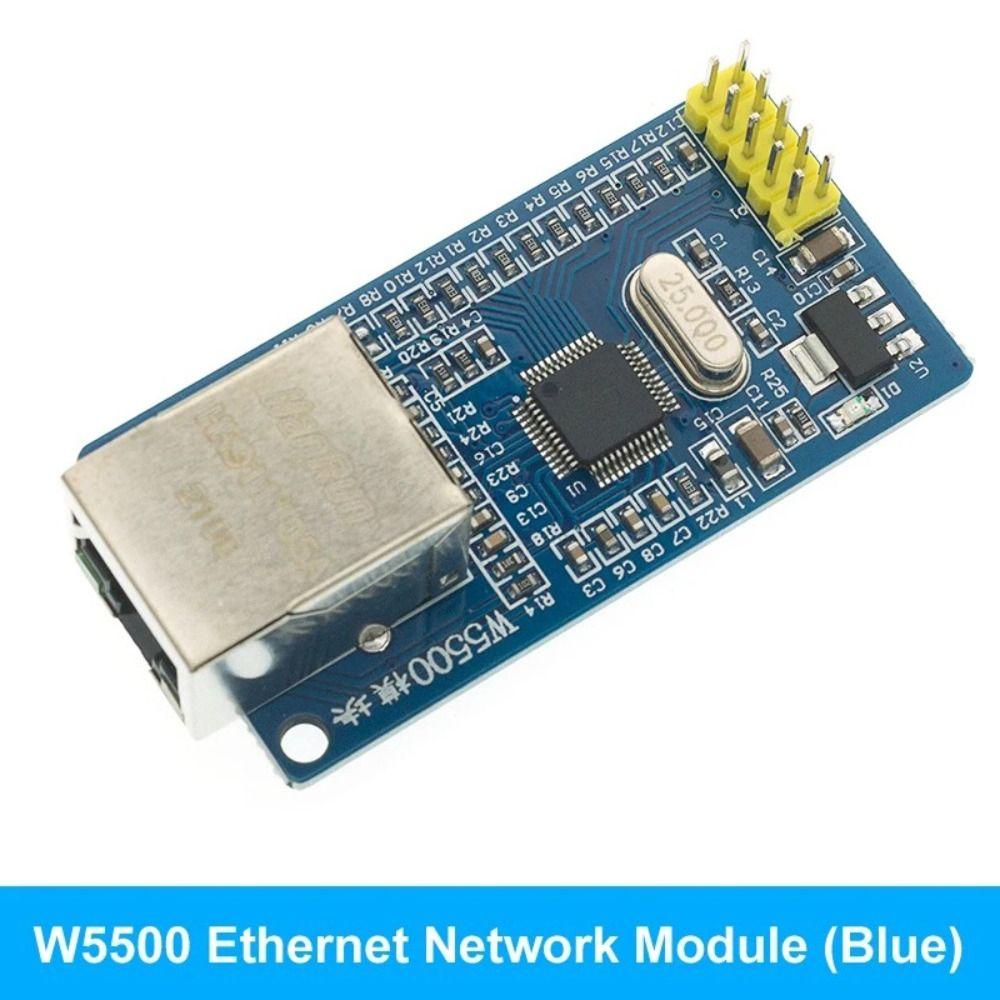

Package Included: 1 x W5500 Ethernet Module
