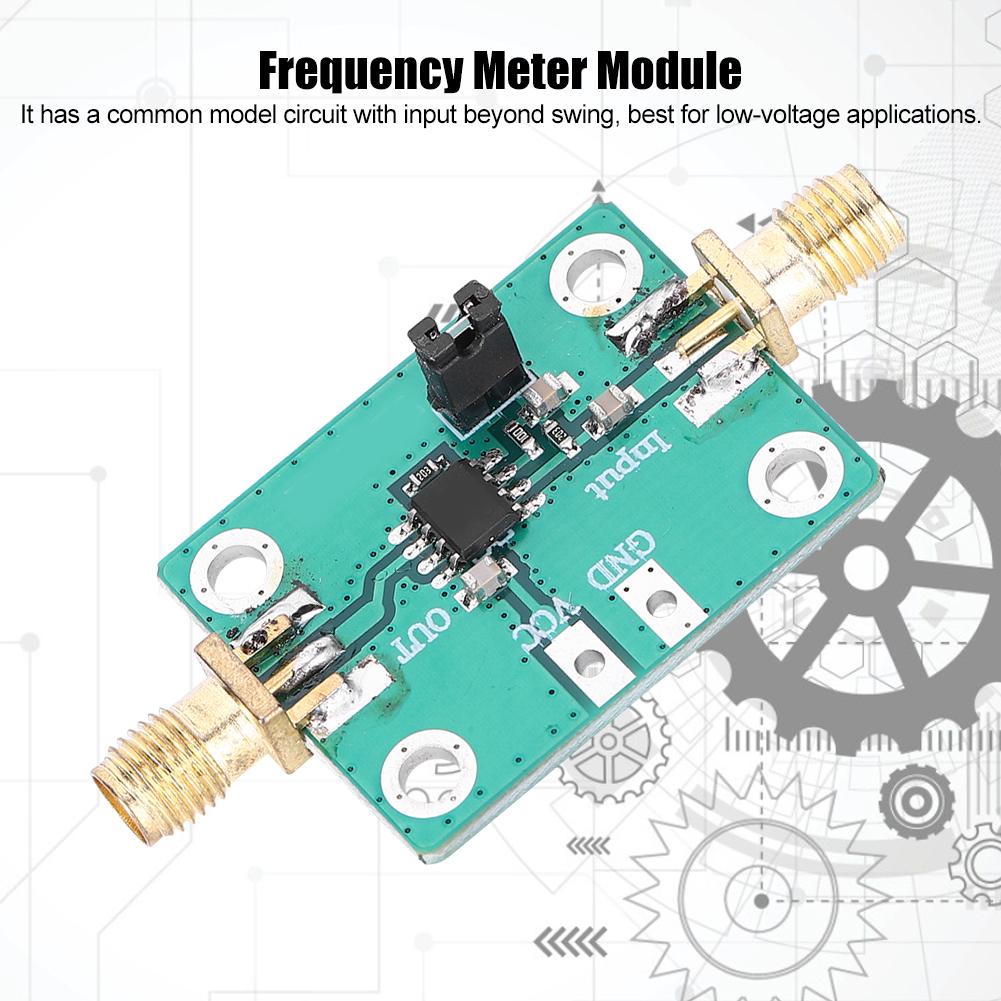

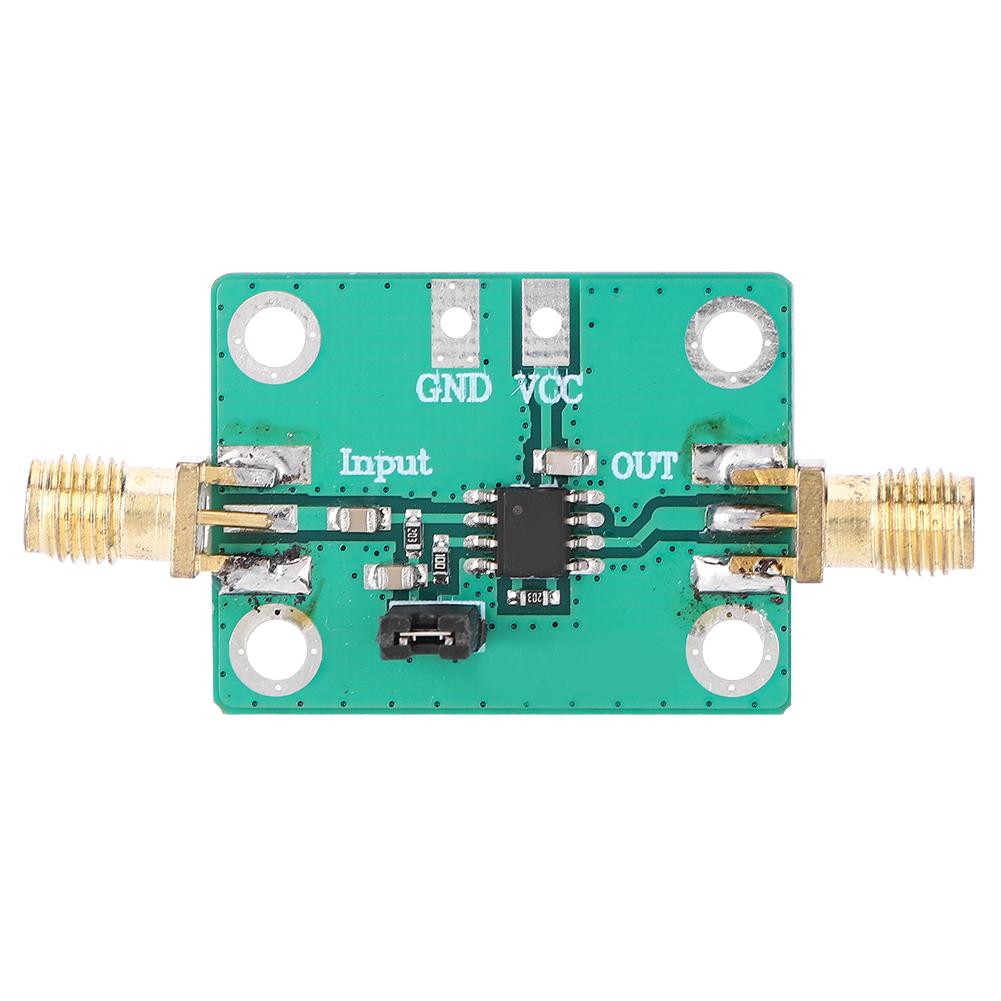

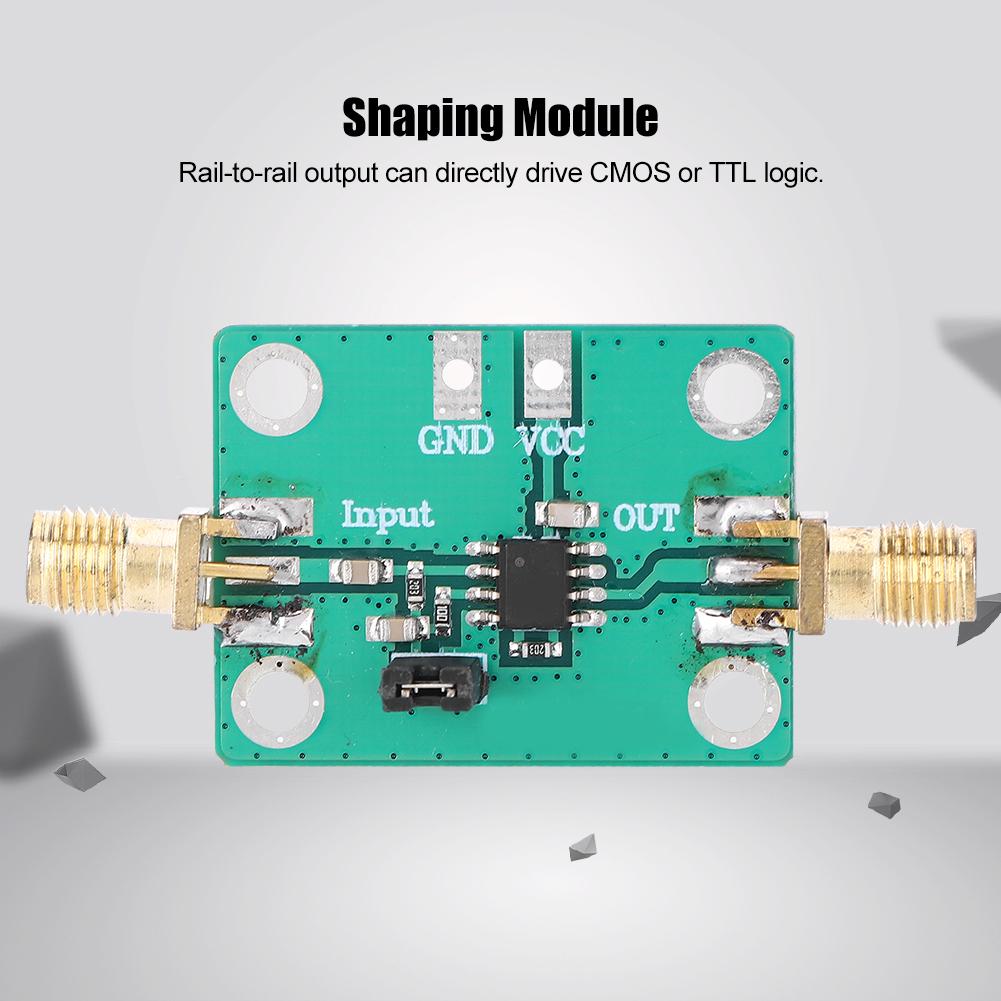

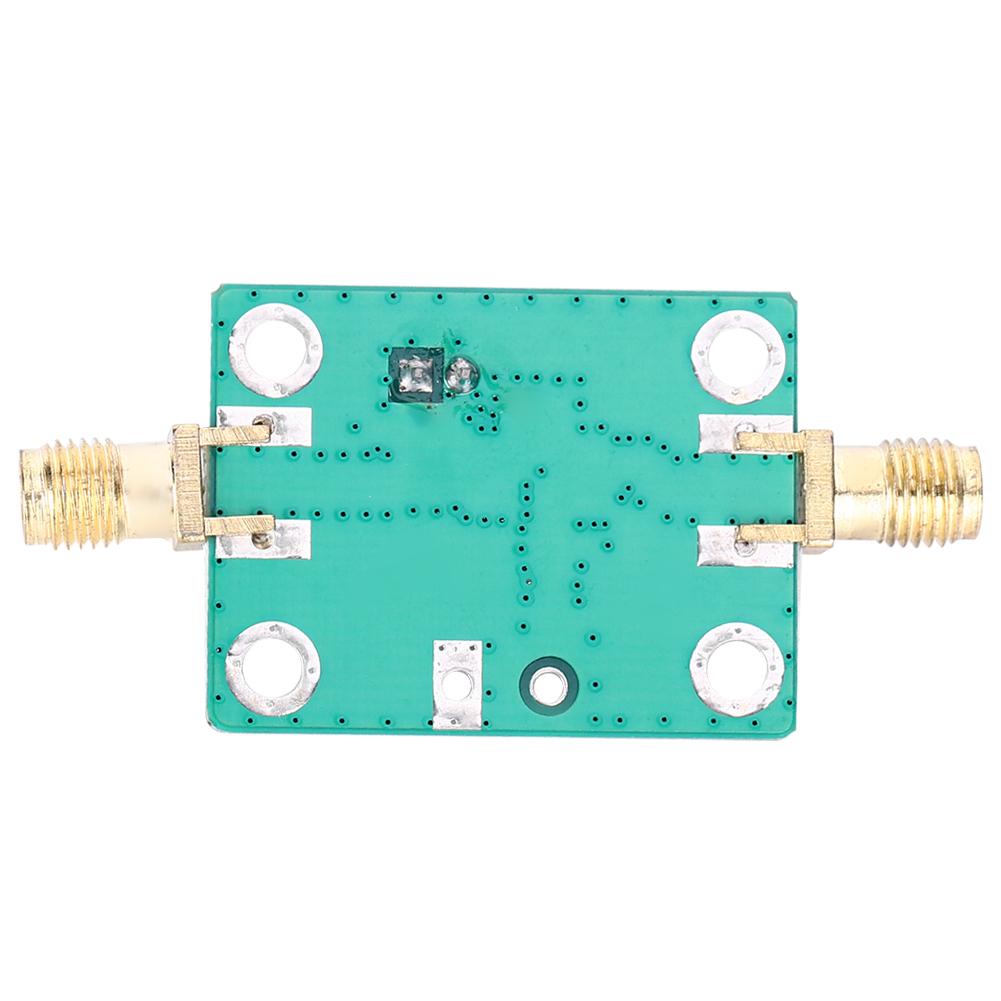

TLV3501 Single Channel High Speed Comparator Frequency Meter Front End Shaping Module

Feature: 1. The TLV3501 is a single channel high speed push pull output comparator with a delay time of 4.5ns and a supply voltage of 2.7V to 5V. 2. It has a common model circuit with input beyond swing, best for low voltage applications. 3. Rail to rail output can directly drive CMOS or TTL logic. 4. This module can shape the periodic signal of the wide voltage range, which is convenient to use without debugging. 5. The sine waves, square waves, and triangular waves can be shaped into square waves without threshold setting. 6. It has good scalability, and only a few originals need to be modified. Specification: Condition: 100percent Brand New Item Type: Frequency Meter Front End Shaping Module Material: Metal Delay Time: 4.5ns Power Supply Voltage: 2.7 5VDC Input Voltage: 8 1000mV (Effective Value) Output Level: Rail to rail output, can directly drive TTL CMOS level Input Frequency: 1Hz 120MHz, the minimum can up to 1Hz Interface Form: SMA Female Head (Male Screw Inner Hole) Input Impedance: 20K Ohm Product Use: 1. Sine Waves to Square Waves 2. Zeroing Crossing Comparator 3. Universal Comparator. Package List: 1 x Frequency Meter Front End Shaping Module
