Parking Sensors with Buzzer and LED Display, Black, with Connector

Parking sensors with buzzer and LED display, black, with connector

• The set consists of:

• ultrasonic sensors,

• digital display,

• control module

• and power cable.

The system detects the distance between the vehicle and an obstacle thanks to ultrasonic sensors installed in the bumper. The display shows the distance to the obstacle, a four-color indicator, and the sound frequency indicates the safety zone.

Detailed instructions inside the package.

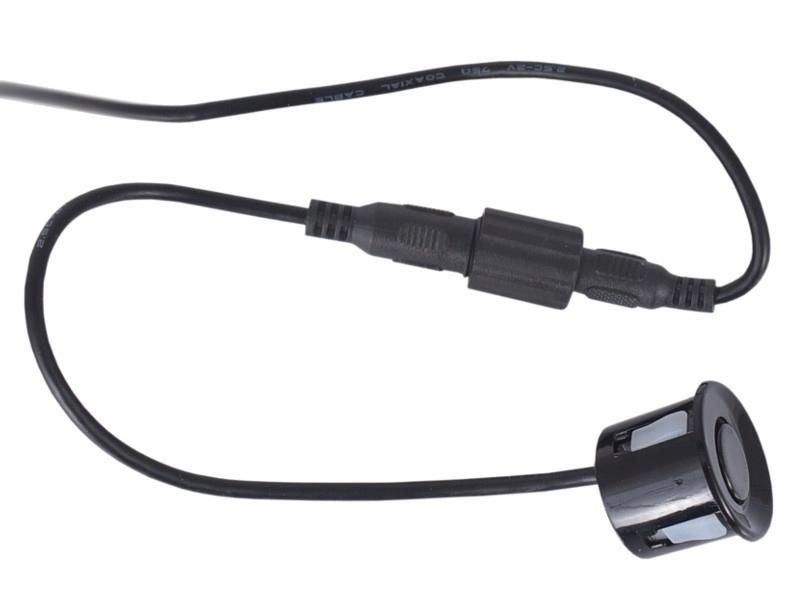

• • 4 x Sensors with a cable equipped with a 2-PIN plug. Cable length: ~ 2.5 m. Connector on cables

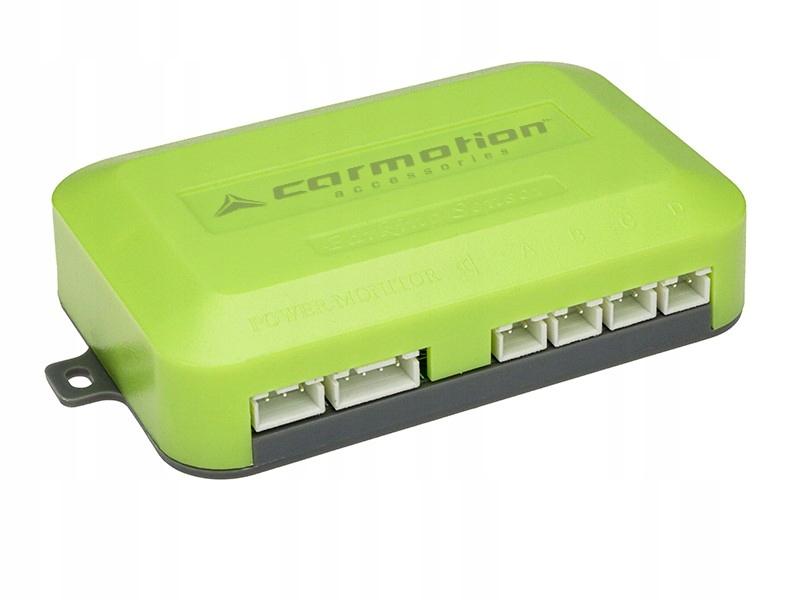

• • 1 x Control unit;

• • 1 x Power cable for control unit with 3-PIN plug. Cable length: ~ 1m;

• • 1 x double-sided adhesive tape for attaching the control unit;

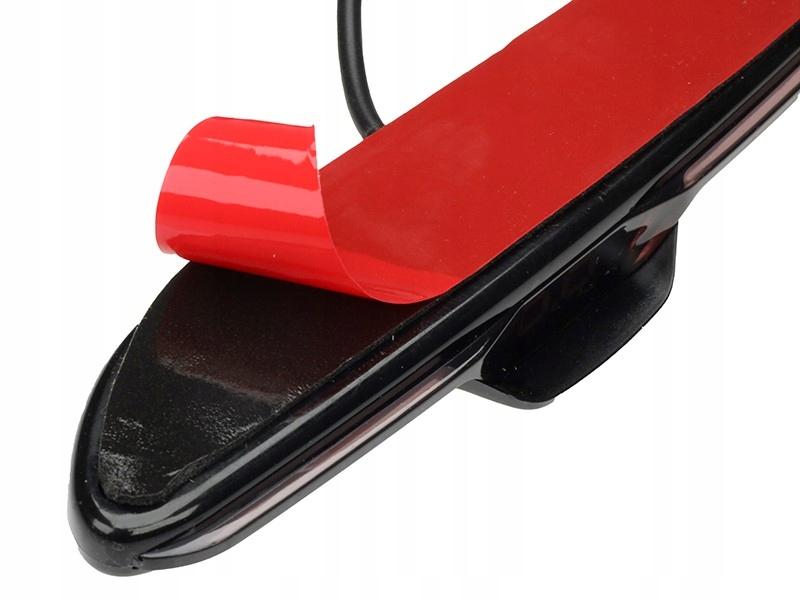

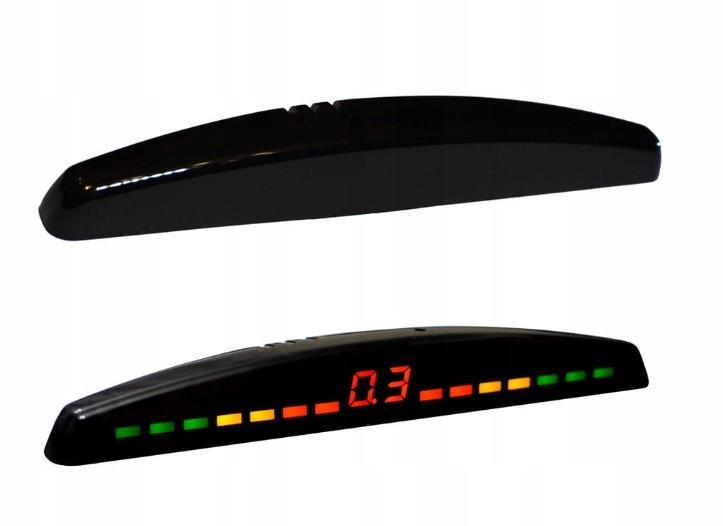

• • 1 x LED display with attached power cable (~ 5.6m) and double-sided adhesive tape for attaching it.

• • 1 x speaker with attached power cable (~ 5.6m)

• • 1 x Drill - Φ22.5mm

• • 1 x User Manual

Sensors detach on cables for easy installation

• Rated voltage: 12V

• Operating voltage range: 10.5 ~ 16V

• Rated current: 20mA ~ 200mA

• Detection distance: 0 - 2.5 m

• Ultrasonic frequency: 40kHz

• Control unit operating temperature: -30 ~ +80˚C

• Display operating temperature: -20 ~ +60˚C

• Speaker operating temperature: -30 ~ +80˚C

• Sensor detection angle: 90°

• Sensor response time: 300ms

• Sensor diameter: Φ22.5mm

• Audible alarm after detecting an obstacle within the distance range: 0.1m ~ 1.5m

• Audible alarm volume: 73 dB

• Maximum power consumption: 3.6W

• Current consumption: 50 ~ 180mA

• Display dimensions: Width x Depth x Height = 13.5cm x 1.7cm x 2.0cm

• Control unit dimensions: Width x Depth x Height = 9.0cm x 6.0cm x 2.2cm
