Features:
UT205A+ Multifunctional Clamp Meter: the auto range tester is used to measure AC/DC voltage, AC current, resistance, capacitance, frequency, diode and continuity.

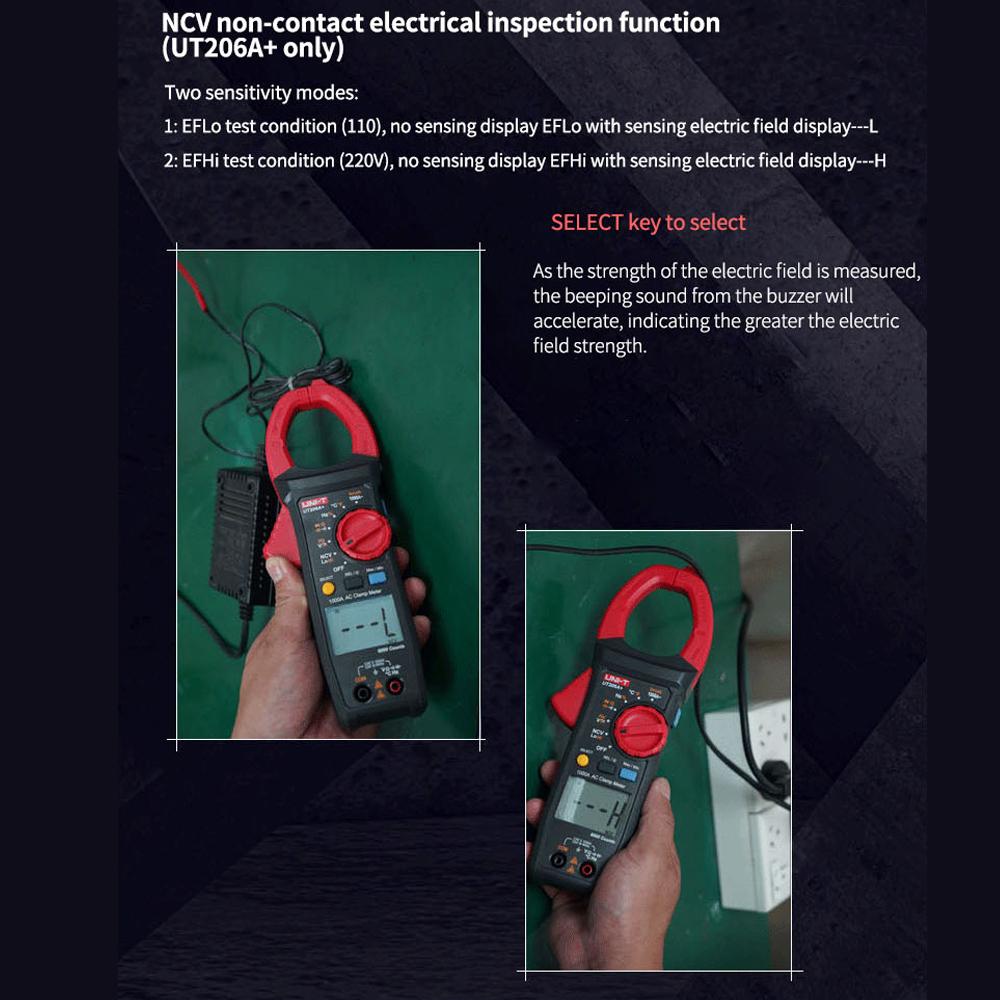

UT206A+ Multifunctional Clamp Meter: the auto range tester is used to measure AC/DC voltage, AC current, inrush current, resistance, capacitance, frequency, diode and continuity, and it also can measure temperature and has NCV non-contact measurement function.
-40~1000℃(-40~1832℉) Wide Range Temperature Measuring(UT206A+ Only): it can be applied to the temperature test of HVAC, monitor the operation status of temperature sensing, eliminate system faults in time, and provide accurate temperature measurement services for professional technicians engaged in HVAC and refrigeration maintenance industry.

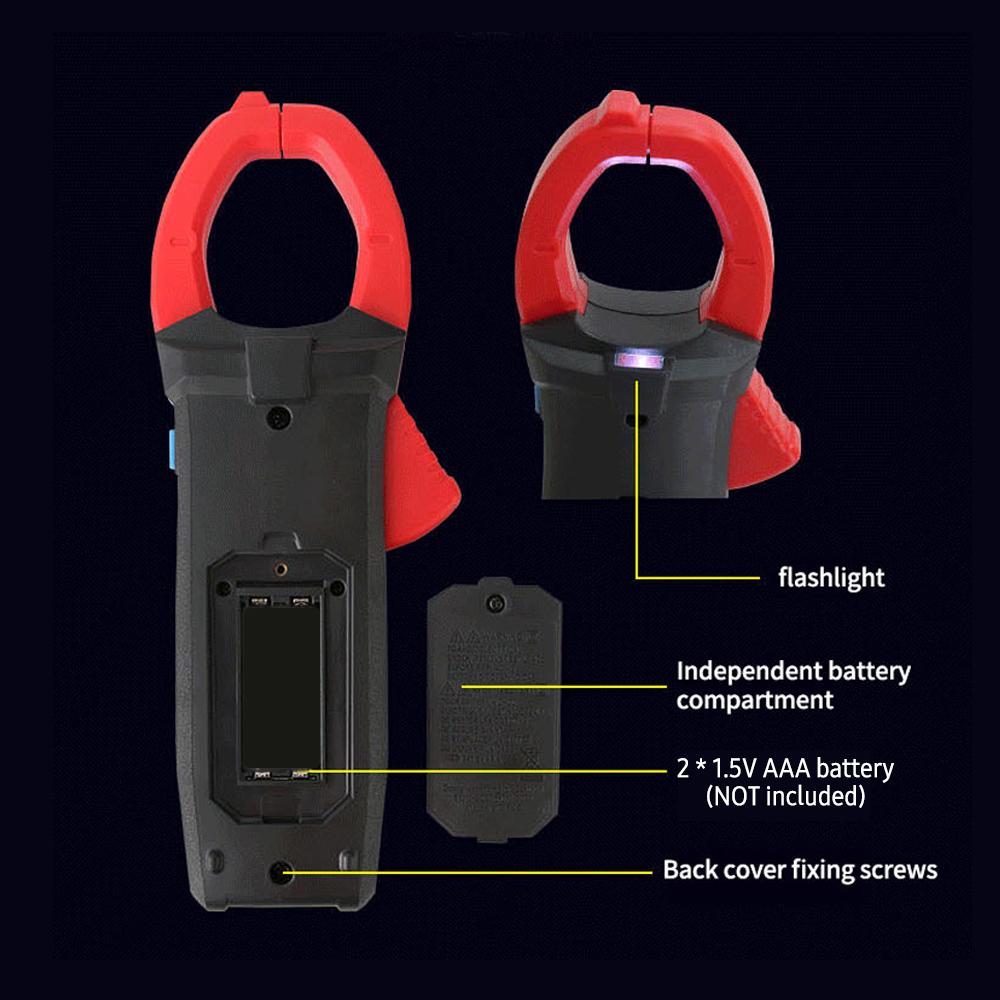

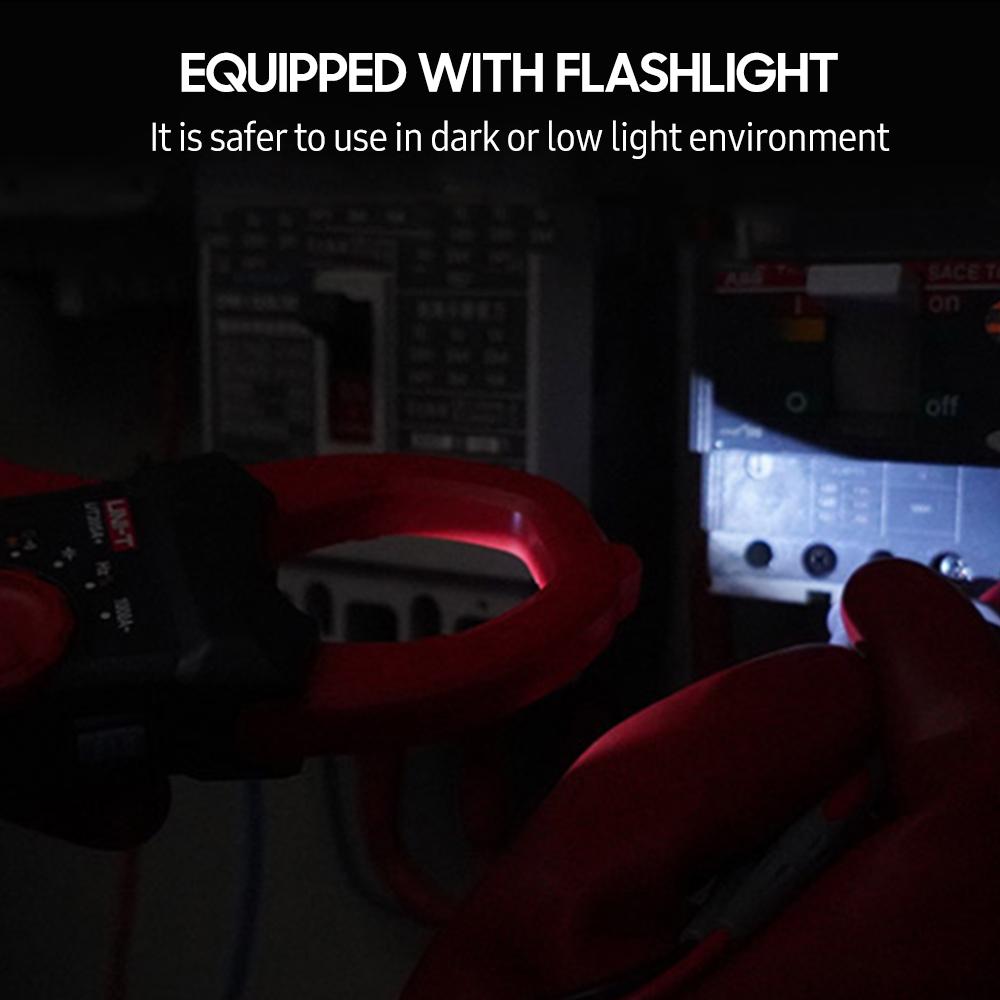

LED Flashlight & Backlight: the measurement to be performed easily and safety in the dark.

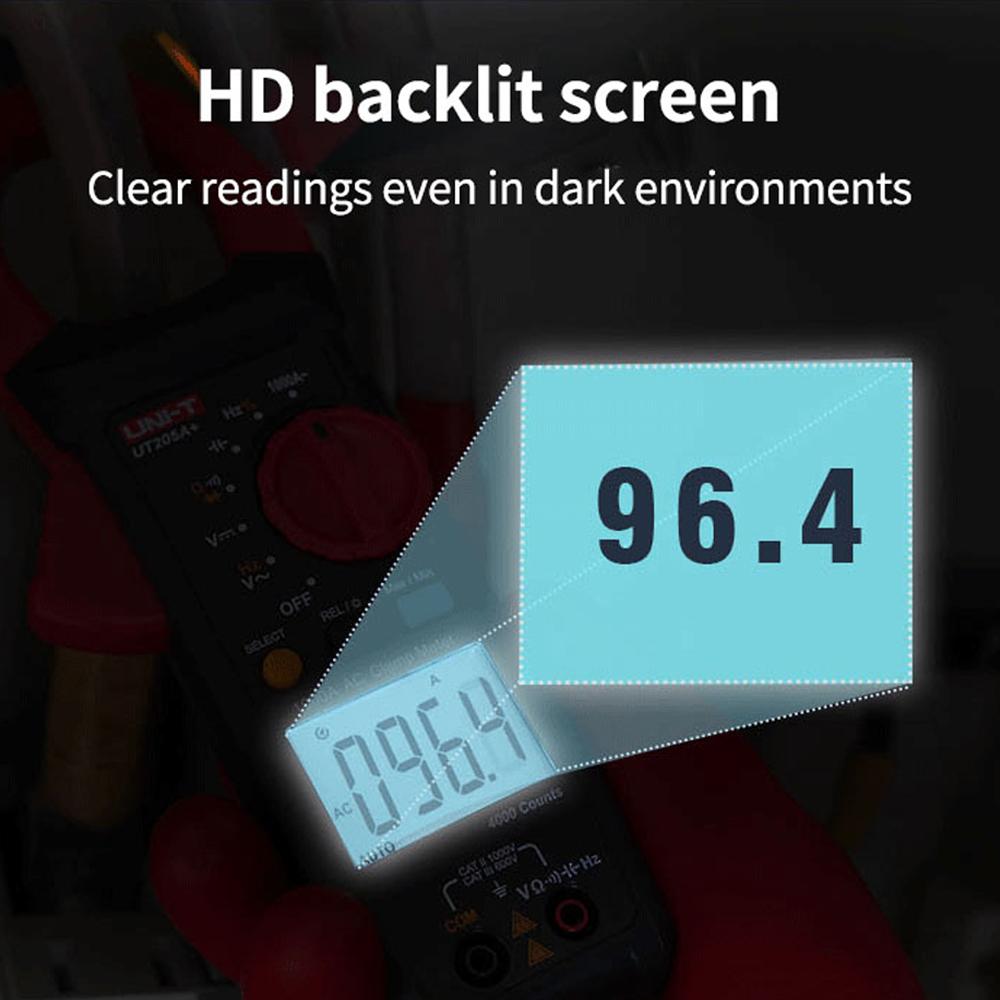

Data Hold & LCD Screen: 1.9-inch LCD displays data clearly and the measured data can be held for conveniently checking or writing it down.w

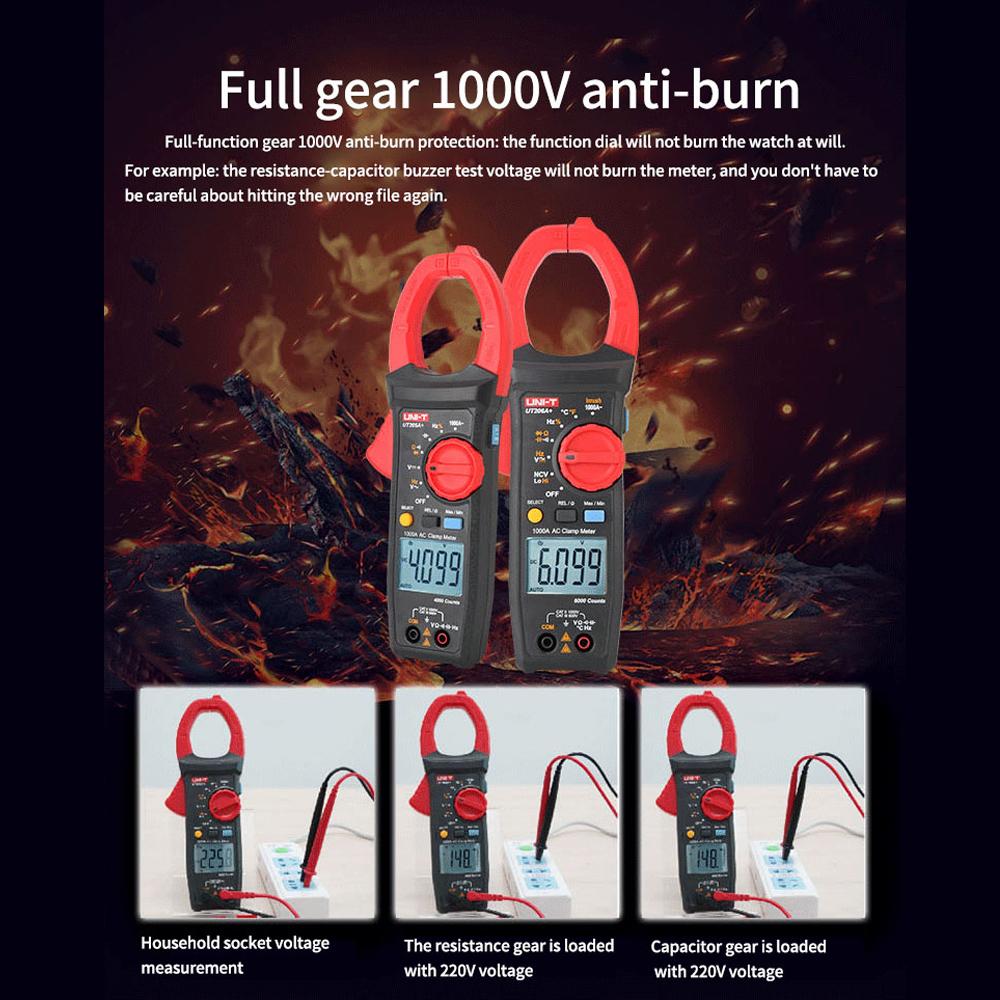

Safety Operation: full function gear 1000V anti burning protection to prevent the meter from burning, it allows you to turn the function dial at will.
Power Supply: powered by 2*1.5V AAA battery (NOT included) and has low battery indication and 15 minutes auto-off function, convenient to operate.
Reliable & Functional: the handheld digital clamp meter features of stable performance, high reliability, and high safety, which is suitable for electrical equipment testing and maintenance.

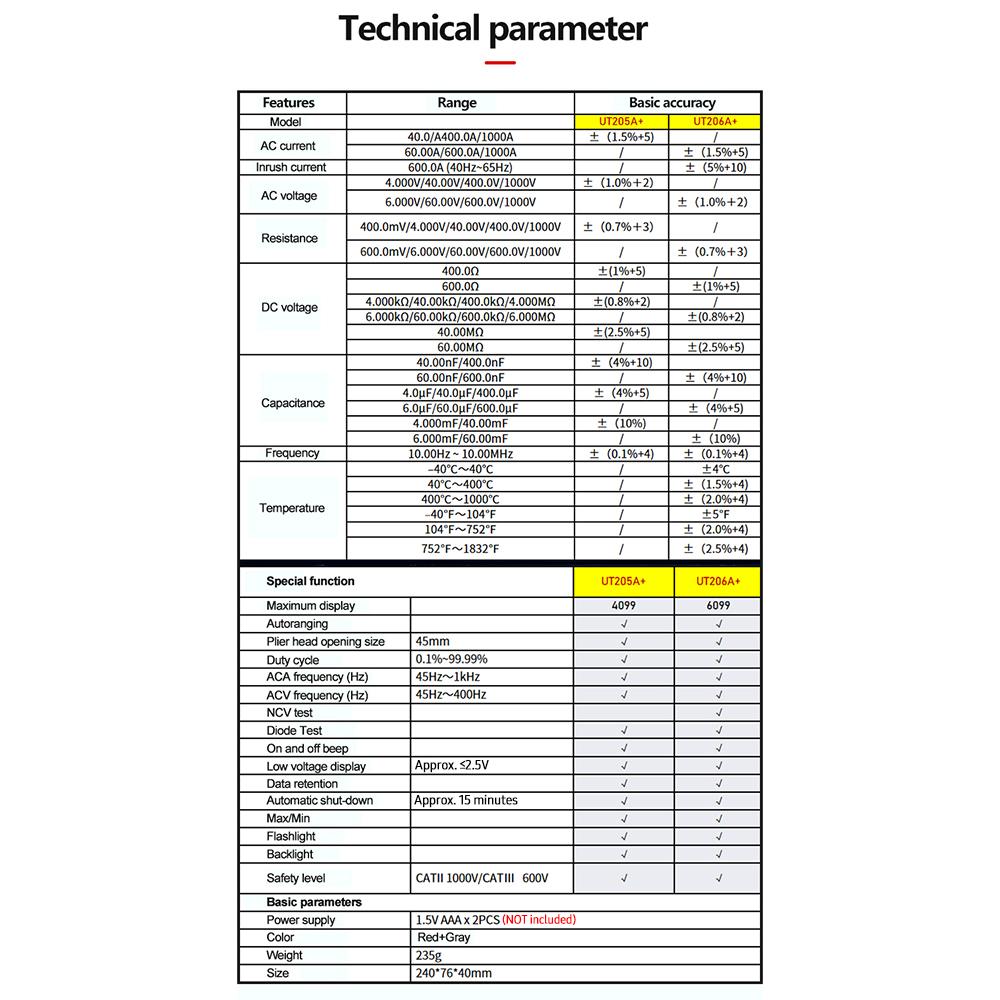

Specifications:

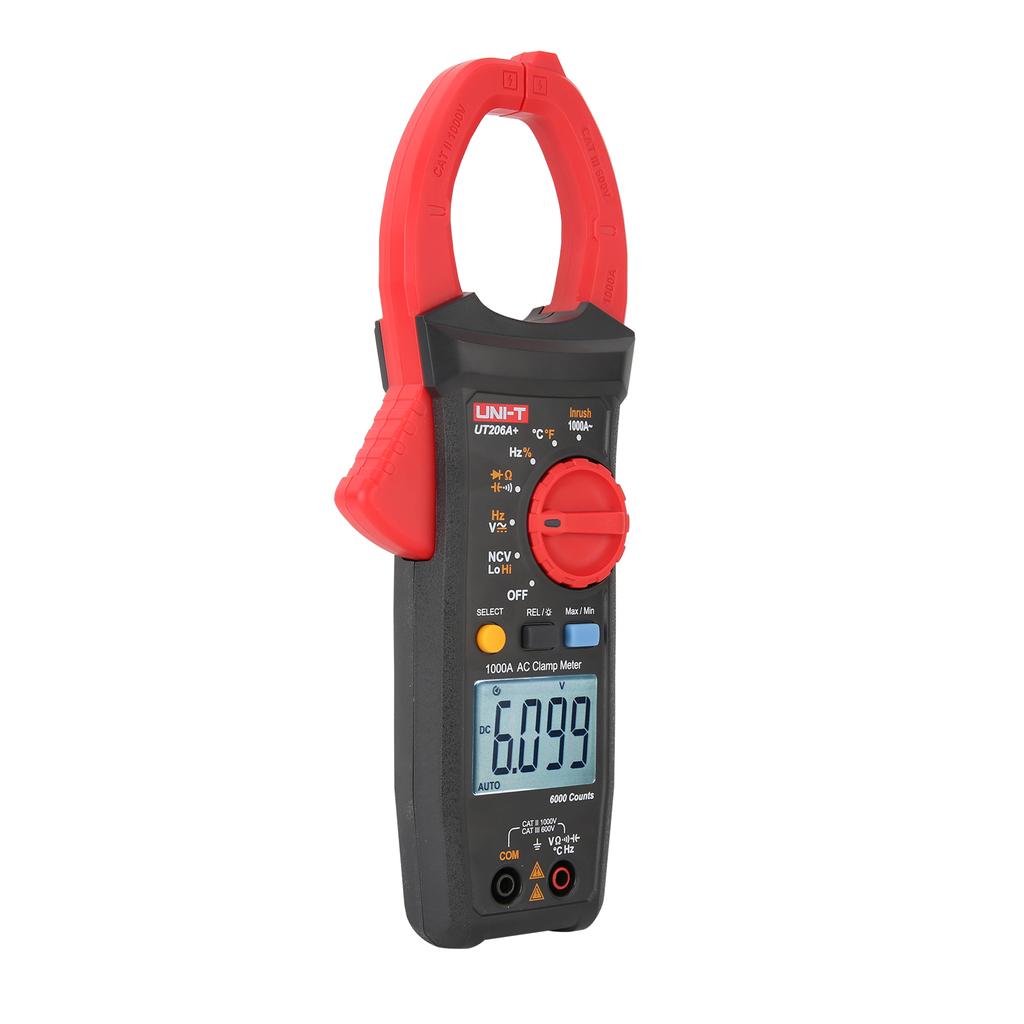

Model: UT205A+ / UT206A+ (Optional)
【UT205A+】:
DC Voltage: 400mV/4V/40V/400V/1000V
AC Voltage: 4V/40V/400V/1000V

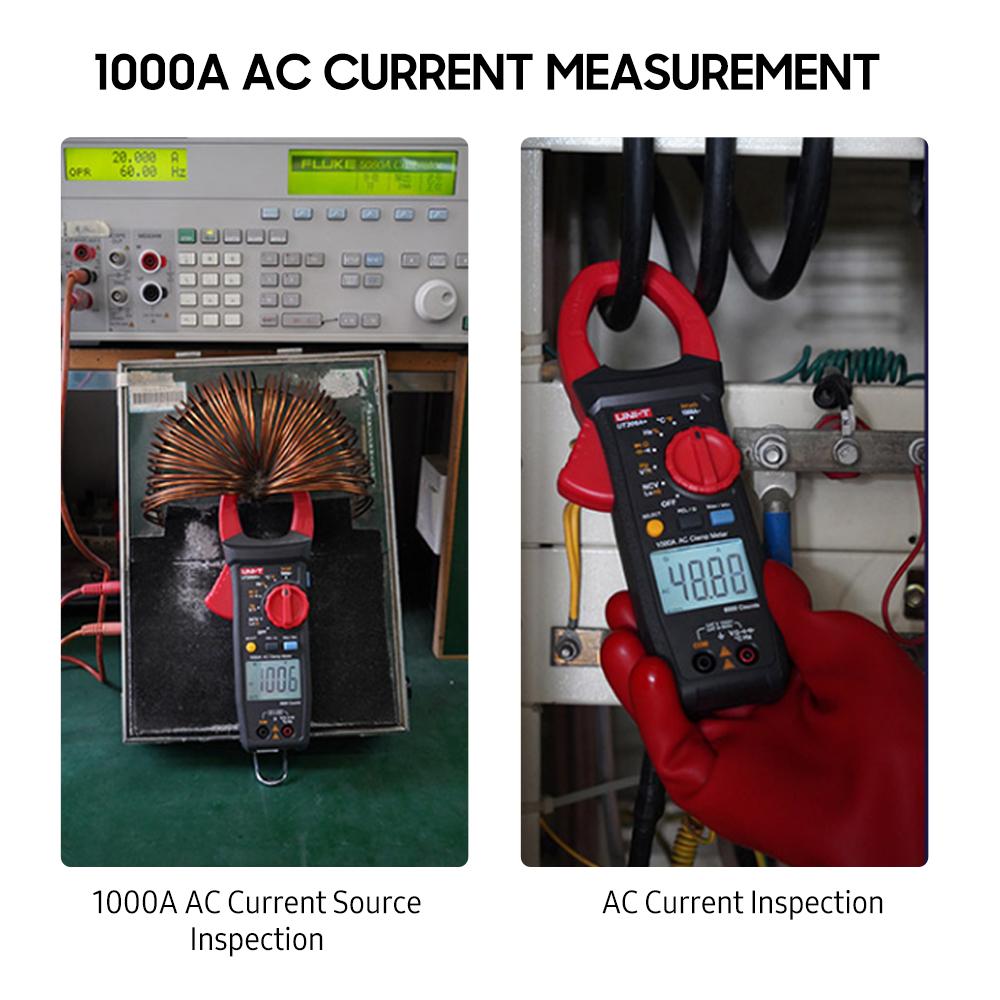

AC Current: 40A/400A/1000A
Inrush Current: No
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Frequency: 10Hz~10MHz
Capacitance: 40nF, 400nF~400uF, >4mF~40mF
Duty Cycle: 0.1~99.9%
Max. Display: 4099 counts
NCV Test: No
Temperature: No

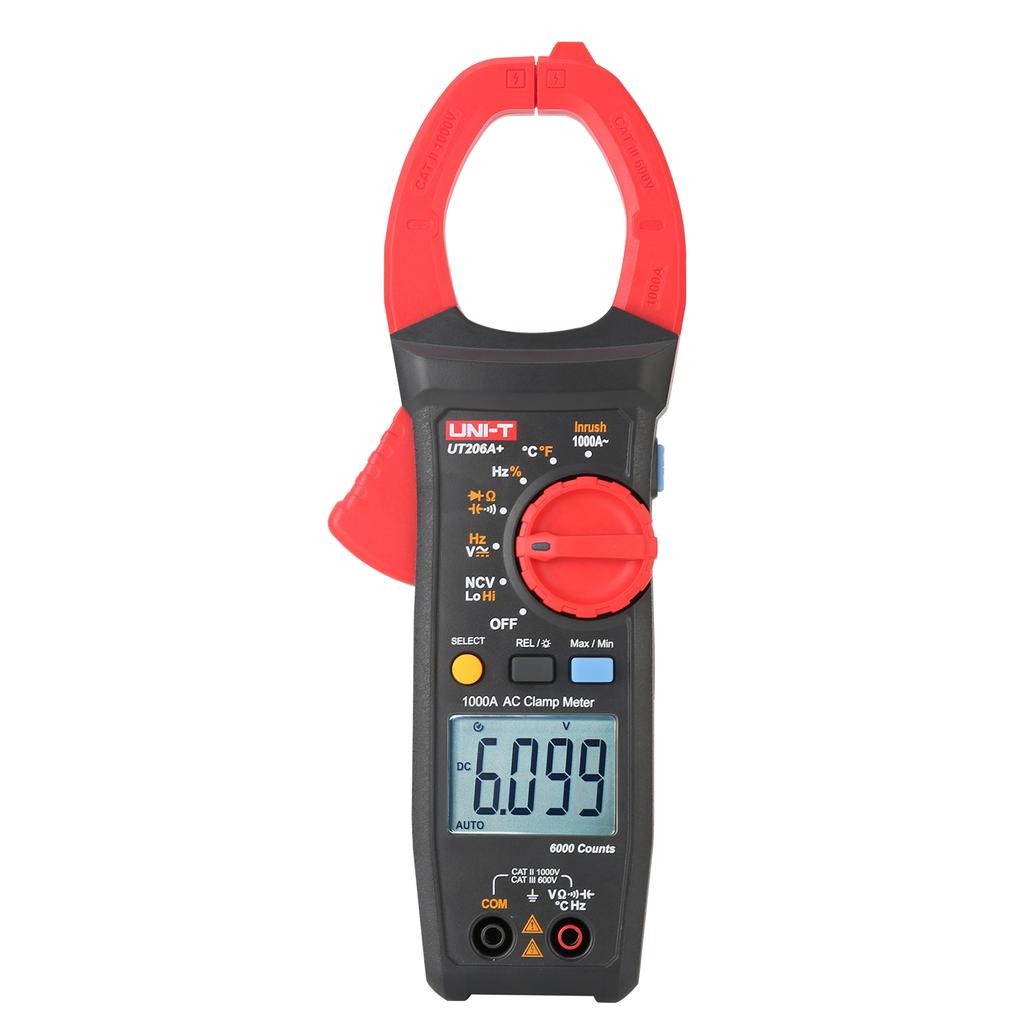

【UT206A+】:
DC Voltage: 600mV/6V/60V/600V/1000V
AC Voltage: 6V/60V/600V/1000V
AC Current: 60A/600A/1000A
Inrush Current: 600A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency: 10Hz~10MHz
Capacitance: 60nF, 600nF~600uF, >6mF~600mF
Duty Cycle: 0.1~99.9%
Max. Display: 6099 counts
NCV Test: Yes
Temperature: -40~1000℃ / -40~1832℉
Material: ABS
Safety Level: CAT II 1000V/CAT III 600V
Auto Range: Yes
Diode Test: Yes
Continuity Test: Yes
MAX/MIN Test: Yes
Data Hold: Yes
Flashlight: Yes
Low Voltage Display: Yes
Auto-off: 15 minutes
Power Supply: 2 * 1.5V AAA battery (NOT included)
Clamp Opening: 45mm / 1.77in
Item Size: 242 * 76.5 * 40mm / 9.53 * 3.01 * 1.57in
Item Weight: 216g / 7.62oz
Package Weight: 374g / 13.22oz, 388g / 13.70oz
Package Size: 25 * 10 * 5.5cm / 9.84 * 3.94 * 2.17in

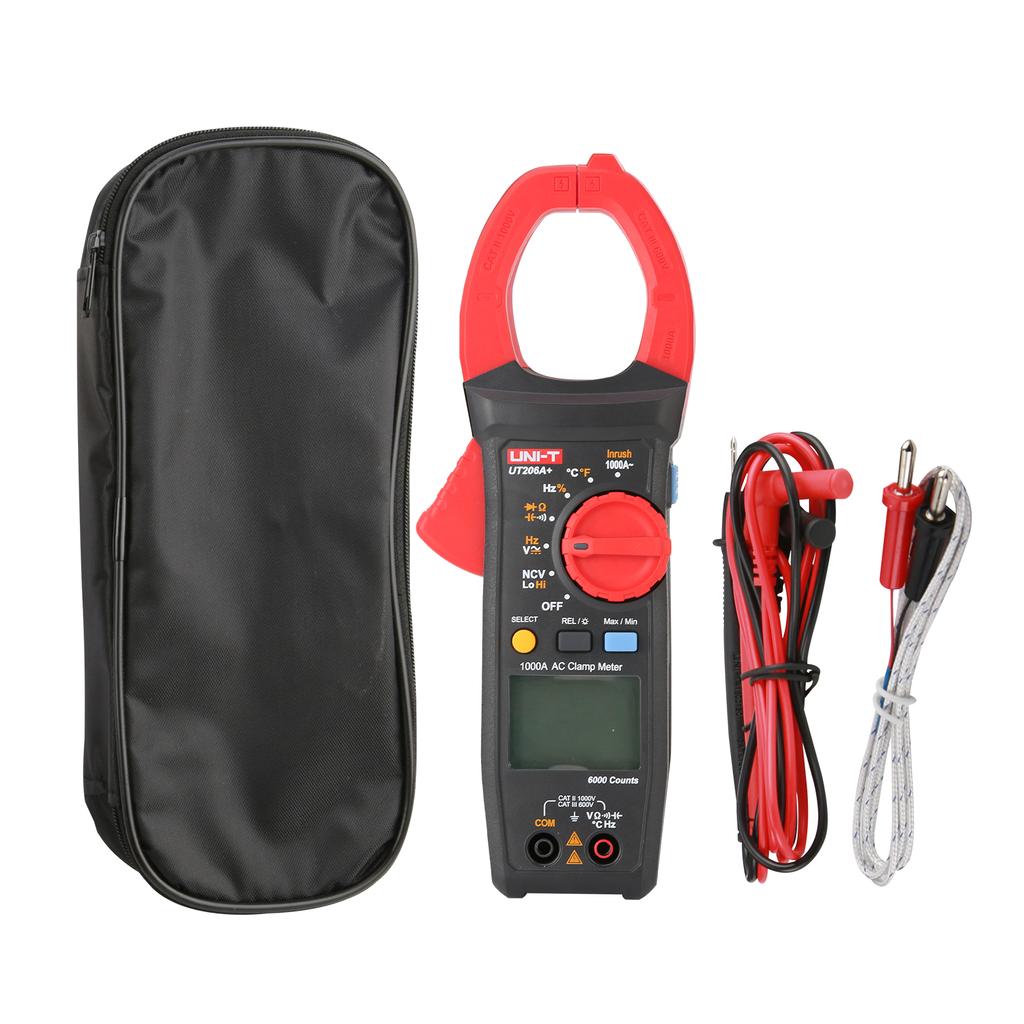

Packing List:
1 * Clamp Meter
1 * Test Lead
1 * Thermocouple Sensor (UT206A+)
1 * Storage Bag
1 * Manual (English)
