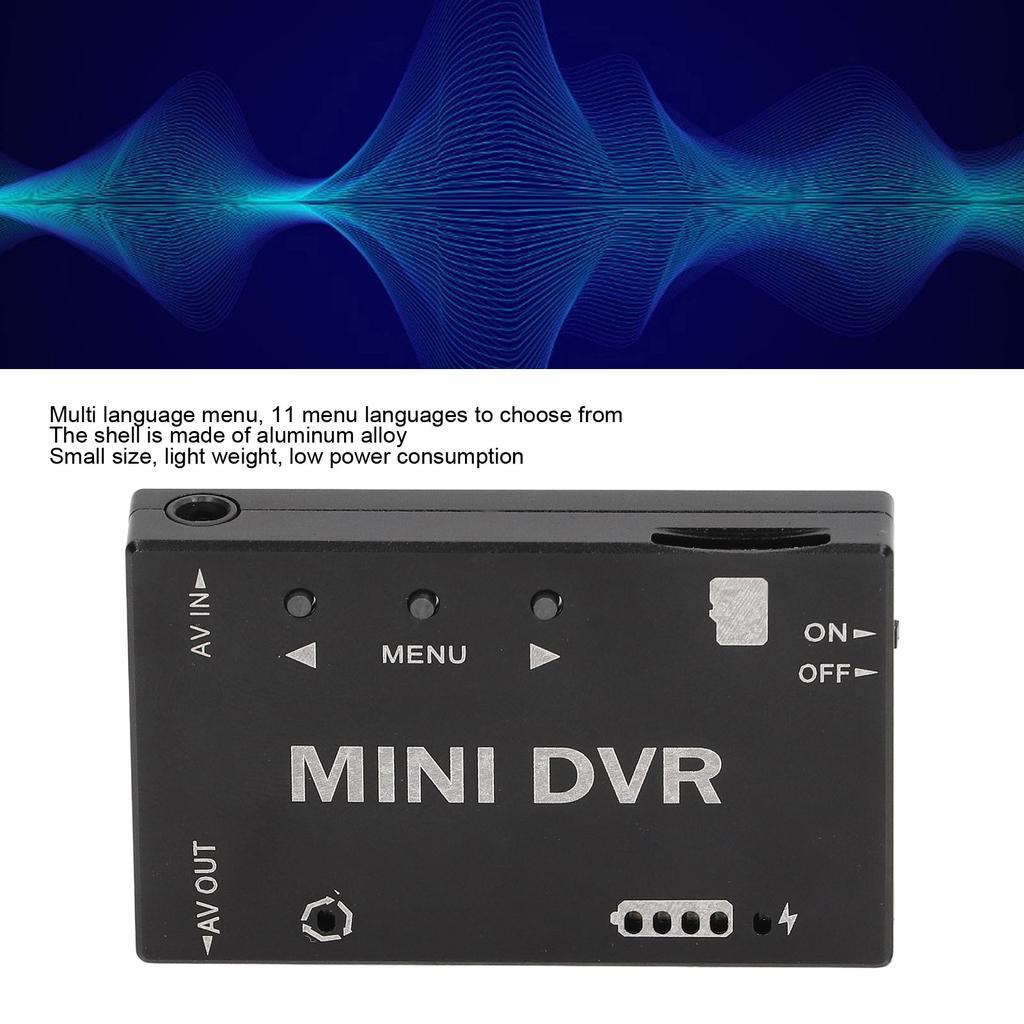

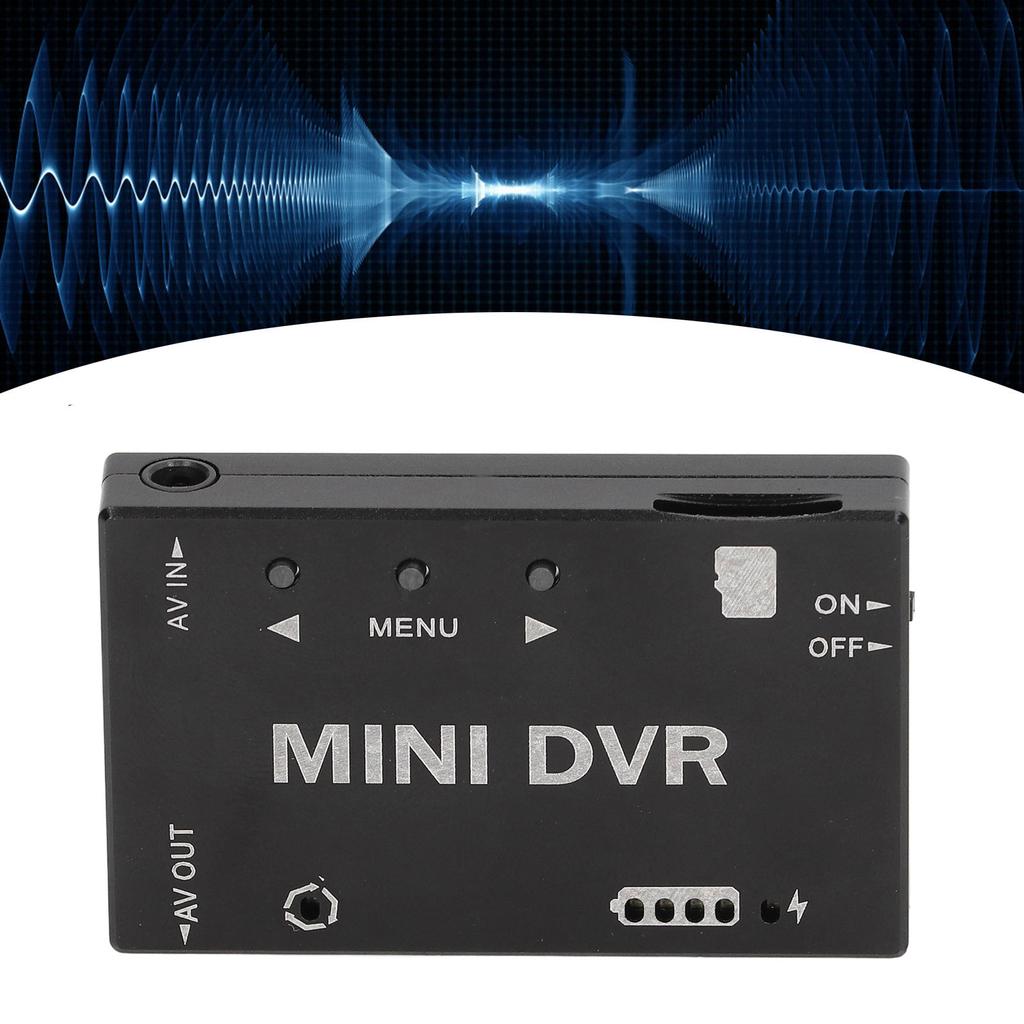

Mini FPV DVR Module NTSC PAL Switchable Built in Battery Video Audio FPV Recorder for RC Models

The shell is made of aluminum alloy material, with small size, light weight, low power consumption, and a working current of 200 milliamperes Supports 32GB TF card (recommended level 10) with built-in 3.7V 400 mAh lithium-ion polymer battery Multilingual menu, 11 menu language options, universal USB charging interface, high-precision 4-level battery level indication CVBS signal input (built-in video decoder), supporting playback and AV signal output (built-in video encoder) Product parameters Condition: 100% brand new Product Name: Mini FPV DVR Material: aluminum alloy+electronic components Color: Black System startup time: 3 seconds Video input format: NTSC/PAL Video input impedance: 75 Ω Typ Video compression format: MJPEG Recording file resolution: VGA (640 * 480)/D1 (720 * 480)/HD (1280 * 720) optional Recording file format: AVI Recording sound: ON/OFF optional Cycle recording time: 10min/20min/30min optional Frame rate: 30 frames Memory card: TF card supports up to 32GB (C10 recommended) (purchased separately) Optical frequency: 50Hz/60Hz optional Video playback: CVBS output (connected to monitor) Audio input interface: 3.5mm AV jack Audio output interface: 3.5mm AV jack Charging interface: Micro USB interface Charging voltage: 5V DC Charging current: 500mA Max Battery (non detachable): 3.7V 400 mAh lithium-ion polymer battery (built-in) Battery life: 1.5 to 2 hours of working time per working load. Working temperature: -10~60 ° C Working humidity: 85% RH Product size: 53 * 33 * 9mm Menu language: 11 language choices Menu languages: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean. Suitable for RC model racing FPV drones Operating instructions Packaging List 1 * Mini FPV DVR 2 * Single ended AV cable 1 * Storage box 1 * Velcro 1 * Instructions matters needing attention 1. Manual measurement, please allow 1-3mm error. Thank you! 2. Due to the differences between different monitors, the images may not reflect the actual color of the item. 3. (Can be used with FPV glasses or screens without DVR function) 4 Please read the complete user manual before operation to familiarize yourself with the product's functions. 5. Please avoid damp or humid environments. 6. Please use a standard USB charger, the charging voltage can only be 5V. 7. The hard disk recorder has a built-in battery, please do not store it in a hot and humid environment.
