About this item:
1.The product is made of PBT anti flame retardant, high and low temperature environmentally friendly material, which fully meets the conditions that the fuse holder must have good mechanical strength, insulation, heat resistance, and flame retardancy, and should not produce phenomena such as breakage, deformation, combustion, and short circuit during use
2.Product 1 has a 10 in 10 out design, which allows for direct connection of one wire to the positive pole of the battery and one wire to the fuse box. The fuse box then separates 10 terminals to connect different positive poles of electrical appliances, making it very simple and convenient

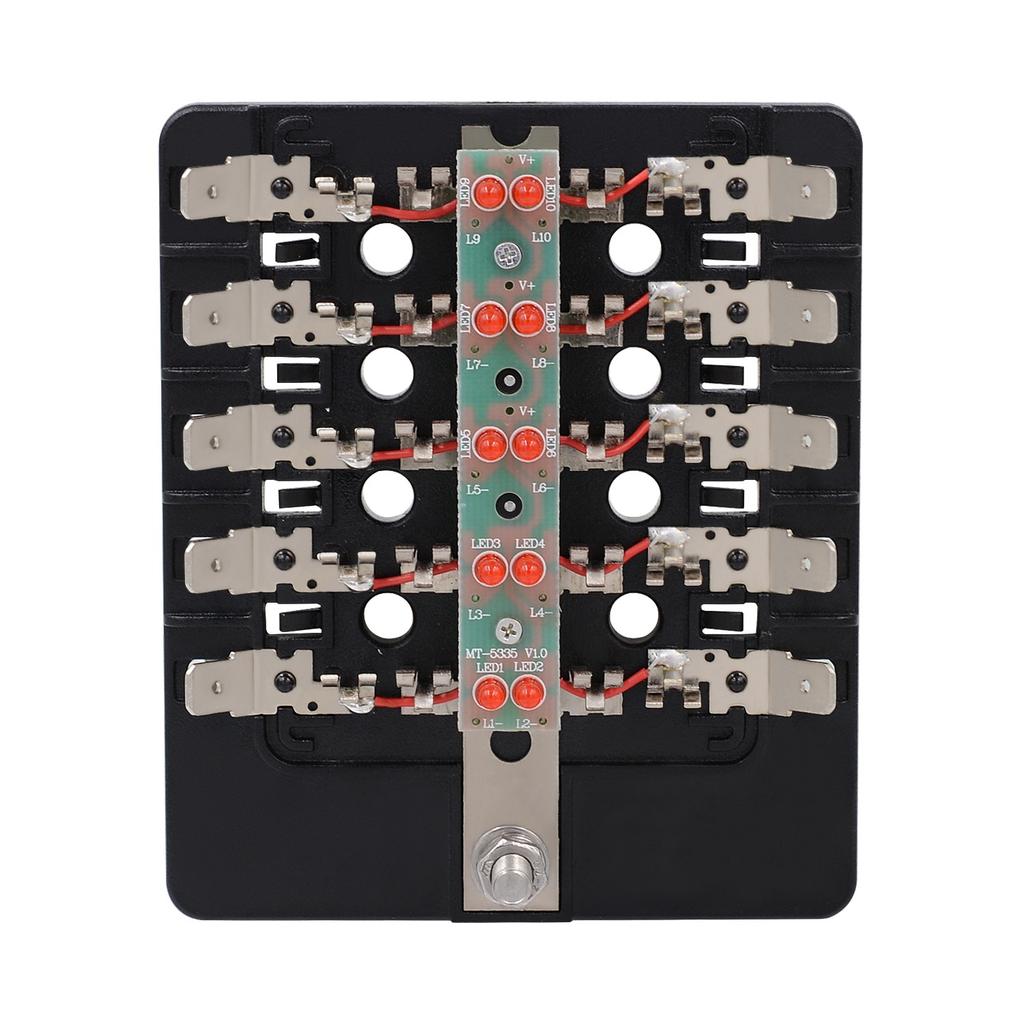

3.The product is designed with a red LED indicator light, corresponding to the electrical appliances connected to each fuse chip. When the fuse is disconnected, the red light will light up, which can immediately tell which fuse is broken, making it convenient to handle in a timely manner

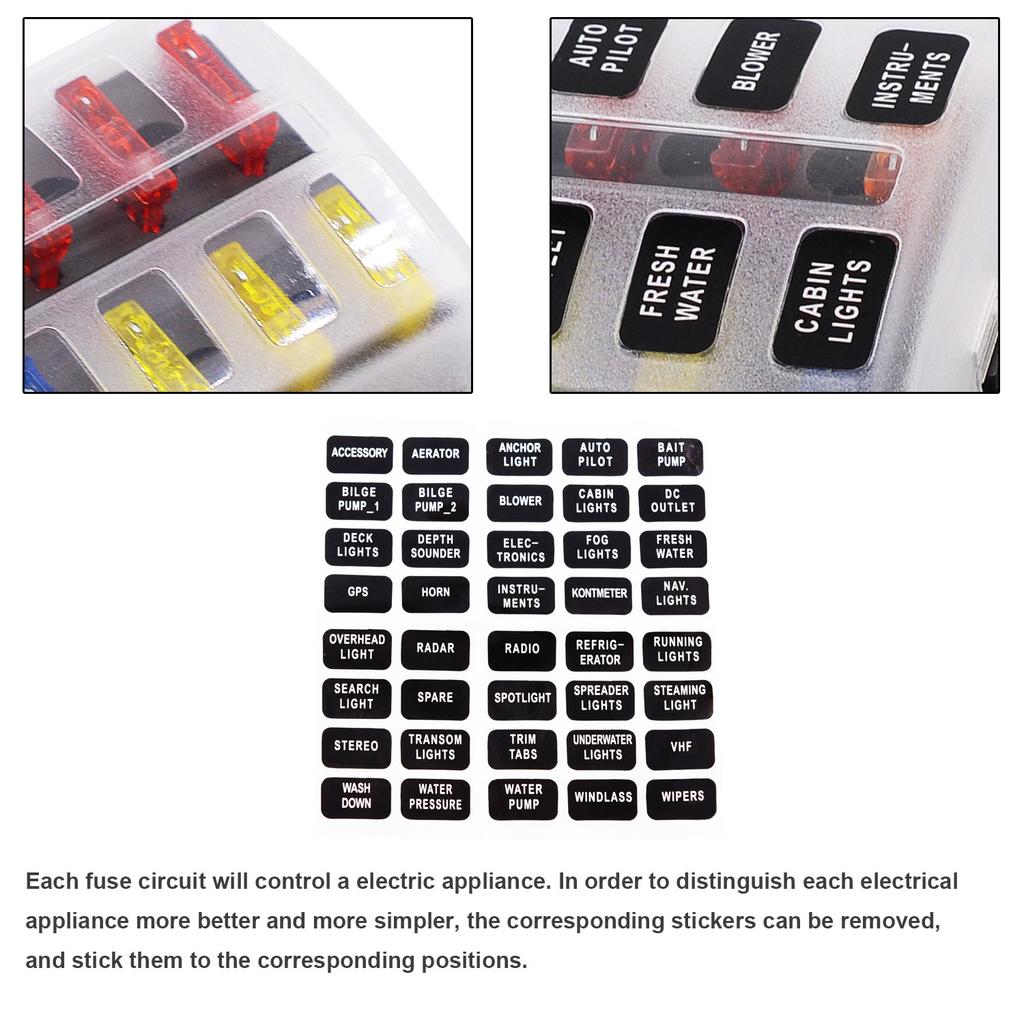

4.The product comes with a sticker, which can be attached to the electrical appliance we are connected to according to the name on the sticker. When the fuse breaks and the red light lights up, we can immediately distinguish which electrical appliance has a problem, saving time and effort
5.The product comes with double fuses for delivery. If the fuse burns out during use, it can be replaced immediately from the backup fuse. Additionally, multiple fuses are provided, and the fuse for each fuse can be selected based on the current appliance
Specifications:

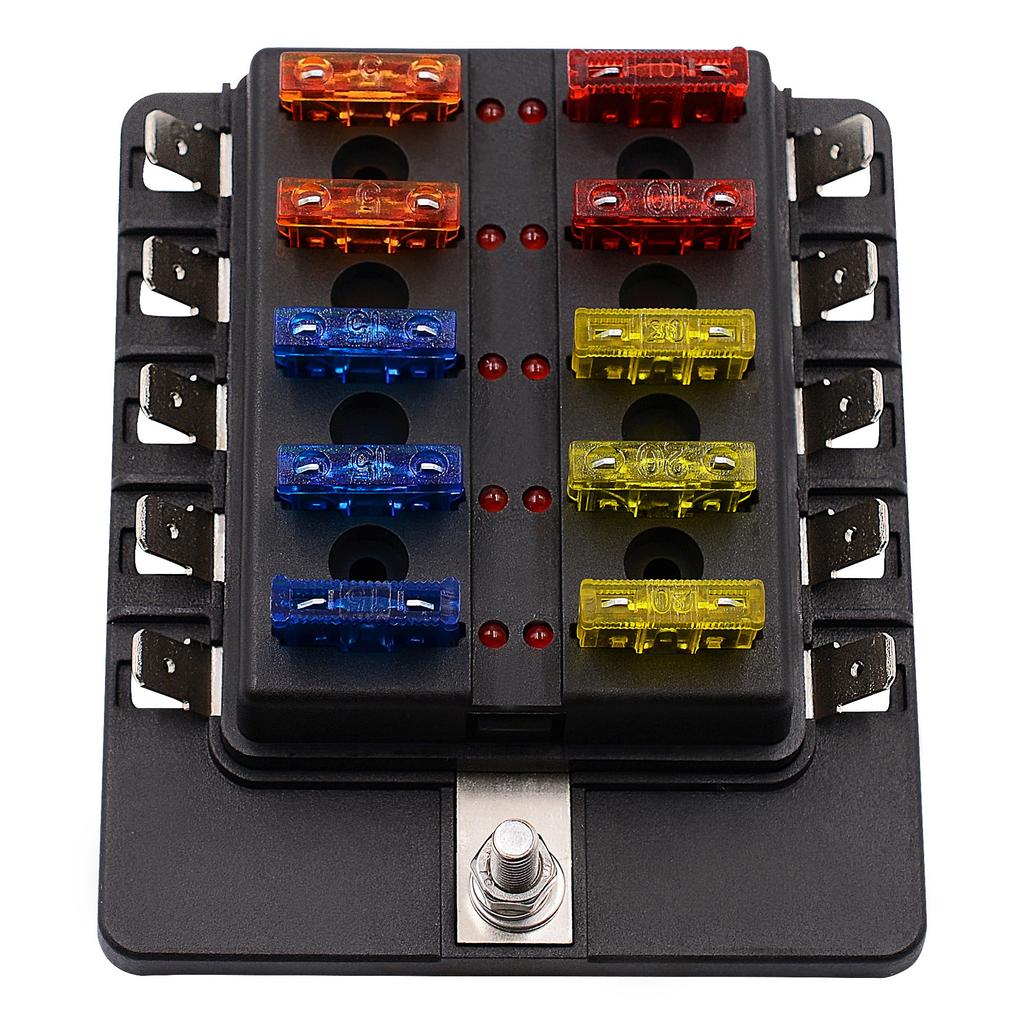

Product Name: 1 in 10 out fuse boxes with LED indicator light [PC wiring terminal model]
Product Model: CS-579B3
Net weight of product: 136g
Product gross weight: 141g
Product size: 10X8.5X3.5cm
Product Material: PBT body, PC waterproof and dustproof cover, nickel plated copper connection terminal, PPX40 sticker
Rated input voltage: 32V
Rated input current: 100A
Input wire specification: # 4-6 AWG
Maximum output current: 30A per circuit
Output wire specification: # 12-16 AWG
Indicator light color: Red
Function of indicator light: When the red LED light is on, it indicates that the fuse has been disconnected and needs to be replaced in time to continue running
Product installation scope: Can be installed on small cars, villas, RVs, buses, yachts, boats, etc
Product scope of use: It can be directly connected to any electrical circuit on the car/ship, such as roof lights, headlights, vision lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
The function of a fuse: When a circuit malfunctions or is abnormal, the current continuously increases, and the increased current may damage some important or valuable components in the circuit, burn the circuit, or even cause a fire. Fuses protect electronic devices from damage caused by overcurrent and can also prevent serious injuries caused by internal faults in electronic devices. Therefore, each fuse has a rated specification, and when the current exceeds the rated specification, the fuse will melt. If the fuse is correctly installed in the circuit, it will automatically melt and cut off the current when the current rises abnormally to a certain height and temperature, thus protecting the safe operation of the circuit.
Product accessories: sticker X1; Self tapping screw X4; X6 20A fuses; 15A fuses X6 pieces; Four 10A fuses; 4 5A fuses
