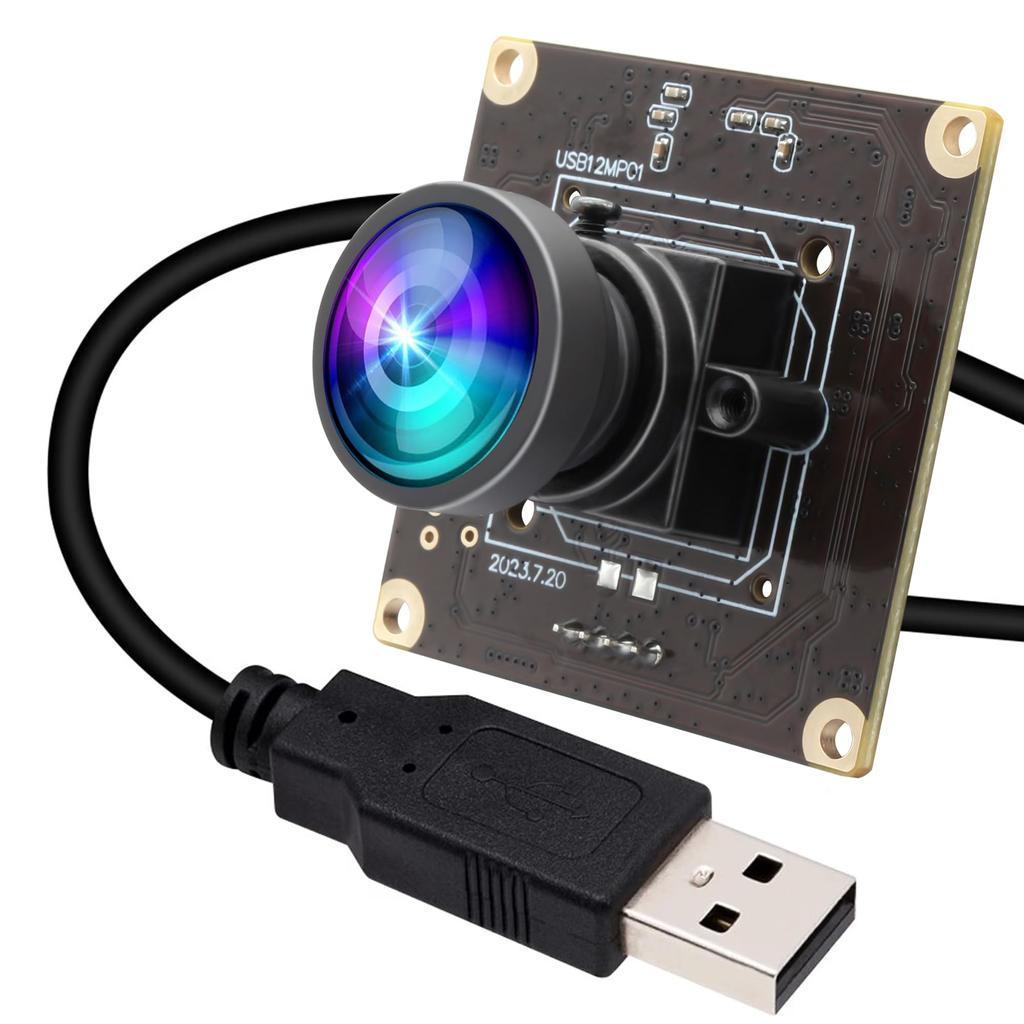

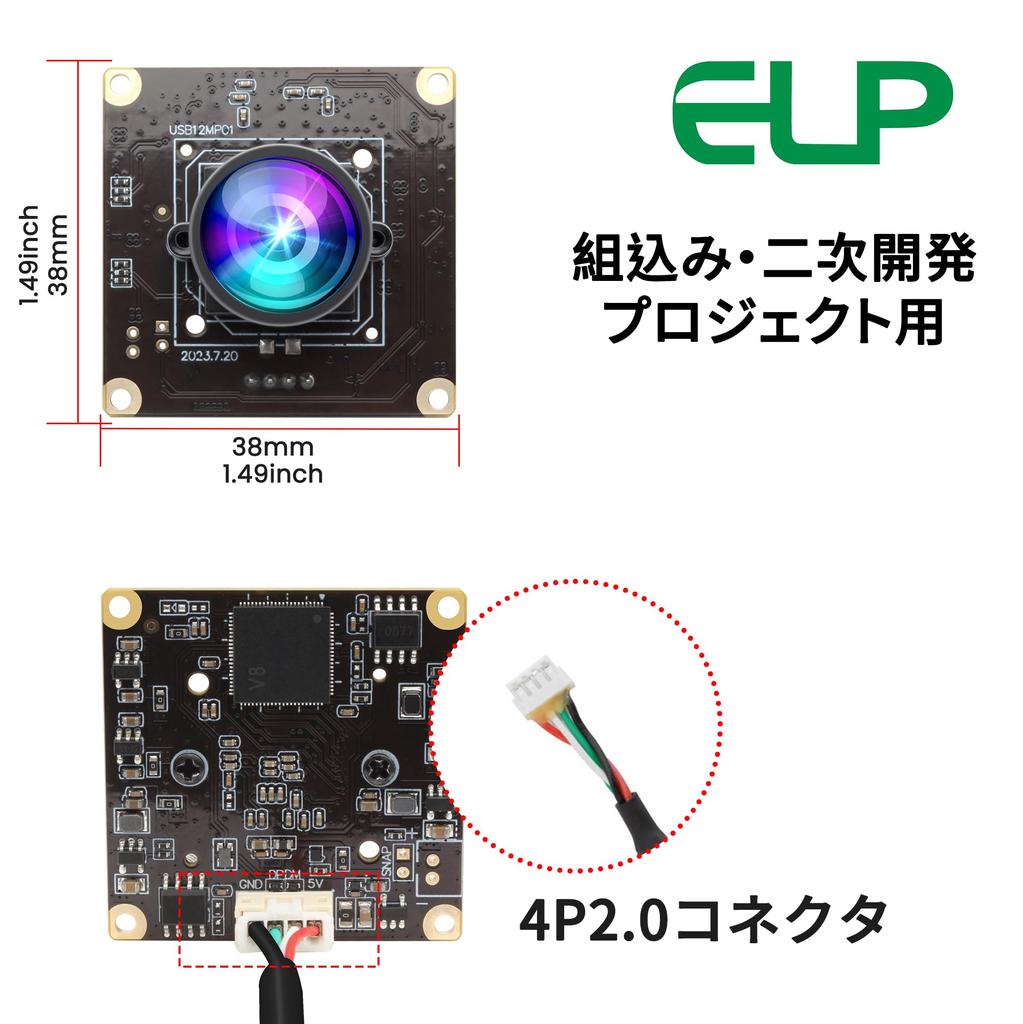

ELP 1080P 120fps USB Camera Module for Computer 12MP Wide Angle PC Camera 100 Degree Low Distortion Lens Web Camera 12MP High Speed Mini UVC Webcam

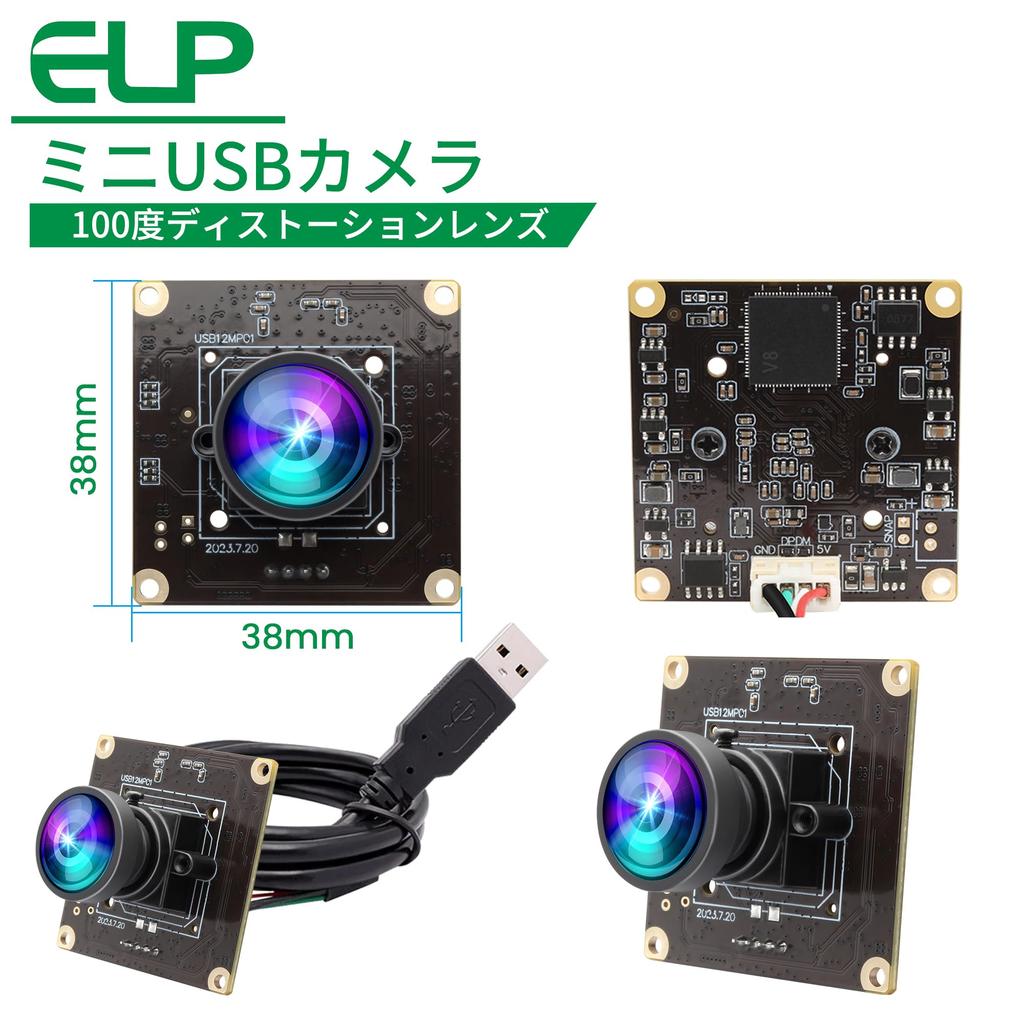

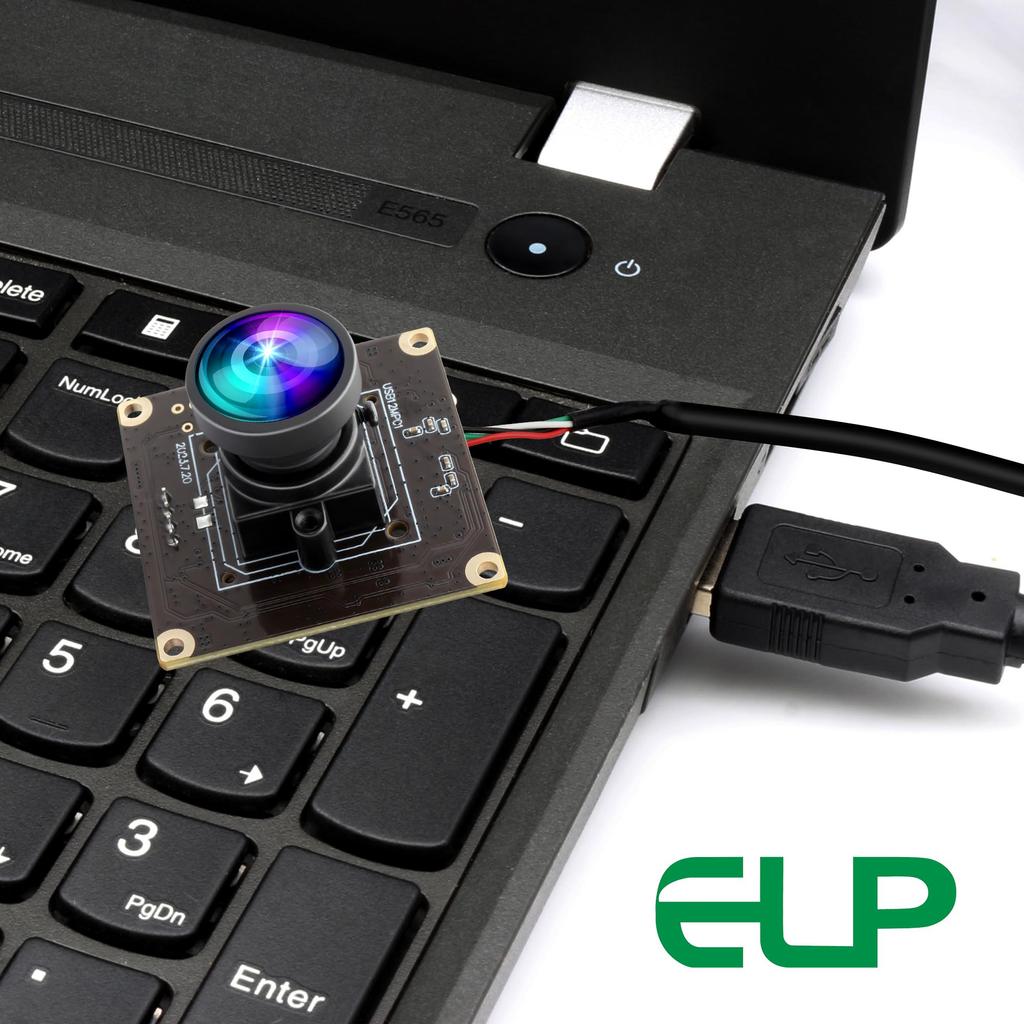

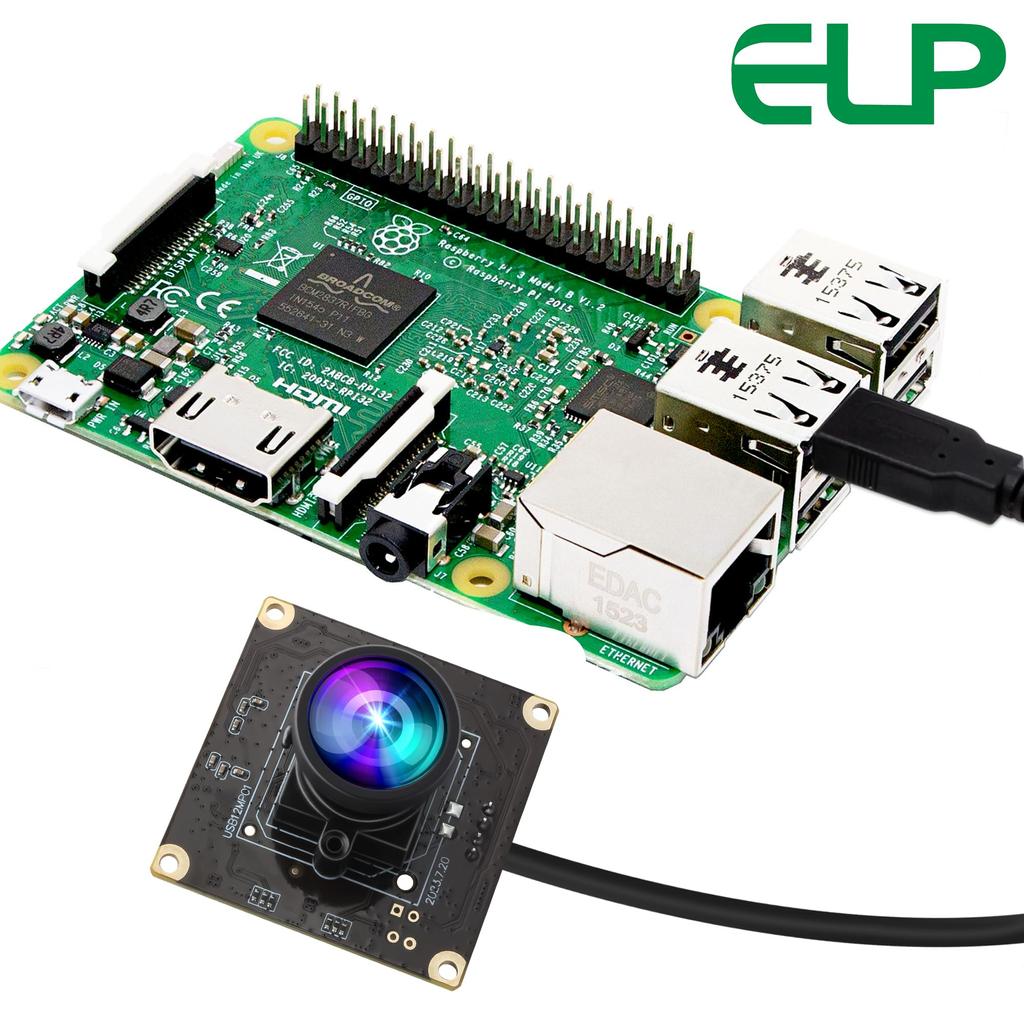

12 million pixel USB camera, UHD, maximum resolution 3840X3040. Capture fast-moving objects with high-speed frame 1080P@120fps. The 1/2.3 inch sensor IMX577 provides high image quality and low power consumption. HD megapixel wide angle 100 degree low distortion lens, wide viewing angle, HFOV approximately 102 degree. YUY and MJPEG compression formats are optional. Mini lighting: 0.1Lux. High speed USB 2.0 interface for high resolution PC camera interface. Small, lightweight, ultra-small outline, low profile for embedded applications. Camera with UVC for computers, laptops, PCs, Raspberry Pi, Jetson Nano, etc. Applications: This mini USB camera can be installed in the most hidden and narrow locations, such as home surveillance systems, wildlife photography, dash cams, baby cameras, 3D printer monitoring, mini light burn cameras for laser engraving machines, etc. can. Model Number: ELP-USB12MP01-H100 Image sensor SONY IMX577 (1/2.3 inch) maximum. Resolution 3840(H) *3040(V) Sensor size/image size 10.7mmX8.5mm/5.95mmX4.71mm Default resolution 3840(H) *2880(V) Compression format MJPEG / YUY2 (YUYV) Resolution and frame rate 3840X3040 MJPEG@20fps YUY2@1fps 3840X2880 MJPEG@20fps YUY2@1fps 3840X2160 MJPEG@30fps YUY2@1fps 2592X1944 MJPEG@30fps YUY2@1fps 2048X1536 MJPEG@30fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fps YUY2@5fps 1280X960 MJPEG@120fps YUY2@5fps 1280X720 MJPEG@120fps YUY2@5fps 1024X768 MJPEG@120fps YUY2@5fps 960X720 MJPEG@120fps YUY2@5fps 800X600 MJPEG@120fps YUY2@20fps 640X480 MJPEG@120fps YUY2@30fps 320X240 MJPEG@120fps YUY2@30fps Center resolution 1000LW/PH (center) S/N ratio 24dB Sensitivity 0.65V/lux-sec@550nm Minimum illuminance 0.1lux Shutter type Electronic rolling shutter/frame exposure Connection port type USB2.0 high speed AEC/AWB/AGC support Autofocus support (optional) Adjustable parameters Brightness, contrast, hue, saturation, sharpness, gamma, white balance, exposure Lens Parameters Distortion-free lens, HFOV approximately 102 degrees (other lenses are optional) Power and Connectors USB Bus Power 4P-2.0mm Socket Power supply voltage DC 5V Power supply current 240mA Operating temperature -10°C to 65°C Storage temperature -20°C to 85°C USB cable 1M Operating system support Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. UVC-enabled Linux (linux-2.6.26 or higher) MAC-OS X 10.4.8 or later UVC compatible Android 4.0 or higher
