Description:

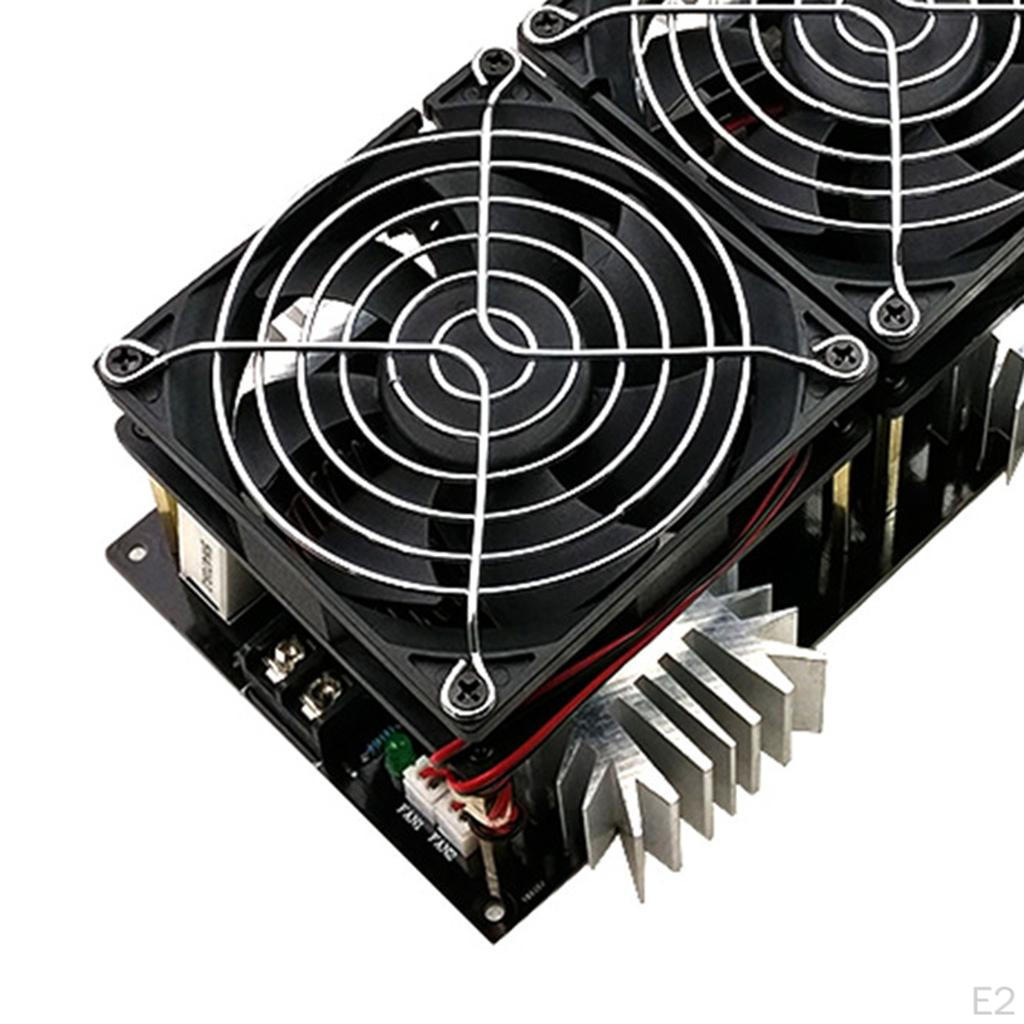

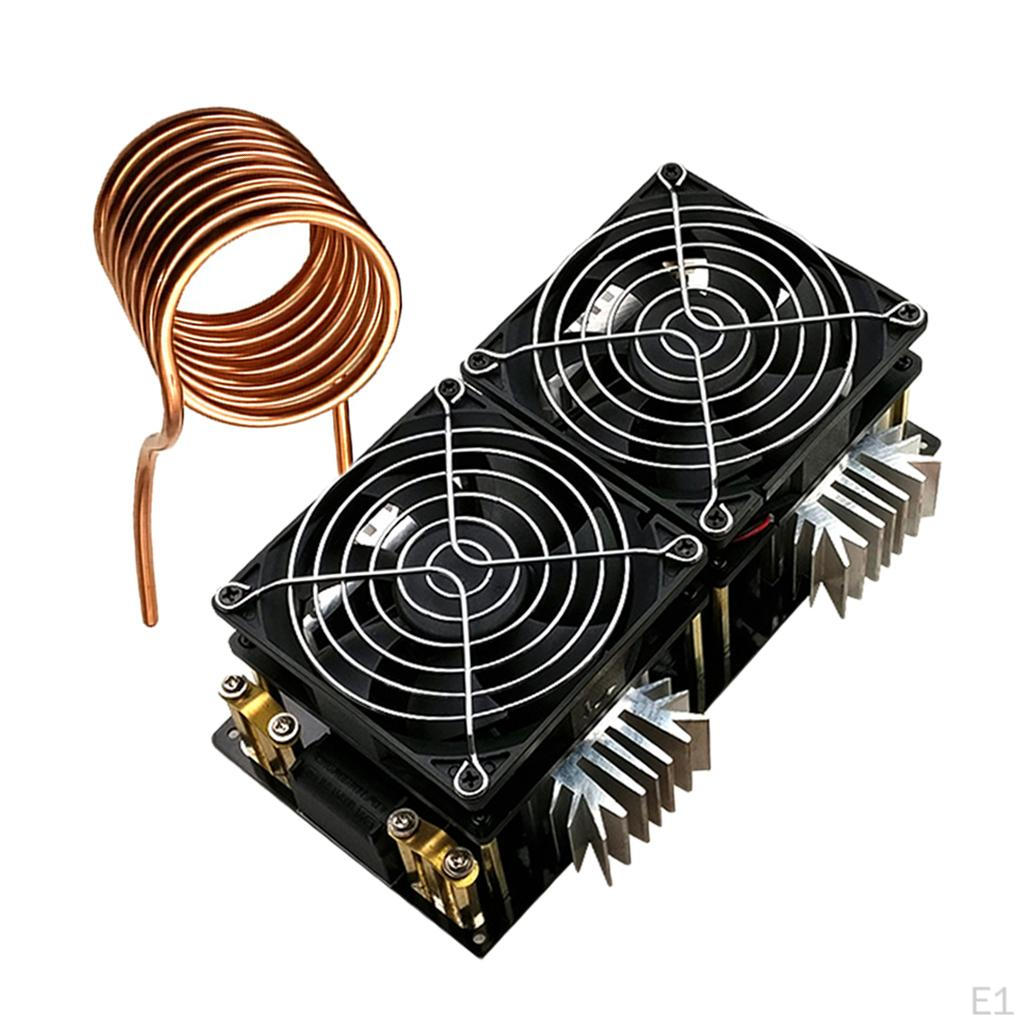

- The heating board is made of premium PCB of 240*120mm, with stable performance.
- The tesla coil is designed with full copper covering, which can increase the current and generate less heat.
- The induction heating board module adopts a 12-48v low-voltage DC power supply with a maximum current of 50A and a maximum power of 2000W,which can work continuously under good heat dissipation condition.
- The induction heating works with great power. Besides the heating of boards and components, the heating of copper pipes is also very large. Users can prepare their own water-cooled cooling system. Or they can buy a small water pump and a rubber water pipe with an inner diameter of 4mm about 2 meters.
- It is recommended not to exceed 48V55A in order to prevent accidents and damage and to work continuously for a long time.
Specification:
- Product size: 120mm * 240mm
- Input voltage: 12v-48 recommended above 36V
- Power supply requirements: less than 12V≥10A 15V ≥20A
- Maximum power: 2000W
- Maximum current: 50A
- Size: Approx. 240x120x50 mm / 9.45x4.72x1.97 inch
- Material: Alloy
Package Includes:
1 Set of Heater Driver Board
