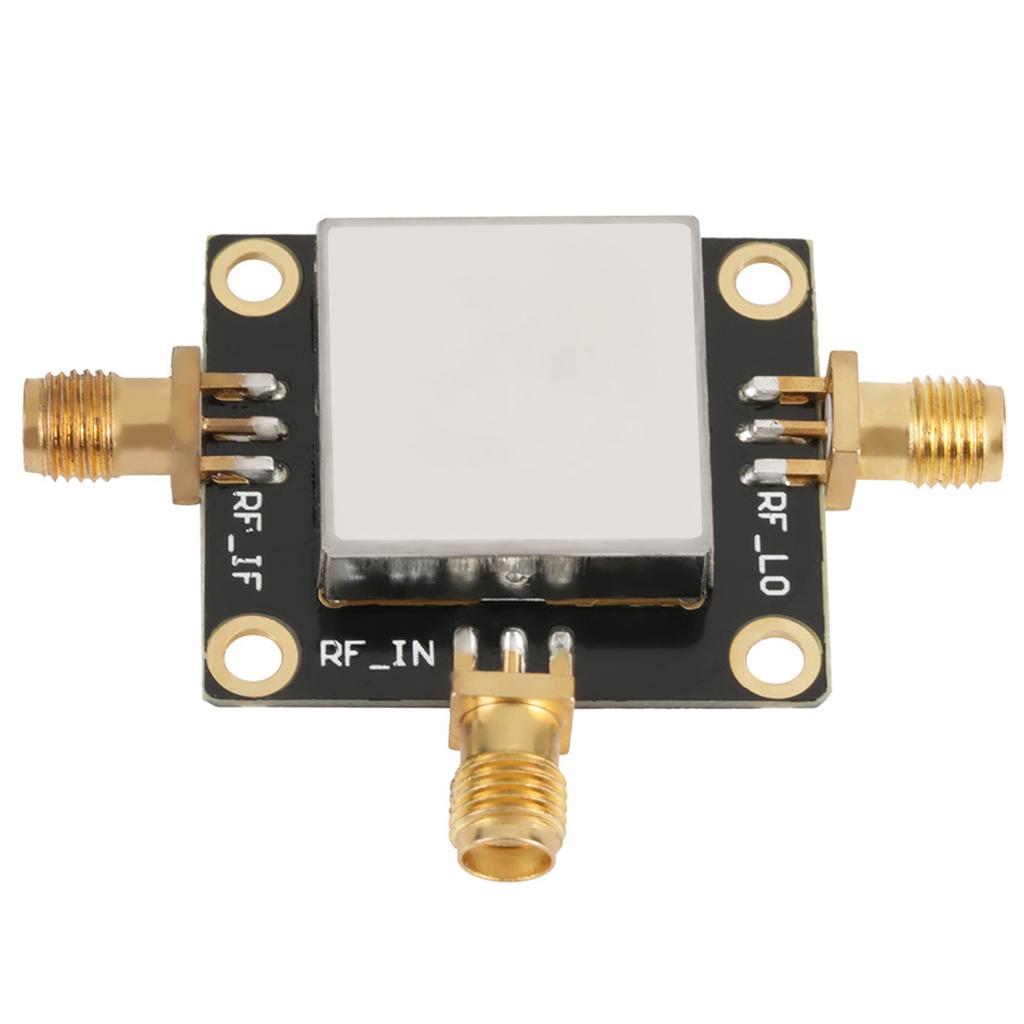

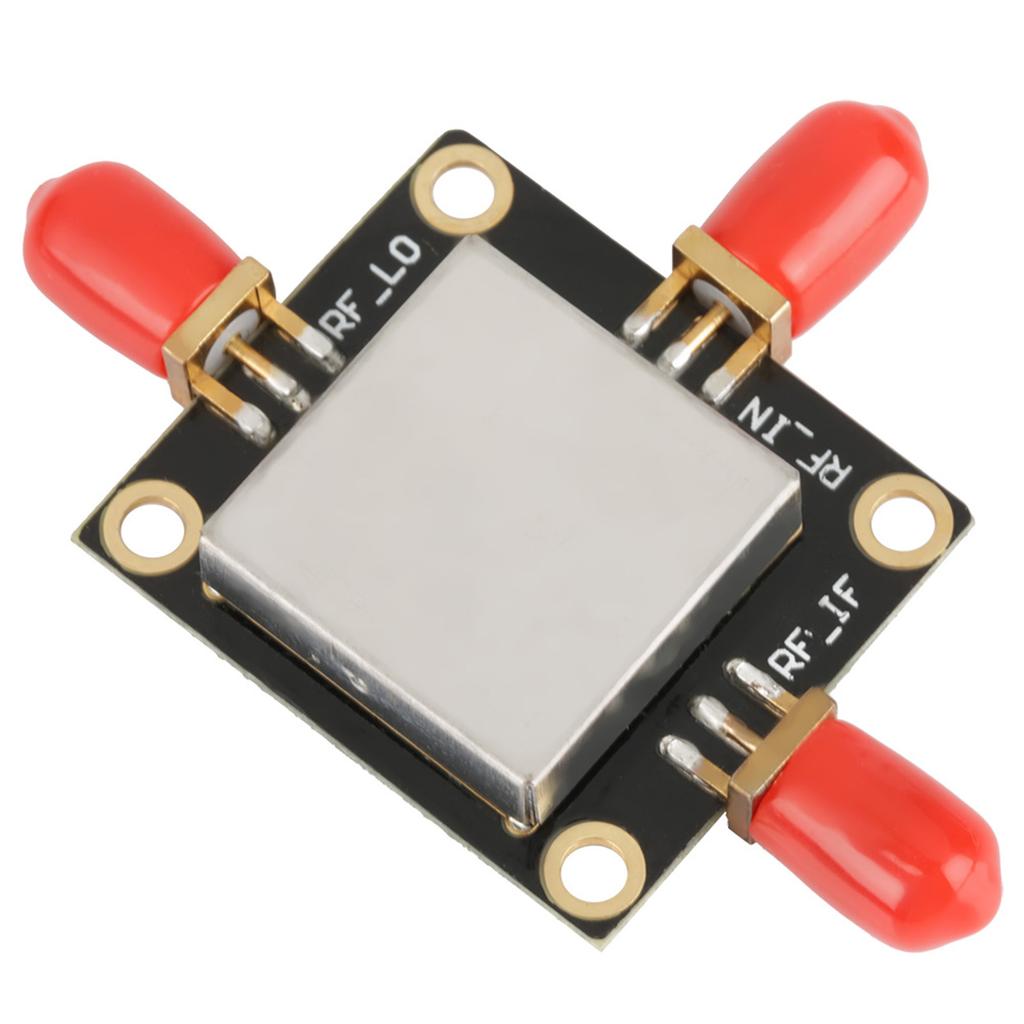

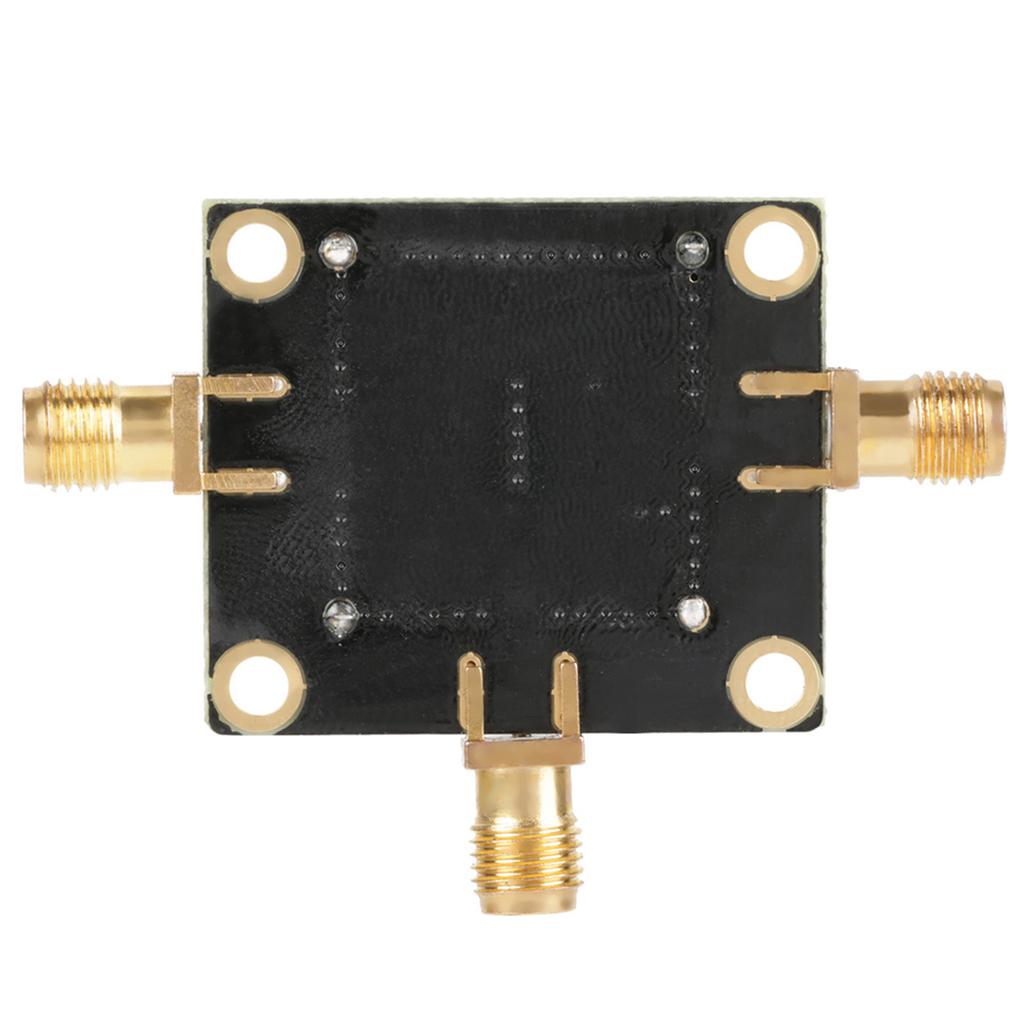

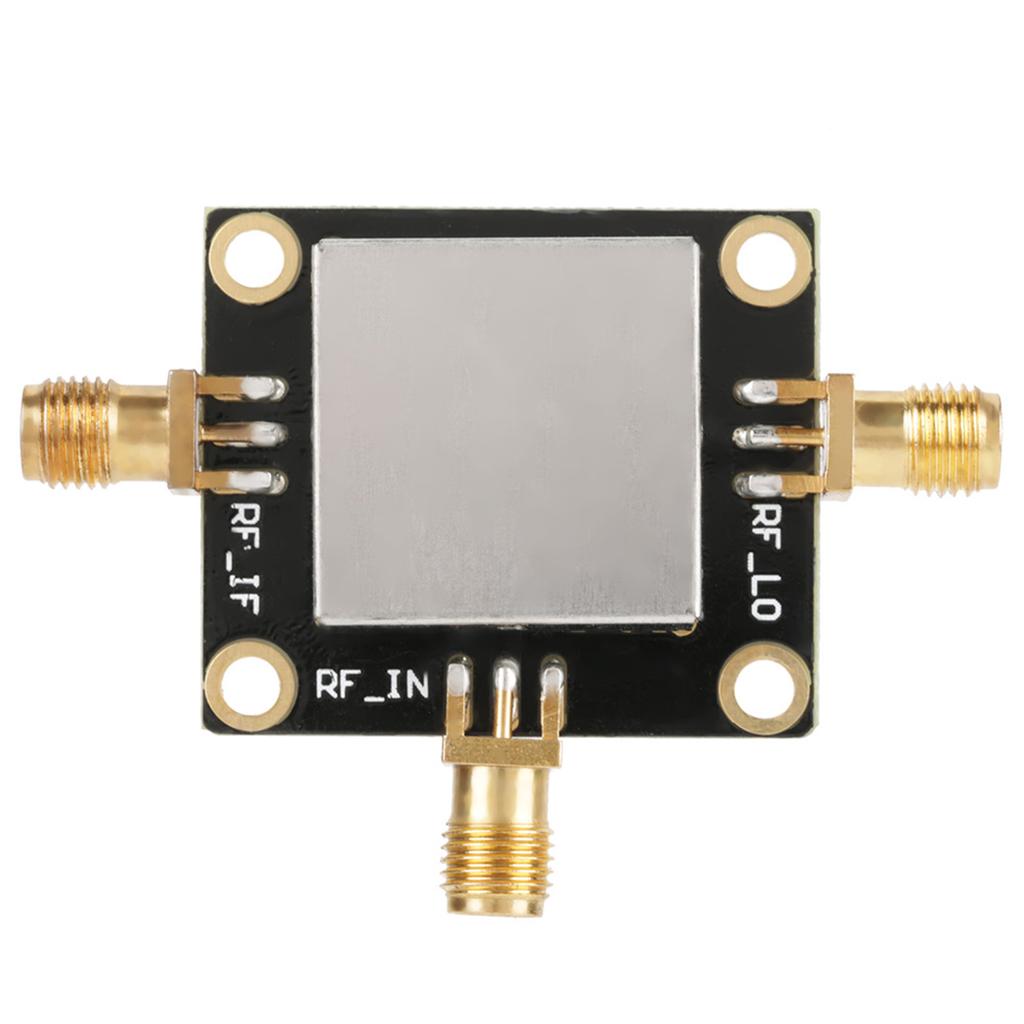

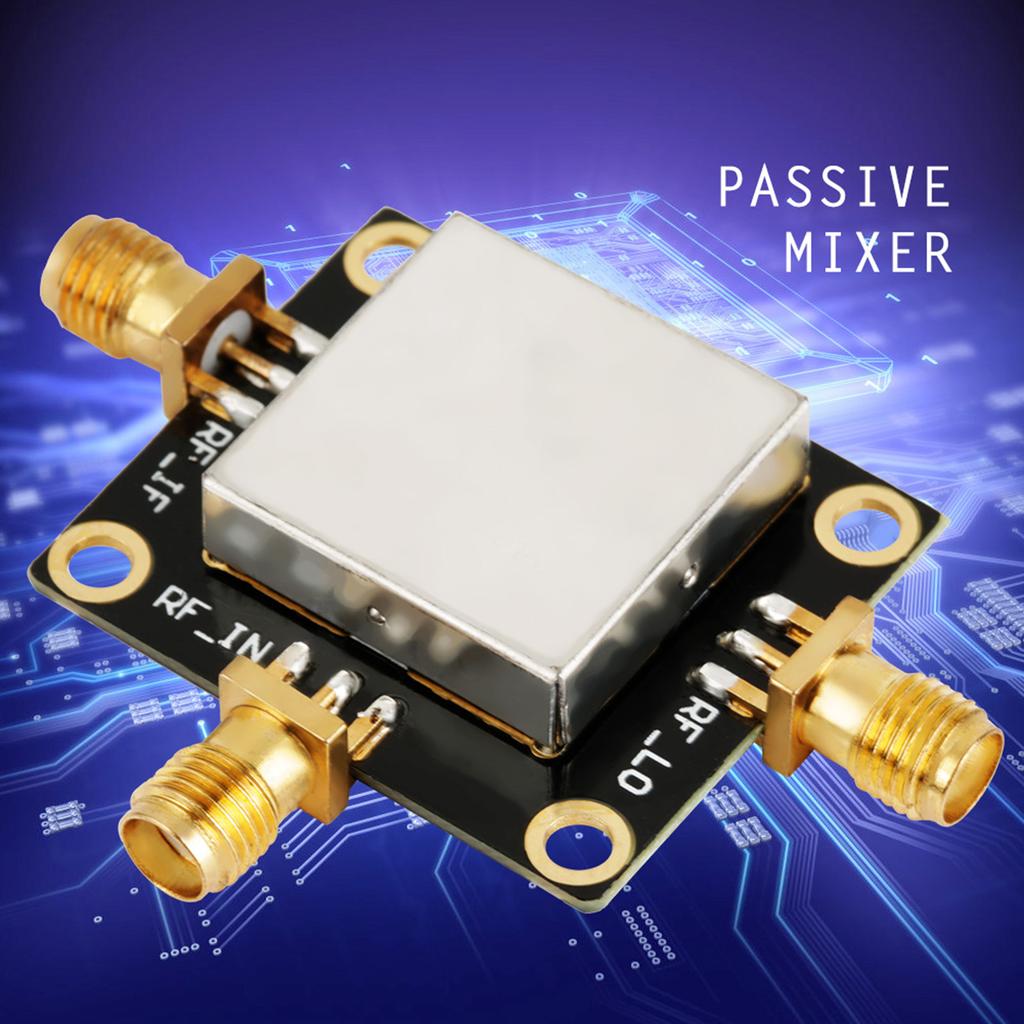

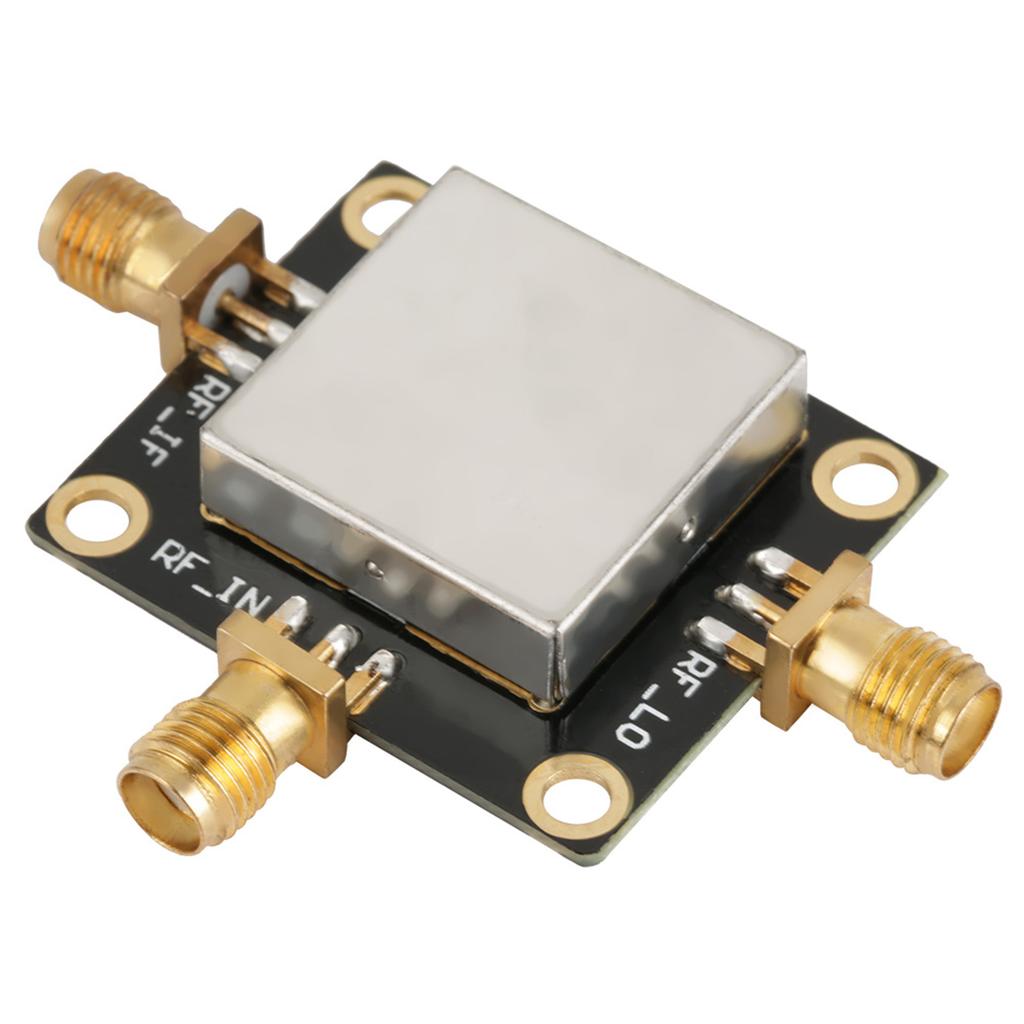

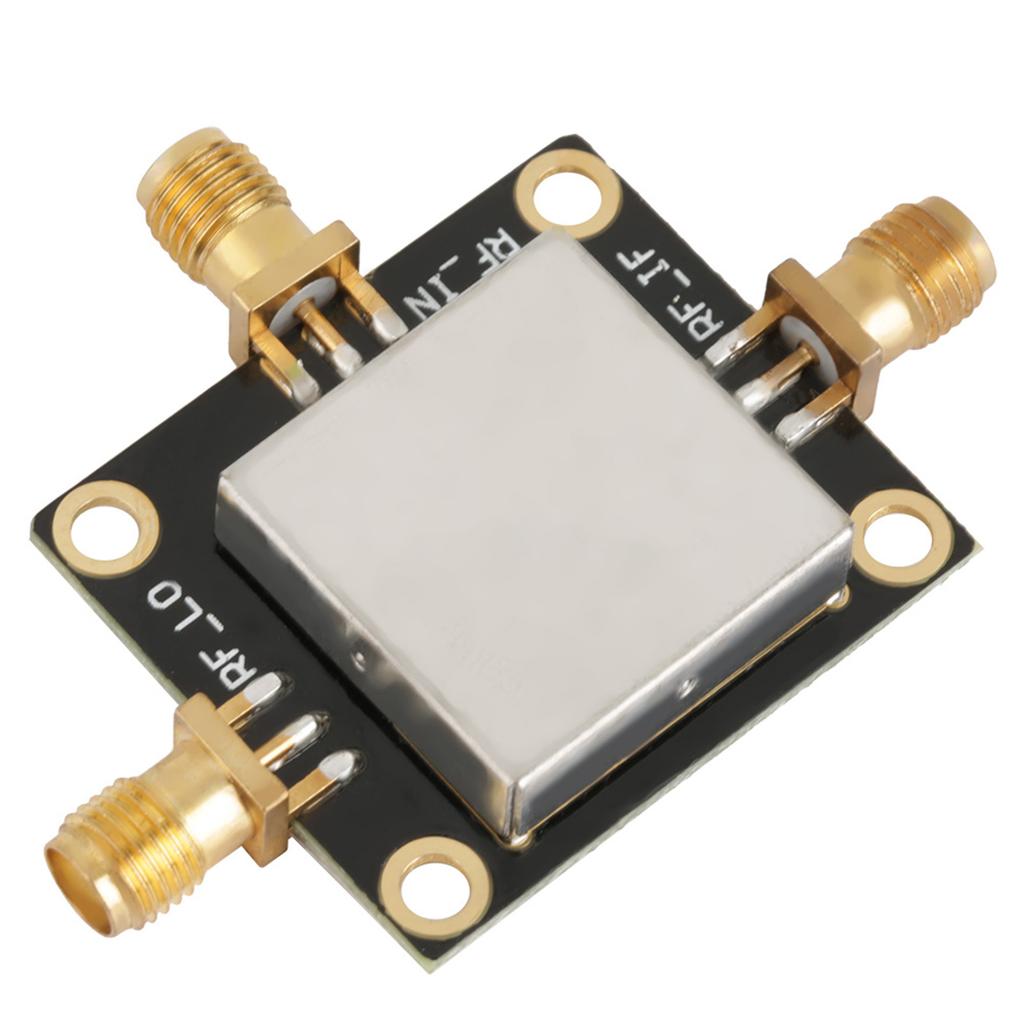

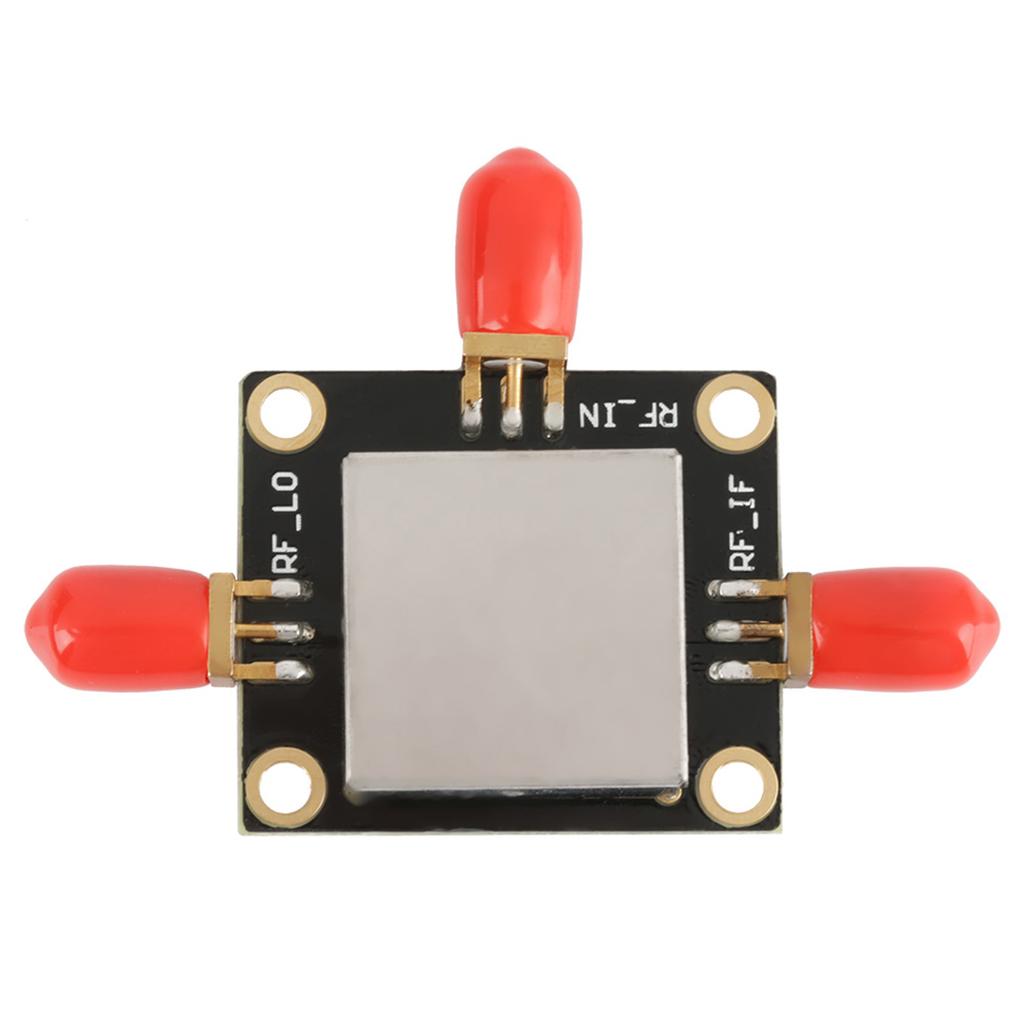

ADE6 High Linear Low Noise RF Up And Down Frequency Conversion Passive Mixer(0.05250MHz)

Features: The mixer is located behind the low noise amplifier (LNA) and directly processes the RF signal after LNA amplification. The passive mixers adopt mini components design,compact and light weight ADE1, ADE6 ,ADE25Passive Mixerhas low conversion loss,respectivelyare5.0dB, 4.6dB, 7.0dB Passive mixers feature excellent LR isolation, and low profile package, protected by US patent 6,133,525 Frequency conversion passive mixer can be used in VHFUHF Specifications: RF Power: 50mW IF Current: 40mA Conversion loss: 5.0dB(ADE1), 4.6dB(ADE6), 7.0dB(ADE25) ADE1RFLO: 0.5500MHz ADE6RFLO: 0.05250MHz ADE25RFLO: 5M2500MHz Operating Temperature: 40 degrees C to 85 degrees C Storage Temperature: 55 degrees C to 100 degrees C Weight: 9g Package list 1 x Passive Mixer Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .The mixer is located behind the low noise amplifier (LNA) and directly processes the RF signal after LNA amplification. The passive mixers adopt mini components design, compact and light weight ADE1, ADE6 ,ADE25 Passive Mixer has low conversion loss, respectively are 5.0dB, 4.6dB, 7.0dB Passive mixers feature excellent LR isolation, and low profile package, protected by patent 6,133,525 Frequency conversion passive mixer can be used in VHFUHF
