Output Voltage: 110V / 220V
Input Voltage: 12V / 24V
Rated Power: 1000W
Peak Power: 2000W
Features:
- Anti-interference design provides continuous and stable current output without damaging the device when charging.
-The inverter is small in size and reasonable in design, and can be widely used in various electrical devices with power consumption equal to 220V AC, such as cell phones, portable computers, electric lights, digital cameras, video cameras, TVs, DVDs, electric fans, and power tools.
- Serviceable metal housing provides advanced drop and crash protection Built-in silent automatic temperature-controlled cooling fan helps reduce heat and prevent shortages.
- The safe charging design protects against overheating, under and overvoltage charging, short circuits, overloads and overcharging. Inverter will automatically shut off current output once the product itself detects a fault.

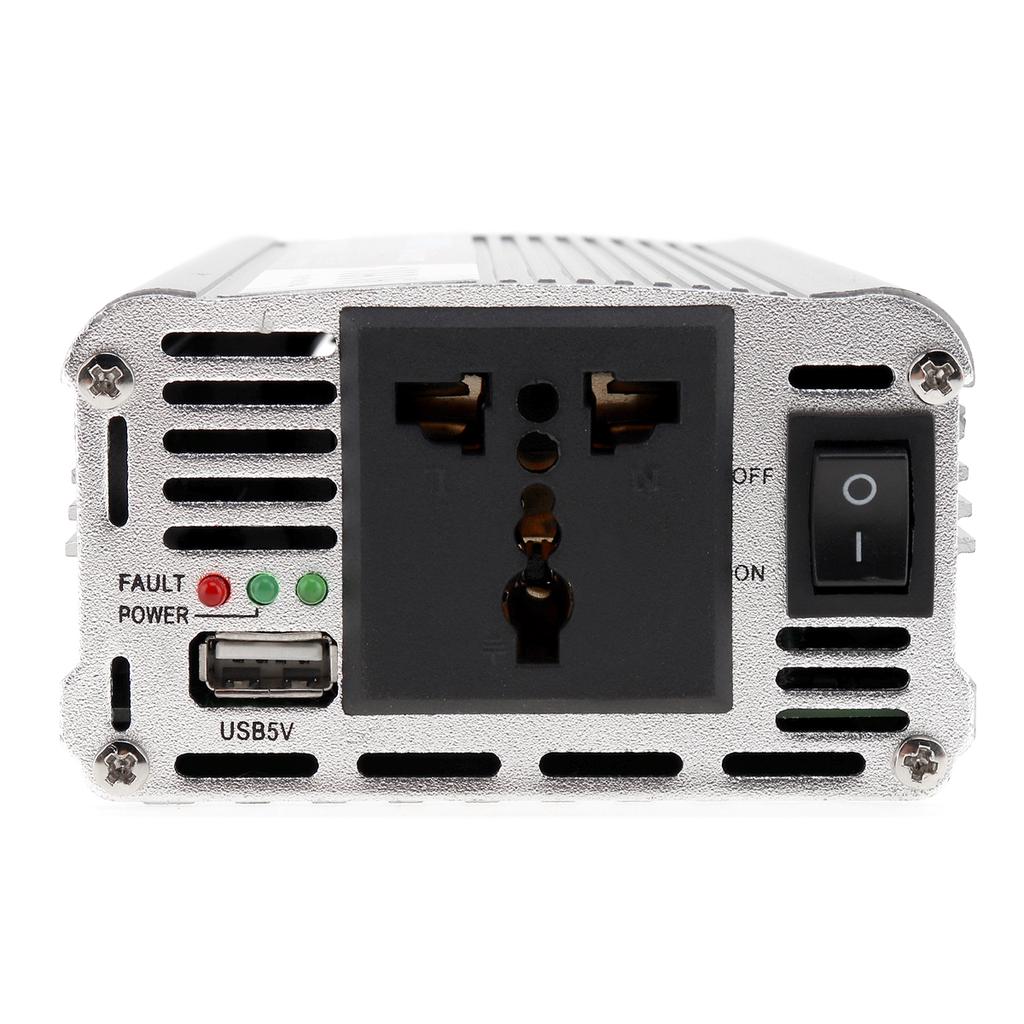

Indicator light: Green power indicator,red fault indicator
Cooling: Fan
The shell maximum working temperature: 75℃
Placement Guideline:
For security and performance,the inverter should be placed under these conditions as follows:
- Dry: no water or get wet in the rain.
- Cool: the temperature between 0 celsius degree and 45 celsius degree.
- Ventilation: at least 2 inch (5cm)clearance above and on all sides if the inverter for proper cooling.
Usage of the inverter:
- Make sure the electrical power of the equipment you using is under the electrical power of the inverter.
- Turn the inverter switch to (OFF)position,and then plug the inverter DC plug into the car socket,make sure they are firmly linked.
- Switch the inverter on,the green light indicates that it is working normally.
- Charging for the electrics: The plug of the inverter plugs into the AC220V of mains socket,the red and black terminal connect to the Anode and Cathode of the 24V electrics.In the process of charging,the speed of cooling fan will change with the temperature. (The higher the temperature,the faster the speed: the lower the temperature,the slower the speed,or even stop rotation)
Note:
- The actual is about 760W.
- This is a correction wave, not a pure wave.
- Do not recommend the use of equipment:electric drill,coffee machines, refrigerator, air conditioning.
- Please do not leave the power inverter in the ON position while your car is off.
- Avoid placing the inverter into sunlight directly or next to heat sensitive materials to protect inverter from getting too warm.
- Please understand the precautions for use of equipment power! Do not use high power electric devices such as hair dryers, microwave oven, iron pipe, electric heaters, curling irons, etc.
- The inverter input power and the nominal voltage of the battery should be consistent.
- The output AC socket of inverter is only for power supply, can not be in parallel with the mains.
- When using the inverter power supply,the greater electrical power and the shorter the battery usage time,the greater the capacity of the battery must be choice.

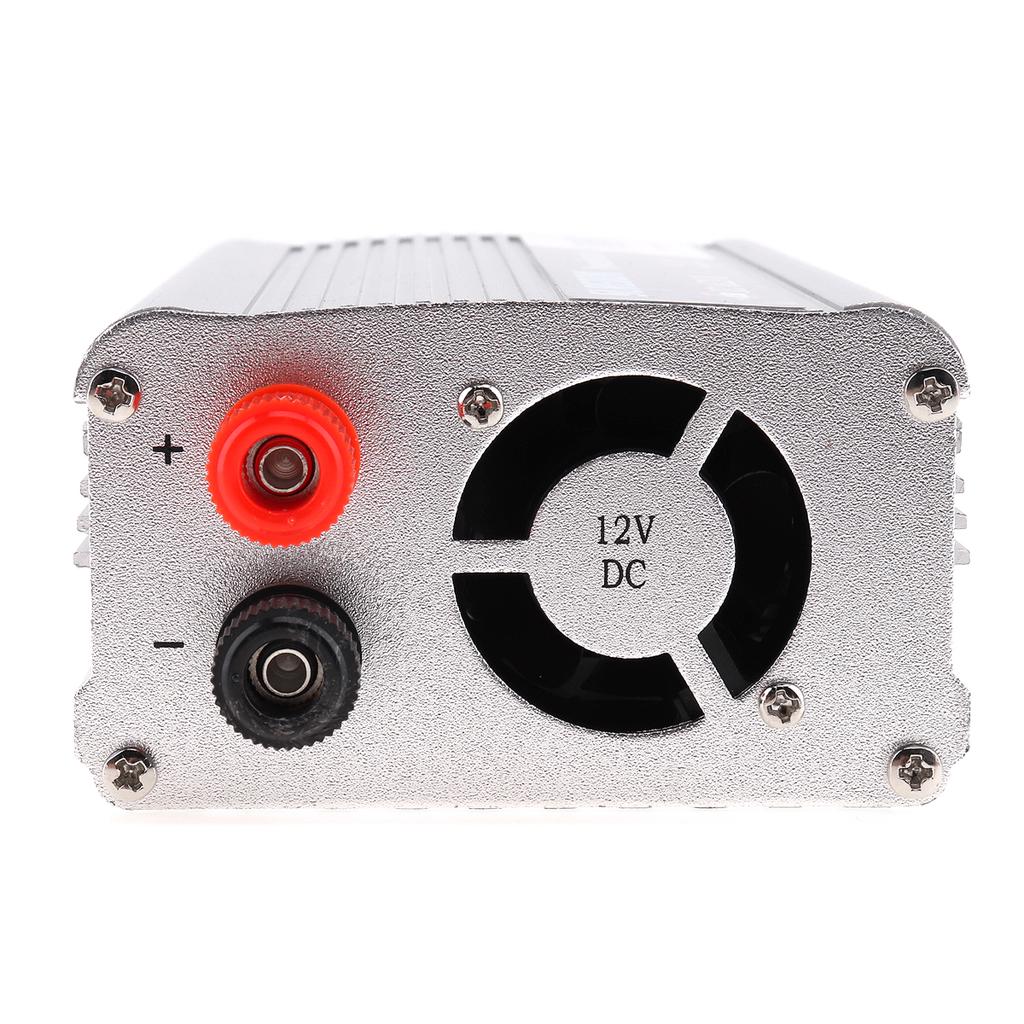

- The plug wire or the included alligator clip of the inverter must distinguish polarity,red is +, black is -, or easily burn this product.
- The electrical equipment voltage and the nominal output and input voltage of the inverter should be consistent.
Package Including:
1 x Power inverter
1 x Car Charger Adapter
1 x Battery Clamp
1 x User Manual
