Features:

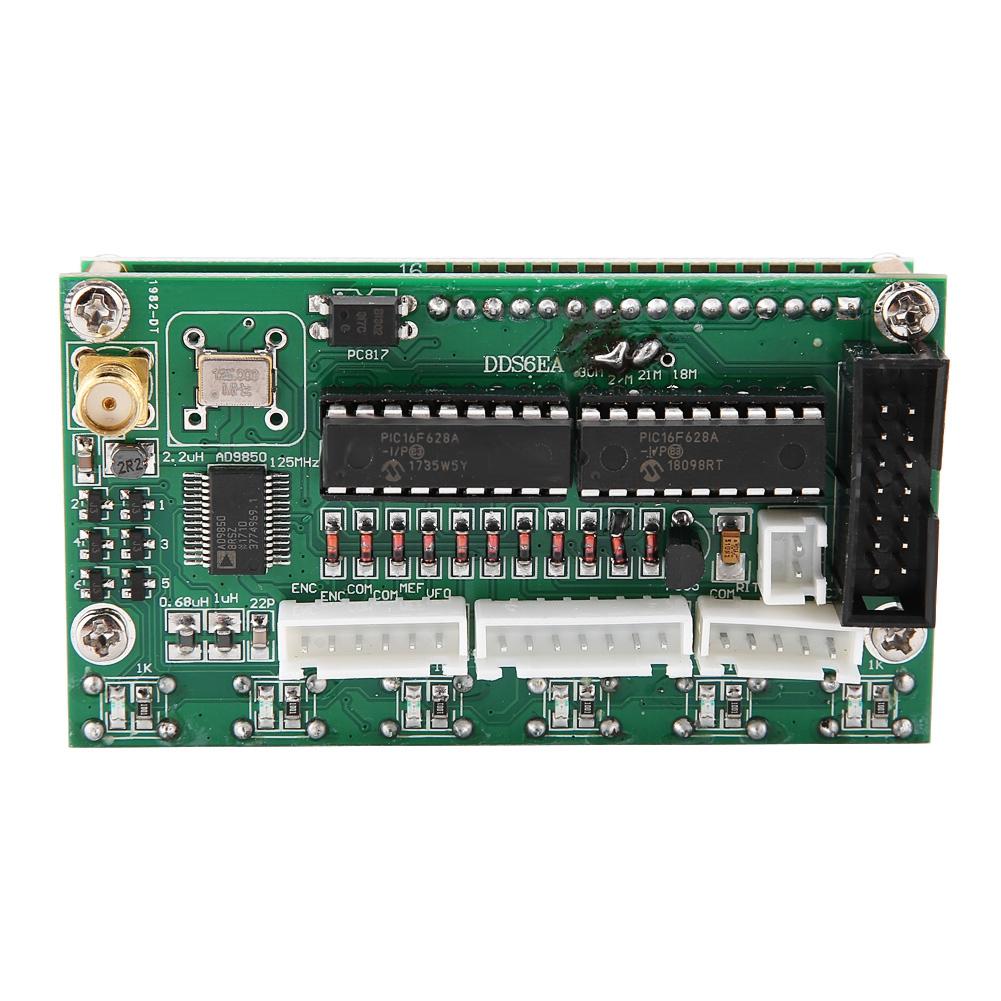

1. This is a DDS signal generator based on AD9850 chip, featured with quick response and accurate control.
2. It supports continuous frequency adjustment from 0 to 55MHz at 1Hz step.

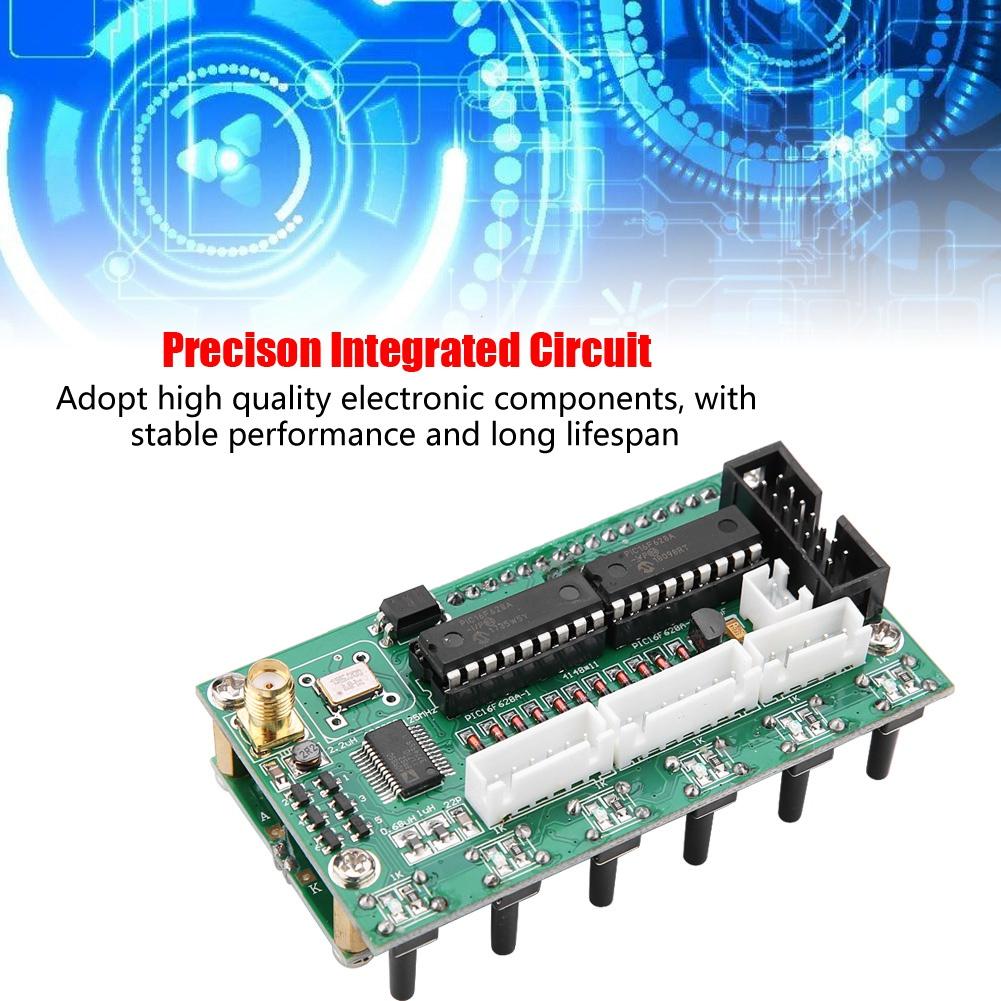

3. Adopt precision electric components integrated circuit for stable running and long lifespan.
4. Working mode: LSB, USB, CW, AM.
5. Input current at 200mA and 89V input voltage would be the ideal voltage.
Specification:
Chip: AD9850

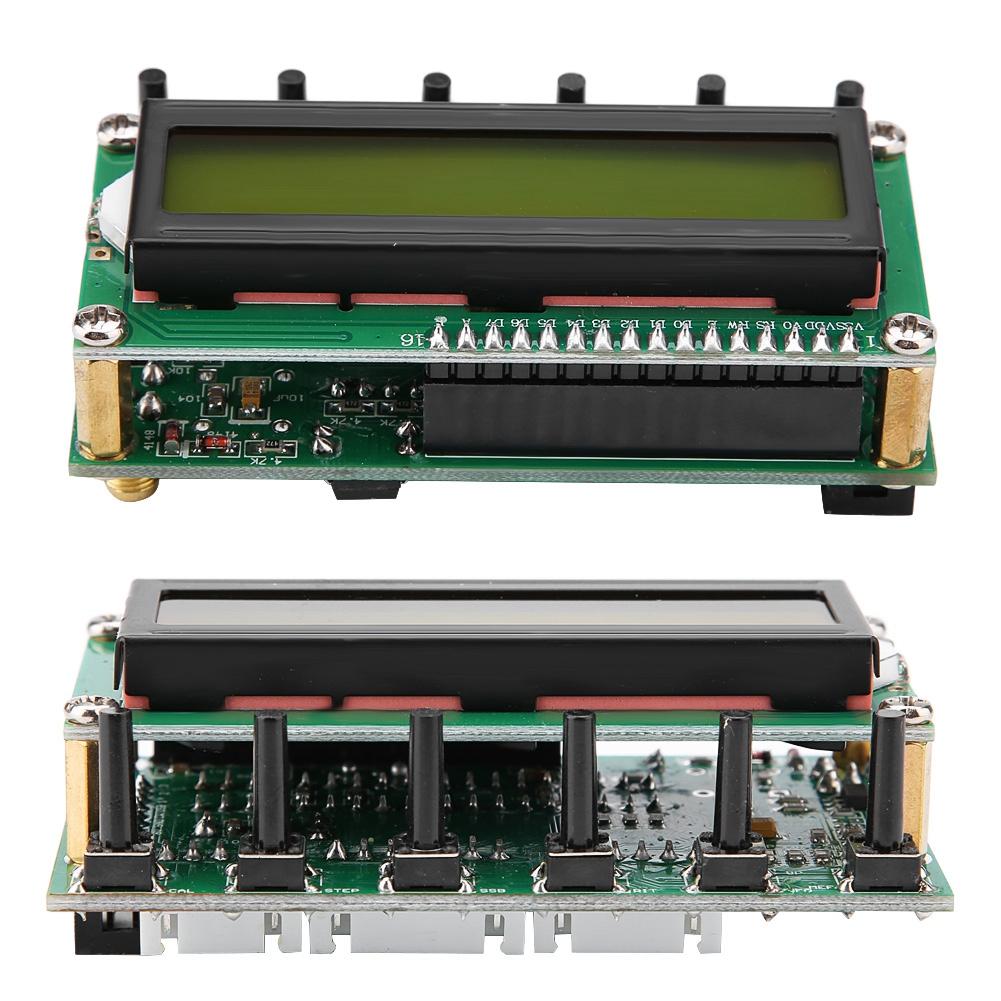

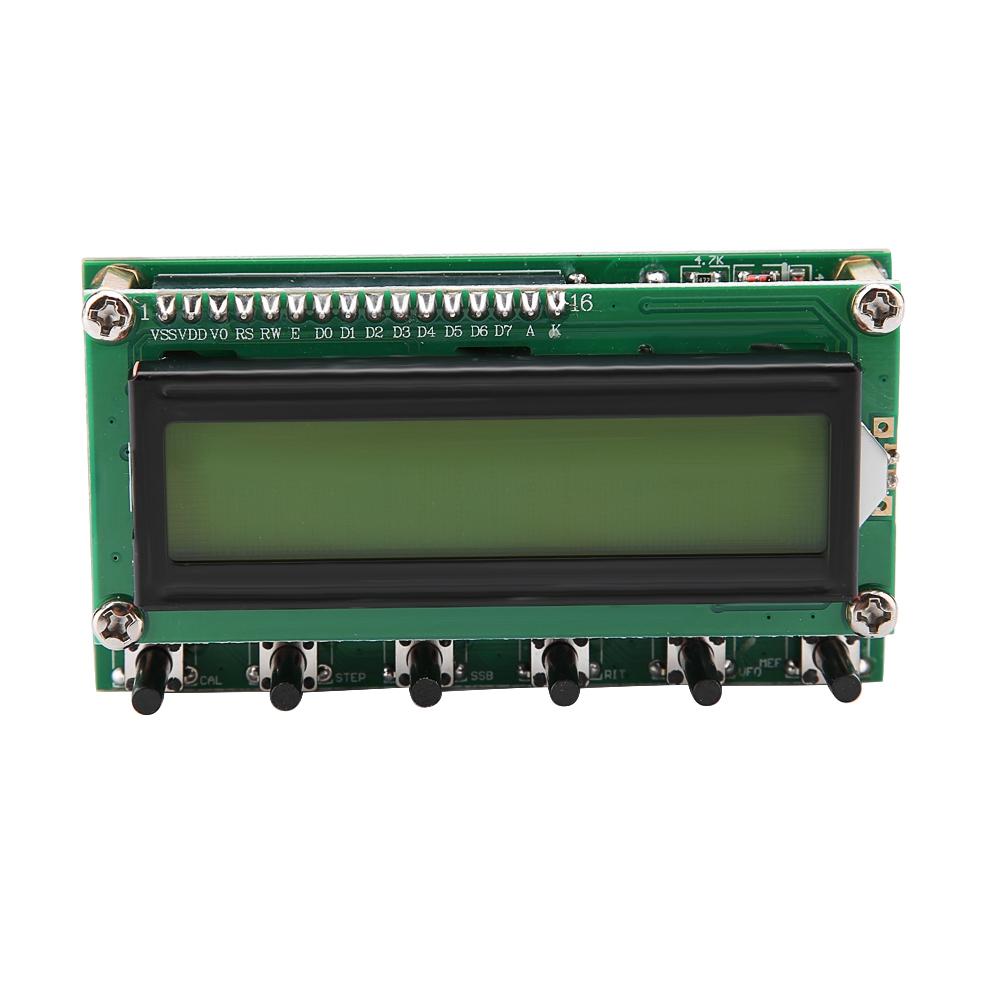

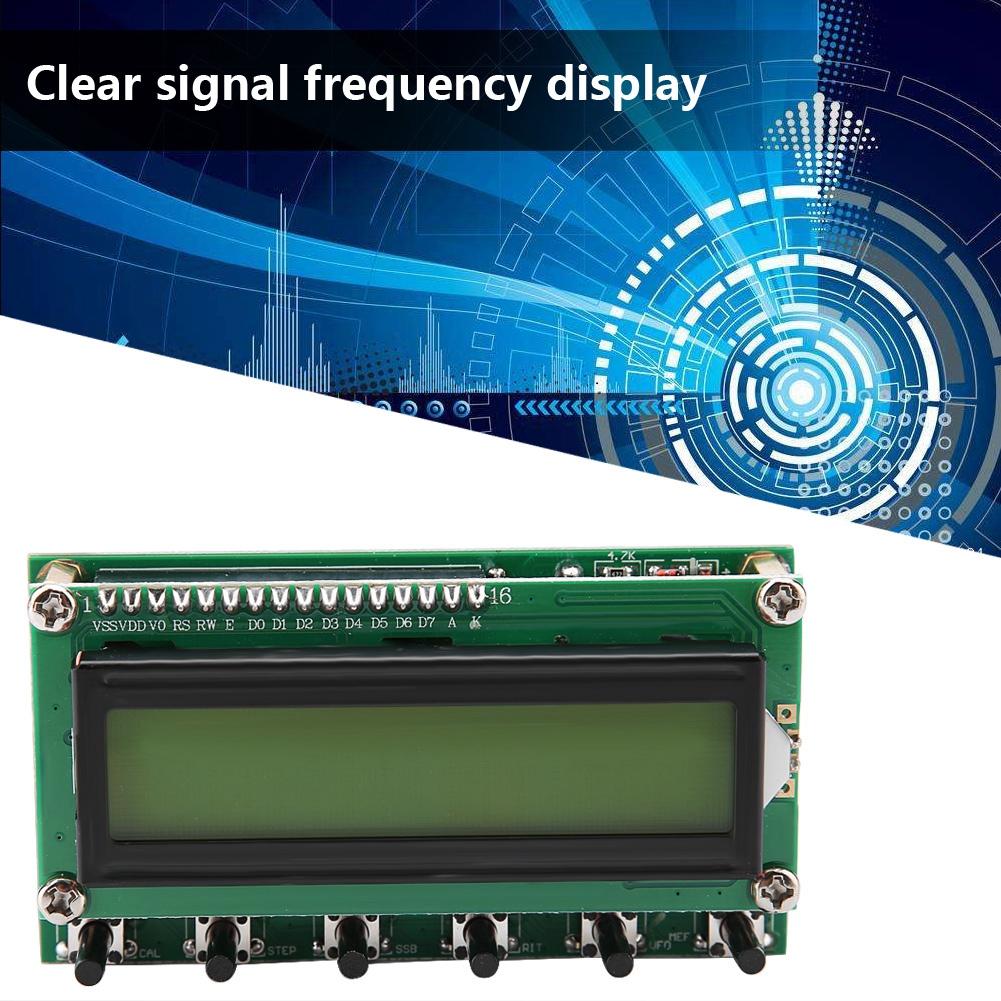

DIsplay: LCD screen
Input voltage: DC 89V
Input current: 200mA
Frequency range: 0~55MHz, 1Hz step
Weight: Approx. 77g 2.7oz

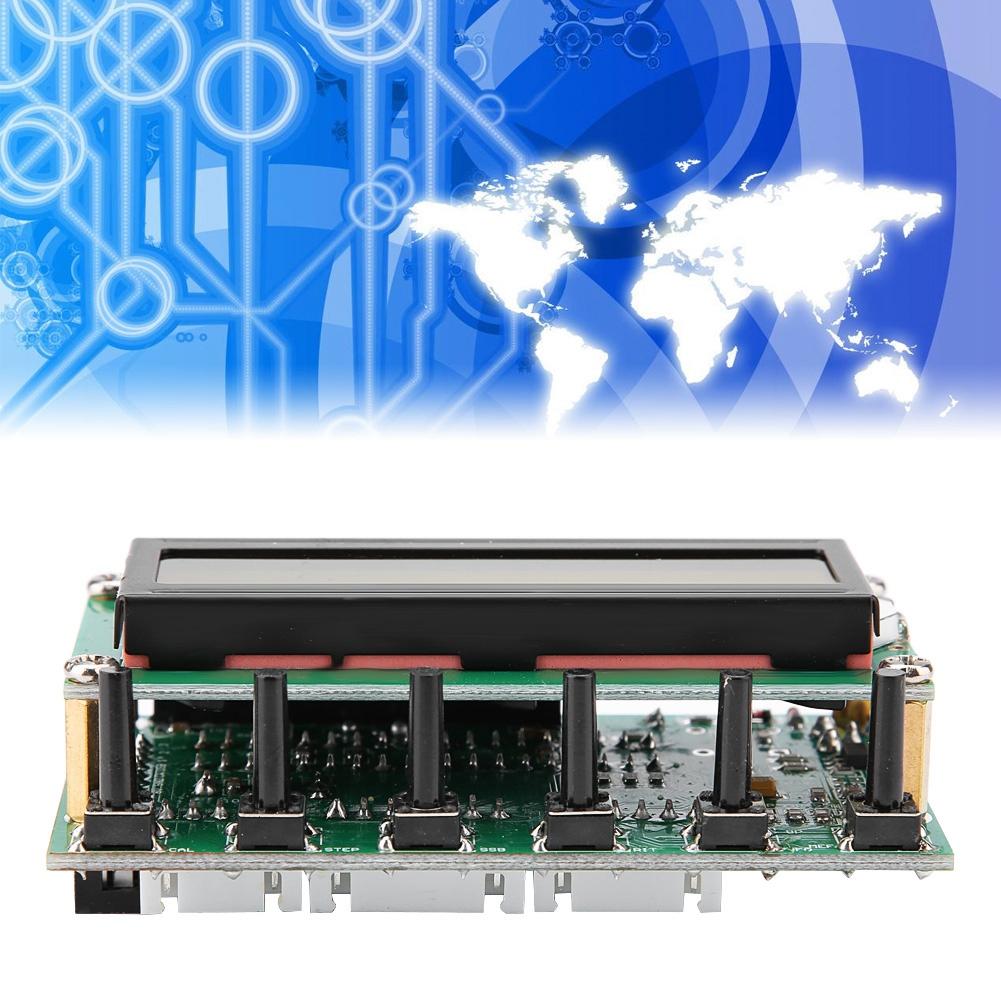

Keys & connection interfaces:
ENC: encoder switch
MEM: switch for memory mode
VFO: transfer from VFO A to VFO B, or from VFO B to VFO A
SSB: working mode change, circulate from USB, LSB, AM, CW
RIT: fine tune the receiving frequency
CAL: setting functions
KB1 and KB2 have common shared pin, but is not GND
Package list:
1 * DDS Signal Generator
.This is a DDS signal generator based on AD9850 chip, featured with quick response and accurate control.
It supports continuous frequency adjustment from 0 to 55MHz at 1Hz step.
Adopt precision electric components integrated circuit for stable running and long lifespan.
Working mode: LSB, USB, CW, AM.
Input current at 200mA and 89V input voltage would be the ideal voltage.
