Feature:
1. MAIN PURPOSES: Used to realize diesel generator sets automatic startup and shutdown, closing and opening (ATS switching), fault display protection, etc.
2. MULTIPLE FUNCTIONS: With power on shutdown, idle speed control, preheating control and speed control function, all of which are relay outputs, stable and efficient.
3. PARAMETER SETTINGS: Allows users to change and memorize parameters, all parameters can be adjusted from the controller front panel, or adjusted via a PC via a programming interface or RS485.
4. OTHER FEATURES: Multiple temperature, pressure, oil level sensor can be used directly, customizable parameter; multiple successful start conditions (speed sensor, oil pressure, power generation) can be selected.
5. MODULAR STRUCTURE: The controller is a modular structure design, with pluggable terminals, and adopt embedded installation method, compact structure, convenient and simple.
6. EXCELLENT MATERIALS: The screen protection is made of acrylic material, which is wear resistant and scratch resistant, and the silicone panel and keys have good high and low temperature adaptability.
Specification:

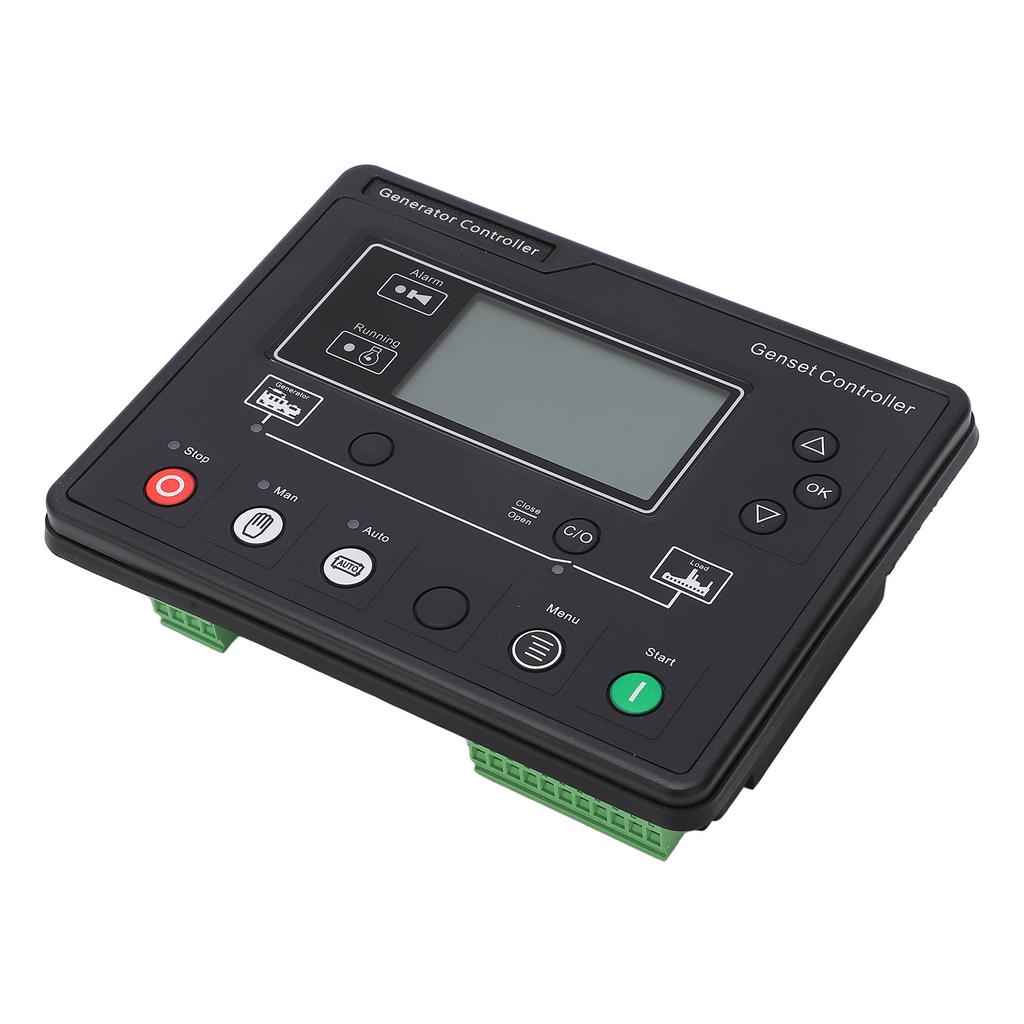

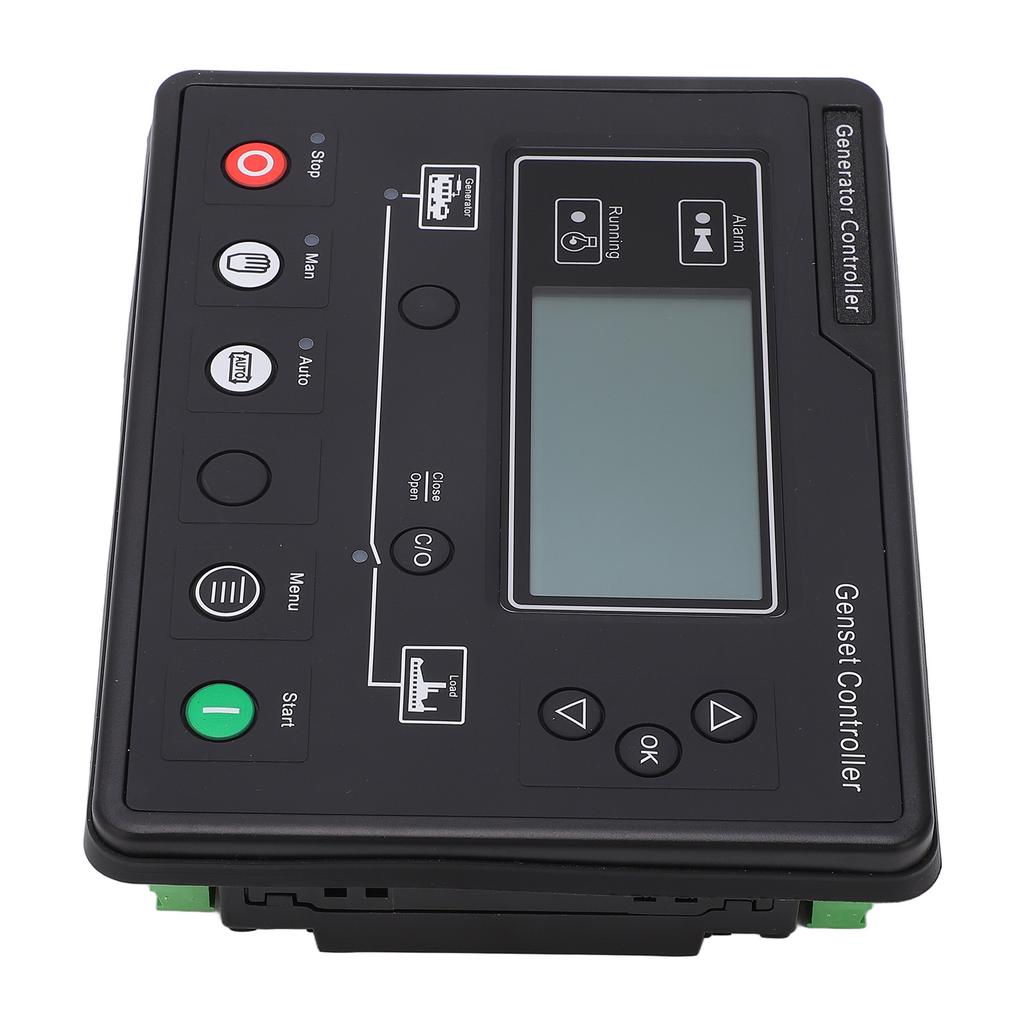

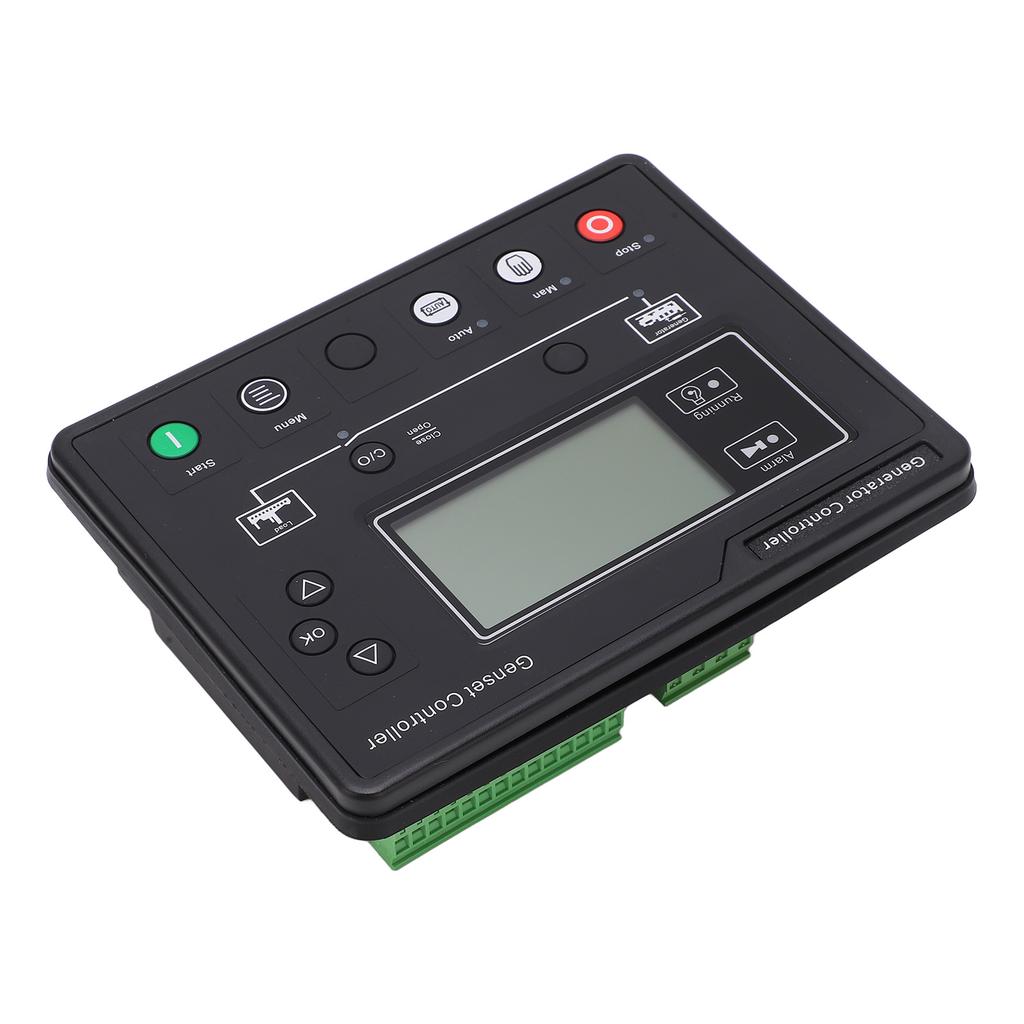

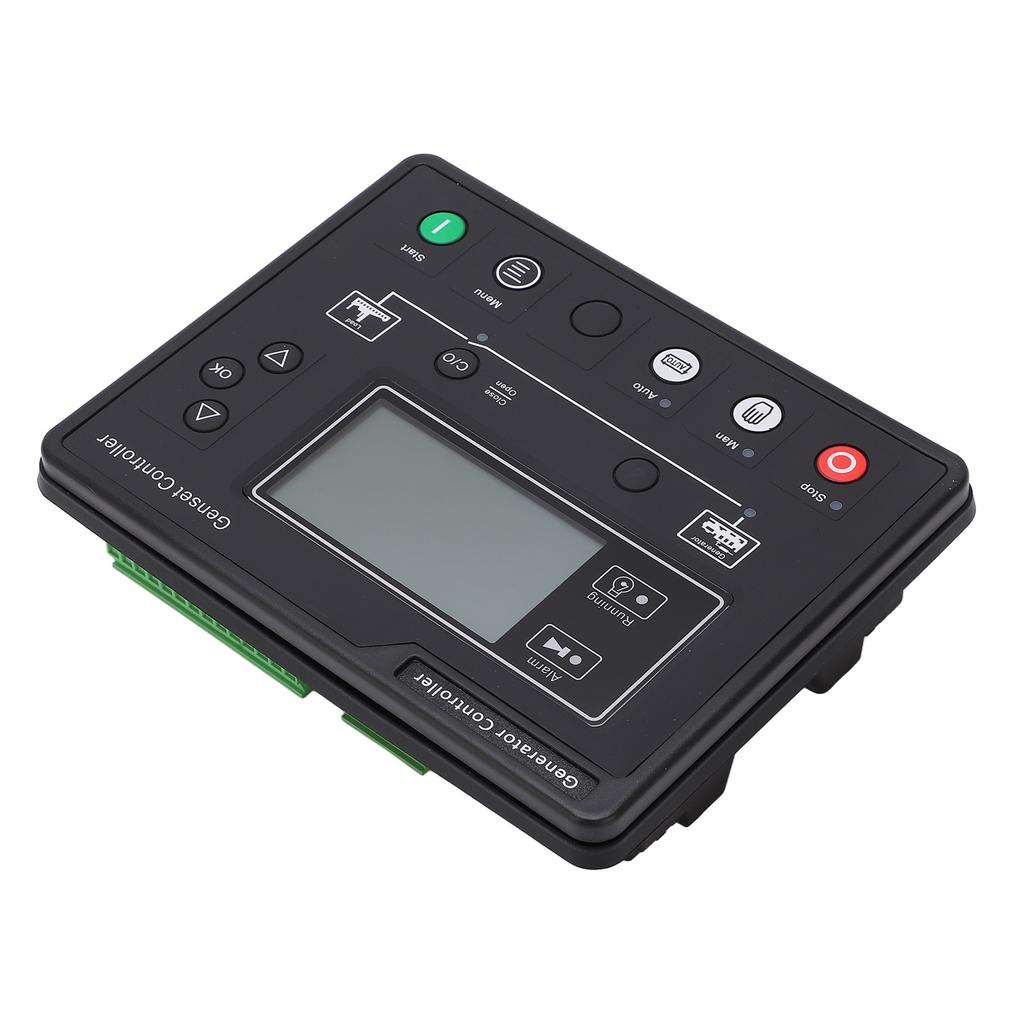

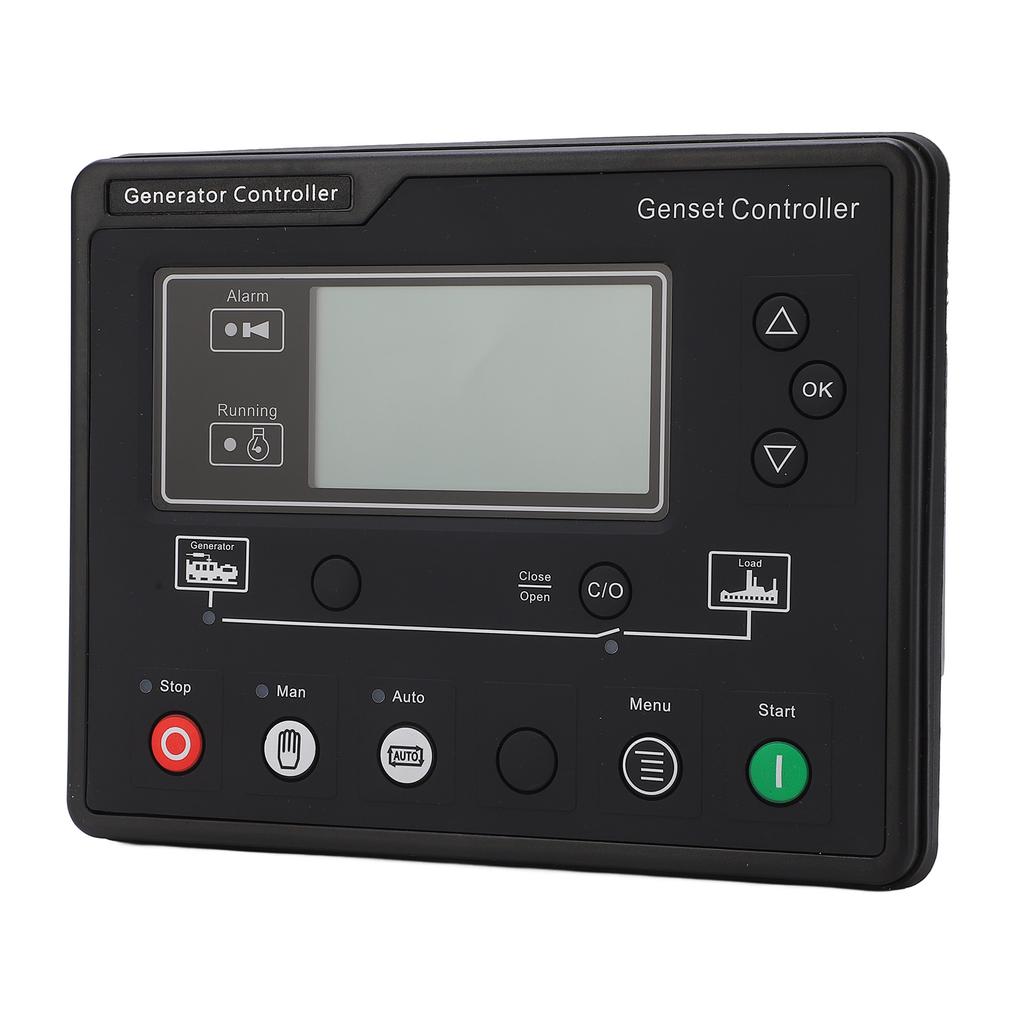

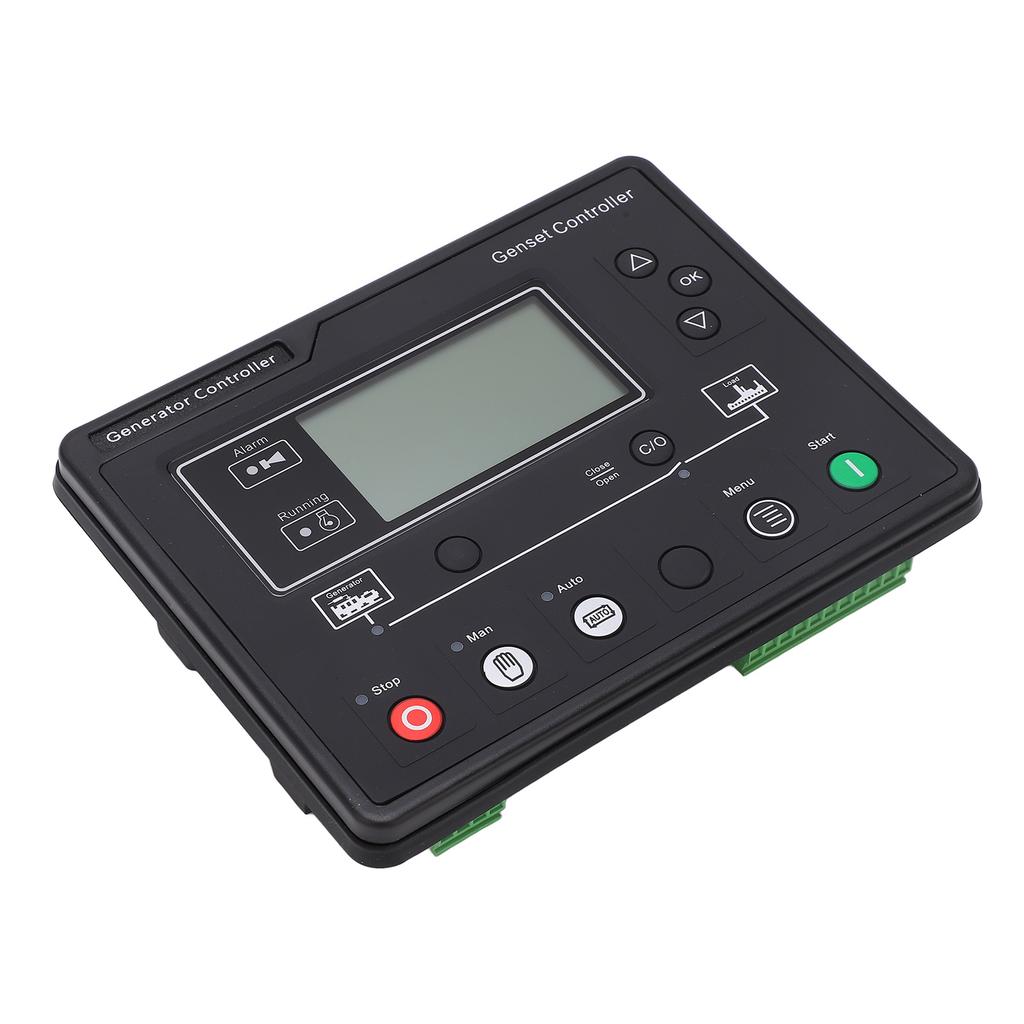

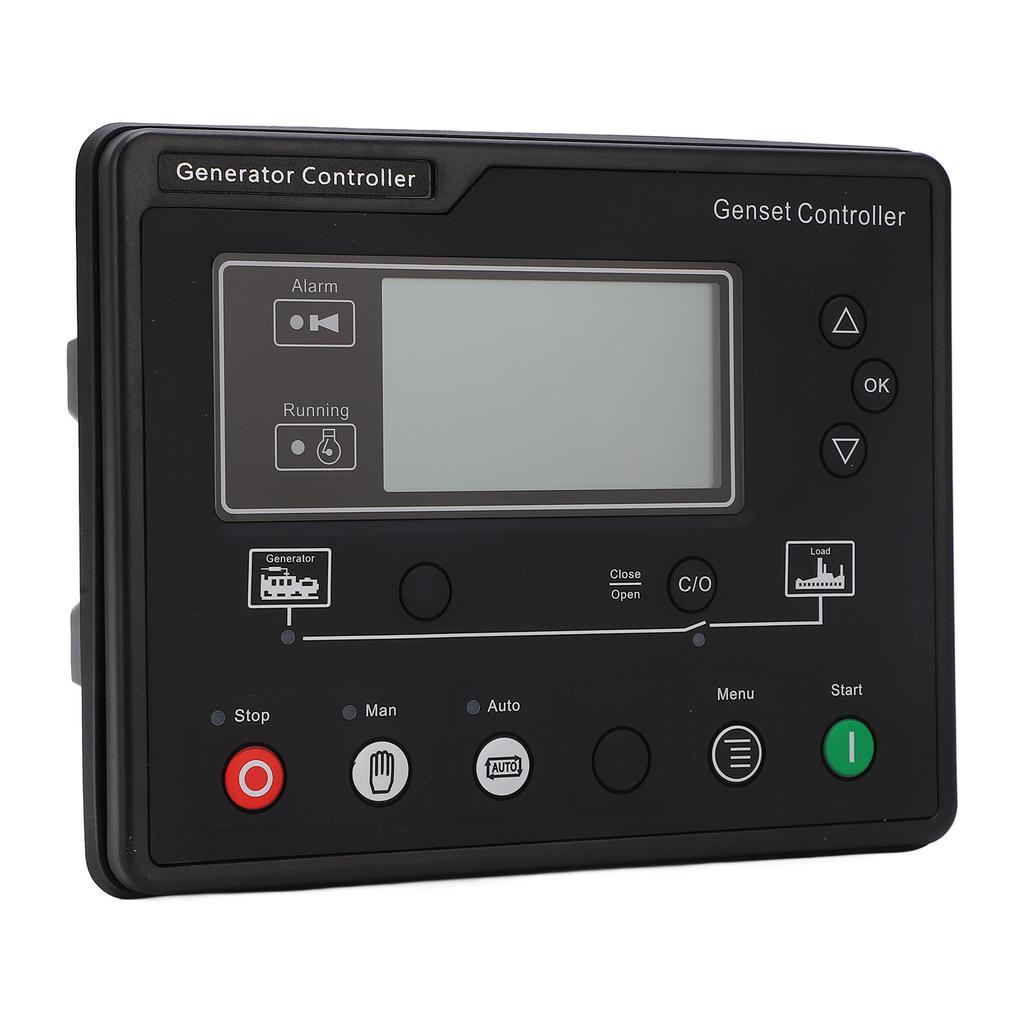

Item Type: Generator Controller
Model: JXG6110U
Material: ABS, Silicone, Acrylic
Supply Voltage: 835V
Display: LCD display, 132x64 resolution, with backlight
Language: 4 language display (Simplified Chinese, English, Spanish and Russian)
Operation: Touch button operation
Protection Class: IP55
Application: Suitable for 3 phase 4 wire, 3 phase 3 wire, single phase 2 wire, 2 phase 3 wire (120V240V) power supply 50Hz60Hz system; collect and display mains, power generation 3 phase voltage, 3 phase current, frequency, power parameters.
Package List:

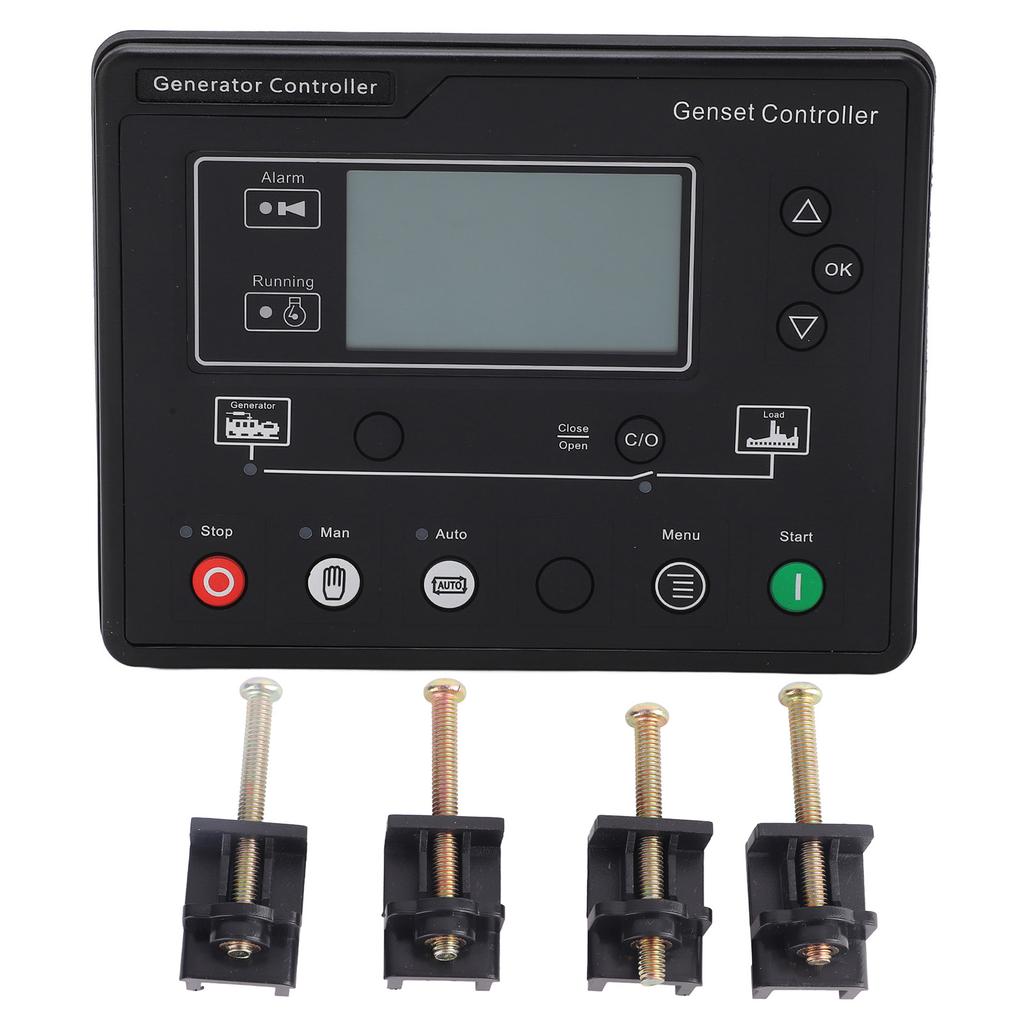

1 x Controller1 x User Manual4 x ScrewsMAIN PURPOSES: Used to realize diesel generator sets automatic startup and shutdown, closing and opening (ATS switching), fault display protection, etc.
MULTIPLE FUNCTIONS: With power on shutdown, idle speed control, preheating control and speed control function, all of which are relay outputs, stable and efficient.
PARAMETER SETTINGS: Allows users to change and memorize parameters, all parameters can be adjusted from the controller front panel, or adjusted via a PC via a programming interface or RS485.
OTHER FEATURES: Multiple temperature, pressure, oil level sensor can be used directly, customizable parameter; multiple successful start conditions (speed sensor, oil pressure, power generation) can be selected.
MODULAR STRUCTURE: The controller is a modular structure design, with pluggable terminals, and adopt embedded installation method, compact structure, convenient and simple.
