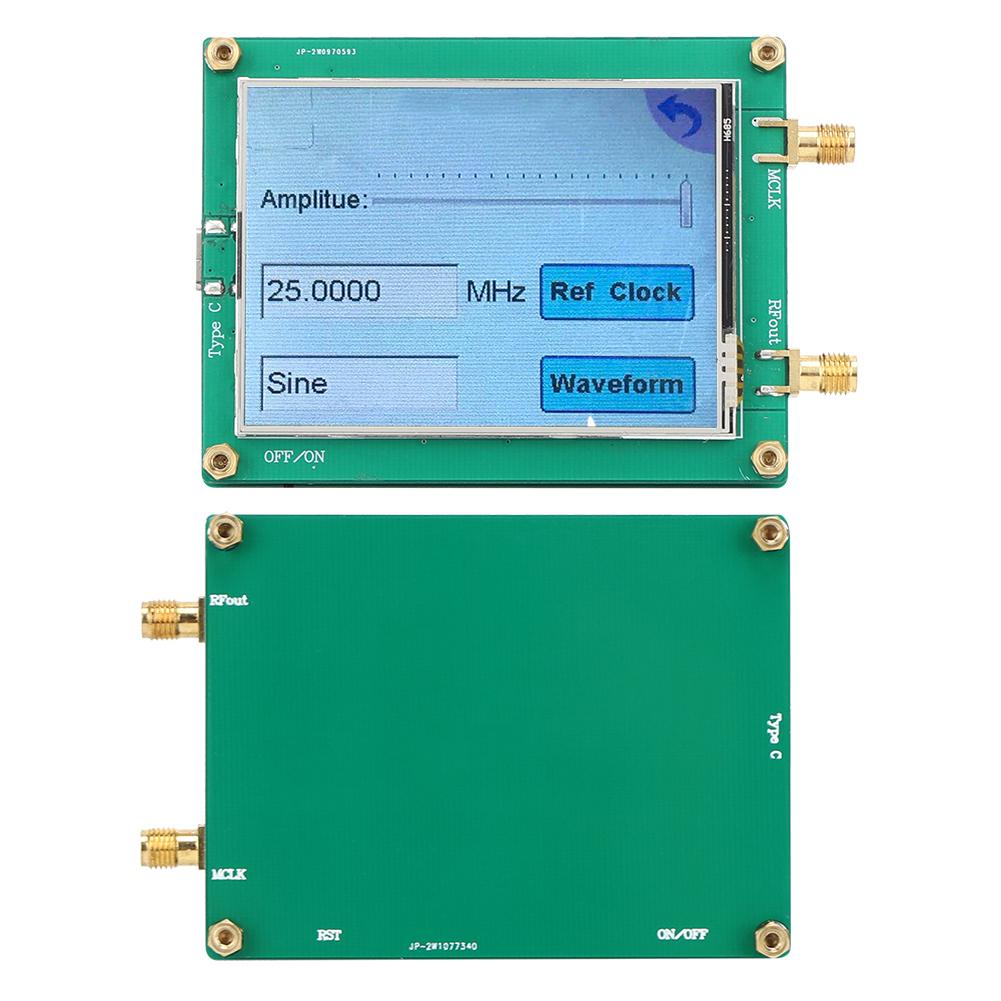

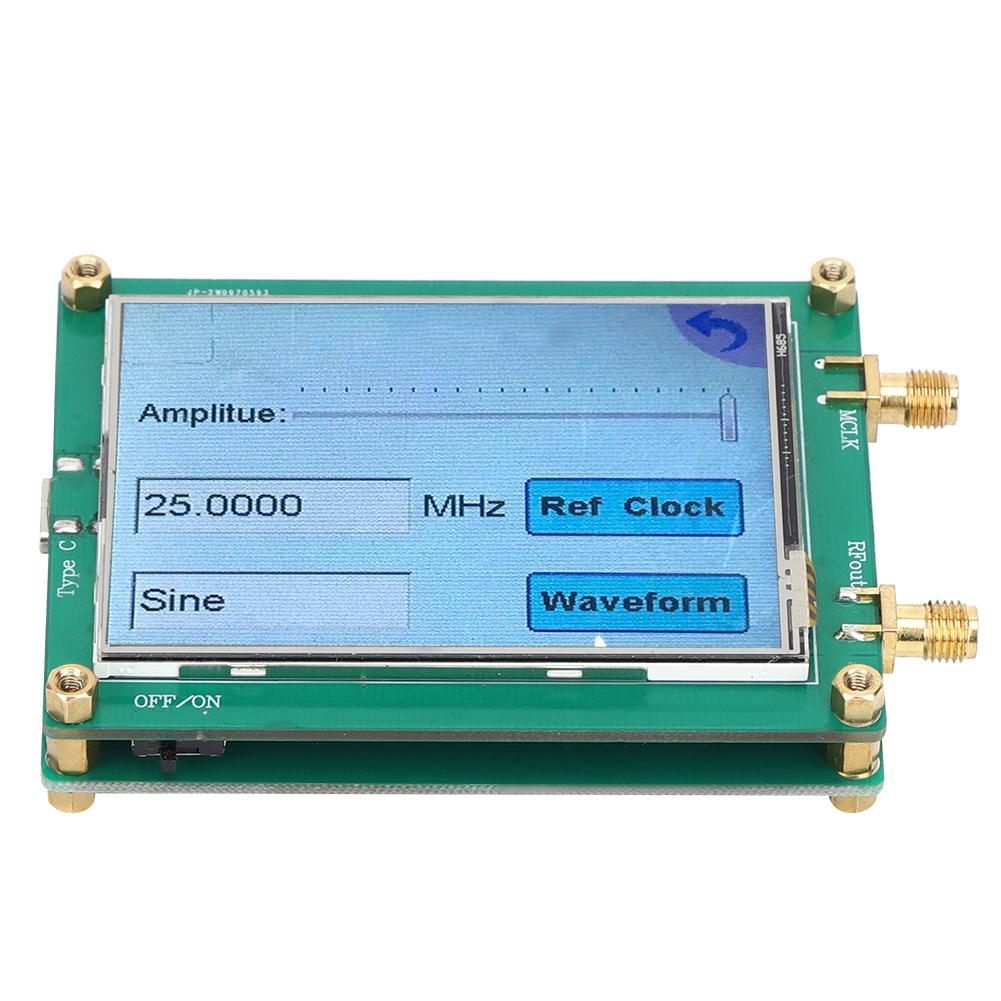

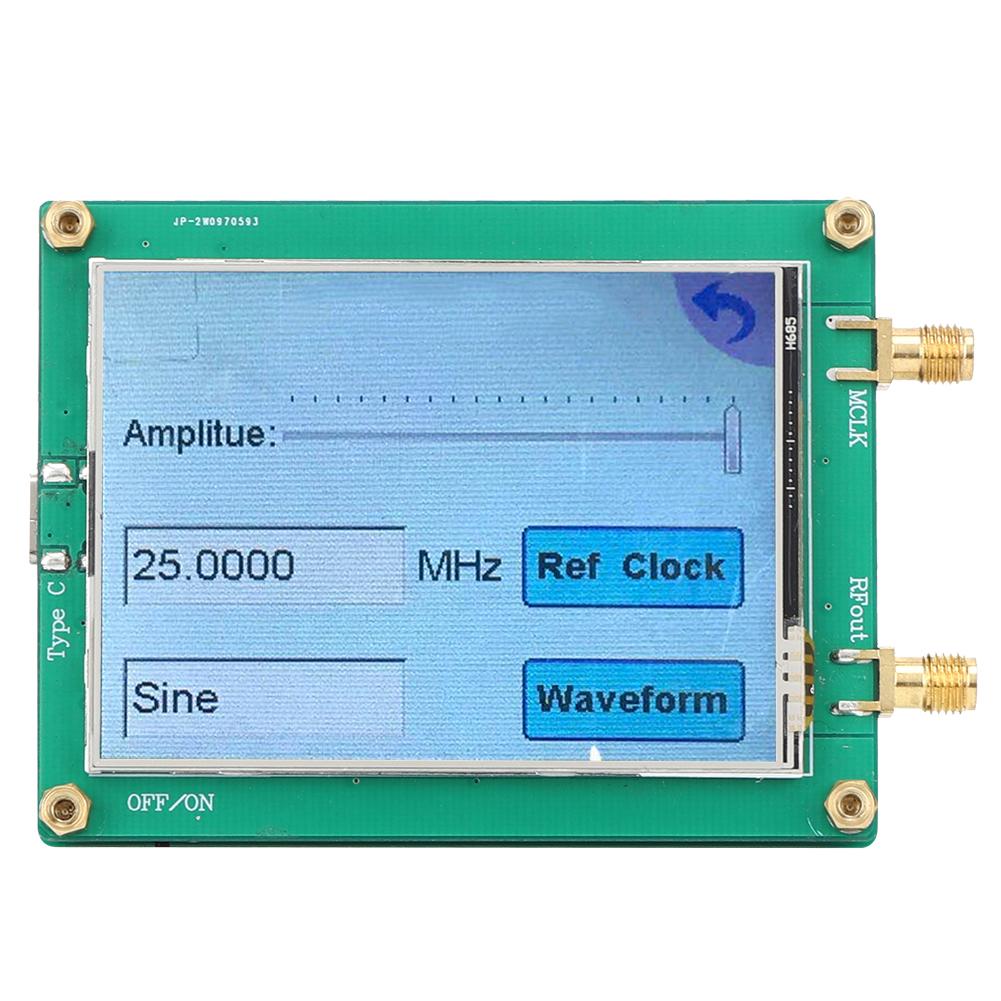

AD9833 TFT Full Touch Screen Signal Generator DDS Source Dot Frequency for Sine Triangle Square

Feature: 1. Adjustable signal generator can make frequency stimulation or waveform generation, which is practical. 2. Also, this DDS generator can measure liquid and air flow, and it is easy to use in life. 3. As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss attenuation, testing and equipment, scan clock generator, time domain reflectometry (TDR) applications. 4. Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software. 5. When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave. Specification: Item Type: DDS Generator Module Features: 1. Power Supply Voltage: Type c interface power supply 5V@0.09A 2. Onboard 25MHZ Active Crystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be connected through threewayequipment. 3. Point Frequency and Frequency Sweep Work: Achieved for full touch screen operation 4. Output Waveform: Sine wave, triangle wave and square wave can be set. 5. Output Amplitude: Sine wave and triangle wave are about 0.6Vpp (can be amplified by external amplifier), the high end of the frequency drops slightly; square wave is about 3Vpp 6. Output Impedance: 200R. It is recommended to add a buffer amplifier when loading 7. Output Frequency: Sine wave about DC3MHz; square wave and triangle wave about DC1MHz 8. Output and External Clock Interface: SMA female seat (outer screw inner hole) 9. The ManMachine Interface with Three Interfaces: Main display, setting interface, and keyboard interface. Full touch control 10. Can communicate with PC through TYPE C interface to provide host computer software . Package List: 1 x Generator 1 x USB Cabjustable signal generator can make frequency stimulation or waveform generation, which is practical. Also, this DDS generator can measure liquid and air flow, and it is easy to use in life. As for sensor applications, the generator can be suitable for proximity, motion and defect detection,Line loss attenuation, testing and equipment, scan clock generator, time domain reflectometry (TDR) applications. Function signal generator enables to communicate with PC through TYPE C interface to provide host computer software. When it comes to the output waveform, this generator can set for sine wave, triangle wave and square wave.
