Feature:
1. Precise Positioning: Adopt high accuracy silent motor algorithm to control the camera stabilizer, precise positioning (+-0.01 degrees ), support ‑170 degrees to +170 degrees horizontal rotation, ‑30 degrees to +90 degrees tilt rotation, omnidirectional shooting, fast and stable rotation, and find the entire space every detail.
2. Suppot Different Models: Support 5 control modes of IR remote controlIPUSB 3.0RS232RS485, support for VISCA, 3 control protocols. Support H.264H.265 encoding, the video is smoother and clearer under low bandwidth conditions. 255 presets, support image flip, USB 3.0 cable plug and play.
3. Noise Reduction Technology: Using 12.8 inch high quality low noise CMOS sensor, it can provide 1080P 60 frame high definition image and video, 20X optical zoom, rich USB3.0IPCVBS video output interface. Adopts 2D and 3D noise reduction technology, low noise, high signal to noise ratio to ensure clear images.
4. Widely Used: Applicable to various scenarios, can be used for live broadcast, online teaching, video conference, video call, distance education, telemedicine, court, media center, etc. A variety of installation methods, support desktop, ceiling, wall, tripod installation.
5. High Compatibility: Supports common video conferencing software and instant chat software on the market, such as ZOOM, Skype, etc. Compatible for Windows XP, for Vista, for 788.110, for OS X 10.4 or higher, and laptops.
Specification:
Item Type: Video Conferencing Camera
Material: ABS+optical glass
Gross Weight: 2500g 88.18oz
Image Sensor: 12.8 inch high quality HD CMOS sensor
Effective Pixels: 2.07 million
Signal System: PALNTSC
Video Output Interface: HD Multimedia InterfaceUSB3.0RJ45CVBS
Video Format: USB3.0 1080P60503025 frames, 720P 60503025 frames
HD Multimedia Interface: 1080P 60503025 frames, 1080I 605059.94 frames, 720P 605059.94 frames,
IP: 1080P 60503025 frames, 1080I 6050 frames, 720P 60503025 frames
Optical Zoom: 20x optical zoom
Viewing Angle: 58.7 degrees (W)-3.2 degrees (T)
Signal to Noise Ratio: more than 50dB
Minimum Illumination: 0.1lx
Gain: Manual
White Balance: AutoIndoorOutdoorOne touchManual
AE Control: automaticmanual
Image Flip: yes
Backlight Compensation: yes
Noise Suppression Function (3D NR): Yes
Control Protocol: For VISCA automatic pairing
Control Interface: RS232RS485 (support infrared transmission and cascade)
Installation Method: formal installation hoisting tripod
PTZ Control of PTZ: IR remote controlIPUSBRS232RS485 5 control methods
Pan Rotation Angle: Pan rotation: +-170 degrees; Tilt rotation: -30 degrees to +90 degrees
PTZ Control Speed: Pan: 0.1-100 degrees sec; Tilt: 0.1-60 degrees sec
Multiple Network Protocols: Support for GBT28181, for RTSP, for RTMP protocols; support RTMP push mode, easy to link streaming media servers (Wowza, FMS); support RTP multicast mode, support network full command VISCA control protocol.
Coding Technology: H.264H.265
Preset Positions: 255
o Interface: 3.5mm Line In
o Encoding Format: AAC, MP3, G711
o Sampling Frequency: support 8000, 16000, 32000, 44100, 48000
Power Supply: US standard 100-240V
Remote Control Battery: AAAx2 (delivered without battery)
.

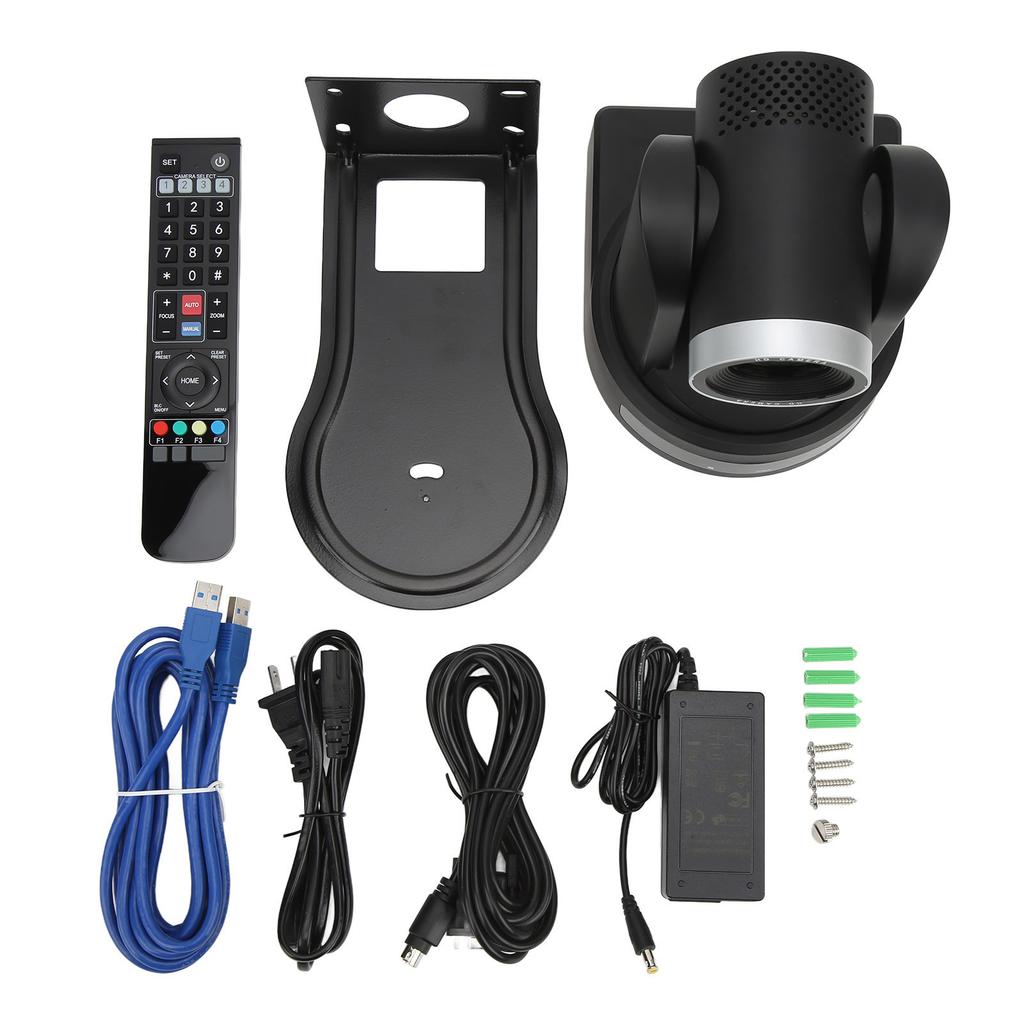

Package List:
1 x Camera1 x Adapter1 x Power Cord1 x Remote Control( Battery Not Included)1 x Mounting Bracket4 x Mounting Screw4 x Install Plastic Fittings1 x 14in Screw1 x USB3.0 Cable1 x RS232 Line1 x Manual
